Work 45 45Nm 100kg Tubular Motor for Rolling Shutter
Technical features for Electric Shutter:
- Pipe diameter: 45mm;
- Limit switch: Mechanical;
- Power supply: 230V / 50Hz;
- Running time: 4min;
- Absorbed power: 290W;
- Ampere: about 0,9;
- Max turns circle: 31;
- Speed rpm: 12 rounds/min;
- Noise level: ≤48;
- Degree of protection: IP44;
- Shutter weight (indicative range): 100kg;
- Torque: 45Nm;
- Supplying cable: 1,5 meter - 4x 0,75.

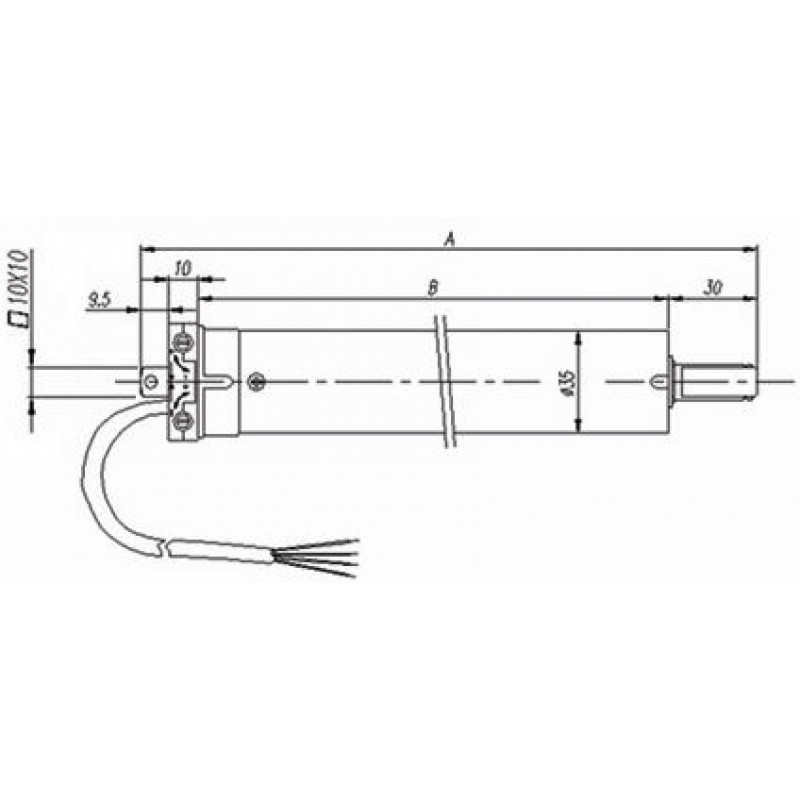

Dimensions: A 57,6cm, B 52,2cm.
Weight: 2,8kg.
The Work line of tubular motors with mechanical limit switch and Ø 45mm, is designed for shutters and awnings.
Complies with EN60335-1-95 and EN60335-2-97 directives / 10-2000.
Certifies CE and TUV.
