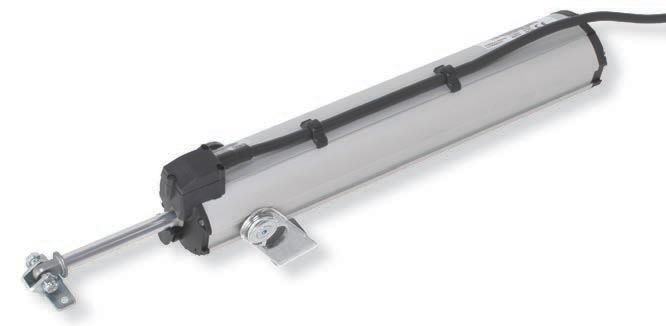

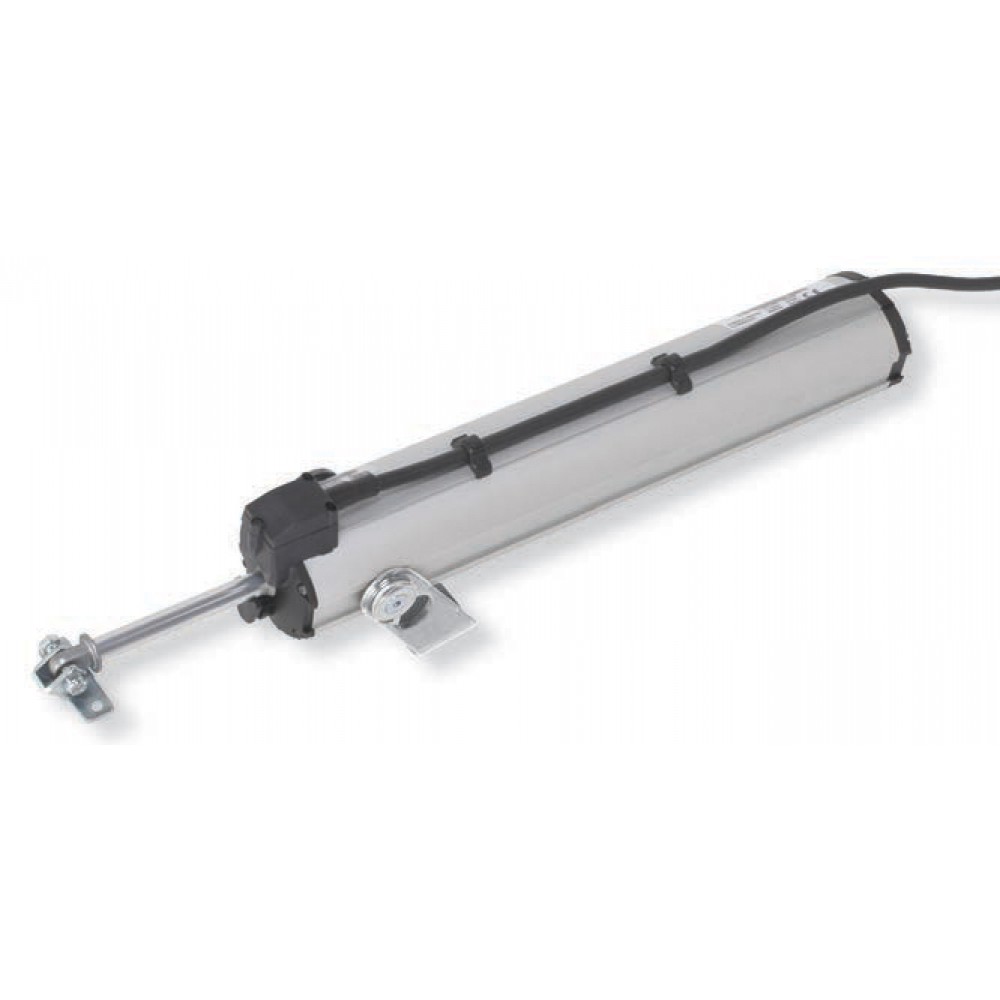

D8 Fce Mingardi - Rod Actuator - Stroke 200-300-400mm (optional)

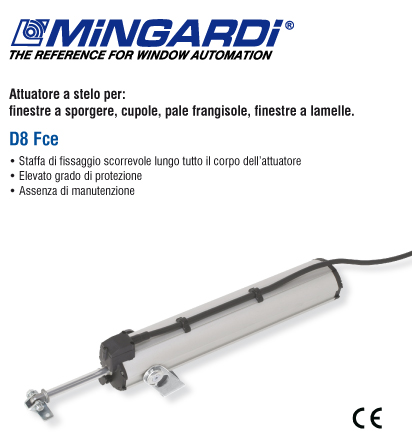

D8 Fce Mingardi, rod actuator for top hinged windows, domes, sunshade blades, louvred windows.
D8 Fce Mingardi Mingardi linear electric actuator with rigid rod movement with high resistance to peak loads.
- Operation with 230V~ / 50Hz power supply voltage.
- Compliant with Directives 2006/95 LVD - 2004/108 EMC.
- Equipped with limit switch microswitches and relays for parallel connection.
- Built-in thermal protection.

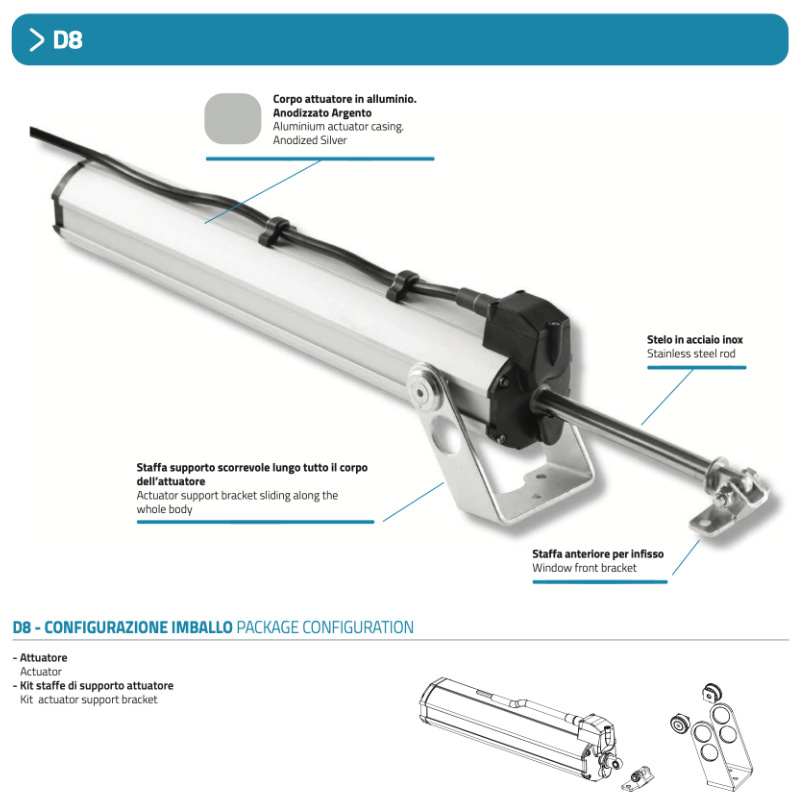

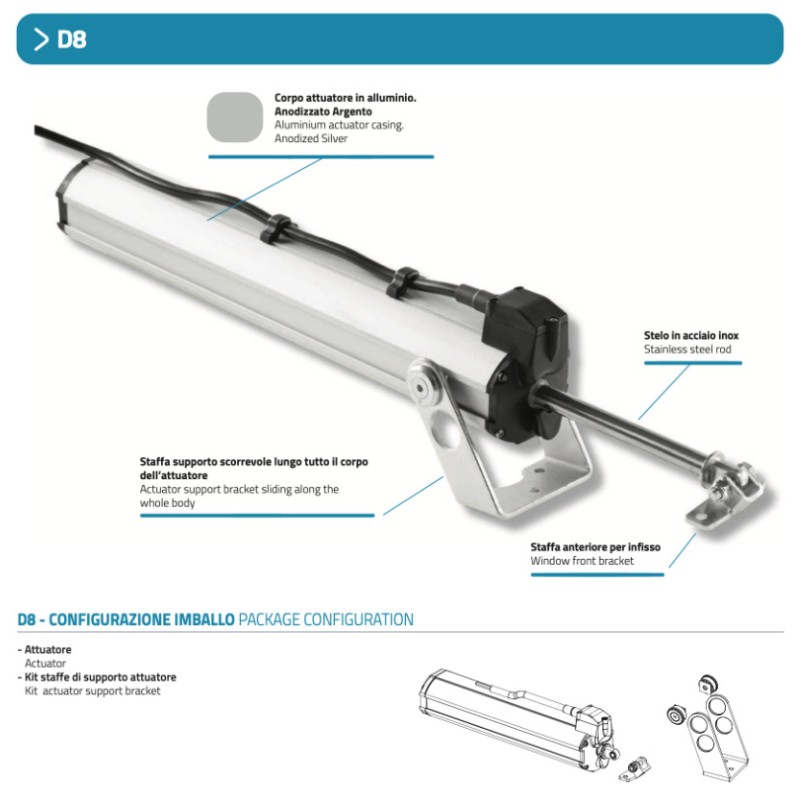

D8 Fce Mingardi rod actuator colour: silver anodized. Complete with fixing accessories.
Features Mingardi D8 Fce 230V Rod Actuator
- Fixing bracket sliding along the whole body of the actuator;
- Absence of maintenance;
- High degree of protection: IP 55;
- Closing - opening limit switch: microswitch;
- Color: anodized silver.
D8 Fce Mingardi Technical Data*
| Code |
Description |
Voltage |
Push Traction |
Race |
Max absorption |
Minimum speed |
A (mm) |
| 2700934 |
D8 200mm - (A) |
230V ~ /50Hz |
500N |
200mm |
175W |
approx. 12mm/s |
318.8 |
| 2700933 |
D8 300mm - (A) |
230V ~ /50Hz |
500N |
300mm |
175W |
approx. 12mm/s |
418.8 |
| 2713834 |
D8 400mm - (A) |
230V ~ /50Hz |
500N |
400mm |
175W |
approx. 12mm/s |
518.8 |
*The performance values shown in the table are verified at a temperature of -10°C/+40°C, with a maximum relative humidity of 60%.

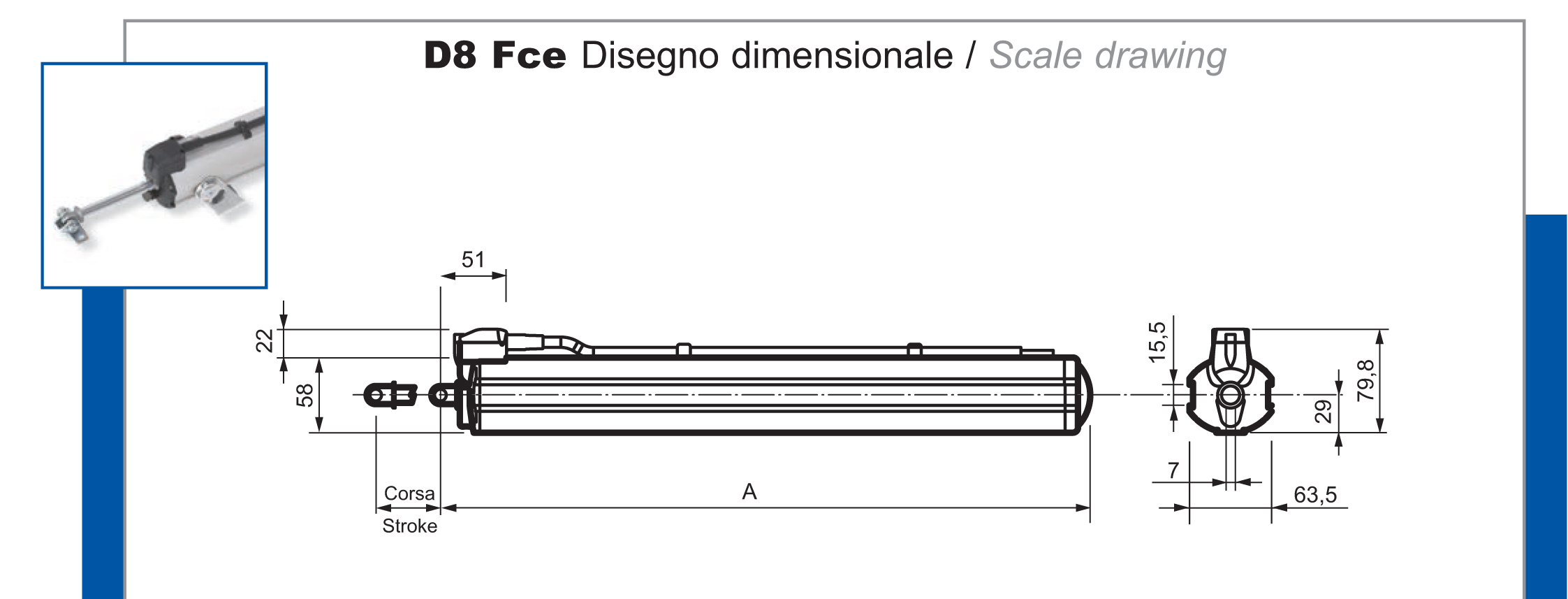

Stroke/Length D8 Fce Mingardi: 200mm (H:318,8mm), 300 (H:418,8mm), 400 (H:518,8mm).
Mingardi actuators and best Made in Italy solutions
Founded in 1968, Mingardi is synonymous with quality motorization for doors and windows, for ventilation and smoke evacuation in the event of a fire.
Mingardi actuators are
produced in Italy by the company Window Automation Industry Srl.
