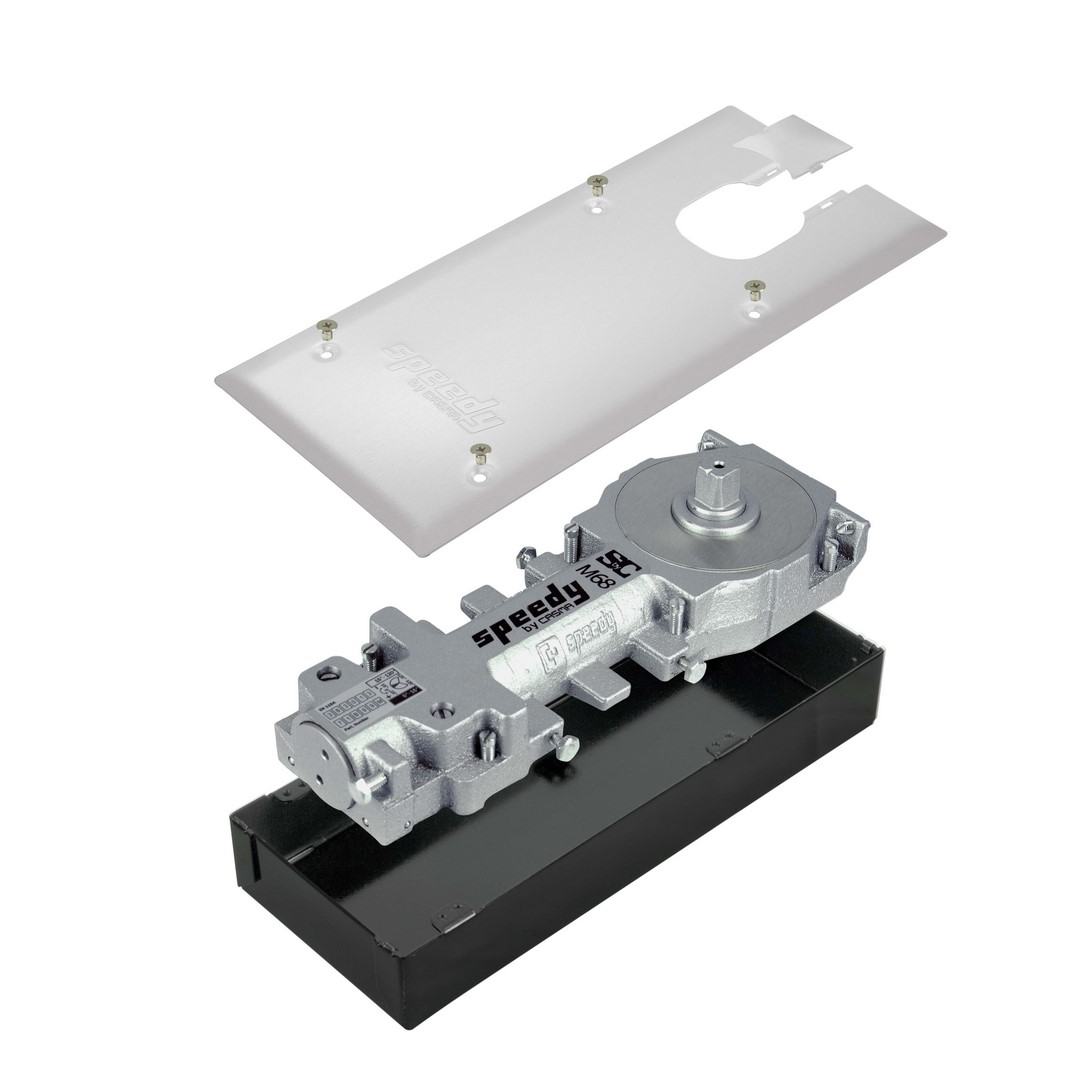

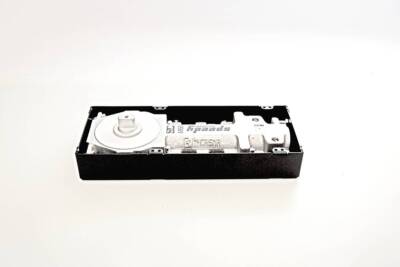

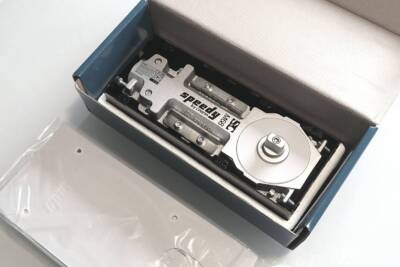

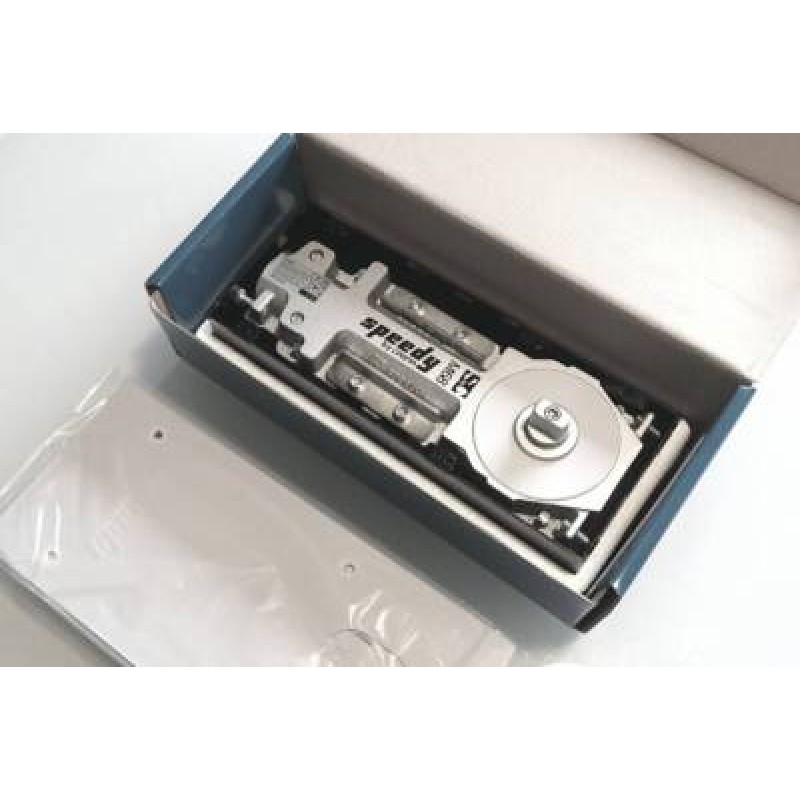

Speedy M68 Casma stainless steel floor door closer
Speedy M68 Casma SpeedyByCasma floor mounted interior door closer.
Please indicate
by email when ordering which
type of pin you need for the Casma door closer. If you do not write anything, we will insert the standard one for your country.
Description Speedy M68 Floor mounted door closer
Speedy "entry lever" door closer that offers a good price in relation to its performance.
Speedy M68 is the door closer suitable for:
- Installations where a minimum depth of break is required;
- Indoor installations with underfloor heating;
- Installations with structural reinforcements in the slab.
Door closer not suitable for:
- Places with a high frequency of passage (due to the small size of the piston).
Technical data Speedy M68 Casma
- Force preconfigured by the manufacturer : EN1154-3 (red force);
- Lid with fixing : box to be cemented;
- Dimensions of the box to be cemented : 110 x 280 x 43 mm;
- Lid material : stainless steel;
- Stop preconfigured by the manufacturer : 90°;
- Pin : square;
- Maximum external door width : less than 950 mm
- Standard door weight : 100 kg;
- Stroke lock and mechanical hardening : 100 kg;
- Standard travel block : 120°.
Center distance of the Speedy M68 door closer
A) With the box leaning against the wall, the door closer can be adjusted by acting on the appropriate screws, and varies from 56 to 68 mm.
B) In the case of greater center distances, the box moved from the wall must be cemented. For example, for a center distance of 68-70 mm, the box must be moved 9 mm from the wall.
(TO)
(B)
Firm variants on request
The door closer is sold with a standard 120° stop.
Contact us to get the door closer with a different latch (see diagram).
Speedy M68 installation
7 screws ensure effective locking inside the box to be cemented.
It is supplied Supplied with a stainless steel ring of the same finish as the lid which guarantees continuity of finish.
Two completely independent oil circuits for programming the desired closing speeds with two regulating valves. One of approx. 115° to 15° and the other from approx. 15° to 0°.
The fixing of the cover to the box to be cemented with two predefined positions allows the Install the door lock with any rotation center distance without having to modify the cover on site.
UNI EN 1154 certified
Speedy respects the European regulation UNI EN 1154.
Download the certificate by clicking on the "Documents" panel.
Speedy Casma has been synonymous with Italian door closers since 1942
Speedy are completely designed and produced in Italy using the highest quality materials and components. Speedy are the most reliable floor door closers on the market that can be used in any installation.
