Aprimatic ST 450N 230V Rod Actuator for Domes

Aprimatic
Brands: Aprimatic
Code: 43545
€ 81,89
Prices excluding VAT
Are you looking for a product of Aprimatic catalog not present on our site? Contact us and ask for a quote.
Availability: available in stock

- +

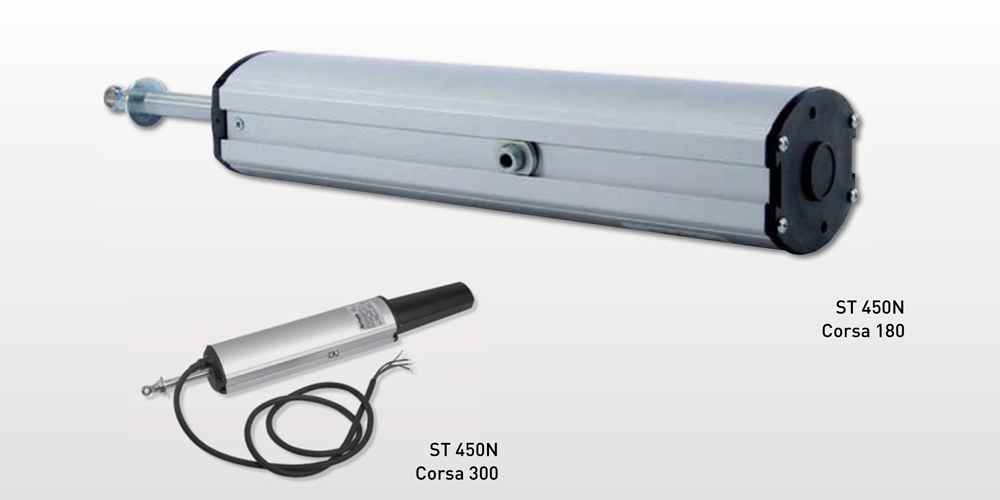

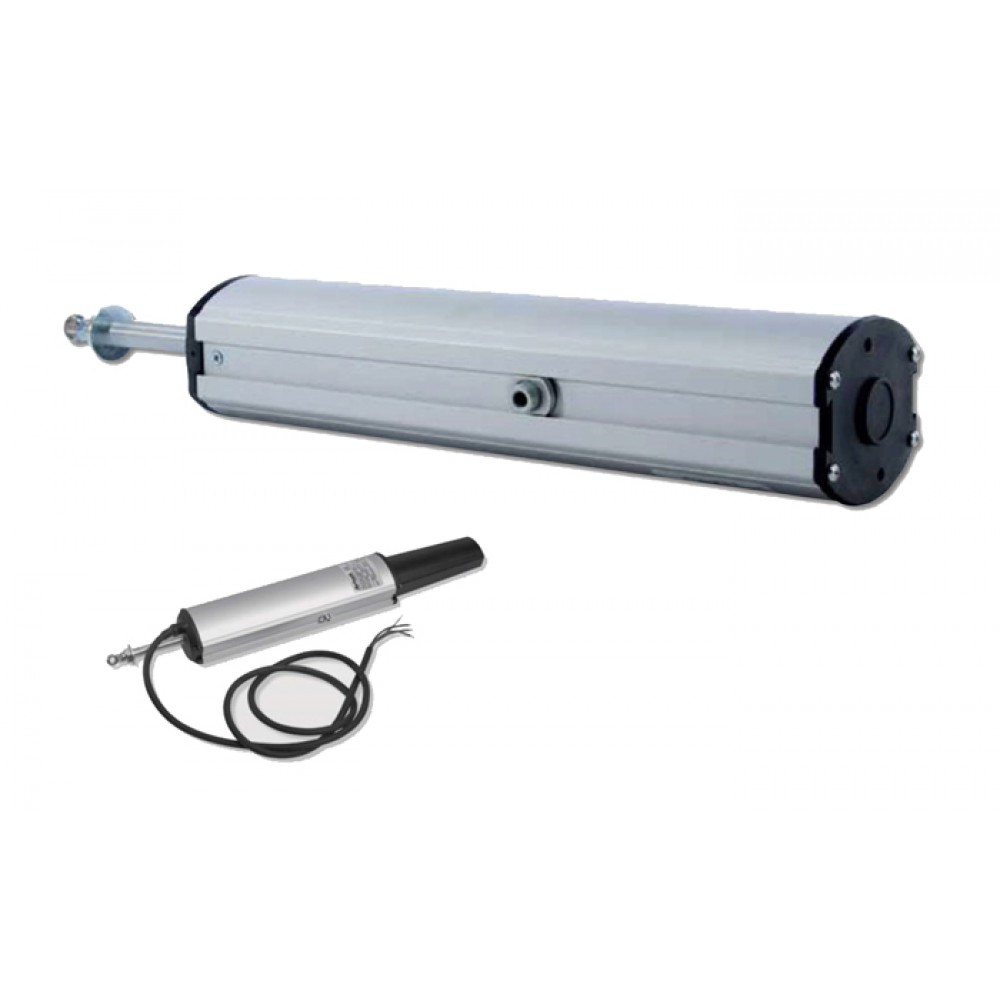

Rod Actuator - Aprimatic ST 450N 230V - Stroke 180-300mm - with Fixing Accessories

Aprimatic ST 450N 230V rod actuator for domes, sunshade blades, louvred windows, hinged windows


ST 450 N Aprimatic attuatore a stelo per cupole



TECHNICAL DATA Aprimatic ST 450N Rod Actuator:

  • POWER SUPPLY: 230 Vac - 50 Hz;
  • POWER CONSUMPTION: 150W;
  • ABSORBED CURRENT: 0.70 A;
  • MAX PUSH AND TRACTION FORCE: 450 N;
  • MAX. STROKE: mm 180 - 300 (optional);
  • AUTOMATIC LIMIT SWITCH: YES;
  • PARALLEL CONNECTABLE: YES;
  • THERMAL PROTECTION: YES;
  • CAPACITOR: 1 for 5 μF;
  • BUILT-IN RELAY: YES;
  • PROTECTION DEGREE: IP55 (internal use).

Innovative limit switch detection system without moving mechanical parts: further increases the reliability of the product in any condition of use.

Small dimensions for a better aesthetic insertion in the architectural structure.

Quietness and speed are two strong points of the ST 450N actuator.

Can be connected in parallel thanks to the use of the relay incorporated in the card.

Electric actuator in aluminum casing with linear motion with rigid stem.

Operation at 230 Vac thermally protected.
Available accessory: End of stroke adjustment kit (sold separately).
Provided with reed switch system without moving mechanical parts.

Supplied with brackets and supports for the required application.

utilizzo aprimatic st 450 n



Choose the Aprimatic brand rod actuators, champion of automation

Aprimatic is the reference company, in Italy and in Europe, for gate automation systems. The experience gained in two decades of presence on the market and the very high know-how of designers, technicians, testers and consultants guarantees the customer high performance, product reliability and maintenance of value over time.

Today the Aprimatic brand is present on all types of automation systems, thanks to a complete offer that covers possible application areas with solutions suitable for residential, commercial, industrial contexts and for public areas.

Precise ideas, innovation, dedication, perseverance, but above all passion for a constantly evolving business are Aprimatic's guidelines.
