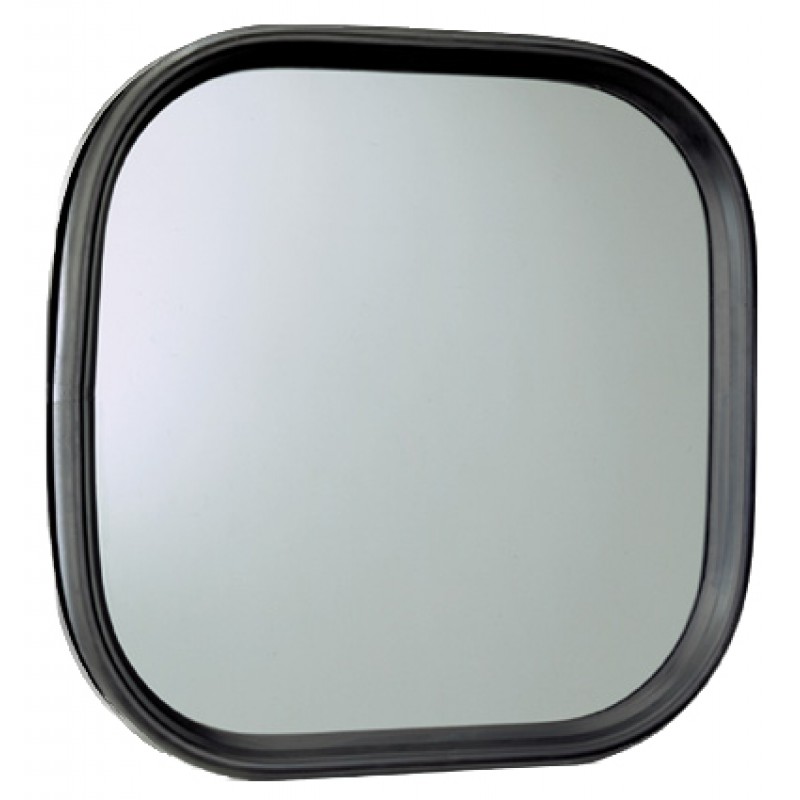

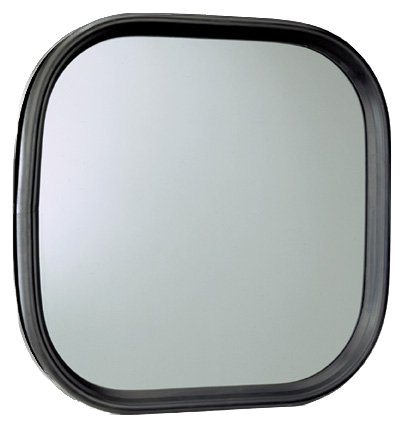

Porthole Big Rubber Square Plexiglass Colombo
R = 150mm
MEASURES (mm):
750x750, 550x550, 450x450.

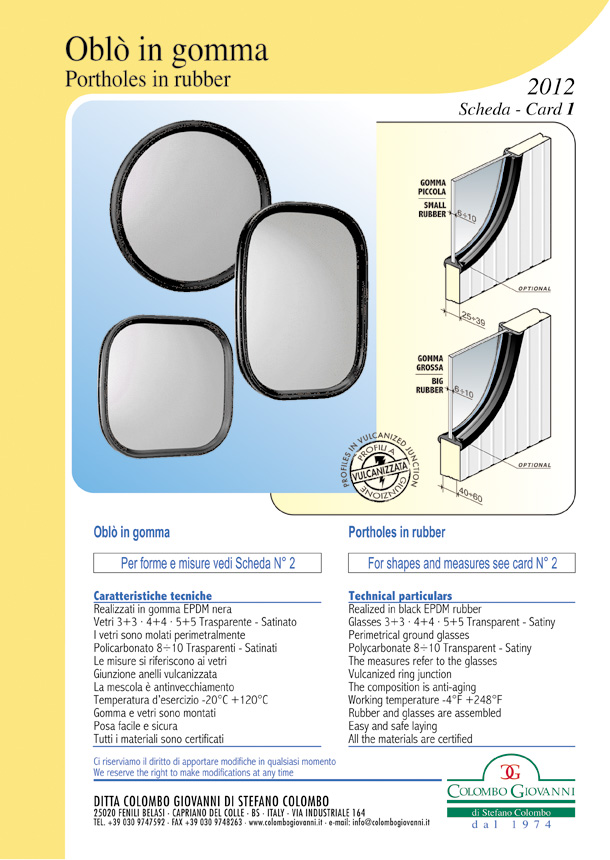

TECHNICAL CHARACTERISTICS:
- Realized in black EPDM rubber;
- Plexiglass: trasparent or satiny;
- Black vulcanized ring junction;
- Anti-aging composition;
- Rubber and plexiglasses are assembled;
- Big rubber (panel 40-60mm).
The measures refer to the glasses.
Rubber and glasses are assembled: easy and safe laying.
All the materials are certified.

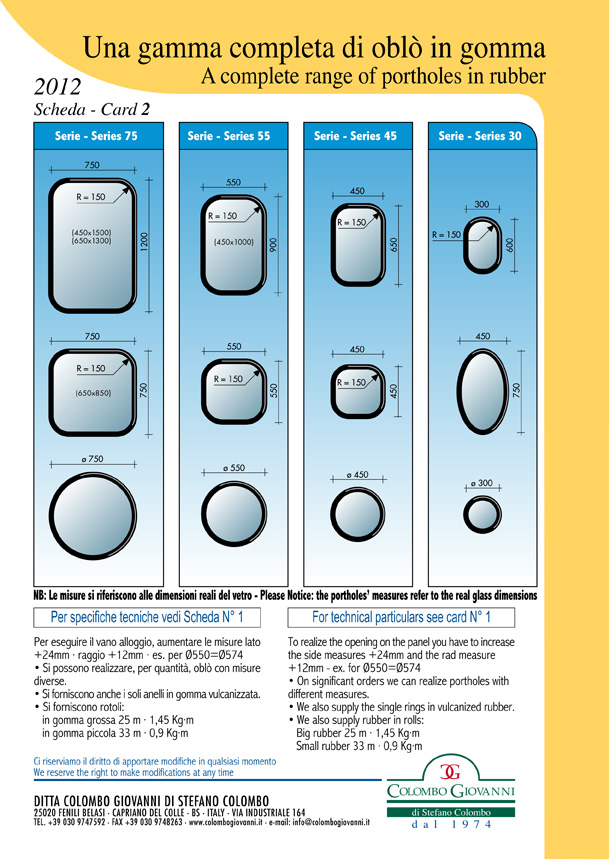

To realize the opening on the panel you have to increase the side measures +24mm and the rad measure +12mm. For example Ø550=Ø574.
