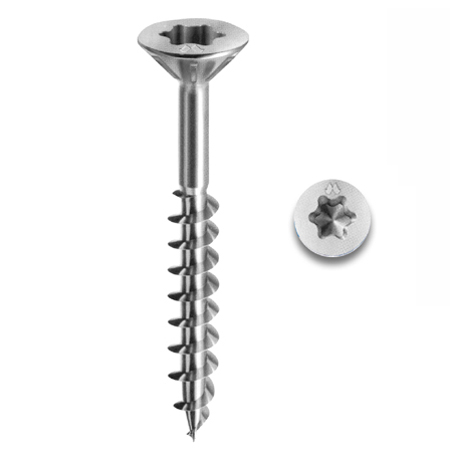

Mustad PF TX Panelvit Universal Chromiting Screw Box
PF Partially Threaded - TX Recess - TSP Countersunk Head
Lubricated screw recommended for fastening hard or thick wood.
Applications in carpentry and constructions and for building timber structures.
CHROMITING
White, iridescent. Salt spray corrosion resistance: > 240 h (appearance of red rust) conforming to grade 4 of EN 1670. RoHS compatible.
Very high corrosion resistance; suitable for outdoor use, in very severe conditions.
You can choose the characteristics (diameter and length) of the screw that you are looking for:
Screw diameter (mm): Ø (your choice).
Length (mm) / number of screws in the package: choose the screw length and you can see the number of pieces in the package.
The screwing force is entirely transferred by the very deep, vertical wall TX head. This avoids stripping of the bit and wear of the recess.
Only three tools to screw all the range:
Diameter 3 T10 Recess
Diameter 3,5 - 4 - 4,5 - 5 T20 Recess
Diameter 6 T30 Recess
Self-countersinking ribs under the head perform a milling action during tightening and create a housing for the screw for a perfectly flushed alignment with the surface of the material.
The smooth portion of the shank - 40% of the screw length - provides a pulling effect on the two parts to obtain correct alignment.
CASE HARDENING TREATMENT
This confers two properties to the screw:
- very hard surface for biting into the fibres of the hardest
wood;
- tough, elastic core, needed to avoid breakage of screws.
CHROMITING PROTECTIVE TREATMENT
This iridescent white treatment guarantees a much better rust protection than normal galvanisation treatments.
LUBRICATION
Mustad antifriction treatment for reducing
COMMERCIAL BOX
- Drawer-like opening, can be closed again after use;
- Possibility of picking content from stacked boxes;
- All boxes are the same width for tidier storage;
- High crushing strength.
MUSTAD: A TRADEMARK OF QUALITY AND SAFETY
All Mustad screws are manufactured in Italy and bear the Company trademark on the head to ensure their origin.
High quality standards maintained constant over time guarantee screws suitable for automatic or critical assembly.
