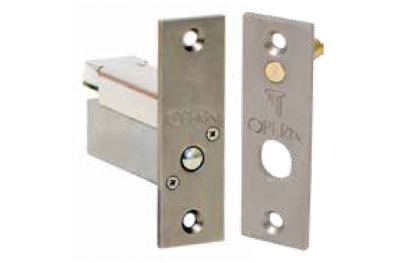

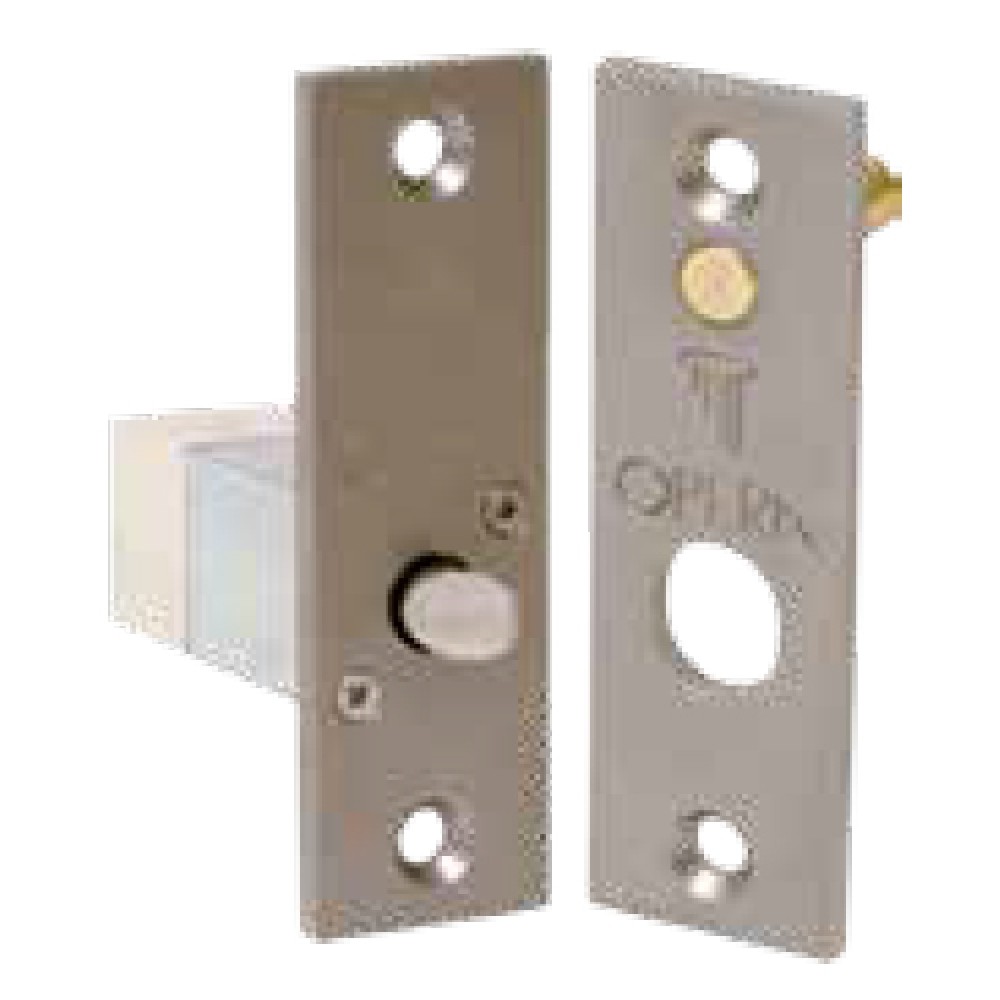

Micro Solenoid Lock with Latch for Display Cabinets - Closed Without Power - 20911XS-12 Quadra Opera
The
20911XS-12 micro electropiston from the Quadra Opera Series is a compact and professional solution, perfect for applications on display cabinets and small doors.
Safe Lock Without Power – Ensures the device remains closed in the event of a power failure, providing an additional level of security.
Thanks to its
small size and robust construction , this electro-piston is ideal for display cabinets, designer furniture and small locking systems where a discreet but highly reliable device is required.
With a combination of build quality and high performance, the Opera micro electropiston represents an excellent choice for professional and safe solutions in the field of electronic locks.
Electropiston power supply Work of your choice
- 12 V without magnetic sensor
- 24 V without magnetic sensor
Features of the Opera micro solenoid
- Closed when no power is available.

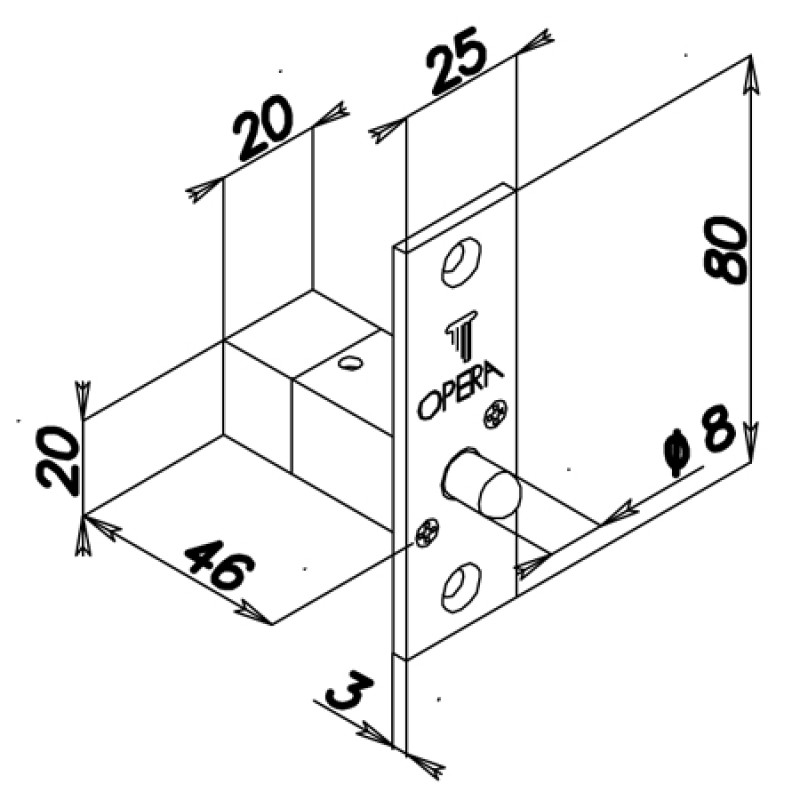

- Stainless steel front mm. 80 x 25 x 3.
- Stainless steel counterplate mm. 80 x 25 x 3.
- Latch diameter 8 mm, extension 8 mm.
- Power supply: 12 Vdc/400 mA or 24 Vdc/200 mA - ED 100%.
- Operation: horizontal (vertical on request).
IMPORTANT - The Quadra Micro series electrolocks, due to the high operating temperatures, are not suitable for mounting on wooden or PVC doors.
Quadra Series Opera Electropiston
- Horizontal safety solenoids.
- Applicable on doors and shutters.
- Micro version for application on shop windows and windows.
- Manual operation with European cylinder.
- Easy to install.
Electropiston Opera Operating Access
