Improve the thermal break subframe of windows with the PVC profile Klima PosaClima

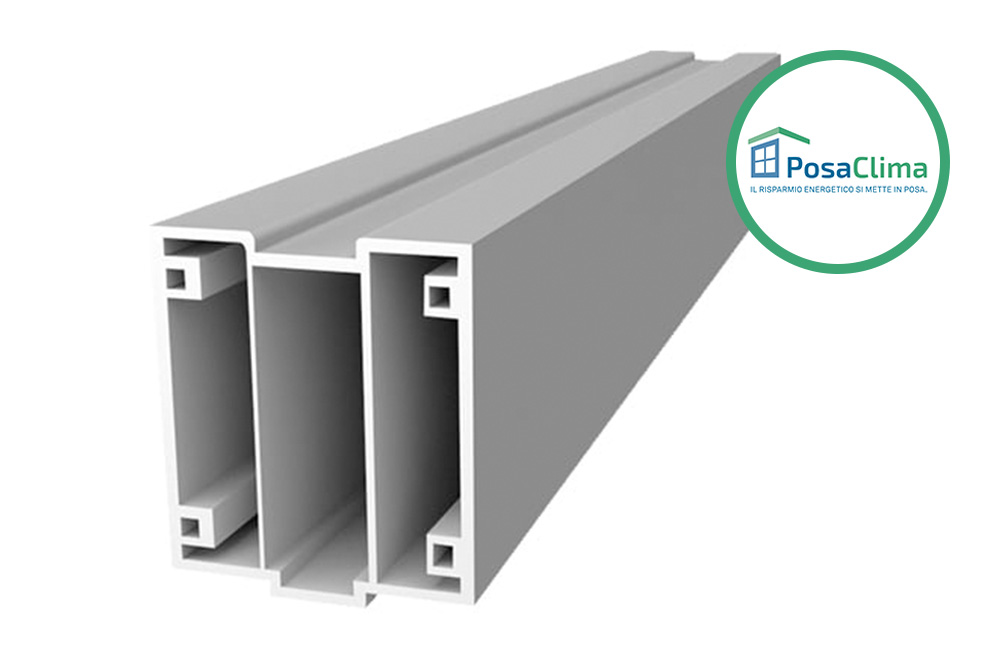

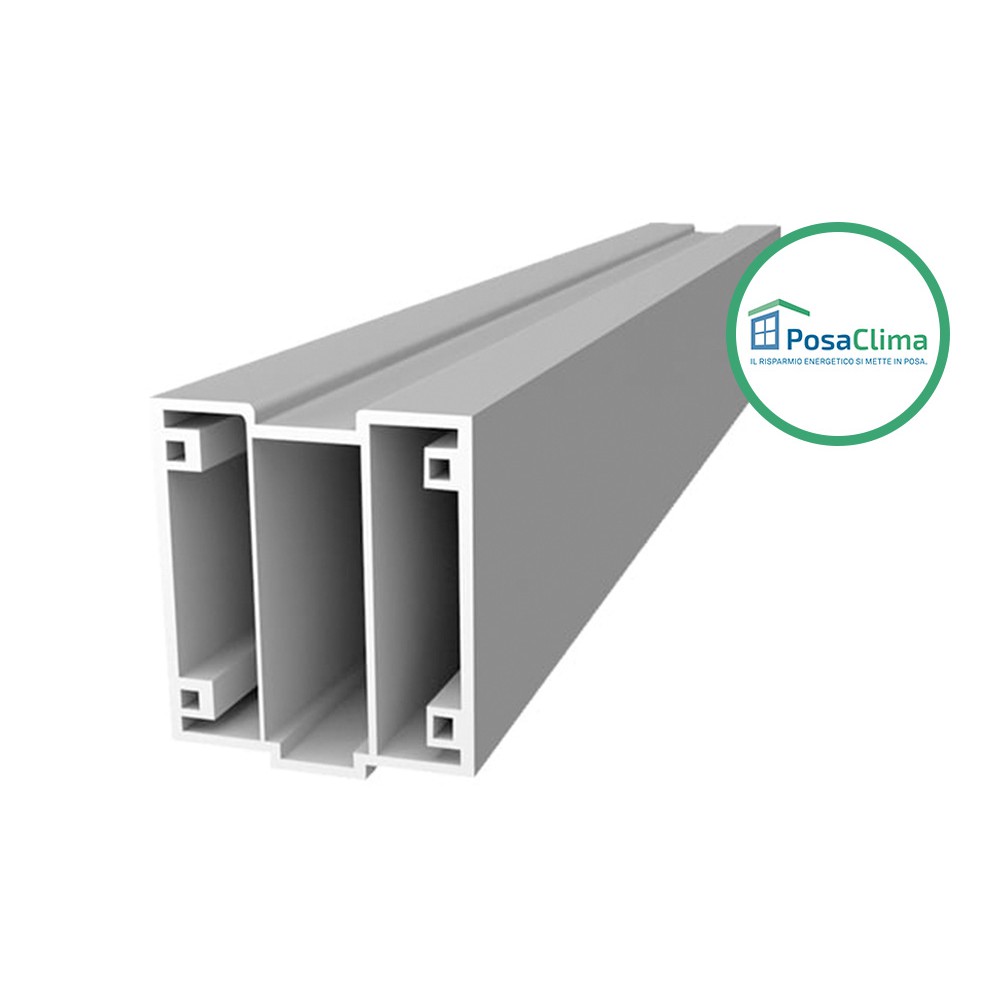

40x45 mm PVC extruded box profile for thermal subframe
The lower Klima crosspiece is made with an extruded PVC box profile to have more rigidity and impact resistance at the same time. It is designed with internal ribs to the profile to accommodate the fixing screws. The section is divided into 3 chambers to have a more effective thermal break and greater resistance to foot traffic: in fact it is “walkable”.
The profile has a shape that allows you to overlap several pieces in order to increase the thickness of the lower crosspiece when necessary and to build a real thermal break on the French windows: its result in terms of thermal insulation is exceptional.
The section is 40x45 mm while the length of the bars is 300 cm. This cross member must be fixed with the special brackets directly to the sides of the subframe (code KLTRAVP100).
Dimensions
- Measures 40 x 45 mm
- Bars length 3 m
PVC profile Klima PosaClima: this is how the thermal system of windows works
The lower Klima crosspiece is used in the subframes of the Posaclima system for the construction of the 4th side with thermal break in the subframes for external doors and windows.
Advantages of the Klima profile for thermal break of windows
- Smooth surface particularly suitable for the application of sealing materials and air and vapor sealing film;
- It does not deform , does not rot if it comes into contact with rain or if exposed to high humidity situations (eg new walls);
- Excellent resistance to salt and corrosive agents (plasters, etc.);
- Great speed and ease of assembly;
- Easy handling thanks to low weight;
- Absence of metal protrusions that avoid any injury in handling;
- It works with the same tools as wood but does not crack or splinter;
- It is easily reached and therefore avoids waste;
- Walkable , you can walk on it.
Certifications and performances
- Specific weight - ISO 1183 - 1,5 gr / cm³
- Hardness - ISO 868 - 80 Shore D
- Tensile strength - ISO 137 - 35 N / mm²
- Elongation at break - ISO 37 - 100%
- VICAT grade 1 Kg - ISO 306 -> = 80 ° C
- Flammability - UL 94 - Class V0
- Coefficient of linear expansion - ISO 11359-2 - 7.1 10-5 K-1
- Maximum operating temperature -10 ° C + 50 ° C
- Thermal conductivity - 0.17 W / mK
PosaClima: the best thermal system for windows
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
