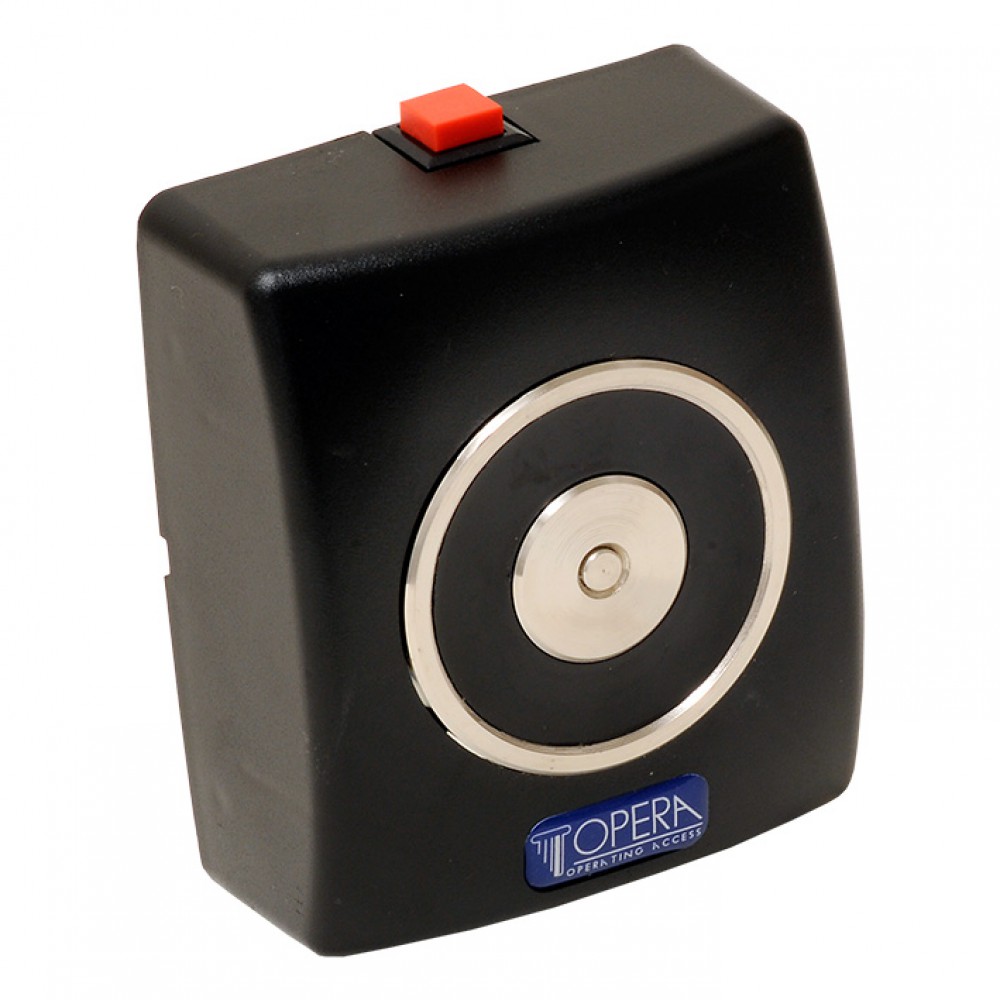

Black Holding Electromagnet with Release Button 19001 Opera
Holding electromagnet for swing fire doors.
Black Holding Electromagnet Version
- With release button
- Wall fixing
By choice
- Standard : as description below
- Adjustable strength : from 10-50 Kg (prevents the magnet from detaching from the wall after repeated misuse)
- Double power supply : automatic selection 24/48 Vdc (useful for the French market)
- Adjustable force + Dual power
Technical features Black Holding Electromagnet
- Body in ABS with base in galvanized steel
- Nickel plated electromagnet block
- Power supply: 24 Vdc - Absorbed current: 70 mA
- Fixed traction force: > 55 Kg
- Residual anti-magnetism pin on the electromagnet body
- Connection connector with anti-interference varistor
Holding electromagnet
compliance : UNI EN 1155.
On request
Contact us to add variants:
- 12 Vdc power supply
- 12 Vac power supply
- 24 Vac power supply
- 48 Vdc power supply
- Reduced force 20 Kg
- Status sensor
IMPORTANT
Holding electromagnet supplied without counterplate.
The counterplate can be purchased on our website. Choose between:
- Fixed Counterplate (Art. 01800Z Opera)
- Articulated counterplate (Art. 01805Z Opera).
Fire Control Series Opera
- Holding electromagnets for fire doors
- Regulators for sliding fire doors
- Hydraulic shock absorbers
- Single-zone fire alarm control panels
- Smoke and heat detectors
Opera holding electromagnets
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, in Emilia Romagna, land of food and engines. All the management of the company comes from the experience of Corni locks which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.
Opera products are Made in Italy
Over 40% of our turnover is made abroad, but 90% of our suppliers are local. Almost all of the products are manufactured in our modern industrial plant, with technologies that respect the environment and work quality. We are proud to produce and live in Modena, a town in northern Italy which has been a UNESCO World Heritage Site since 1997.
