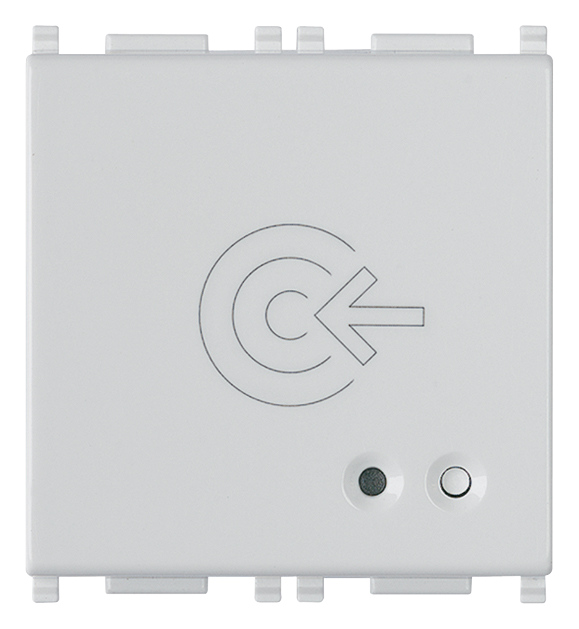

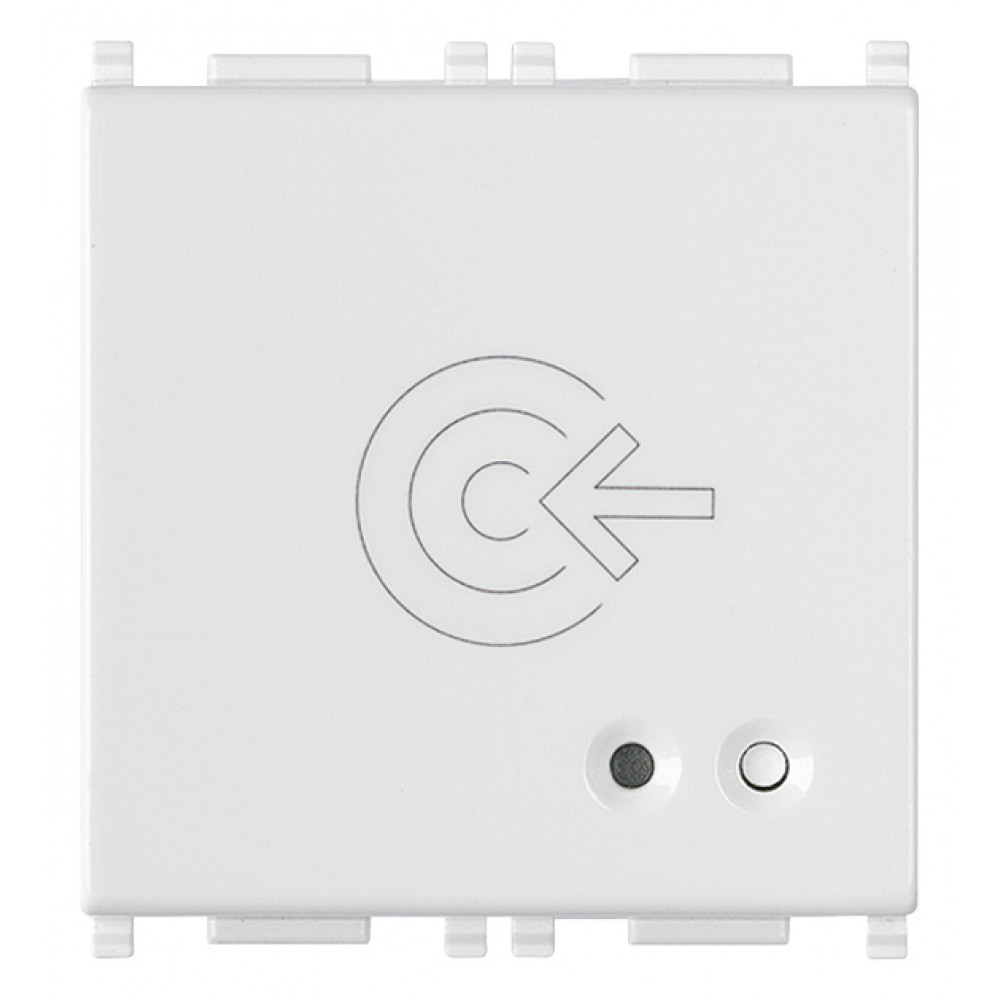

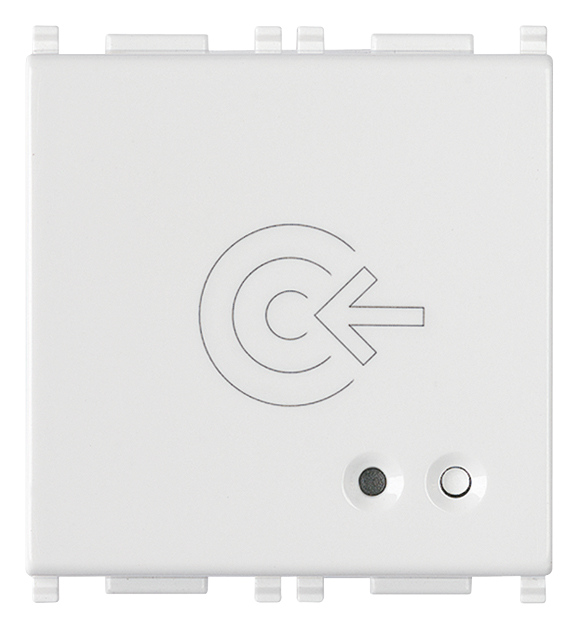

Plana connected outer switch - NFC / RFID IoT - White or Silver 14462 Vimar
Outdoor NFC / RFID smart card reader , card configuration using
App View Wireless standard Bluetooth technology , IoT technology based on Bluetooth technology 5.0 standard for creating View Wireless mesh system, 1 relay output NO 16 A 100-240 V ~ 50/60 Hz, 1 DND input, LED with intensity regulation, power supply 100-240 V ~ 50/60 Hz, white or silver - 2 modules.
The
connected Plana Vimar landing is to be installed outside and near an
opening (for example a hotel room, an office, etc.) and allows access only if the
smart card associated with it is read and recognized.
Using a smartphone or tablet, the Plana civil series reader can be configured with Bluetooth technology using the View Wireless app and can be remotely supervised by installing the gateway 20597-19597-16497-14597. It is able to communicate with the pocket 20467-19467-14467 (associated in the configuration phase) to manage the users of the same room.
Features outside the door 14462 Plana Vimar
- Power supply voltage: 100-240 V ~, 50/60 Hz;
- Max power absorbed by the network: 1.1 W;
- RFID technology @ 13.56 MHz, Mifare ISO14443A standard;
- Frequency range: 13.553-13.567MHz;
- Transmitted RF power: <60 dBμA / m.
- Terminals: L and N for power supply;
- Relay output 16 A 240 V ~ C-NO (NO SELV);
- Input for DND (Do Not Disturb) signaling via front LED (not isolated);
- 1 configuration button;
- RGB LED for device status signaling;
- Operating temperature: -5 ° C - +45 ° C (indoor use);
- Degree of protection: IP20;
- Configuration from App View Wireless for Bluetooth technology system;
- Frequency range: 2400-2483.5 MHz;
- Transmitted RF power: <100mW (20dBm).
Landing technical data for Plana Vimar 14462 series
- Group: alarm, emergency call and signaling systems;
- Class: access control system;
- Stand-alone: Yes;
- Networkable: No;
- PC connection: No;
- Interface Type: others;
- Max number of people: 200;
- Reading method: code;
- Signal output: light signal;
- Mounting Type: Recessed;
- Operating voltage for AC 50 Hz: 230.00 - 230.01 v;
- Operating voltage for AC 60 Hz: 230.00 - 230.01 v;
- Operating voltage for DC: 0.00v;
- Degree of protection (IP): IP20;
- Color: white or silver;
- Execution: reader;
- Material: plastic;
- Power over Ethernet: others;

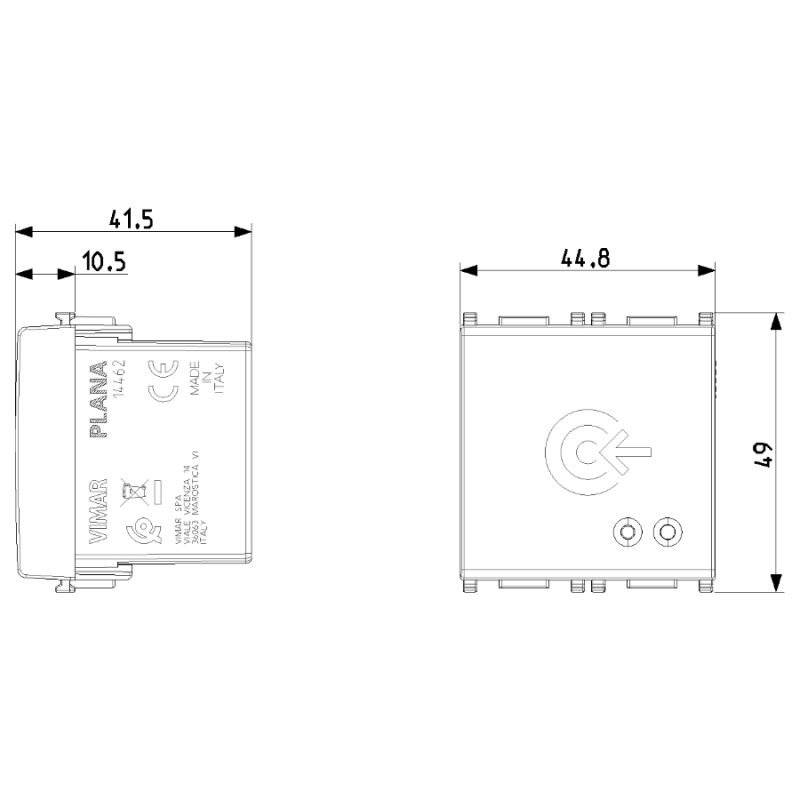

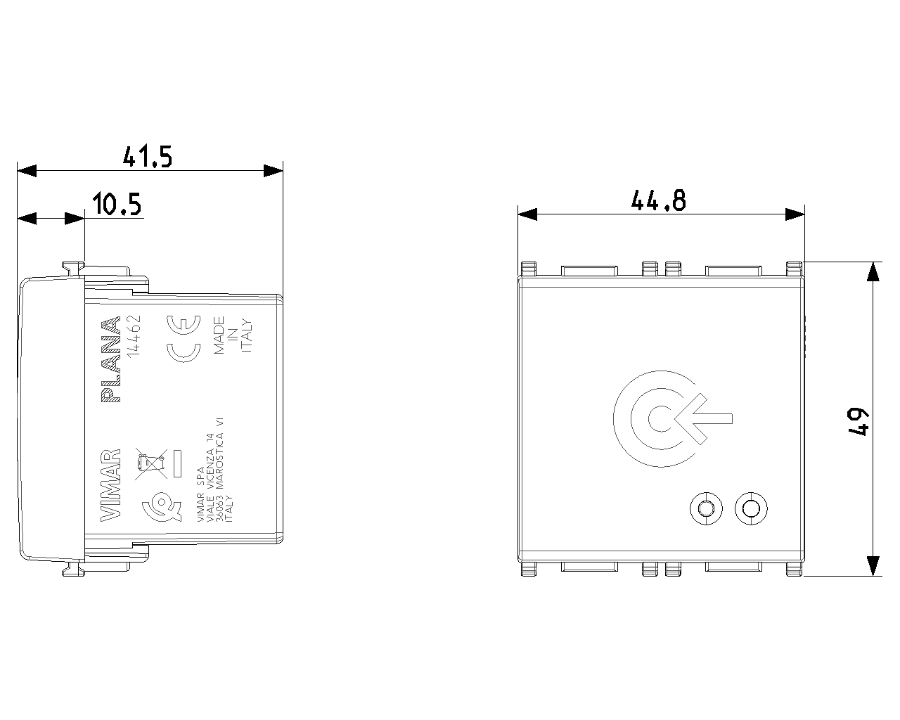

- Width: 44.80 mm;
- Height: 49.00 mm;
- Depth: 41.50 mm.
Commandable loads:
- Resistive loads: 16 A (20,000 cycles);
- Incandescent lamps: 5 A (20,000 cycles).
LED lamps:
- 100 W at 240 V ~ (20,000 cycles);
- 30 W at 100 V ~ (20,000 cycles);
- fluorescent lamps: 0.5 A (20,000 cycles);
- electronic transformers: 4 A (20,000 cycles).
Door-door operation NFC / RFID IoT connected
The Vimar landing reader can work in
two ways :
- The recognition of the smart card triggers the opening of the door that is the commutation of the relay in an impulsive mode (minimum value 1 s, default value 3 s).
- If the reader is associated with the pocket and the “Relay crossing” option is active, when the card is inserted into the pocket the relay remains ON while when the relay is removed it goes OFF with a time that can be set during the configuration phase. In this case the door will be opened by the pocket relay ensuring a higher level of safety.
Vimar connected door closer configuration
In Bluetooth technology operation, the device must be configured with the View Wireless app. For full details see the App View Wireless instruction manual.
