Micro 02 WAY Mingardi Chain Actuator 24V Stroke 250 / 380mm
Chain actuator for top hinged windows and bottom hinged windows
ATTENTION:
- The bracket for bottom hinged application (item 2700899) must be purchased separately on the website.
- The bracket for outward application (item 2700898) is included.

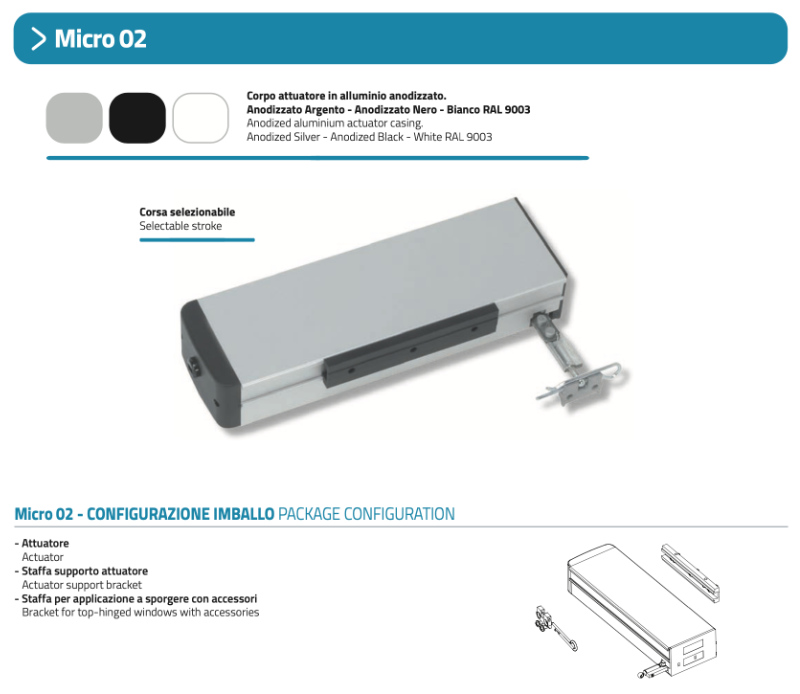

Micro 02 Mingardi linear electric actuator with articulated chain movement contained inside the casing.
Operation with 24V DC power supply.
Complies with Directive 2004/108 EMC.
Equipped with electronic limit switch system in opening and microswitch in closing.
Stroke selectable from the outside by selector.
Can be connected in parallel, with output for signaling.
Colors: silver anodized - black - white RAL 9010.
Complete with accessories for installation on top hinged windows.
Micro 02 Chain Actuator Features:
- Selectable stroke (250 / 380mm);
- No maintenance;
- Body in anodized aluminum;
- Degree of protection: IP 20;
- Closing - opening limit switch: electronic microswitch;
- Color: silver anodized, black anodized, Ral 9010 (your choice).
Technical data*
| Description |
Voltage |
Thrust
Traction |
Race |
Power
Absorbed |
Speed
Min. |
| Micro 02 250 / 380mm |
24V |
150 / 300N |
250 / 380mm |
55W |
ca. 40mm / s |
THE PERFORMANCE VALUES SHOWN IN THE TABLE ARE VERIFIED AT AN OPERATING TEMPERATURE FROM -10 ° C / + 40C ° WITH A MAXIMUM RELATIVE HUMIDITY OF 60%.
