Window Handle - with Removable Handle - Giesse Euro Away Cremonese - Ambidextrous
Giesse Euro Away cremone bolt version for bidirectional functioning leaf suitable for nodes of the type C001, C002, C003, C004, C005, C006, C007, C008, C009, C010, C012, C013, C014, C015, C016, C017, P001, P002.
We recommend reading the PDF "Nodes Type Battente C", which describes the nodes and the series/systems to which this article is adapted (it can be found in the "Documents" section of the product sheet).
Functions Cremonese Giesse Euro Away:

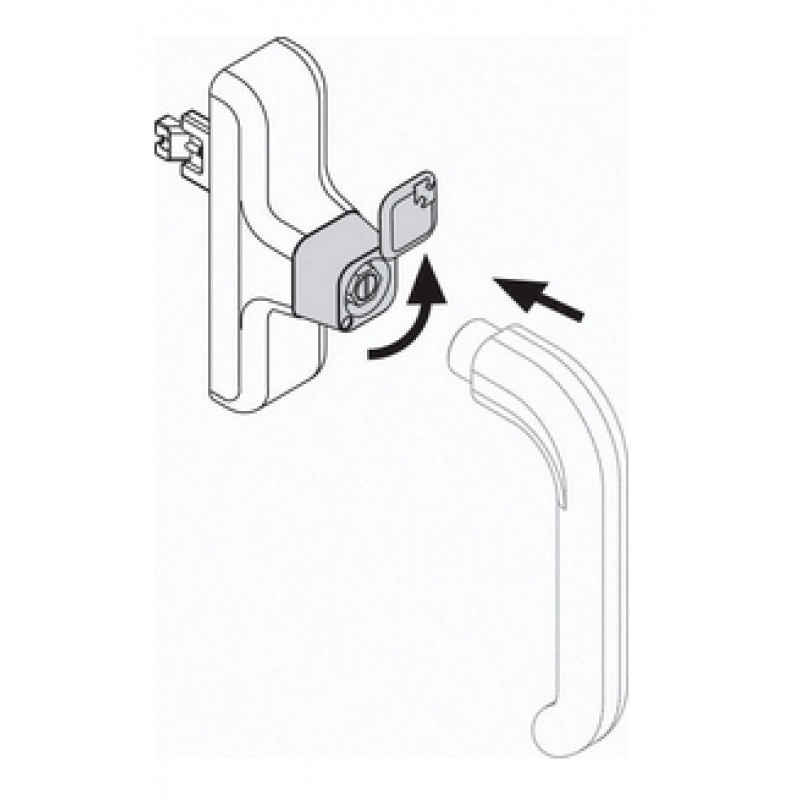

Ambidextrous cremone bolt for operating Giesse leaf mechanisms. Allows the operation of fixtures and the
removal of the handle (included in the package) for safety reasons.
Giesse Euro Away Cremonese finishes:
Silver, Bronze, White Ral 9010, Ivory Ral 1013, Black Ral 9005.
Technical features - Giesse Euro Away Cremonese:
The use of quality die-cast materials and the adoption of the Giesse painting system guarantee high mechanical qualities as well as uniformity of colors and strong resistance to abrasion.
Two-way version for door.
To be used in combination with the removable handle art.01130 Giesse (included in the price) in black polyamide.

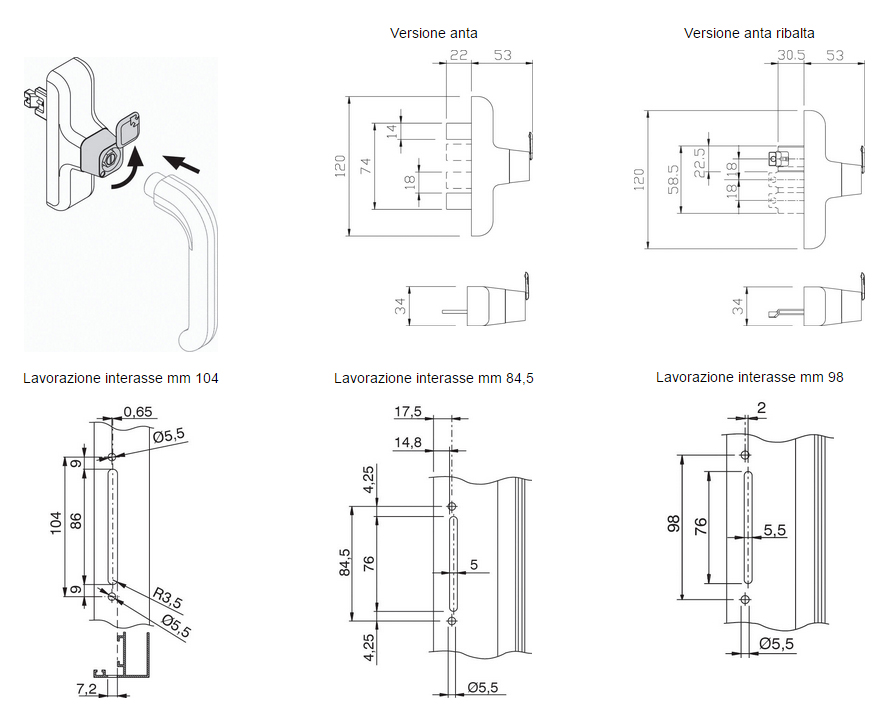

- Center distances (mm): 104 - 98 - 84.
- Version: door.
- Operation: bidirectional.
- 0° handle: closed.
- 90° handle: open.

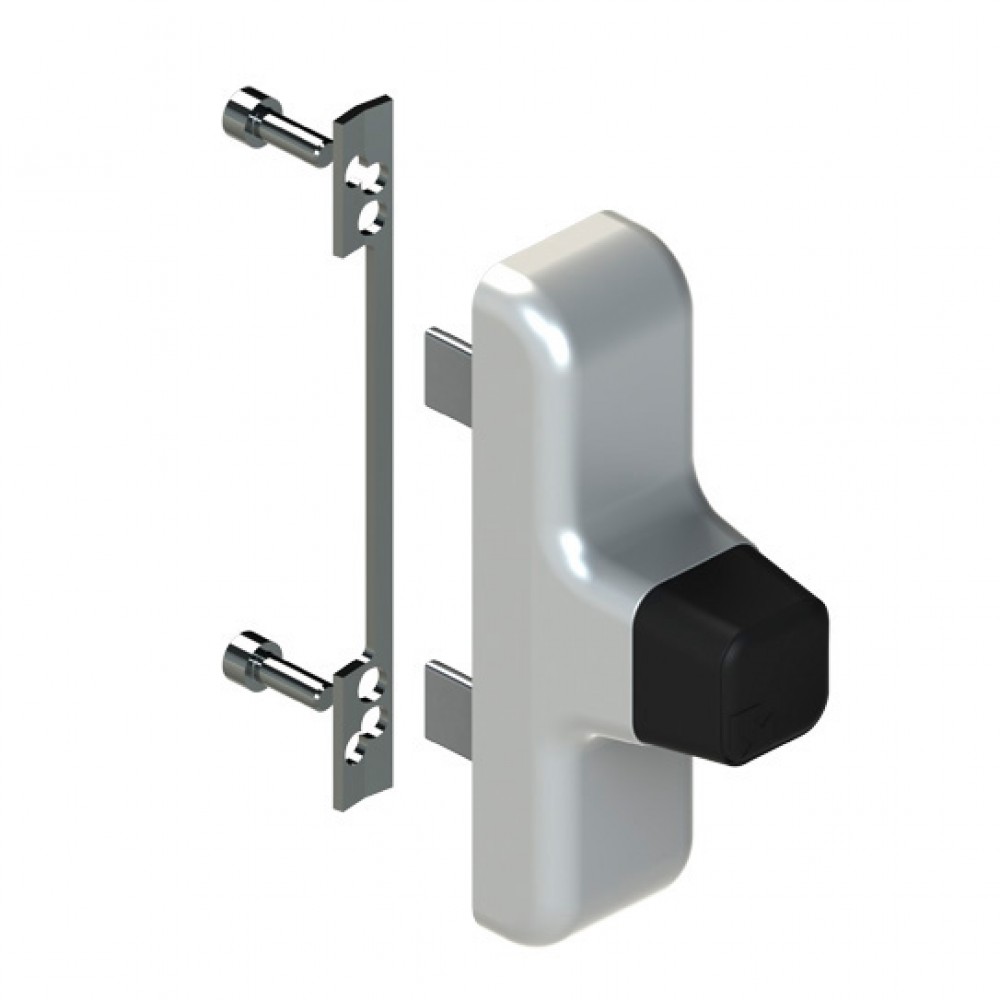

Equipment:
- 1 fixing plate
- 2 TCCE M5x14 screws
Window handle materials with removable handle:
- Cremonese case, gear;
- Racks and slides in die-cast zamak;
- Inner sheath and base in Hostaform;
- Screws and fixing plate in stainless steel;
- Away turret and cap in black polyamide.
NOTE: More information on the product is contained in the PDF attached to the product sheet (you can download it above by clicking on "Documents").
