Wall Hood in Stainless Steel Without Electric Fan Motor

Brands: OndaInox

Code: CP

-20%

€ 422,30 € 527,87

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

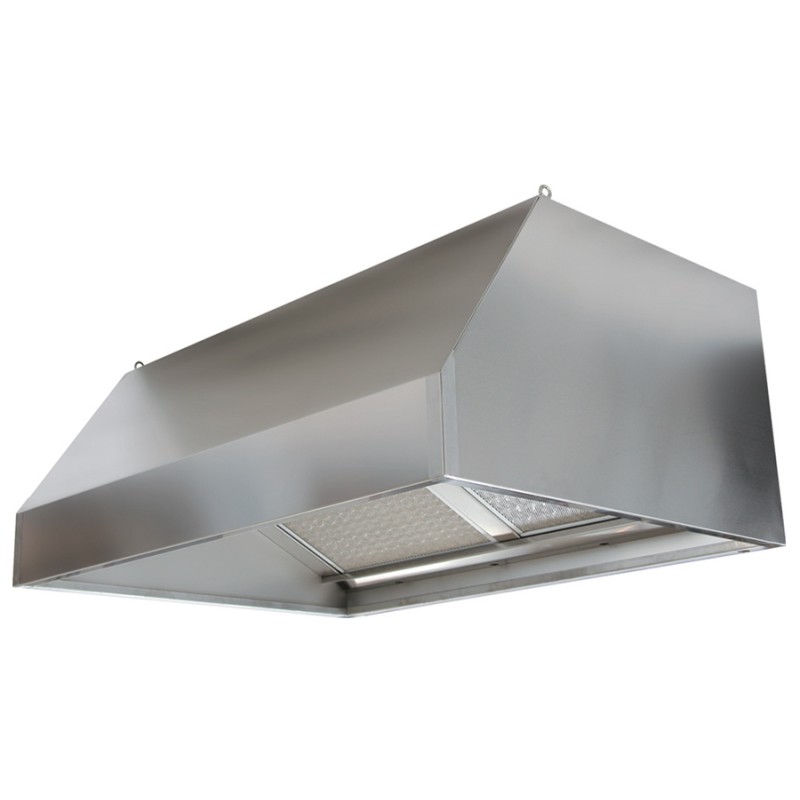

Stainless Steel Wall Hood Without Electric Fan Motor

The Stainless Steel Wall Hood Without Electric Fan Motor is the ideal solution for fume extraction in your kitchen.

This stylish and durable stainless steel wall mounted extractor hood is wall mounted for a discreet and space saving solution.

With a versatile design, this hood can be integrated easily into various types of kitchen.

Cappa a Parete in Acciaio Inox - Senza Motore Elettroventilatore

Construction Features - Stainless Steel Wall Hood Without Motor

The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm, positioned against the wall ;
Construction in AISI 430 , Scotch-Brite satin finish. Fully edged, even in the internal parts;
Assembled by electro-welding;
Special executions (execution in AISI 304, assembly by welding) on request.

Supplied with the wall hood

Labyrinth filters in AISI 430 stainless steel;
1/2” condensate drain.

Notes on the steel wall hood

Packaging included in the price;
Hanging kit and flange not included;
The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CS711 = CS712).

Cappa a Parete in Acciaio Inox Senza Motore Elettroventilatore

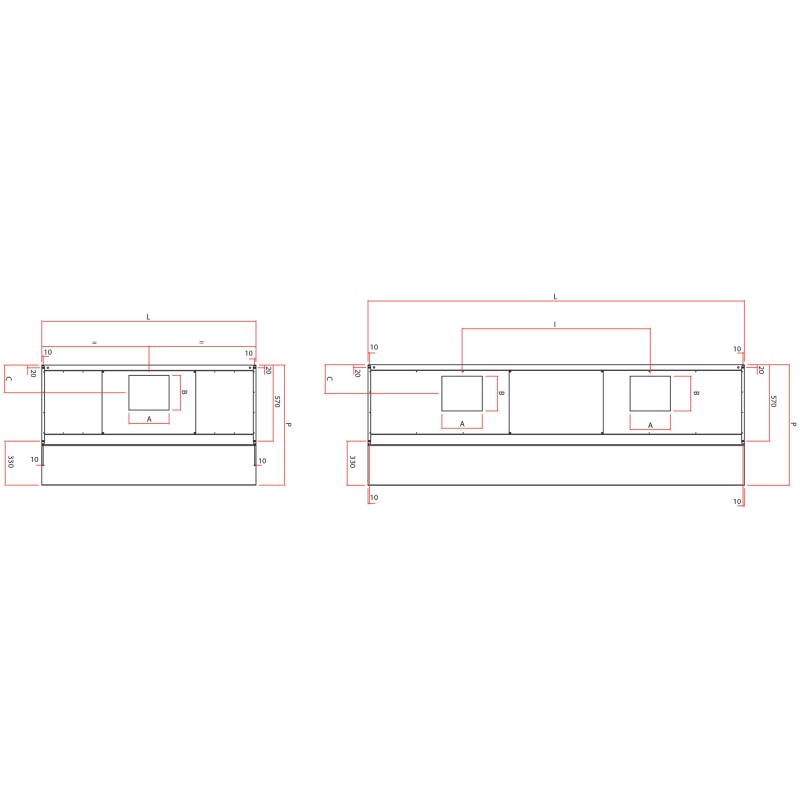

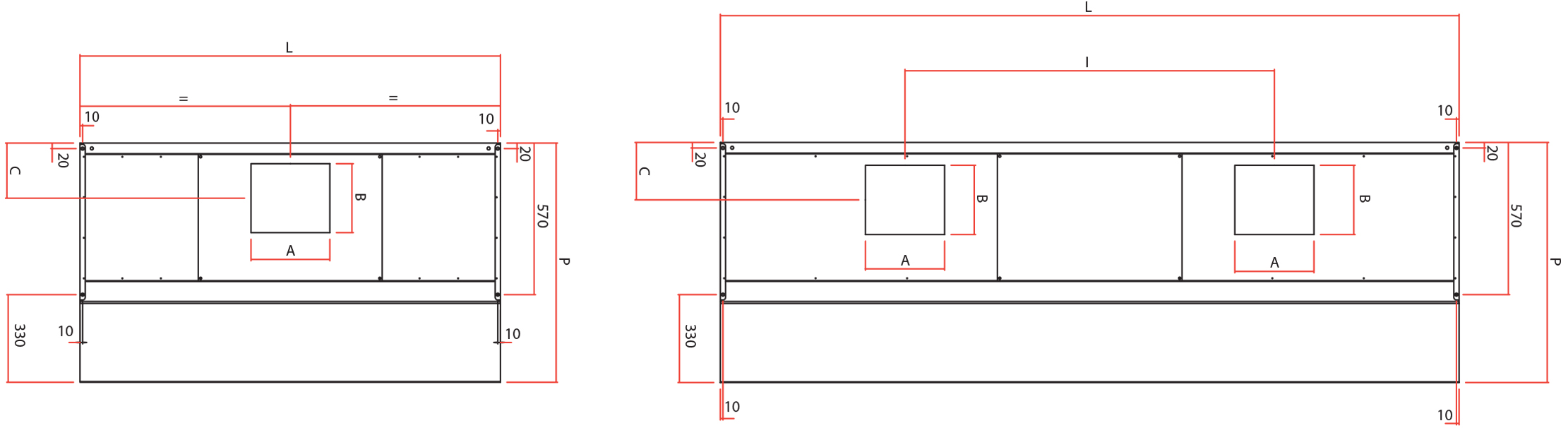

Stainless Steel Wall Hood Without Motor - Depth 700 mm

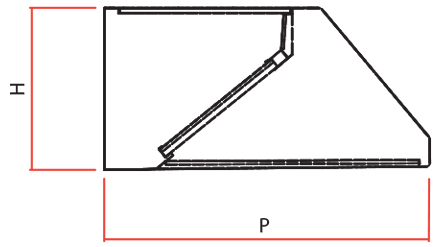

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Scope (m ³ /h)	THE (mm)
PC 7/10	700x1000x450	230x200	190	2a	26	900
CP 7/12	700x1200x450	230x200	190	2b	30	1100
CP 7/14	700x1400x450	230x200	190	2b	34	1250
CP 7/16	700x1600x450	230x200	190	3a	37	1400
CP 7/18	700x1800x450	230x200	190	3b	40	1600
PC 7/20	700x2000x450	300x260	170	4a	44	1800
CP 7/22	700x2200x450	300x260	170	4a	46	1950
PC 7/24	700x2400x450	300x260	170	4b	48	2200
CP 7/26	700x2600x450	300x260	170	4b	51	2300
CP 7/28	700x2800x450	230x200x20	190	5b	54	2500	1400
PC 7/30	700x3000x450	230x200x20	190	5b	57	2700	1500
PC 7/32	700x3200x450	230x200x20	190	5b	61	2800	1600
PC 7/34	700x3400x450	300x260x20	170	6b	64	3000	1700
PC 7/36	700x3600x450	300x260x20	170	6b	67	3200	1800
PC 7/38	700x3800x450	300x260x20	170	6b	71	3350	1900

Stainless Steel Wall Hood Without Motor - Depth 900 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Scope (m ³ /h)	THE (mm)
PC 9/10	900x1000x450	230x200	190	2a	34	1100
PC 9/12	900x1200x450	230x200	190	2b	38	1400
CP 9/14	900x1400x450	230x200	190	2b	42	1600
PC 9/16	900x1600x450	300x260	170	3a	45	1800
PC 9/18	900x1800x450	300x260	170	3b	48	2000
PC 9/20	900x2000x450	300x260	170	4a	52	2250
PC 9/22	900x2200x450	300x260	170	4a	54	2500
PC 9/24	900x2400x450	300x260	170	4b	56	2700
PC 9/26	900x2600x450	300x260x20	170	4b	59	2950	1300
CP 9/28	900x2800x450	300x260x20	170	5b	62	3200	1400
PC 9/30	900x3000x450	300x260x20	170	5b	65	3400	1500
PC 9/32	900x3200x450	300x260x20	170	5b	69	3650	1600
PC 9/34	900x3400x450	300x260x20	170	6b	72	3850	1700
PC 9/36	900x3600x450	300x260x20	170	6b	75	4050	1800
PC 9/38	900x3800x450	300x260x20	170	6b	79	4300	1900

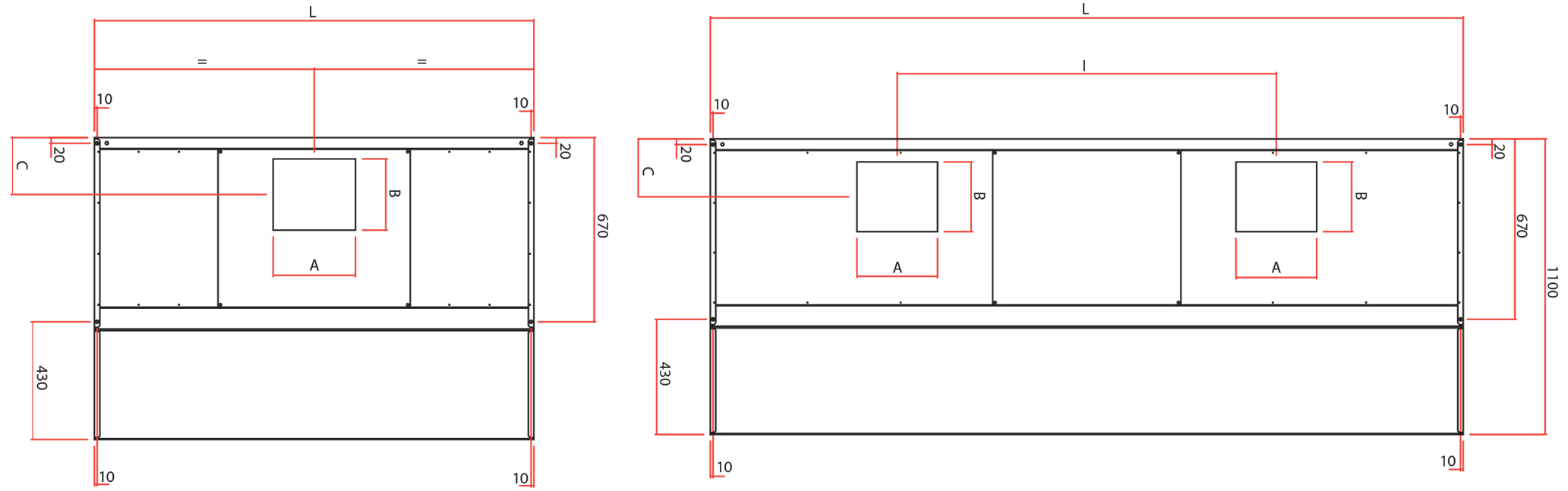

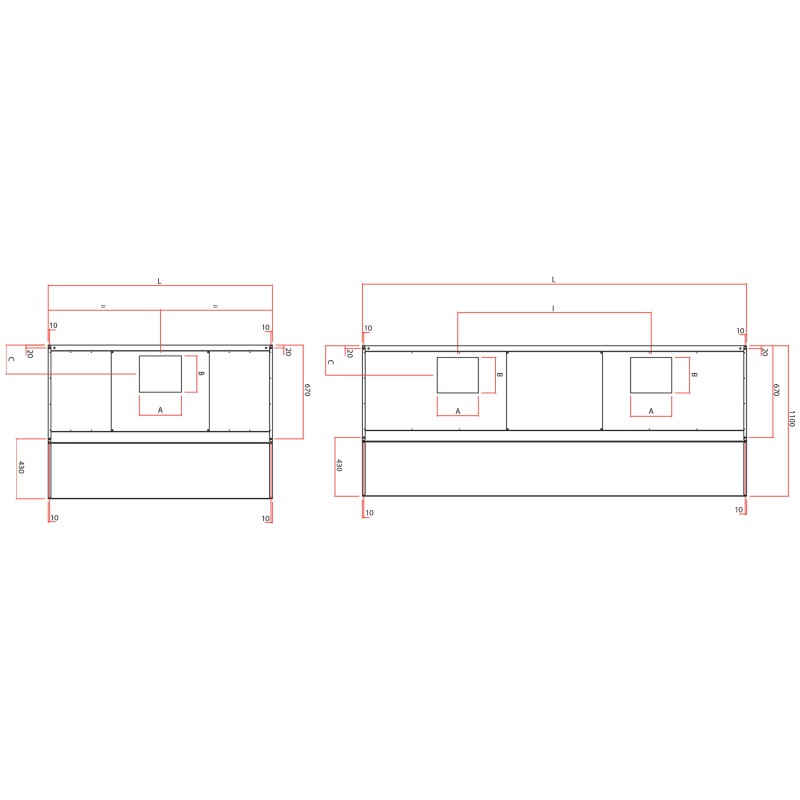

Stainless Steel Wall Hood Without Motor - Depth 1100 mm

Model	Dimensions WxLxH (mm)	AxB (mm)	C (mm)	n° Filters	Weight kg)	Flow rate (mc/h)	I (mm)
CP 11/10	1100x1000x450	230x200	230	2c	35	1400
CP 11/12	1100x1200x450	300x260	210	2d	38	1700
CP 11/14	1100x1400x450	300x260	210	2d	41	1950
CP 11/16	1100x1600x450	300x260	210	3c	44	2200
CP 11/18	1100x1800x450	300x260	210	3d	47	2500
CP 11/20	1100x2000x450	300x260	210	4c	50	2800
CP 11/22	1100x2200x450	300x260	210	4c	53	3100
CP 11/24	1100x2400x450	300x260x20	210	4d	56	3400	1200
CP 11/26	1100x2600x450	300x260x20	210	4d	59	3600	1300
CP 11/28	1100x2800x450	300x260x20	210	5d	62	3900	1400
CP 11/30	1100x3000x450	300x260x20	210	5d	65	4200	1500
CP 11/32	1100x3200x450	300x260x20	210	5d	68	4500	1600
CP 11/34	1100x3400x450	300x260x20	210	6d	73	4700	1700
CP 11/36	1100x3600x450	300x260x20	210	6d	78	5000	1800
CP 11/38	1100x3800x450	300x260x20	210	6d	83	5300	1900

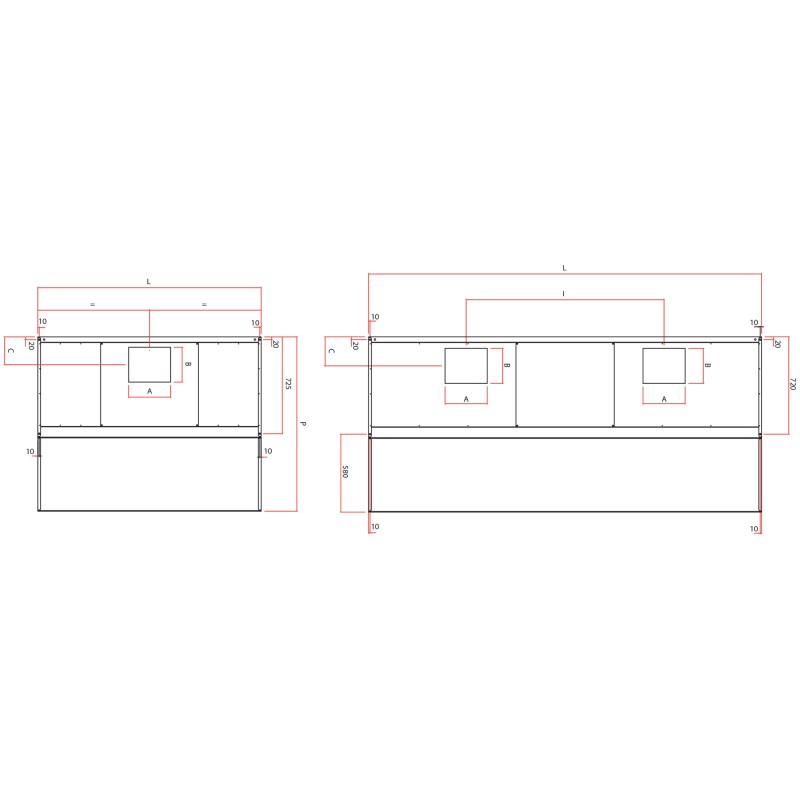

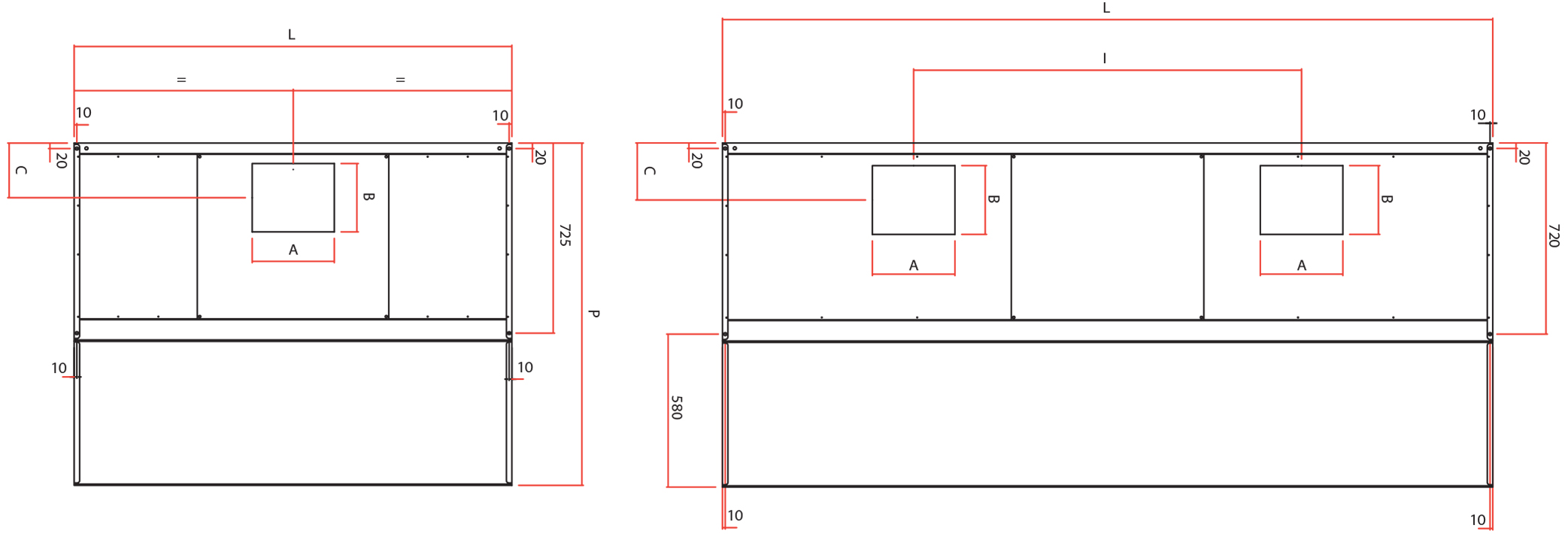

Stainless Steel Wall Hood Without Motor - Depth 1300 mm

Model	Dimensions WxLxH (mm)	AxB (mm)	C (mm)	n° Filters	Weight kg)	Flow rate (mc/h)	I (mm)
CP 13/12	1300x1200x450	250x250	250	2d	39	2100
CP 11/14	1300x1400x450	250x250	250	2d	42	2500
CP 11/16	1300x1600x450	300x300	250	3c	45	2800
CP 11/18	1300x1800x450	300x300	250	3d	48	3200
CP 11/20	1300x2000x450	300x300	250	4c	52	3500
CP 11/22	1300x2200x450	300x300	250	4c	56	3900
CP 11/24	1300x2400x450	300x300x20	250	4d	60	4200	1200
CP 11/26	1300x2600x450	400x300x20	250	4d	63	4600	1300
CP 11/28	1300x2800x450	400x300x20	250	5d	66	4900	1400
CP 11/30	1300x3000x450	400x300x20	250	5d	71	5300	1500
CP 11/32	1300x3200x450	400x300z20	250	5d	75	5600	1600
CP 11/34	1300x3400x450	400x400x20	250	6d	83	6000	1700
CP 11/36	1300x3600x450	400x400x20	250	6d	87	6400	1800
CP 11/38	1300x3800x450	400x400x20	250	6d	90	6700	1900
