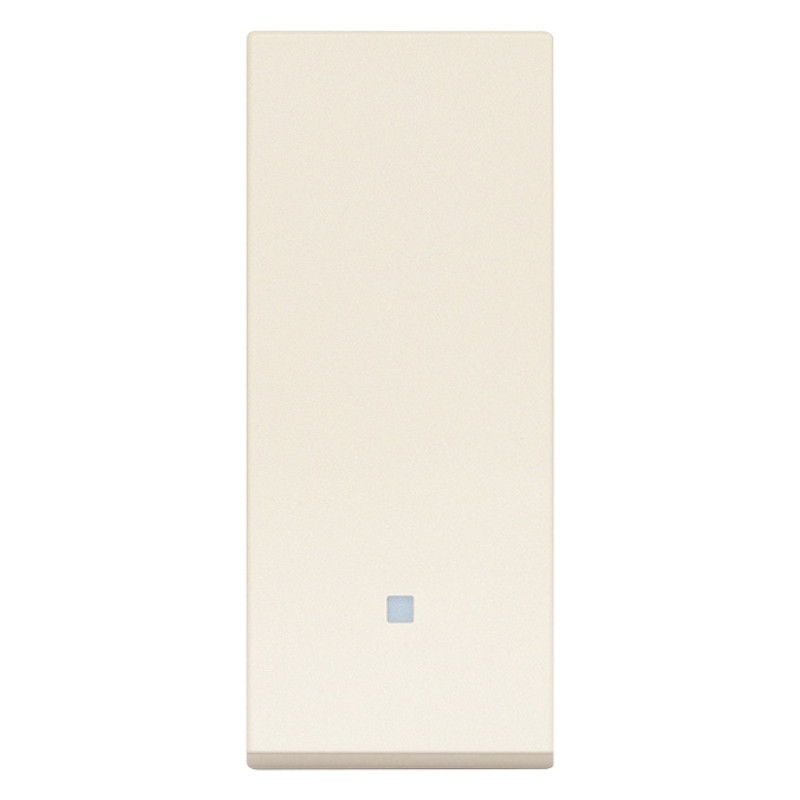

VIMAR LINEA 30012 inverter : the ideal solution for those who want an electrical system with a modern and functional design. The replaceable and LED-illuminated button can be ordered in white, hemp or black.
The special aligned technology ensures that the control always returns to its original position after operation, maintaining the linear and refined aesthetics of the system. Designed to function as an inverter, it allows the control of a light point from three or more positions.
VIMAR LINEA inverter features - 30012.B/C/G
Group: Household switching devices
Class: Plant control
Operation type: Inverter
Control type: Rocker switch
Composition: Single module for civil systems
Number of fruit modules: 1
Push button switch: Yes
Mounting: Recessed
Fixing: Snap (lock into place)
Material: Thermoplastic, halogen-free

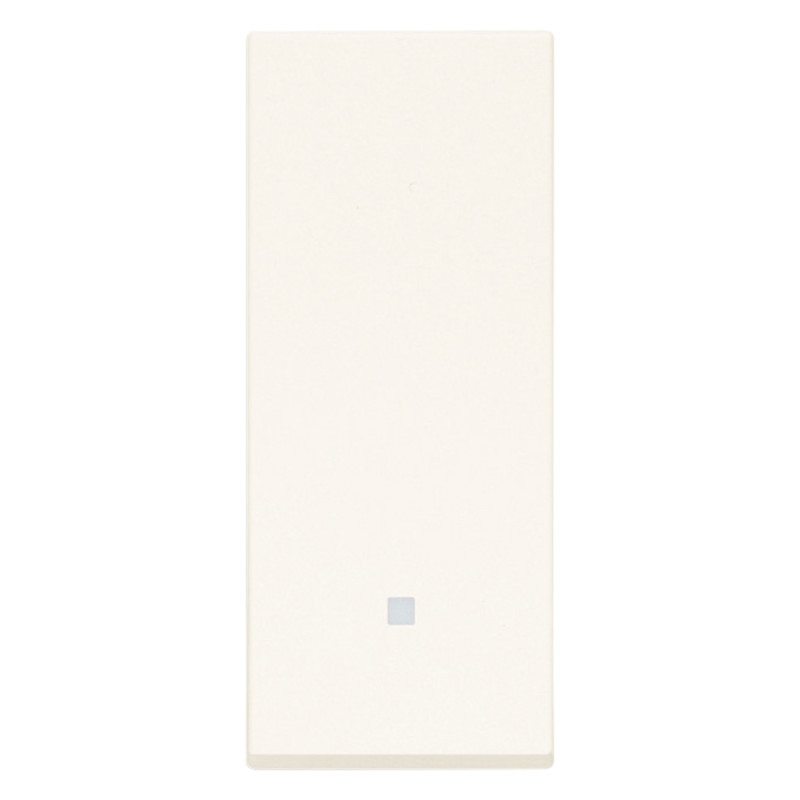

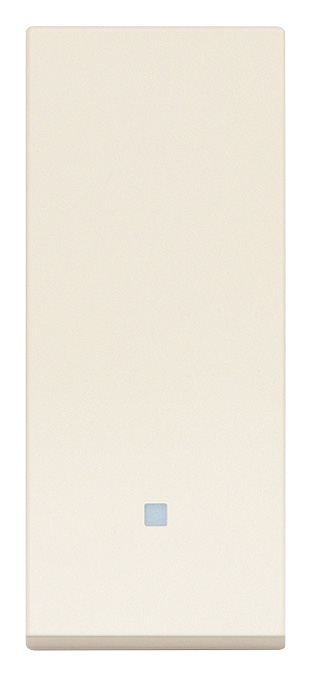

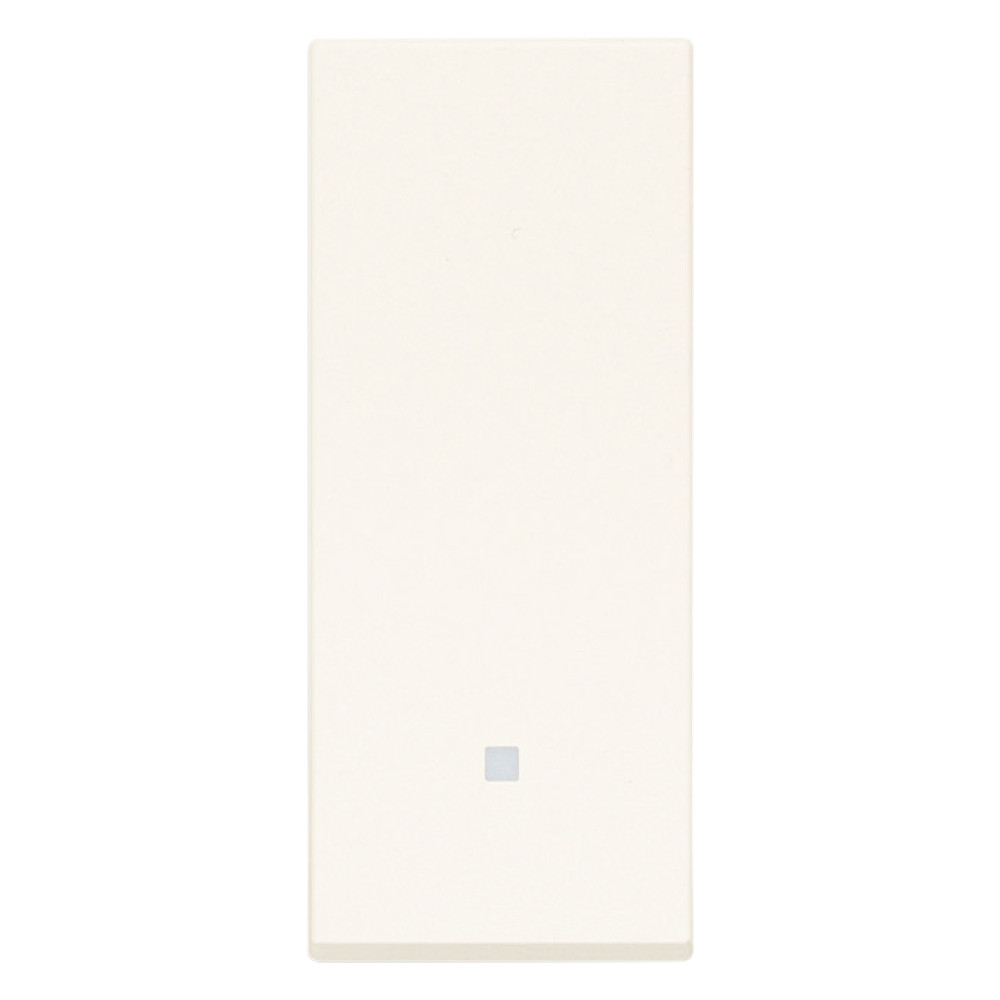

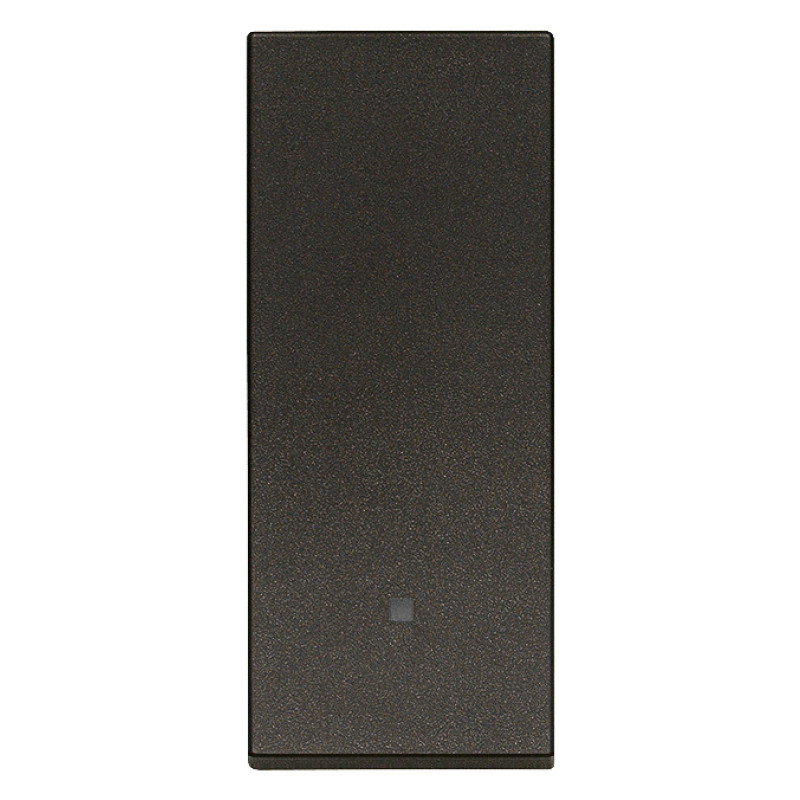

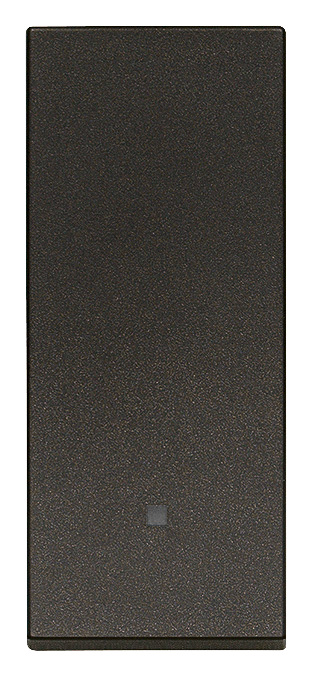

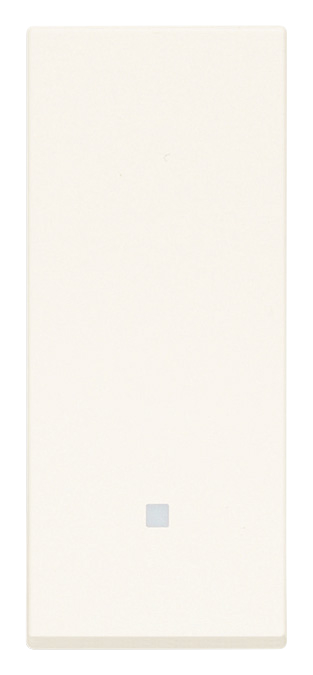

Color: White, Hemp and Black
Surface: Matte, untreated
Lighting: Optional (replaceable LED)
Lighting function: Control and orientation
Degree of protection: IP40
Rated voltage: 250V
Rated current: 10A
Max power of lamps with integrated power supply: 100 W

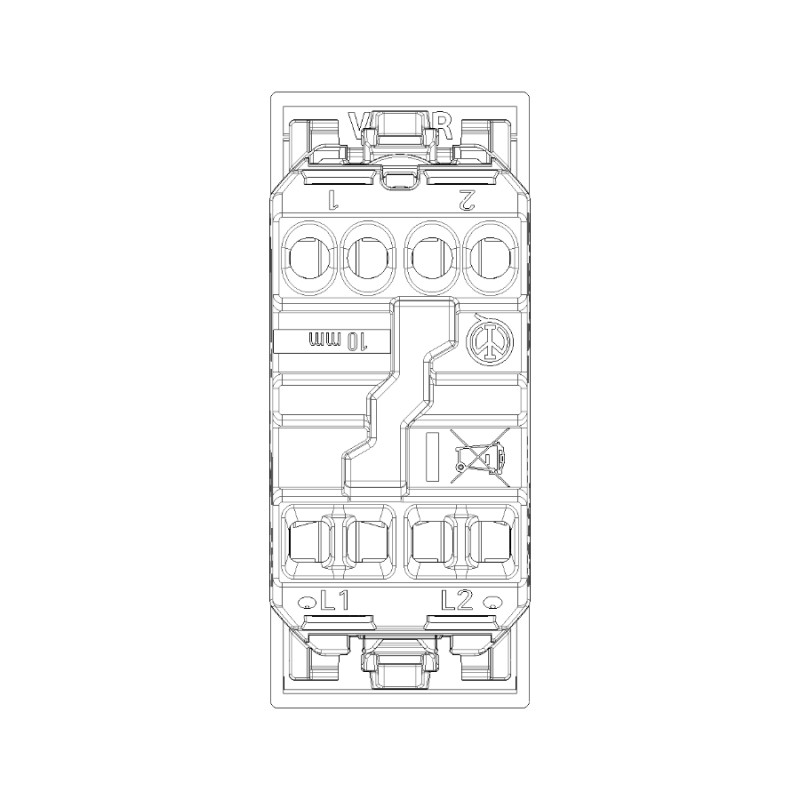

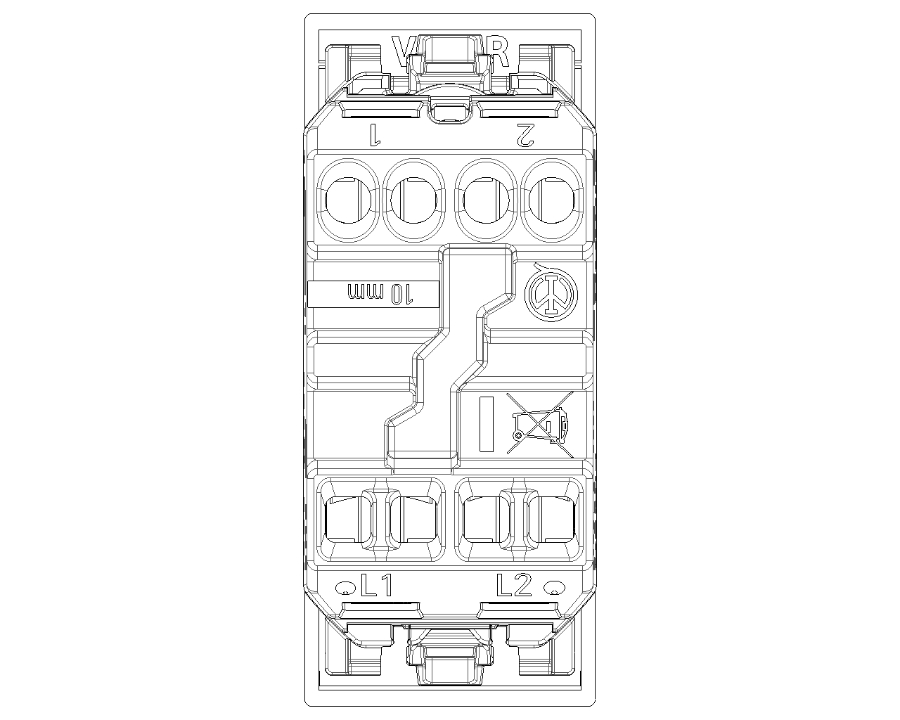

Connection: Screw terminal

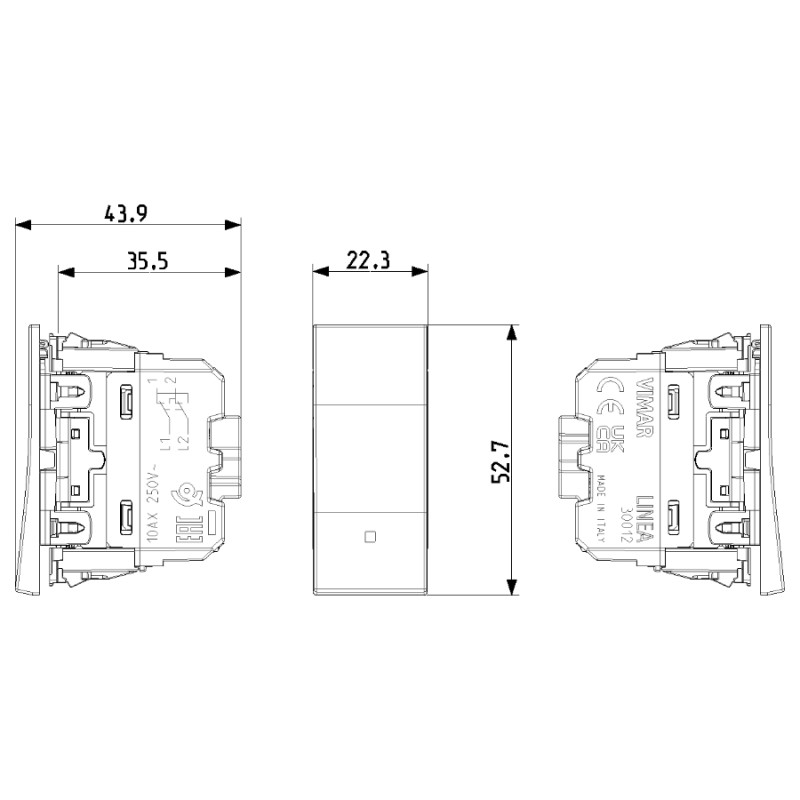

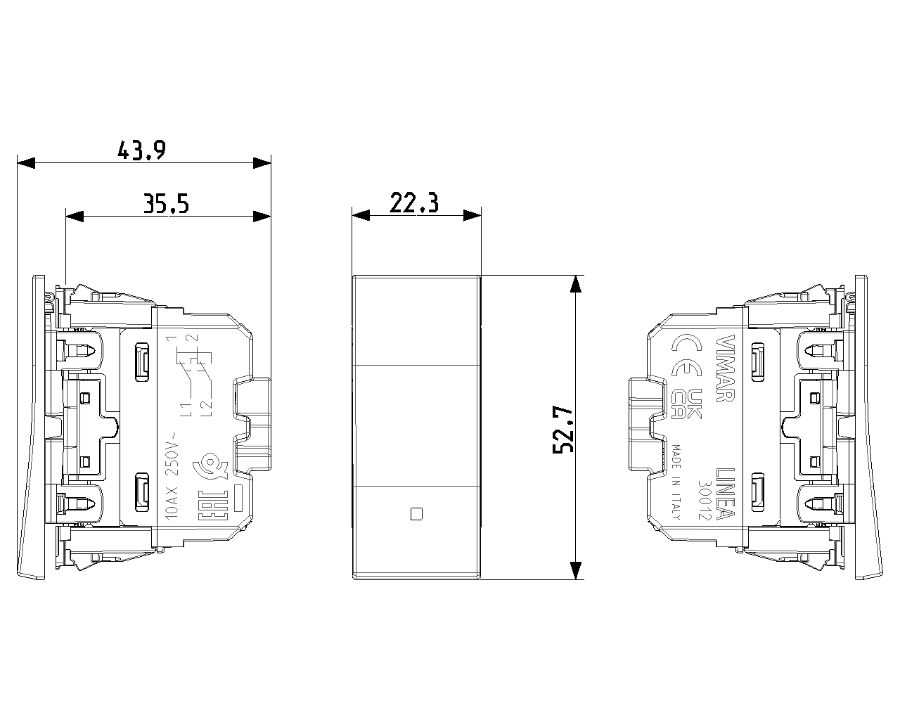

Width: 22.3 mm
Height: 52.8 mm
Depth: 43.85 mm
Recess depth: 35.5 mm
What is a civil series inverter used for?
An inverter is an electrical device that allows you to control a light point from three or more locations , in combination with two diverters. It is a very useful solution in large environments such as corridors, open spaces or internal staircases, where it is necessary to control the same light from multiple entrances.
When we talk about civil series we are referring to devices designed for residential and commercial systems, where design, safety and functionality are fundamental.
With the VIMAR LINEA Series, it offers a range of controls with a slim design, clean lines and maximum ergonomics of use. The inverters integrate perfectly with the other devices in the series, ensuring an aesthetically coherent and technologically reliable electrical system.
If you are looking for original Vimar inverters at affordable prices, the best place is Windowo.
