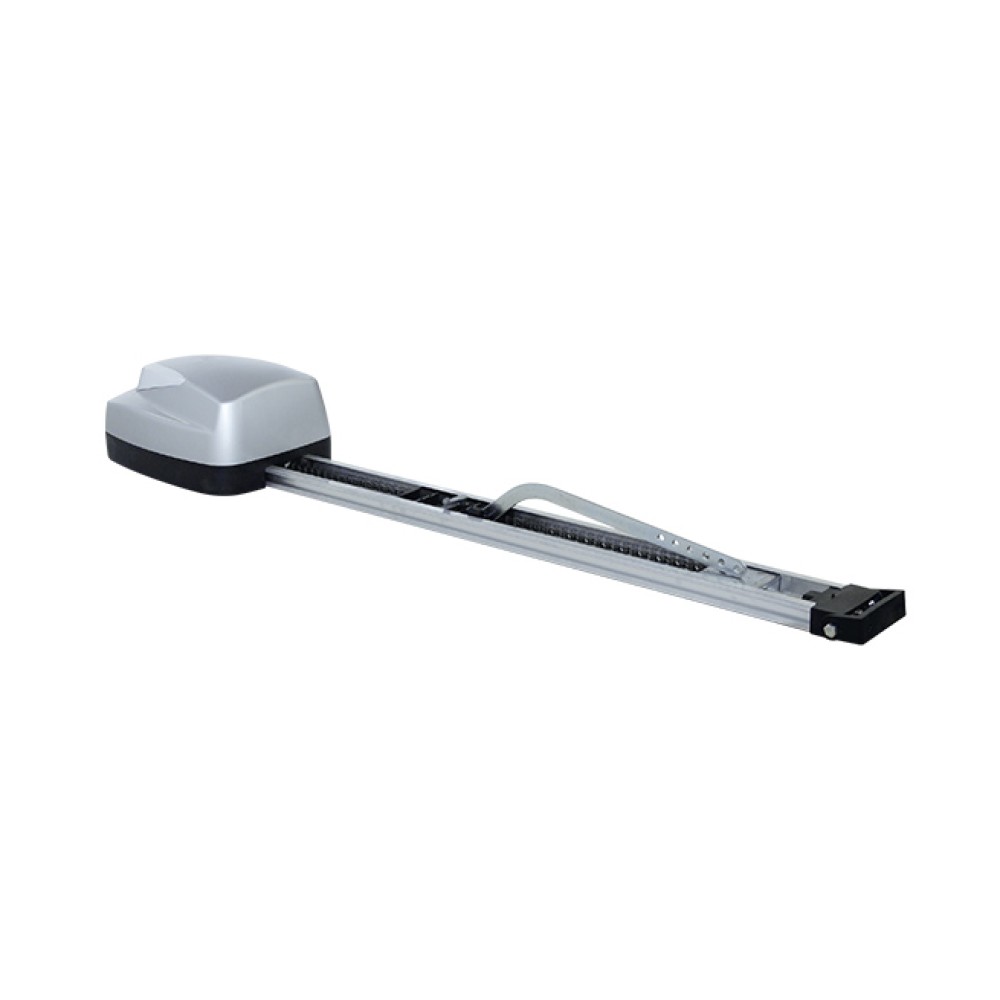

UTILE VDS - Automation for Garage - Electromechanical Drive Gear Motor 24V
UTILE VDS - 24V electromechanical towing gearmotor : it is a motor that is suitable for both private homes and condominiums thanks to its power and resistance. Suitable for select doors and counterweight overhead doors (with arch).
On Windowo you can buy the UTILE VDS garage motor in the UTILE 70KG or UTILE 100KG version with iron or aluminum guide (select the variant you want).
UTILE VDS - Electromechanical drive gear motor 24V
Among the advantages of this gearmotor we find the absolute silence and the
ability to support up to 100 kg . Furthermore, to avoid corrosion, oxidation and the formation of rust, you just need to periodically lubricate the mechanical parts with lithium grease.
VDS Automation offers you two convenient solutions:
- the 70 kg version - suitable for 10 m2 doors;
- the 100 kg version - perfect for 14 m2 overhead doors.
Both enjoy:
- protection of IP30 level : objects with a diameter greater than 2.5 mm cannot enter or affect the functioning;
- intelligent anti-crushing system with reverse (this is a rigorous European standard to protect the safety of people).
This type is ideal for:
- Private houses;
- Residence.
What are the advantages of the 24V UTILE VDS tow motor?
- Motor with Encoder;
- Suitable for select doors and counterweight overhead doors (with arch);
- Galvanized iron or aluminum guide with pre-assembled chain or belt;
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust;
- High Performance electric motor;
- Maximum silence;
- Limit switch / Encoder management;
- Magnetic contact for pedestrian;
- Pre-wiring and easy programming software;
- Control unit with radio receiver and antenna;
- Electronic torque regulation;
- Anti-crushing device (EN 12453);
- Speed slowdown (EN 12453);
- 24V power supply.

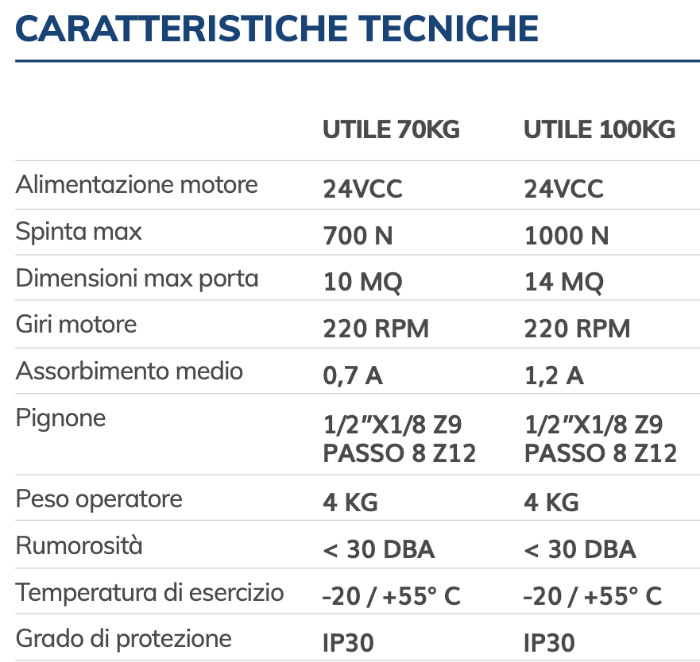

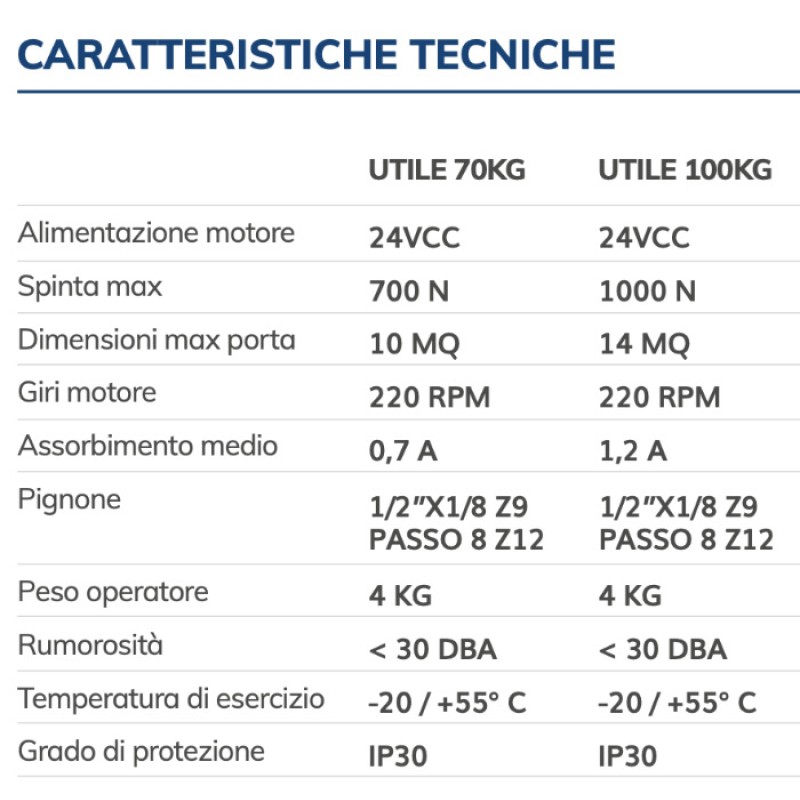

Technical features automation for garage UTILE VDS
- Motor power supply: 24 Vdc;
- Max thrust: 700 N (USEFUL 70KG) or 1000 N (USEFUL 100KG);
- Max door size: 10 SQM (USEFUL 70KG) or 14 SQM (PROFIT 100KG);
- Engine revolutions: 220 RPM;
- Average absorption: 0.7 A (USEFUL 70KG) or 1.2 A (PROFIT 100KG);
- Pinion: 1/2 "X1 / 8 Z9 PITCH 8 Z12;
- Operator weight: 4 kg;
- Noise: <30 DBA;
- Operating temperature: -20 / + 55 ° C;
- Degree of protection: IP30.
For better radio reception we recommend the use of an external antenna cod. 210/1.
Up-and-over garage door automation
In addition to a comfort factor, having a
motorized overhead door will allow you to stay safer in your home.
VDS Automation
automations for up- and-over
doors and sectional doors allow you to easily automate garage entrances.
How to motorize your garage door?
Motorizing your garage door has numerous benefits. The first of all concerns the safety that this tool confers. In fact, compared to those who choose the traditional version, the risks that some malicious person could enter the house or steal your car, while you are busy closing or opening the door, are reduced to a minimum.
The automation of the overhead door is not a superficial desire, but a fundamental element for the safety of people and goods kept inside the structure.
Why choose an automatic up-and-over door?
- Save time. With the hectic life that each of us faces every day, getting out of the car to open and close the garage is a source of boredom and stress;
- Greater safety : the most underestimated aspect. Who has a manual overhead door can run into two main dangers: the theft of the car and the entry of criminals ready to attack the individual inside the house. Opting for an automatic door means drastically reducing these unpleasant situations;
- More comfort. Here comes the concept of taking care of yourself during the winter days. By avoiding going down to open and close the door, you will avoid sudden changes in temperature and get wet in case of rain;
- Avoid the "unexpected". If we saw earlier that the automatic door prevents the car from being blown or that a criminal enters the house, no one will be able to access the house from the garage. In fact, just turn off the power, call your trusted technician and re-code the remote controls.
