dapters for Tubular Motors for Roller Shutters and Awnings DDR Ø35 Ø45 Ø59
DDR Group tubular motor adapters are designed to ensure a perfect fit between the tubular motor and the tube it is housed in.
Adapters for motorized roller shutters and awnings are essential to ensure smooth operation, preventing technical problems and increasing the life of the system.
They can be ordered in
different sizes and configurations to meet the specific needs of roller shutters and awnings, offering high compatibility and reliability. Ideal for professional and DIY installations.
Perfect for use in motorised roller shutter and awning systems, for both domestic and industrial applications.
Main features of adapters for tubular motors
- Compatibility with pipes : diameters Ø35, Ø45 and Ø59;
- Rugged Design : High-quality materials to resist wear and tear and ensure long-lasting operation;
- Easy installation : Simplifies assembly and improves system stability.
Specific crowns and adapters
- Ø35 : Models DH36/DL44, DH201/DL222, DH55/DL65.
- Ø45 : Models DH218/DL243, DH142/DL160, DH154/DL61, DH28/DL04, DH30/DL34.
- Ø59 : Models DH29/DL32, DH54/DL64.

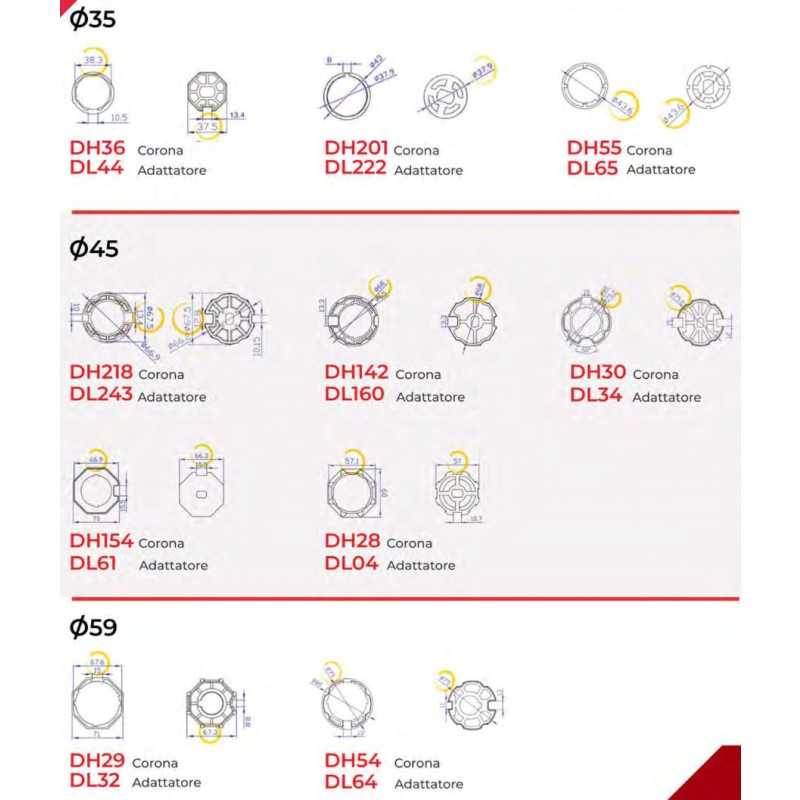

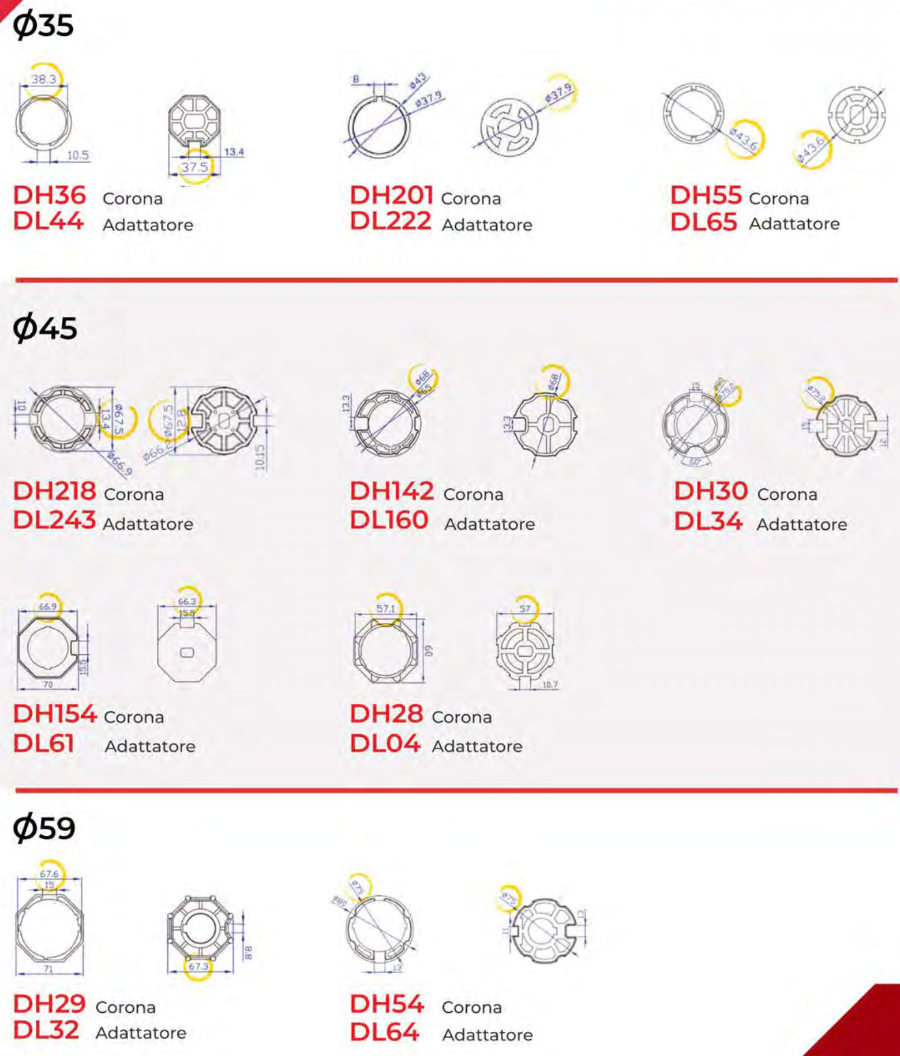

Please see the technical diagram in the image for a detailed overview of the specific measurements for each adapter.
Tubular Motor Adapters: What Are They For?
Tubular motor adapters are used to ensure the perfect connection between the tubular motor and the tube in which it is inserted within systems such as motorized roller shutters or awnings. In practice, they perform an adaptation and stabilization function, ensuring that the motor transmits movement effectively to the tube, without slipping or alignment problems.
Dimensional adaptation
They allow a tubular motor to be installed in pipes of different diameters (e.g. Ø35, Ø45, Ø59) thanks to their specific shape.
Stability and safety
They securely fix the motor to the pipe, avoiding vibrations, noises or uneven movements.
Transmission of movement
The crown (circular part of the adapter) allows the motor to transfer the rotary motion to the tube to roll up or unroll the roller shutter or awning fabric.
Ease of installation
They make system assembly easier and quicker, ensuring compatibility even with non-perfectly standard pipes.
FAQ - Adapters for motorized roller shutters
Below are answers to the most common questions about the roller shutter motor adapter.
1. What are roller shutter adapters used for?
Roller shutter adapters are used to connect the tubular motor to the roller shutter winding tube. They ensure stability, safety and smooth operation, allowing the motor to transmit movement effectively.
2. How to choose the right adapter?
To choose the right adapter, you need to know:
- The diameter of the tube (e.g. Ø35, Ø45, Ø59).
- The model of the installed tubular motor.
- Please check this information and choose the compatible adapter.
3. What is the difference between crown and adapter?
- Crown : It mounts on the head of the motor and fits into the tube to transmit the movement.
- Adapter : This is used to compensate for the difference in diameter between the motor and the tube, ensuring that everything is securely fastened.
4. Are the adapters universal?
Not all adapters are universal. It is important to check compatibility with your engine model and hose diameter. Some models are specific to particular brands or sizes.
5. Where can I buy roller shutter adapters?
You can buy roller shutter adapters conveniently online at Windowo, a shop specializing in accessories and motors for roller shutters and awnings. At Windowo you will find a wide selection of adapters for every need and qualified technical support.
6. Can I install the adapters myself?
Yes, the installation is quite simple, especially for those with a minimum of manual skills.
7. Do adapters wear out over time?
Good quality adapters are designed to last, but they can wear out with prolonged use or extreme conditions. To ensure a long life, make sure you buy quality products.
8. Is it possible to use the same adapter for different motors?
It depends. Some adapters are compatible with multiple engine models, but it is always best to check the technical specifications to avoid incompatibilities.
9. How do I know if I need to replace the adapter?
If you notice vibrations, strange noises, or the roller blind is not rolling up properly, it may be time to check and replace the adapter.
10. How much do roller shutter adapters cost?
The price varies depending on the brand and model. Usually, roller shutter adapters are affordable, starting from a few euros for basic models.
