Rack Actuator T50 24V Topp Stroke 32-50-75cm Adjustable
With stroke adjustment and high degree of protection IP55

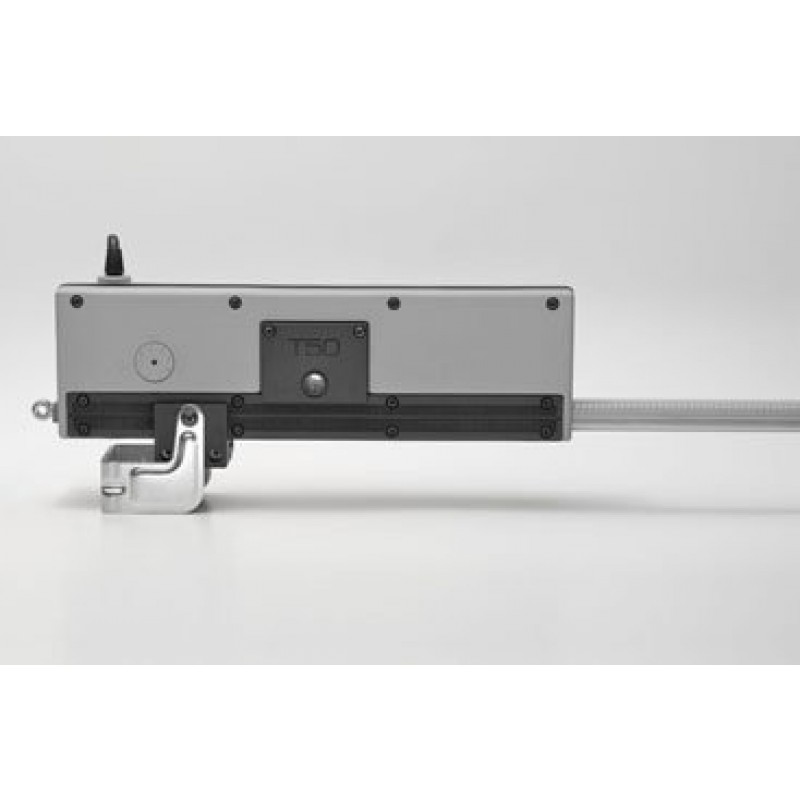

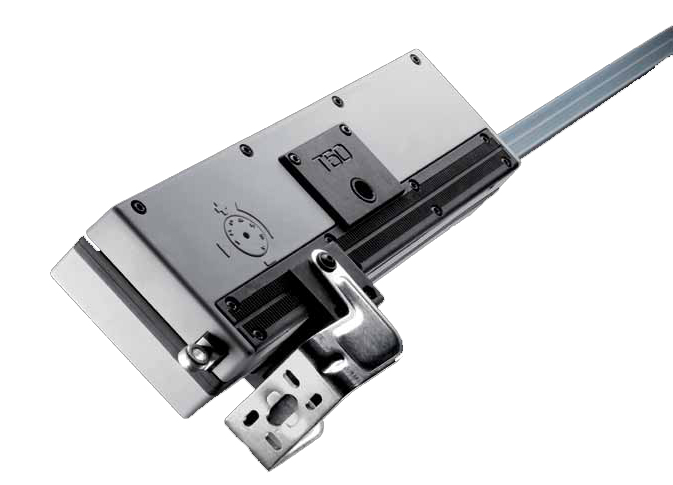

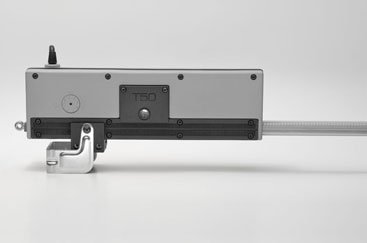

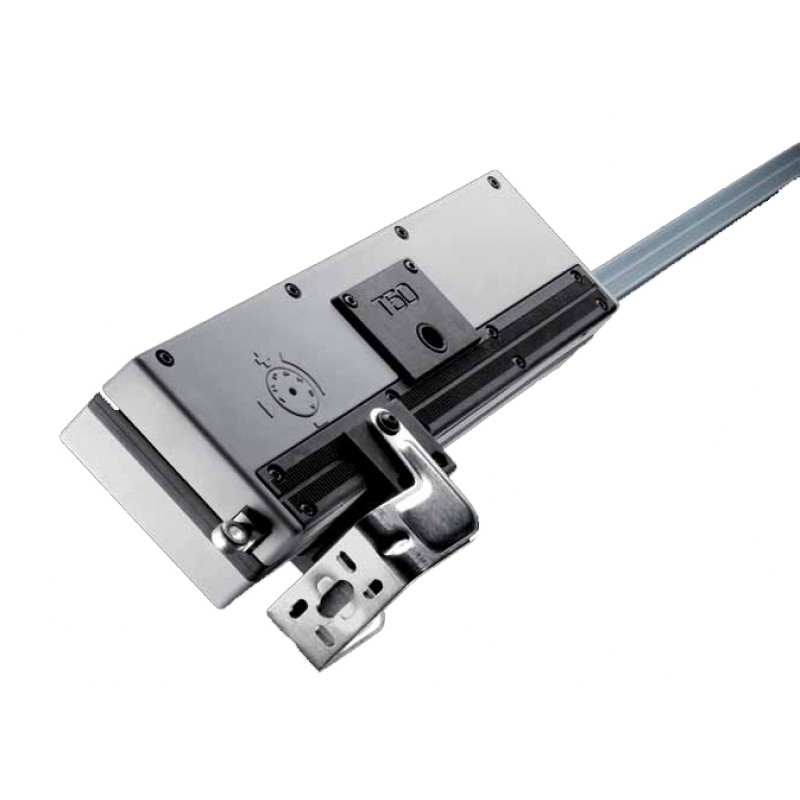

Topp electric linear actuator model T50 24V with self-aligning rocker, rack and pinion movement.
The
price includes the actuator only (rack kit or link bar are not included).
- Operation 24cc
- Maximum applicable load 500N.
- Available strokes T50 Topp: 32cm, 50cm, 75cm (your choice).

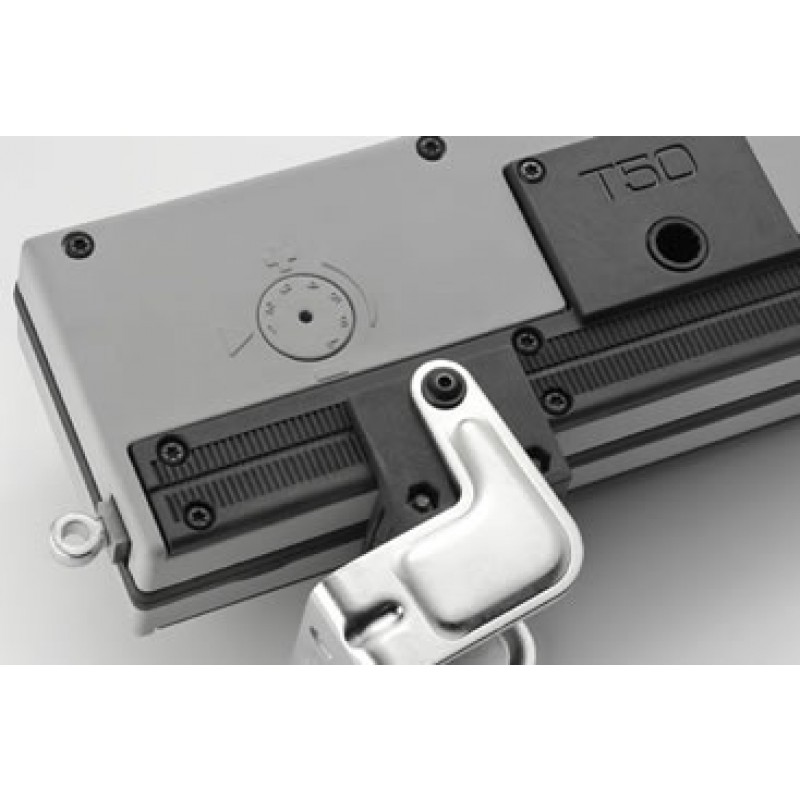

- Possibility of adjusting the stroke approximately every 50 mm, by means of a special regulating knob.
- CE marked device.
Technical characteristics of Topp T50 24V actuator
- Supply voltage: 24V dc;
- Maximum applicable thrust load: 500N;
- Available strokes T50 Topp: 32cm, 50cm, 75cm (your choice);
- Absorption: 1.4A;
- No-load translation speed: 10mm/s;
- Type of service: S2 of 4min;
- Operating temperature: - 5 / + 55 °C;
- Degree of protection for electrical devices: IP55;
- Parallel connection of 2 or more actuators: yes;;
- End stop: encoder;
- Dimensions: variable from 610 to 1030x62x94mm.
Applications: top hinged windows, domes and skylights.

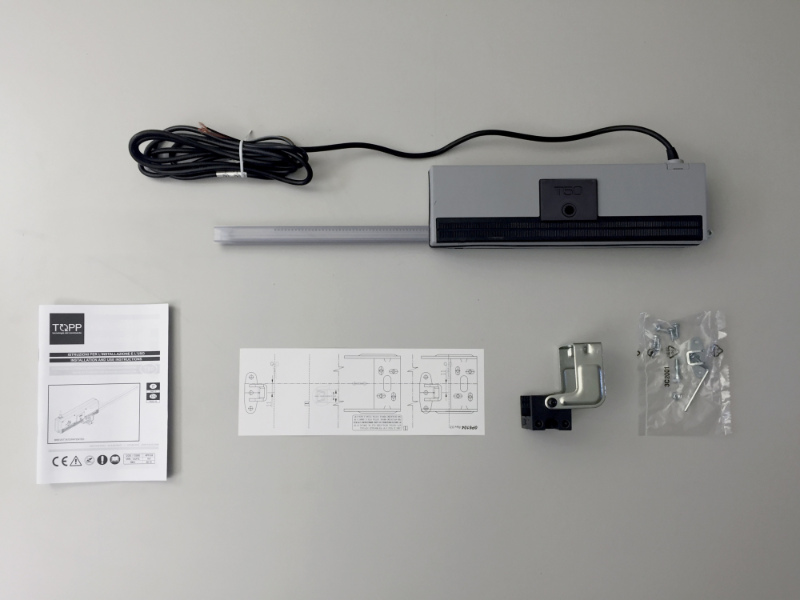

Included in the package: only the rack and pinion actuator.
Why choose T50 Topp:
- Quick assembly in the absence of power thanks to the easy adjustment of the self-aligning sliding bracket, which allows the limit switch to be adjusted in 2mm steps along the tracks of the machine body.
- Possibility of adjusting the stroke in 7 positions from 150 to 500mm.
- High degree of protection IP55.
- Industrial, geometric and vigorous design.
T50 24V Rack Actuator
| Code |
Description |
| 3C20003 |
T50 24V rack actuator
stroke 32cm adjustable |
| 3C20004 |
T50 24V rack actuator
stroke 50cm adjustable |
| 3C20014 |
T50 24V rack actuator
stroke 75cm adjustable |
Topp makes use of the most modern and up-to-date technologies
For more than 20 years, Topp has been offering a wide range of simple and functional systems for the automation of doors and windows. The innumerable international patents, indispensable tools for protecting Topp solutions, give life to the product known throughout the world as "
Made in Italy ".
For Topp, innovating is a tradition. The three-dimensional design and the aid of laser sintering systems for prototyping make it possible to accelerate the study and industrialization process of the products and have led to the registration of over 50 international patents.
