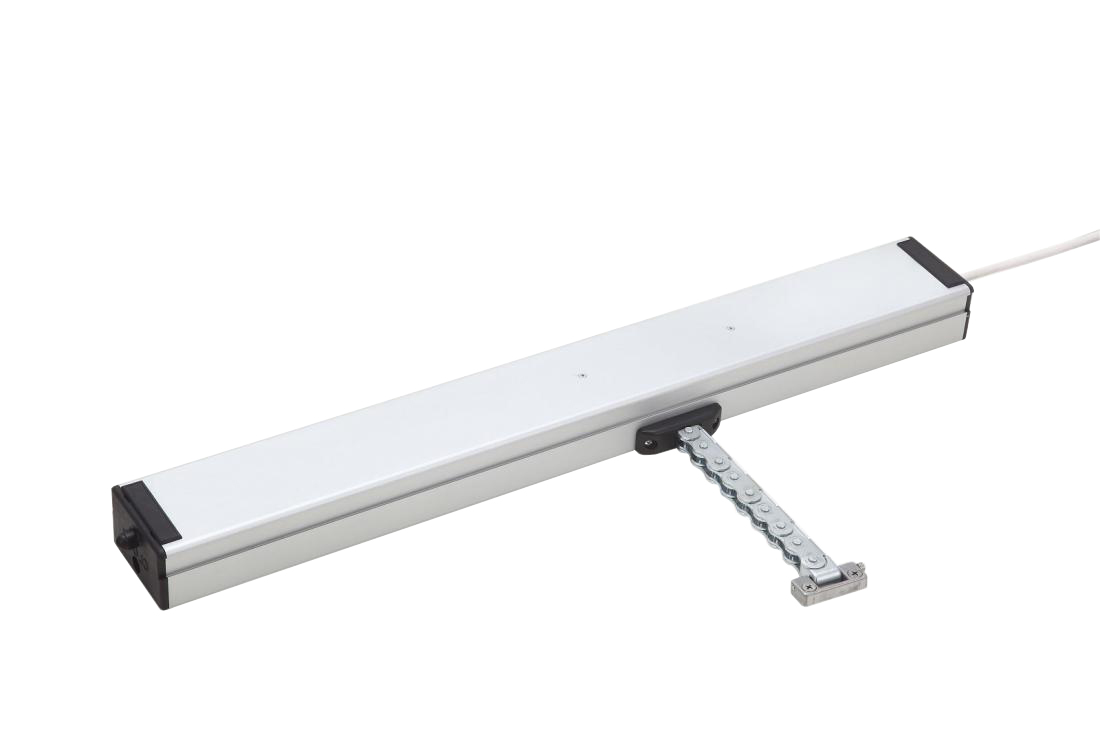

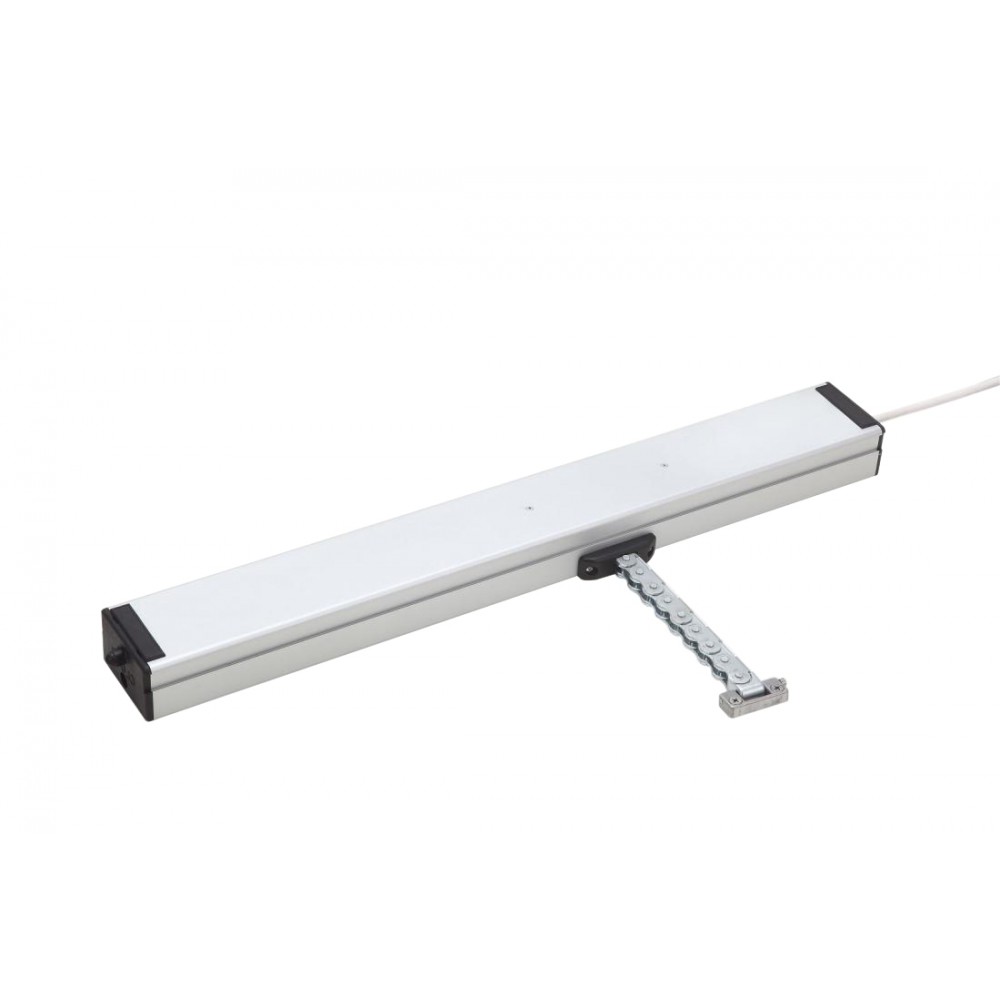

Supermaster 24Vdc Chain Actuator Ultraflex UCS 400N (300N for 800mm stroke)
STROKE 450 - 600 - 800 - 1000 mm (your choice)
COLOUR SILVER ANODIZED - DARK BROWN ANODIZED - WHITE PAINTED RAL 9010 (your choice)

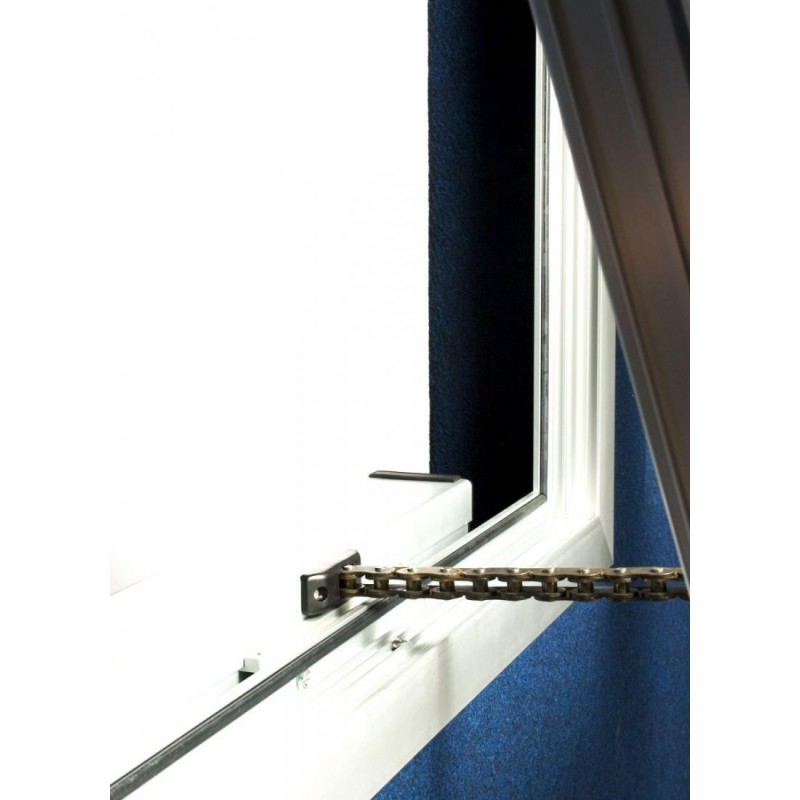

Supermaster chain actuator used to automate high level windows and lightweight roof vents and domes.
Available in a range of opening sizes.

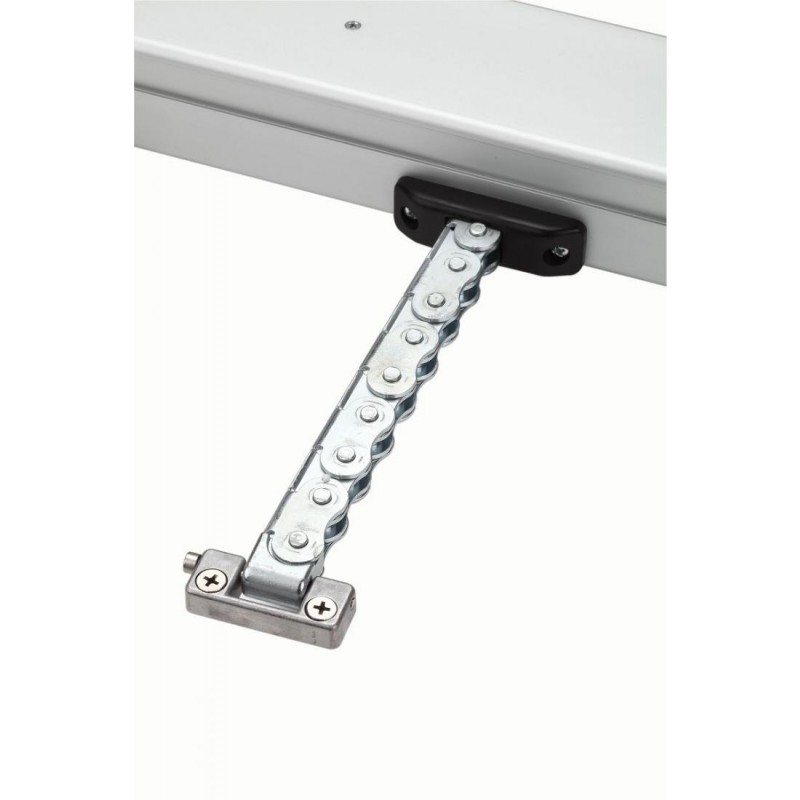

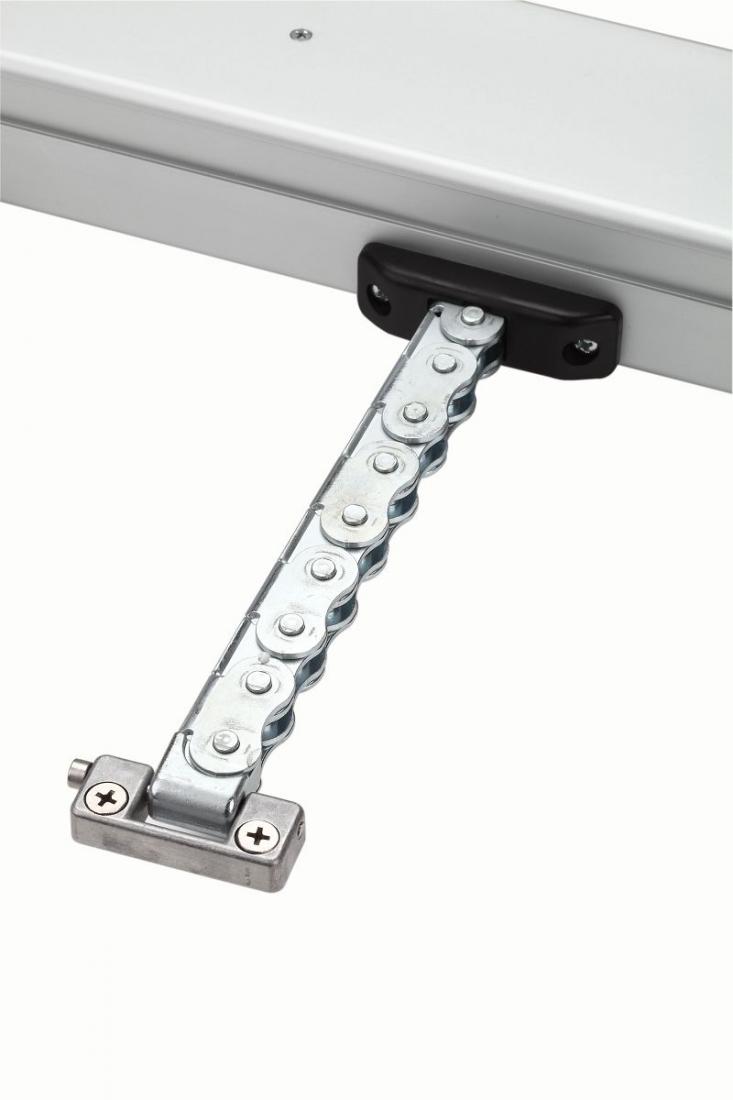

Big double link chain.
Anodized (silver or dark brown) or painted (white) aluminium casing.

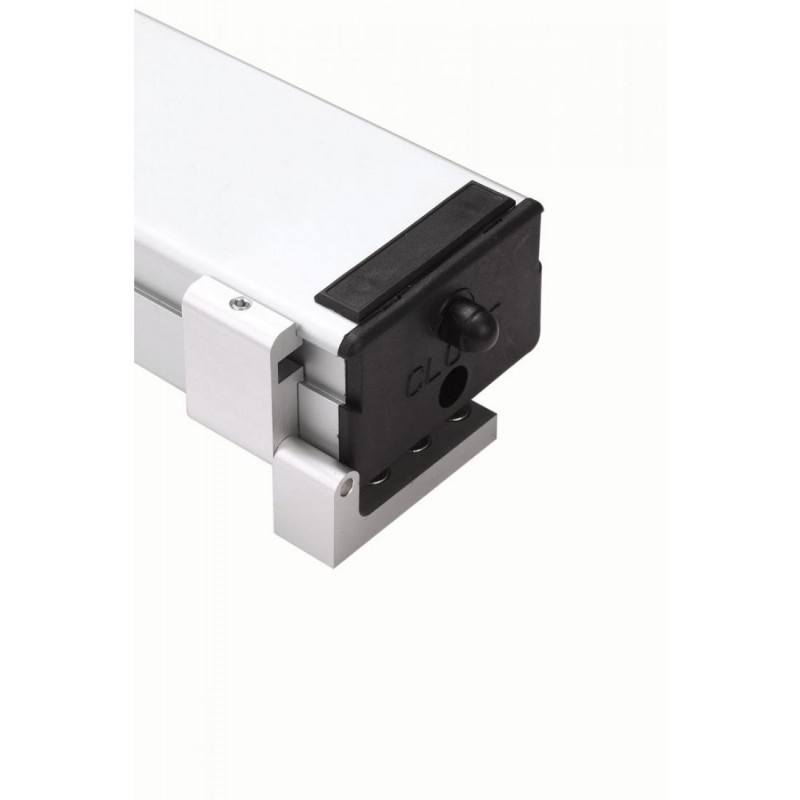

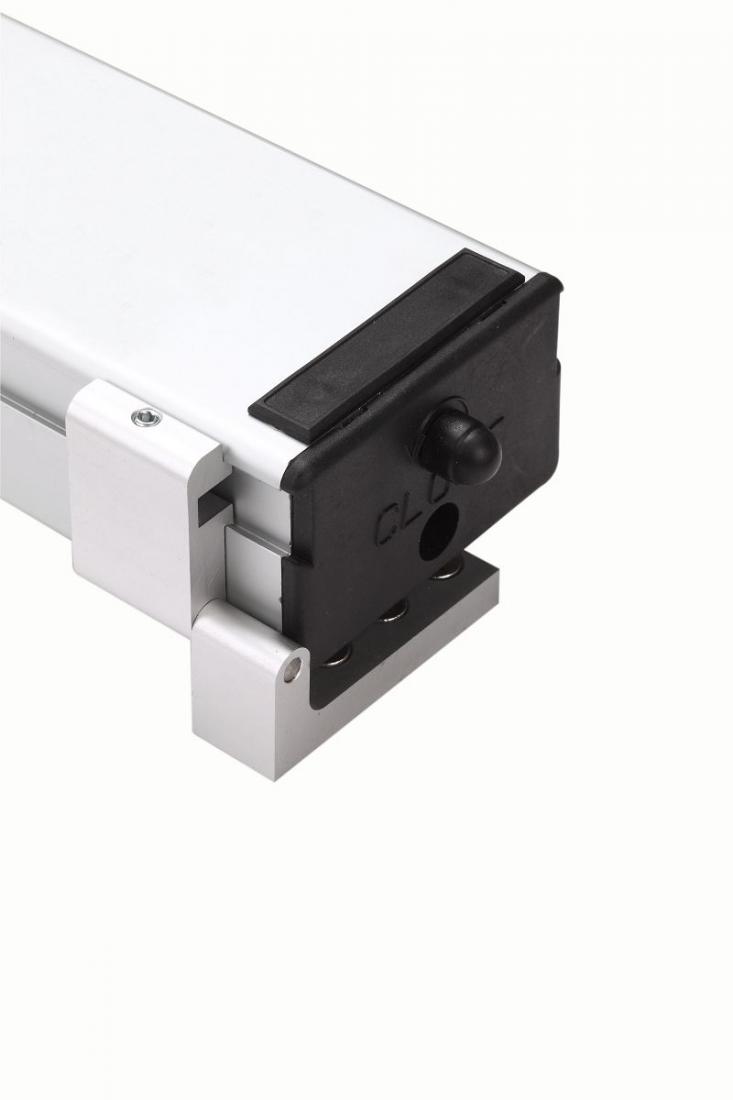

Red lamp placed on the actuator to signal the closed position.
The longest stroke (800mm - 1000mm) is indicated for bottom hinged windows only
Supplied complete with vent bracket and 1.5m cable.
24 Vdc version is suitable for installation on smoke and heat extraction systems in conformity to UNI EN 12101-2.
VOLTAGE SUPPLY 24 Vdc ± 10%
ELECTRIC CONNECTION 2 wires + signalling
OPERATION by polarity inversion
STROKE 450 - 600 - 800 - 1000 mm
FORCE IN PUSH ACTION (stroke) 400 N (300 N for 800mm stroke)
FORCE IN PULL ACTION 400 N
SPEED ~20 mm/s
CURRENT ABSORPTION (with max load) 2 A
PARALLEL CONNECTION YES
LIMIT STOP micro switches
SAFETY STOP electronic
FEEDBACK SIGNAL open/close
PROTECTION CLASS IP 20
| PART NO. |
MODEL |
DESCRIPTION |
| 40506L |
Supermaster DC |
Actuator Supermaster 24Vdc 450 A ANODIZED SILVER |
| 40509T |
Supermaster DC |
Actuator Supermaster 24Vdc 450 B DARK BROWN ANODIZED |
| 40507N |
Supermaster DC |
Actuator Supermaster 24Vdc 450 W WHITE PAINTED RAL 9010 |
| 40461R |
Supermaster DC |
Actuator Supermaster 24Vdc 600 A ANODIZED SILVER |
| 40467D |
Supermaster DC |
Actuator Supermaster 24Vdc 600 B DARK BROWN ANODIZED |
| 40468F |
Supermaster DC |
Actuator Supermaster 24Vdc 600 W WHITE PAINTED RAL 9010 |
| 40469H |
Supermaster DC |
Actuator Supermaster 24Vdc 800 A ANODIZED SILVER |
| 40470S |
Supermaster DC |
Actuator Supermaster 24Vdc 800 B DARK BROWN ANODIZED |
| 40471U |
Supermaster DC |
Actuator Supermaster 24Vdc 800 W WHITE PAINTED RAL 9010 |
| 41020I |
Supermaster DC |
Actuator Supermaster 24Vdc 1000 A ANODIZED SILVER |
| 41092Y |
Supermaster DC |
Actuator Supermaster 24Vdc 1000 W WHITE PAINTED RAL 9010 |
Accessories sold separately: sliding aluminium bracket with shim part No. 40460N, pivoting brackets kit part No. 40560T, sliding aluminium steel bracket with shim and bottom hinged painted steel bracket part No. 40472W.
