Gate Stop for Doors - to be fixed to the floor - adjustable from 34 to 84 mm
The adjustable
gate stop for doors to be fixed to the floor
code 25 Brevetti Adem is a mechanical adjustable gate stop. It is a pedal version for swing gates.
This professional gate stop is
adjustable in height up to a maximum of 84 mm . Gate stop for doors designed for 64 mm tubulars, equipped with a rubber stop to cushion the blow.
The installation of the Adem gate stop art. 25 is
to be fixed with screws with a diameter of 10 mm.
Adem 25 gate stop: characteristics, design and measurements
- Gate stop depth: 190 mm;
- Gate stop height: 130 mm;
- Gate stop width: 103 mm;
- Hook height: 34 ÷ 84 mm.

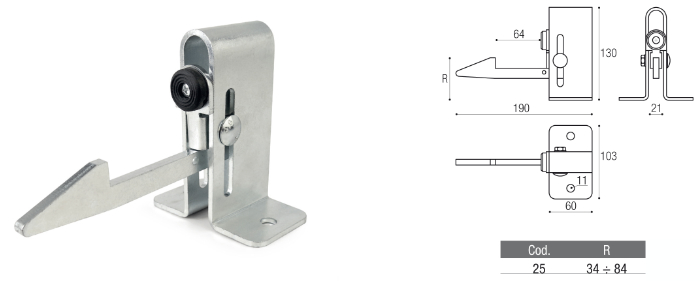

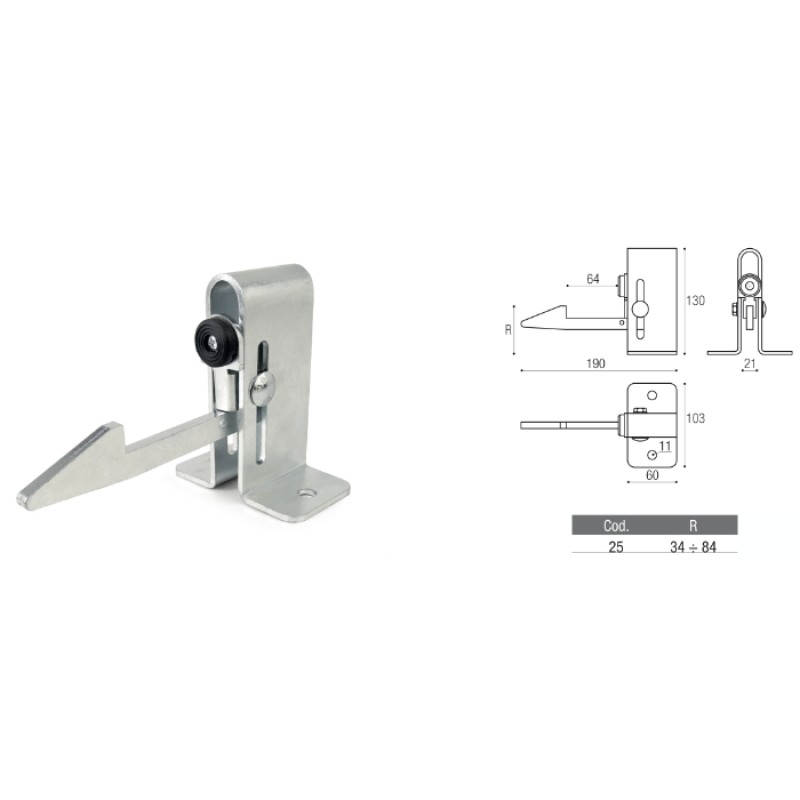

Look at the technical drawing to discover the characteristics of the adjustable gate stop for doors to be fixed to the floor.
Solutions for swing gates for sale online
Are you looking for a specific article in
the Adem Patents catalog ? Contact us and ask for a quote.
