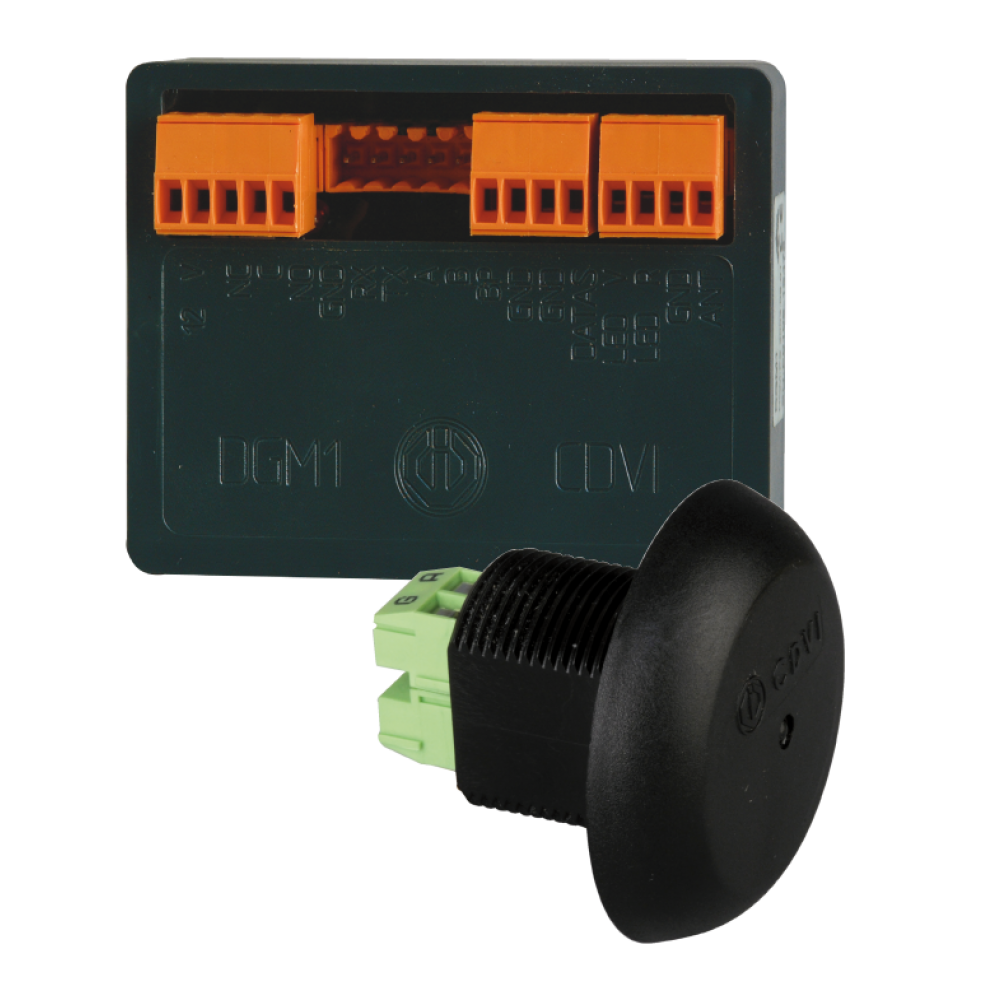

Standalone Reader DGM1D Mifare Vandal-proof 1 Gate Management CDVI
MIFARE® Standalone CENTRAL + MIFARE® READER 1 GATE MANAGEMENT 1 GATE
DGM1D Mifare Stand-Alone Reader allows a door to be opened with a badge.
DGM1D is a self-contained MIFARE reader. Its integrated electronics make it safe in any environment. This product is recommended for control and gate or door management applications.
Ideal for bed & breakfast, buildings, offices, simple and quick to install. Its elegant and technological design makes it perfect for any environment.
Strengths
- Compatible with Mifare®;
- Hierarchical Association Access with the creation date of the Tag: 1 access on 100 possibilities + access point;
- Easy to program.
Mode 1
- PC Tag Programming;
- Transfer to PCV123D;
- Tag transfer on the system by proximity from PCV123D to tag reader;
- Unlimited number of TAGs on the plant.
Mode 2
- Programming with Badge Master;
- User badge programming: read master badges to enter programming;
- Read all user badges to be enabled (max 200 badges);
- Close the programming by reading the master badge again.
- Low cost;
- Possibility of cancellation and reprogramming of tags;
- Tag cancellation and wireless access;
- Connector terminal block.
dimensions
- DGM1D Control unit (W x W x D) = 78 x 57 x 24mm,
- DGM1D Reader (Ø x D) = Ø44 x 41mm.
- Management of 1 gate: 1 NA / NC relay;
- 1 input for exit button;
- Installation use a shielded SYT cable 1/10 max 2mt from the reader;
- System code present in the badge;
- "Blacklist" mode (allows to detect lost or stolen badges).
Works with the following products:
- PVP (Tag MIFARE®);
- BV Badges (ISO MIFARE® credit card format);
- METAL (Tag MIFARE®);
- ERV (RF & MIFARE® radio remote control).
- Direct connection of the reader;
- RS-232 serial port;
- Power supply: 12V ac / dc;
- Absorption: max. 300mA.
