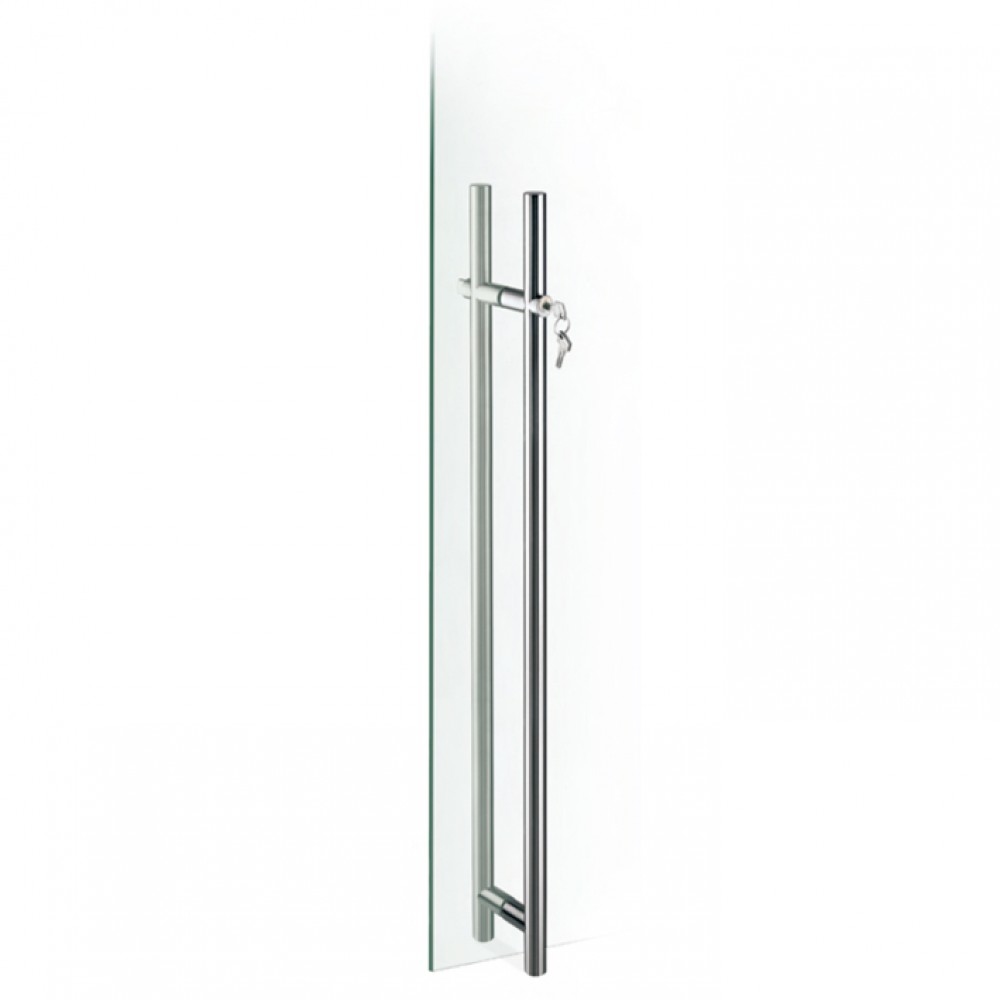

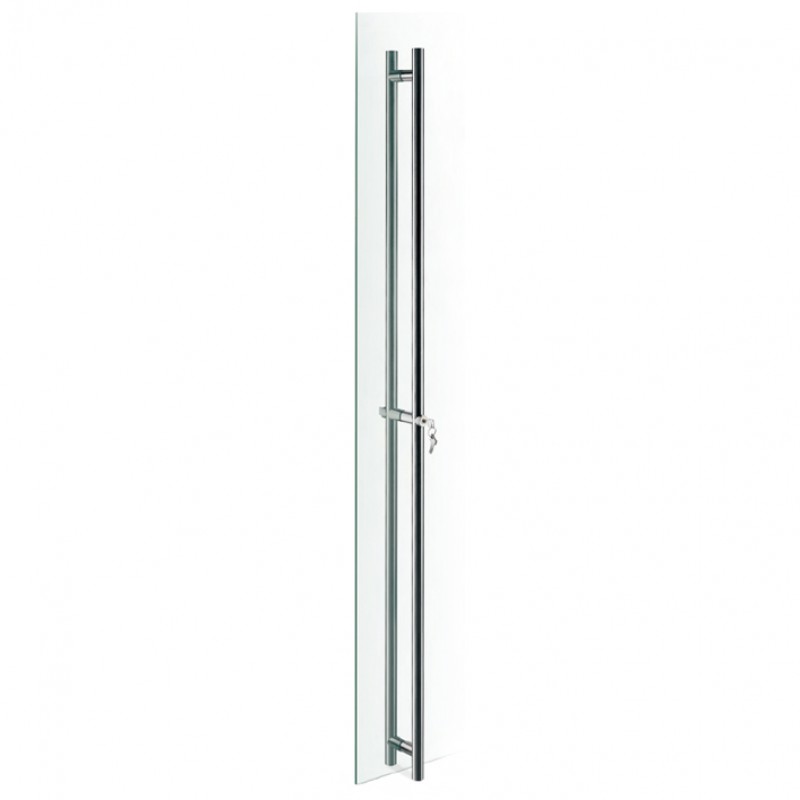

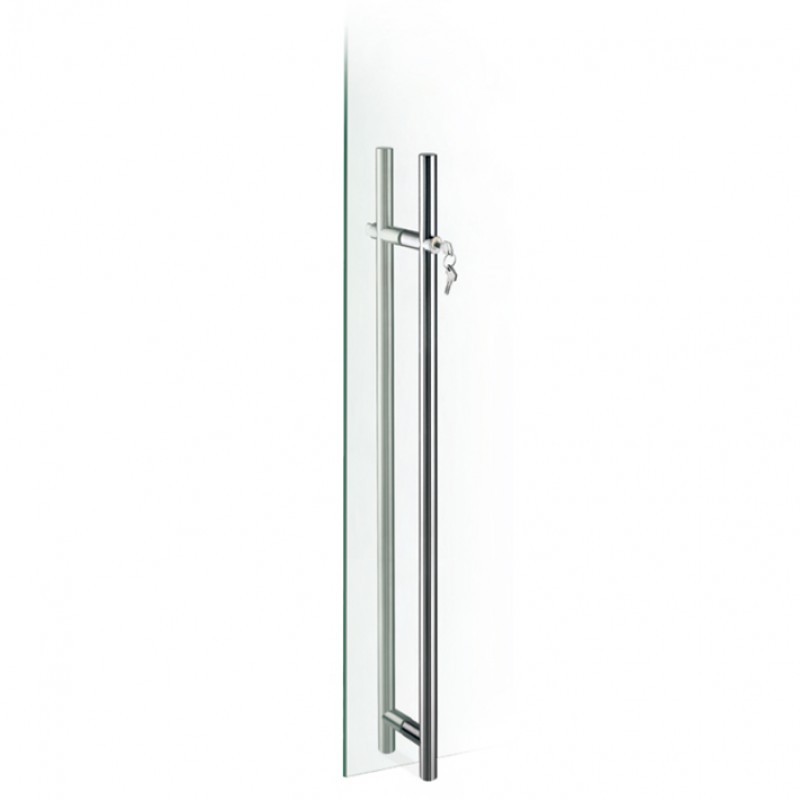

pba 200C Pull Handles in Stainless Steel AISI 316L - With built-in lock
Door pull handles in AISI 316L stainless steel with built-in lock - PBA PATENT.
These stainless steel pull handles are characterized by an
elegant design and are particularly suitable for office and meeting room doors. In addition to their aesthetic function, these pull handles also offer the convenience of having an
integrated lock , allowing the door to be closed and protected when necessary.
pba pays particular
attention to the aesthetic aspects , including the insertion of the keys, designing solutions that integrate perfectly into the overall design of the handle. In this way, the aesthetics of the pull handle remain intact and a practical solution with great visual impact is obtained.
Variants pba 200C - Handle in Stainless Steel
CAREFULLY read the technical descriptions of the grab bars.
Each handle is different based on:
- presence and absence of knob;
- floor and ceiling lock;
- variable height;
- single handle and in pairs.

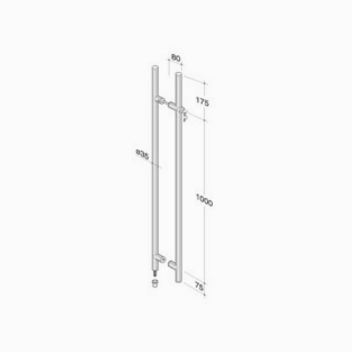

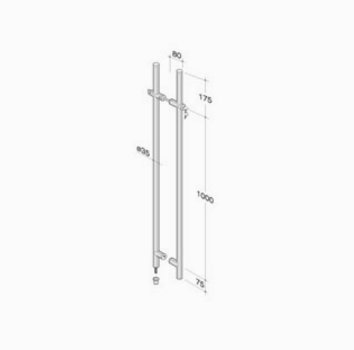

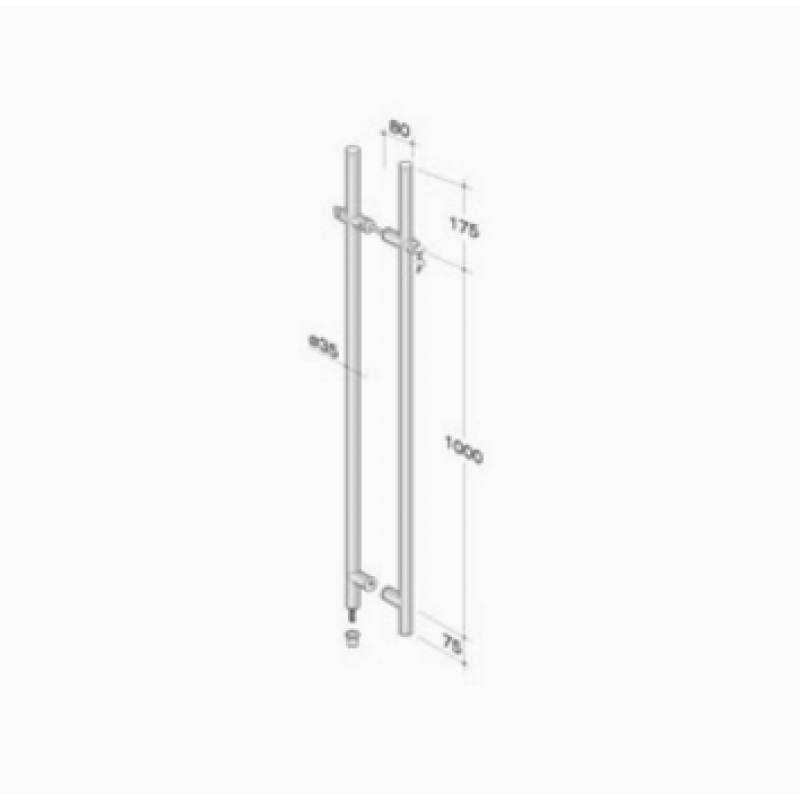

Steel pull handle pba KLO.001.0100
Pull handle in AISI 316L stainless steel with built-in lock
A=1000 B=1250
Pair of AISI 316L stainless steel handles with built-in lock
Diameter 35mm
2 supports. Center support / bottom support distance: 1000 mm
Length 1250mm
Built-in cylinder lock with push rod that closes on the floor on the side opposite to that where the key is inserted
Version without knob for locking on the side opposite to that where the key is inserted

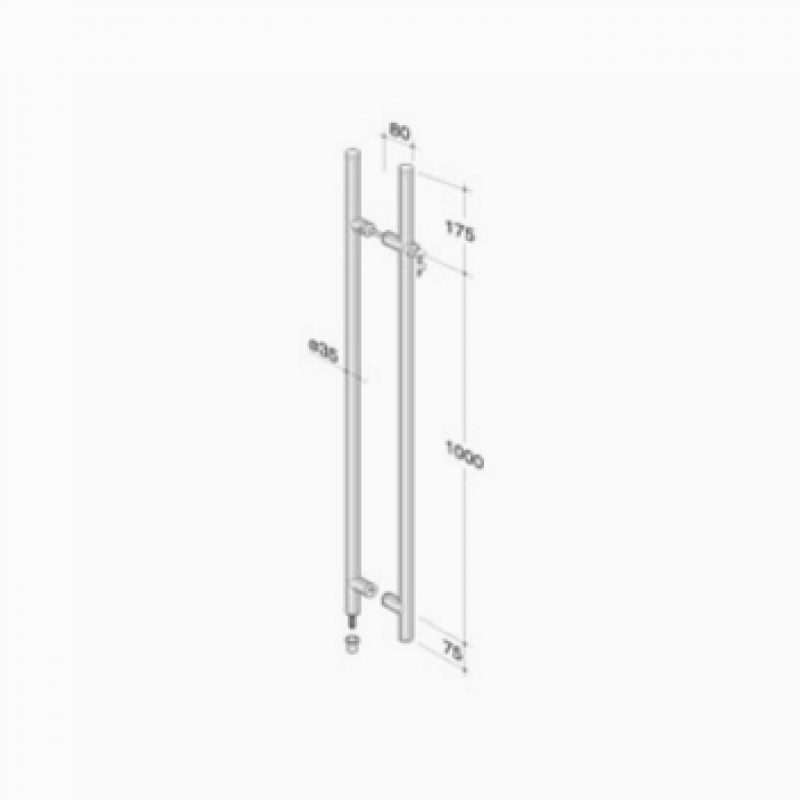

Steel pull handle pba KLO.002.0100
Pull handle in AISI 316L stainless steel with built-in lock
A=1000 B=1250
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35mm.
2 supports. Center support / bottom support distance: 1000 mm.
Length 1250mm.
Built-in cylinder lock with push rod that closes on the floor on the side opposite to that where the key is inserted.
Version with knob for locking on the side opposite to that where the key is inserted.

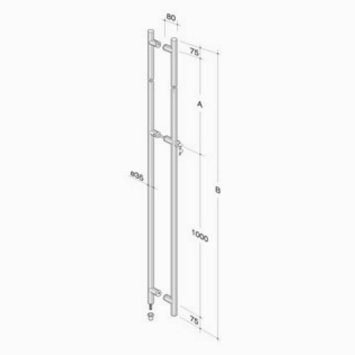

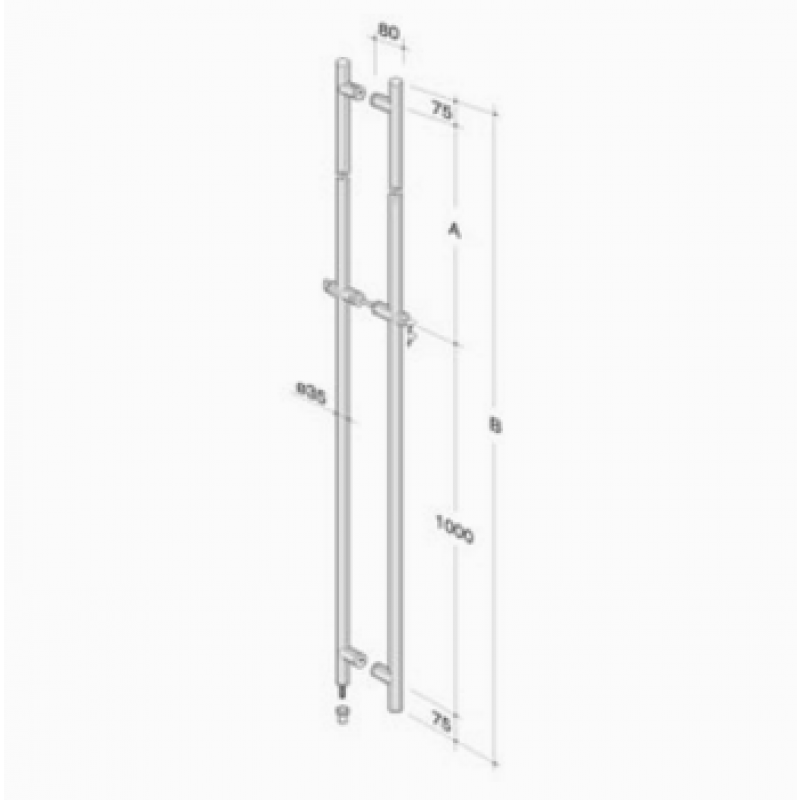

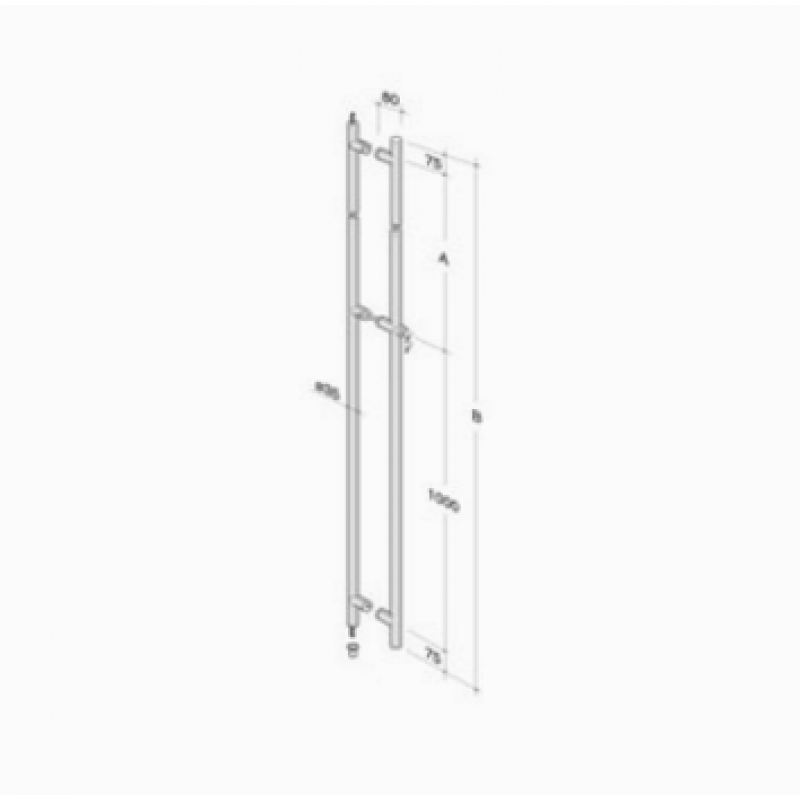

Steel pull handle pba KLO.003.0105
Pull handle in AISI 316L stainless steel with built-in lock A=1050 B=2200
Pair of AISI 316L stainless steel handles with built-in lock
Diameter 35mm.
3 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Built-in cylinder lock with push rod that closes on the floor on the side opposite to that where the key is inserted.
Version without knob for locking on the side opposite to that where the key is inserted.
Steel pull handle pba KLO.004.0105
Pull handle in AISI 316L stainless steel with built-in lock A=1050 B=2200
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35mm.
3 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Length A = 1250 mm.
Built-in cylinder lock with push rod that closes on the floor on the side opposite to that where the key is inserted.
Version with knob for locking on the side opposite to that where the key is inserted.

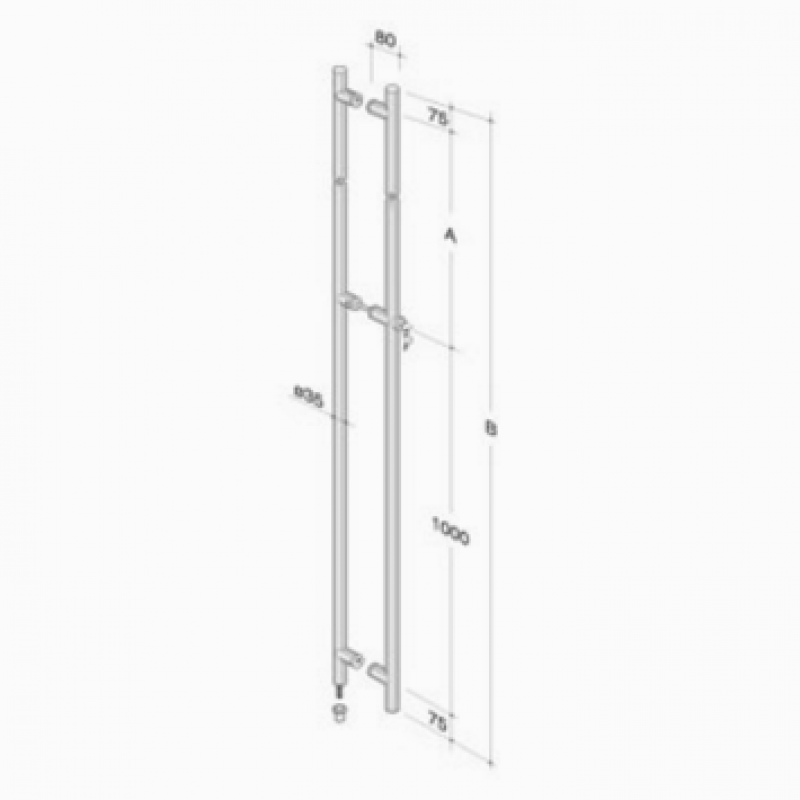

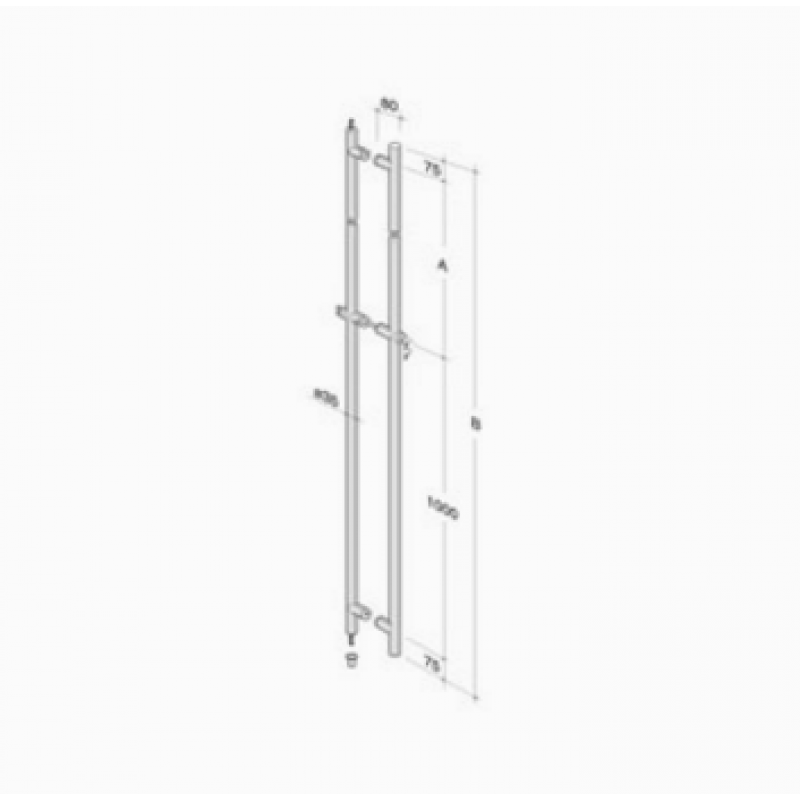

Steel pull handle pba KLO.005.0105
Pull handle in AISI 316L stainless steel with built-in lock
A=1050 B=2200Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35mm.
3 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Custom length.
Built-in cylinder lock with push rod that closes on the floor and on the ceiling on the side opposite to that where the key is inserted.
Version without knob for locking on the side opposite to that where the key is inserted.

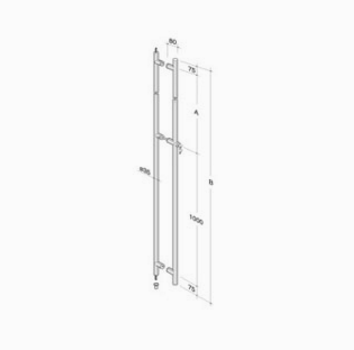

Steel pull handle pba KLO.006.0105
Pull handle in AISI 316L stainless steel with built-in lock A=1050 B=2200
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35mm.
3 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Custom length.
Built-in cylinder lock with push rod that closes on the floor and on the ceiling on the side opposite to that where the key is inserted.
Version without knob for locking on the side opposite to that where the key is inserted.

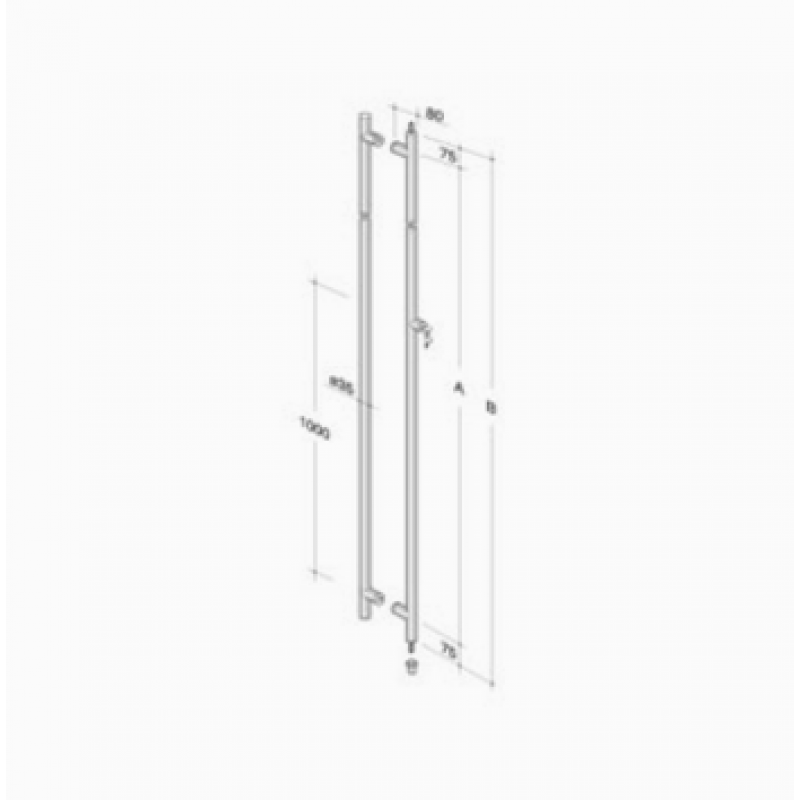

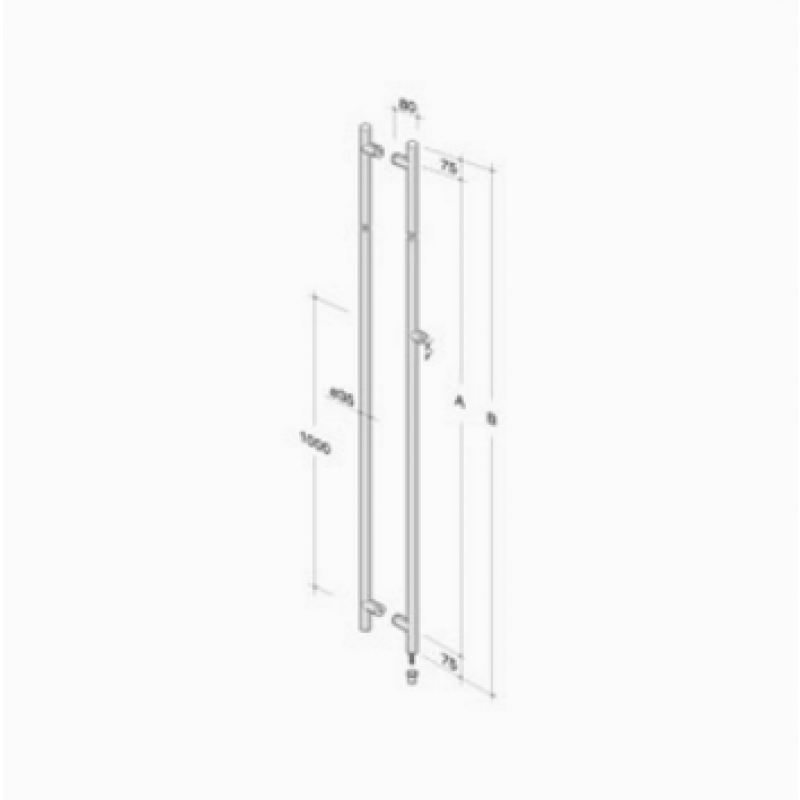

Steel pull handle pba KLO.007.0105
IMPORTANT: the price refers to a single handle

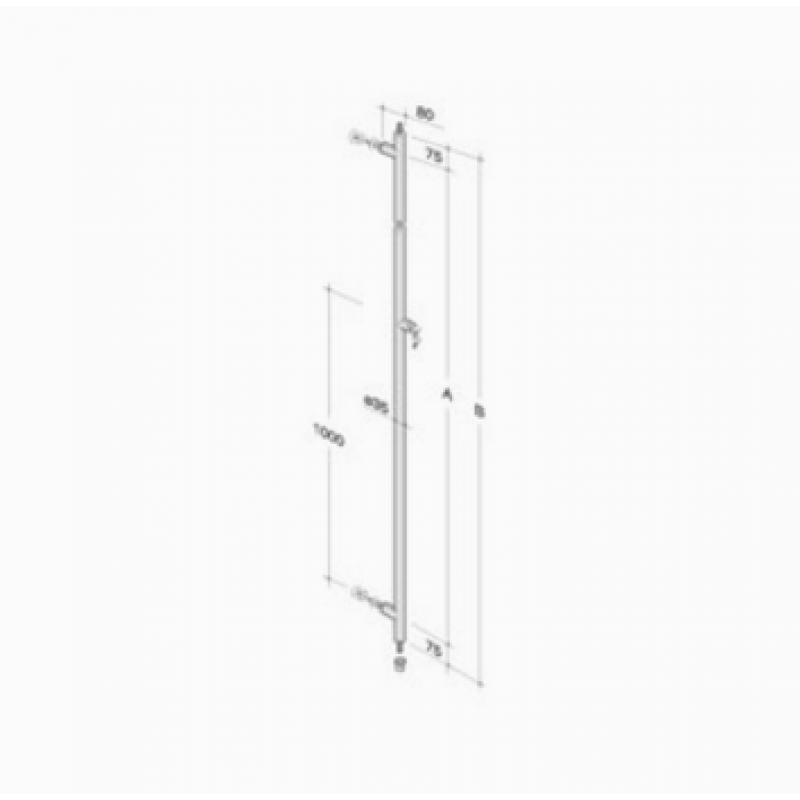

Pull handle in AISI 316L stainless steel with built-in lock
A=1050 B=2200
Pull handle in AISI 316L stainless steel with built-in lock.
Diameter 35mm.
2 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Custom length.
Built-in cylinder lock with push rod that closes on the floor on the same side as the key.

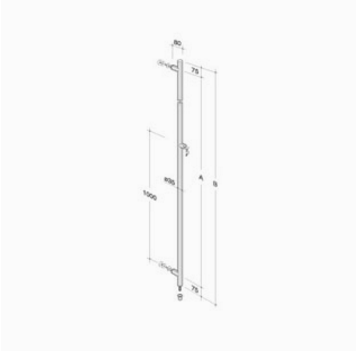

Steel pull handle pba KLO.008.0105
IMPORTANT: the price refers to a single handle

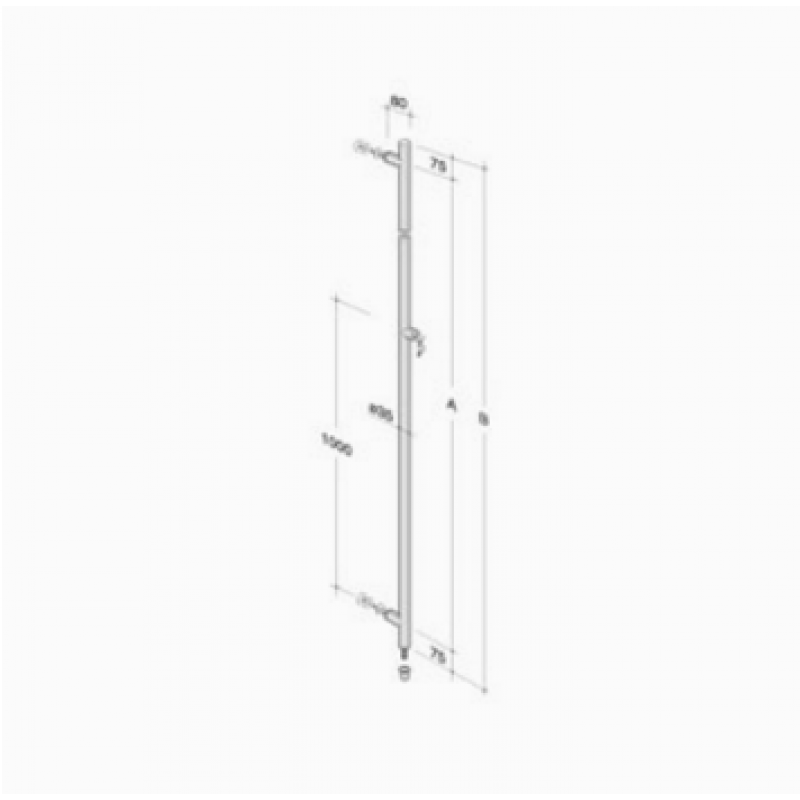

Pull handle in AISI 316L stainless steel with built-in lock
A=1050 B=2200 AISI 316L stainless steel pull handle with built-in lock.
Diameter 35mm.
2 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Custom length.
Built-in cylinder lock with push rod that locks on the floor and on the ceiling on the same side as the key is inserted.
Steel pull handle pba KLO.009.0105

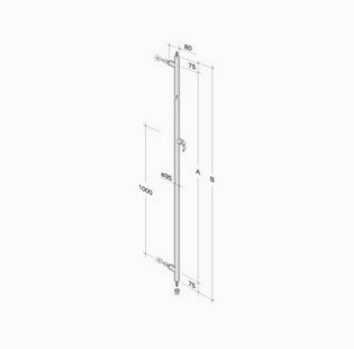

Pull handle in AISI 316L stainless steel with built-in lock
A=1050 B=2200Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35mm.
2 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Custom length.
Built-in cylinder lock with push rod that closes on the floor on the same side as the key.
Version without knob for locking on the side opposite to that where the key is inserted.
Steel pull handle pba KLO.010.0105
Pull handle in AISI 316L stainless steel with built-in lock
A=1050 B=2200Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35mm.
2 supports. Center support / lower support center distance: 1000 mm, center support / upper support center distance: made to measure.
Custom length.
Built-in cylinder lock with push rod that locks on the floor and on the ceiling on the same side as the key is inserted.
Version without knob for locking on the side opposite to that where the key is inserted.
Standard finish: satin
Finishing on request: glossy (contact us if you are interested)
On request, special cylinder systems (burning) can be supplied in the KA-MK-GMK systems
Available with fixings for aluminium, glass, wood, PVC and mixed systems for window thicknesses of 10-22 mm (fixing for greater thicknesses is available on request)
Patented anti-burglary fixing device
Protective accessories for glass fixing included in the package
Floor bushing supplied
ATTENTION : the fixing kits of the pba handles are sold separately (complete your purchase by searching on Windowo)
