Stainless Steel Kitchen Hood Snack LED Depth 70 90 110 cm

Brands: OndaInox

Code: CSL

-20%

€ 487,87 € 609,84

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

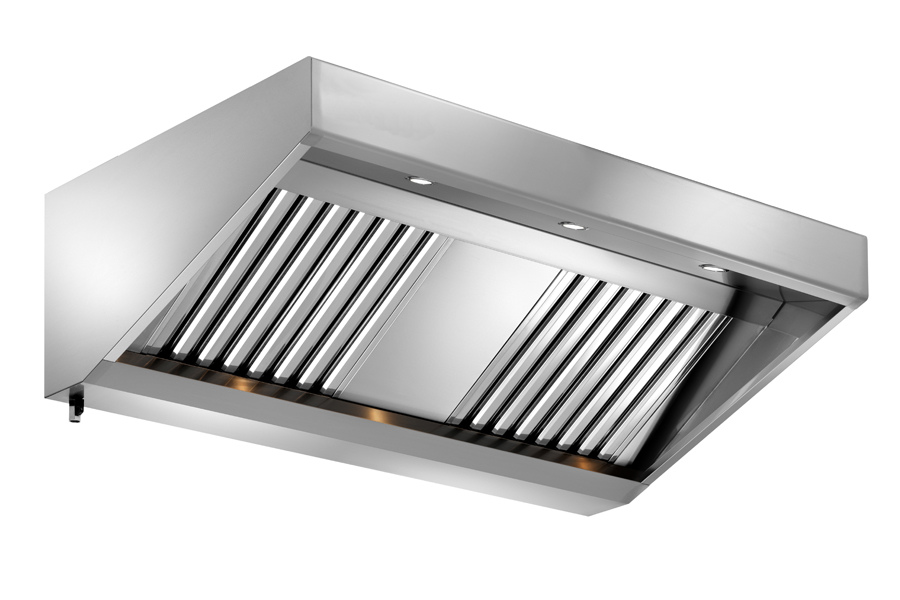

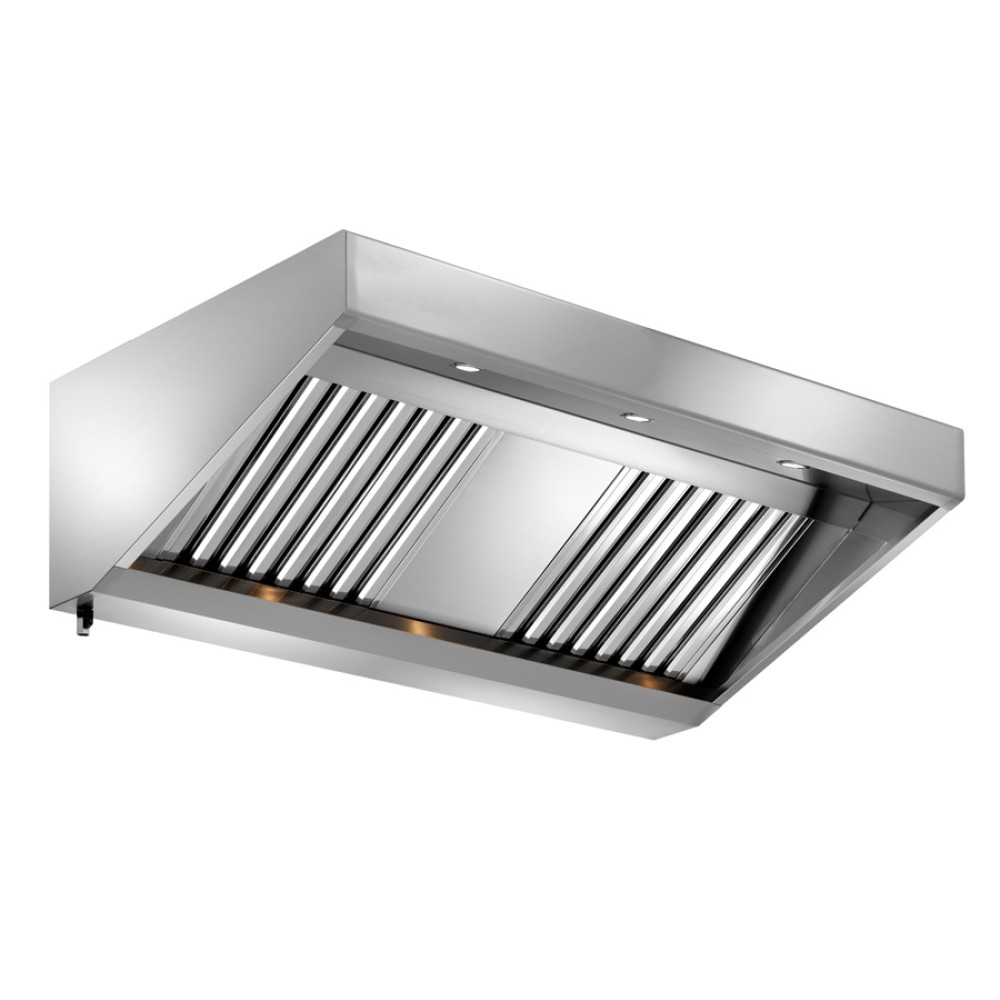

Stainless Steel Kitchen Hood - Snack LED - Depth 70 90 110 cm - Low Energy Consumption Lighting

The Stainless Steel Kitchen Hood Snack LED with depth 70 90 110 cm is the ideal solution for your kitchen.

This elegant and durable stainless steel hood is available in three different depths to suit your specific needs.

Hood with professional low energy consumption LED lighting , guarantees an efficient and ecological solution.

cappa cucina acciaio inox snack led

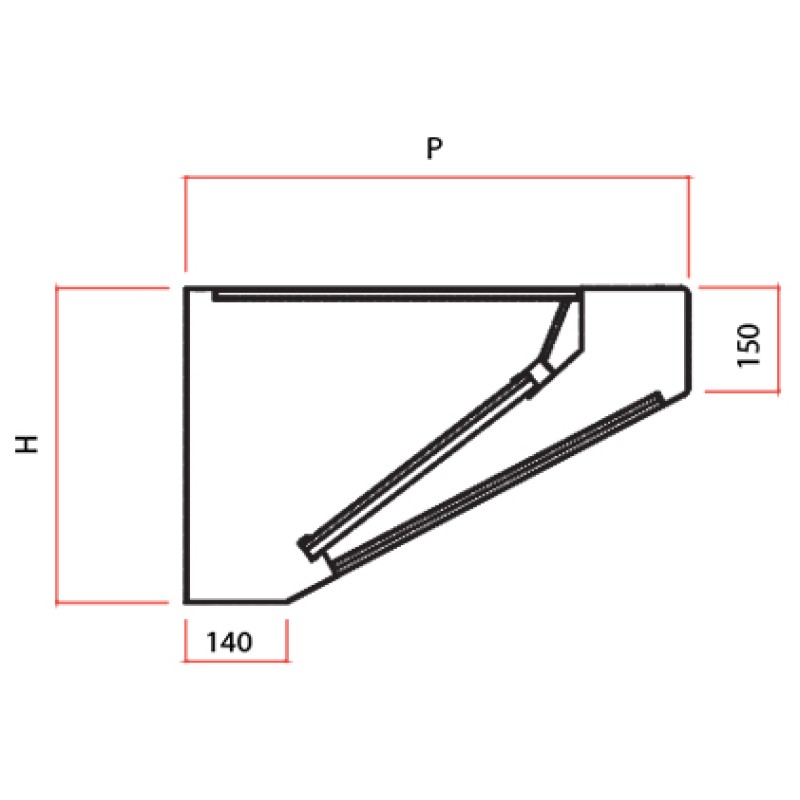

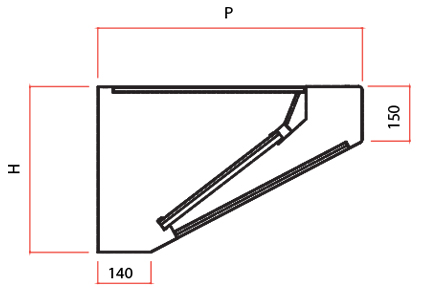

Inox Snack hood with LED lighting - Construction features:

The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm, positioned against the wall, even in cases of low ceilings;
Equipped with integrated low energy consumption LED strips;
Construction in AISI 430, Scotch-Brite satin finish. Fully edged, even in the internal parts;
Assembled by electro-welding. Special executions (execution in AISI 304, assembly by welding) on request.

Inox Snack hood with LED supplied with:

• Labyrinth grease filters in AISI 430 stainless steel;
• 1/2” condensate drain;
• integrated 4 Watt LED strips,

Notes on the professional LED hood:

Packaging included in the price ;
Hanging kit and flange not included ;
The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CS711 = CS712).

Neutral Stainless Steel Hood (WITHOUT ELECTRIC FAN)

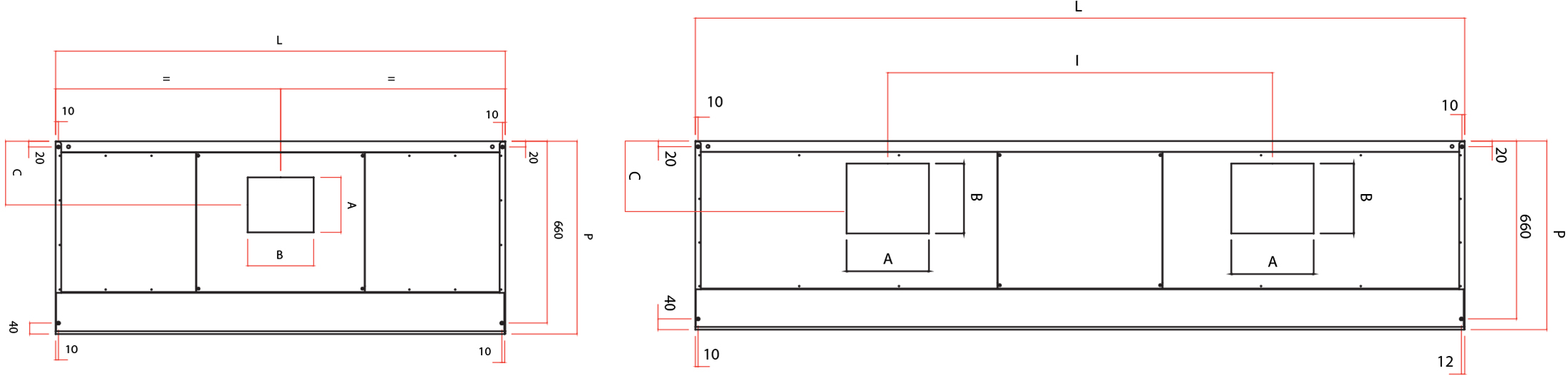

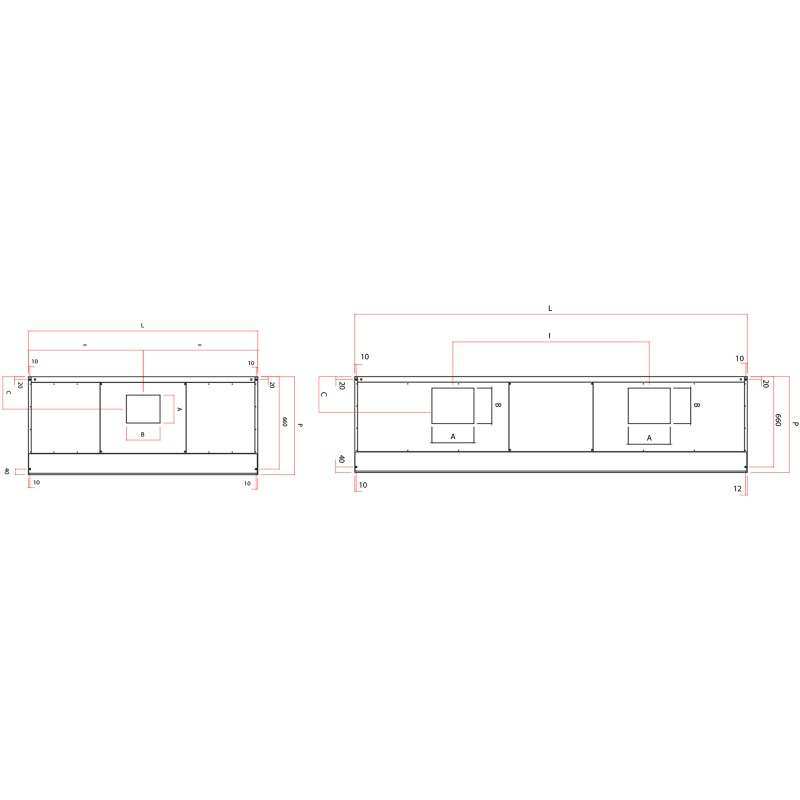

Stainless Steel Kitchen Hood Snack LED - Depth 700 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	*Flow rate (m ³ /h)**	THE (mm)	No. of LEDs (4W each)
CSL 7/10	700x1000x450	230x200	230	2a	26	900		2
CSL 7/12	700x1200x450	230x200	230	2b	30	1100		2
CSL 7/14	700x1400x450	230x200	230	2b	34	1250		3
CSL 7/16	700x1600x450	230x200	230	3a	37	1400		3
CSL 7/18	700x1800x450	230x200	230	3b	40	1600		3
CSL 7/20	700x2000x450	300x260	210	4a	44	1800		4
CSL 7/22	700x2200x450	300x260	210	4a	46	1950		4
CSL 7/24	700x2400x450	300x260	210	4b	48	2200		4
CSL 7/26	700x2600x450	300x260	210	4b	51	2300		5
CSL 7/28	700x2800x450	230x200x20	210	5b	54	2500	1400	5
CSL 7/30	700x3000x450	230x200x20	210	5b	57	2700	1500	5
CSL 7/32	700x3200x450	230x200x20	210	5b	61	2800	1600	6
CSL 7/34	700x3400x450	300x260x20	210	6b	64	3000	1700	6
CSL 7/36	700x3600x450	300x260x20	210	6b	67	3200	1800	7
CSL 7/38	700x3800x450	300x260x20	210	6b	71	3350	1900	7

NB: the hoods from the CSL 7/28 model onwards have two expulsion holes

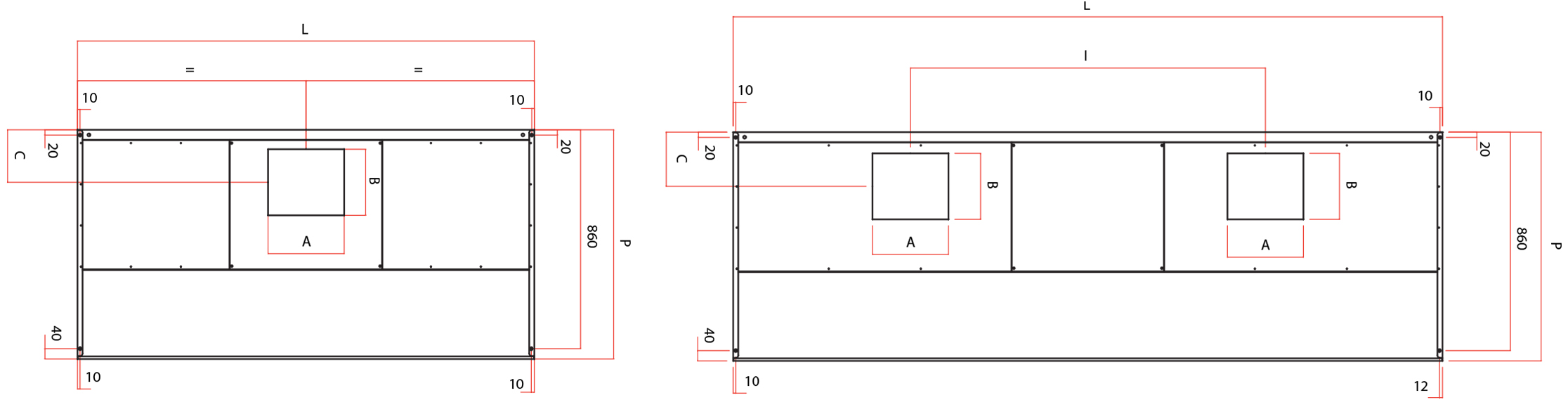

Stainless Steel Kitchen Hood Snack LED - Depth 900 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Flow rate (m ³ /h)	THE (mm)	No. of LEDs (4W each)
CSL 9/10	900x1000x450	230x200	230	2a	34	1100		2
CSL 9/12	900x1200x450	230x200	230	2b	38	1400		2
CSL 9/14	900x1400x450	230x200	230	2b	42	1600		3
CSL 9/16	900x1600x450	300x260	210	3a	45	1800		3
CSL 9/18	900x1800x450	300x260	210	3b	48	2000		3
CSL 9/20	900x2000x450	300x260	210	4a	52	2250		4
CSL 9/22	900x2200x450	300x260	210	4a	54	2500		4
CSL 9/24	900x2400x450	300x260	210	4b	56	2700		4
CSL 9/26	900x2600x450	300x260x20	210	4b	59	2950	1300	4
CSL 9/28	900x2800x450	300x260x20	210	5b	62	3200	1400	5
CSL 9/30	900x3000x450	300x260x20	210	5b	65	3400	1500	5
CSL 9/32	900x3200x450	300x260x20	210	5b	69	3650	1600	6
CSL 9/34	900x3400x450	300x260x20	210	6b	72	3850	1700	6
CSL 9/36	900x3600x450	300x260x20	210	6b	75	4050	1800	7
CSL 9/38	900x3800x450	300x260x20	210	6b	79	4300	1900	7

NB: the hoods from the CSL 9/26 model onwards have two expulsion holes

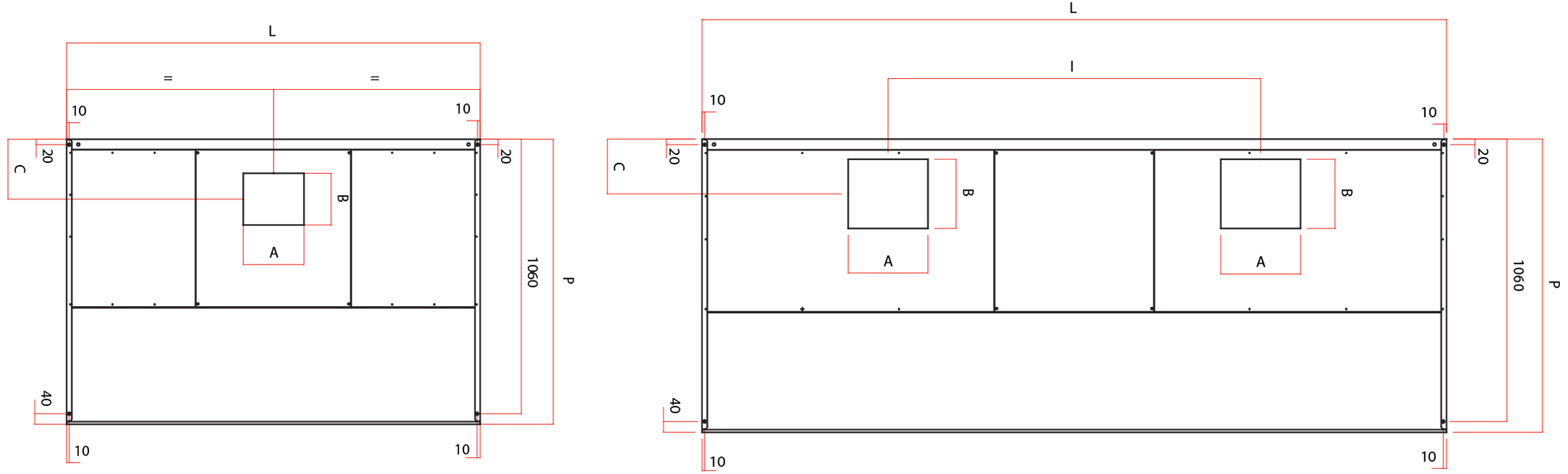

Stainless Steel Kitchen Hood Snack LED - Depth 1100 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Flow rate (m ³ /h)	THE (mm)	No. of LEDs (4W each)
CSL 11/10	1100x1000x450	230x200	230	2c	35	1400		2
CSL 11/12	1100x1200x450	300x260	210	2d	38	1700		2
CSL 11/14	1100x1400x450	300x260	210	2d	41	1950		3
CSL 11/16	1100x1600x450	300x260	210	3c	44	2200		3
CSL 11/18	1100x1800x450	300x260	210	3d	47	2500		3
CSL 11/20	1100x2000x450	300x260	210	4c	50	2800		4
CSL 11/22	1100x2200x450	300x260	210	4c	53	3100		4
CSL 11/24	1100x2400x450	300x260x20	210	4d	56	3400	1200	4
CSL 11/26	1100x2600x450	300x260x20	210	4d	59	3600	1300	4
CSL 11/28	1100x2800x450	300x260x20	210	5d	62	3900	1400	5
CSL 11/30	1100x3000x450	300x260x20	210	5d	65	4200	1500	5
CSL 11/32	1100x3200x450	300x260x20	210	5d	68	4500	1600	6
CSL 11/34	1100x3400x450	300x260x20	210	6d	73	4700	1700	6
CSL 11/36	1100x3600x450	300x260x20	210	6d	78	5000	1800	7
CSL 11/38	1100x3800x450	300x260x20	210	6d	83	5300	1900	7
