Speedy M25 Casma - Floor mounted door closer - for outdoors and indoors - Variable sizes
Speedy M25 Casma floor door closer external internal variable measures SpeedyByCasma.

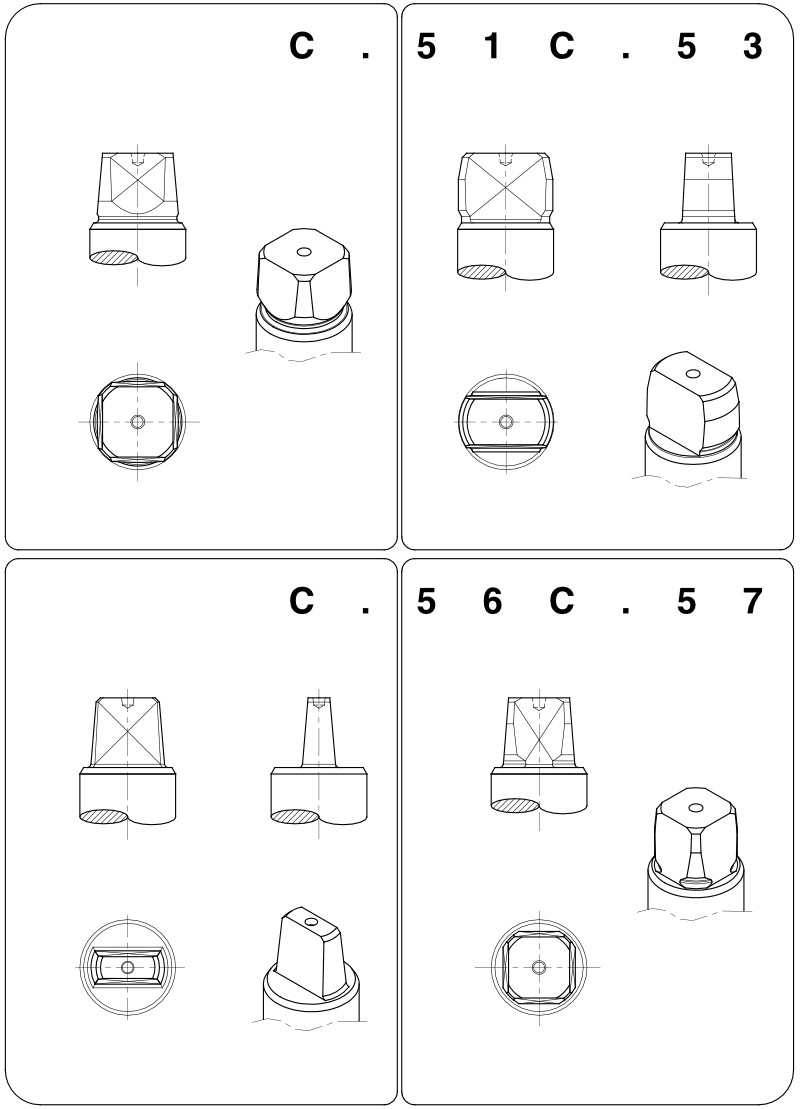

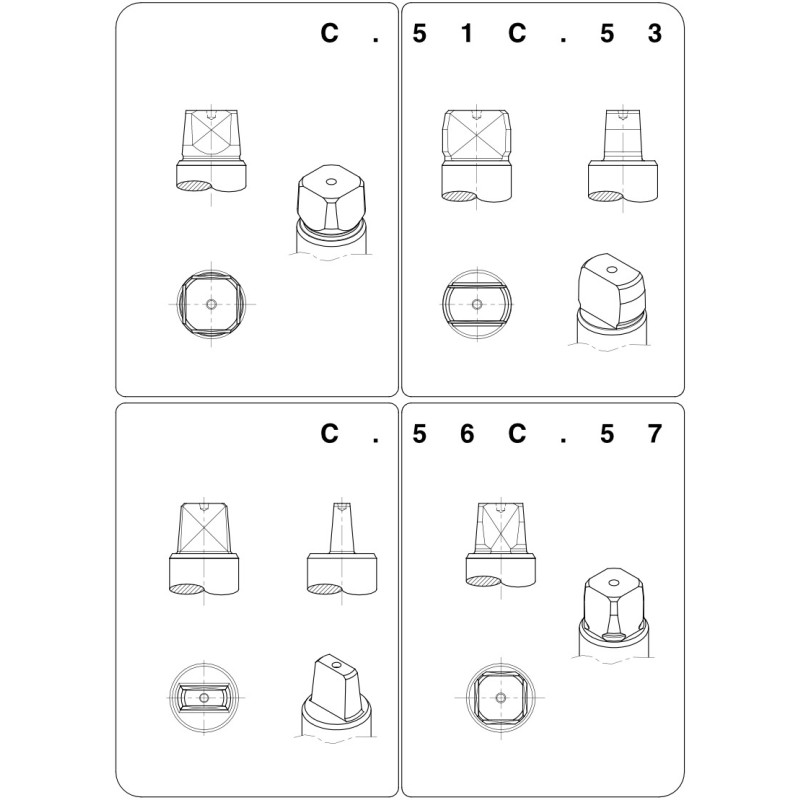

Please indicate
by email when ordering which
type of pin you need for the Casma door closer. If you do not write anything, we will insert the standard one for your country.

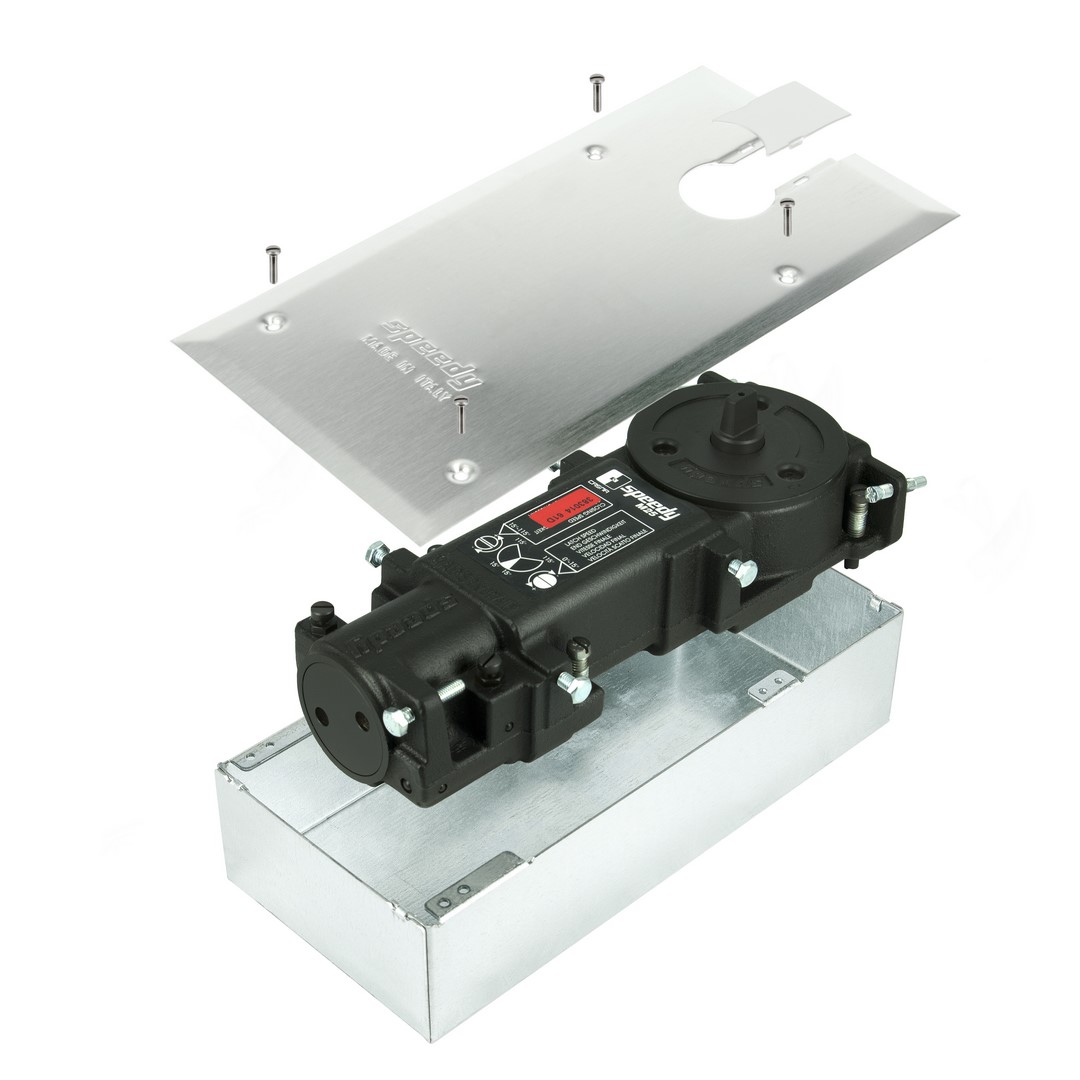

Description Speedy M25 Casma Floor mounted door closer
Speedy M25 is the
Casma floor door closer installed in more than 5 million pieces. Its returns are over 65% and its duration is over ten years.
Technical data Speedy M25 Floor door closer
- Force preconfigured by the manufacturer : EN1154-3 (red force) - EN1154-5 (black force);
- Lid with fixing : box to be cemented;
- Dimensions of the box to be cemented : 130 x 283 x 65 mm;
- Stop preconfigured by the manufacturer : 90°;
- Pin : square.
Center distance of the Speedy M25 Casma door closer
A) With the box leaning against the wall, the door closer can be adjusted by acting on the appropriate screws, and varies from 56 to 68 mm.
B) In the case of greater center distances, the box moved from the wall must be cemented. For example, for a center distance of 70 mm, the box must be moved 11 mm from the wall.
(TO)
(B)
Maximum weight of the external door to close/open
Choose the weight of the external door on which you need to use the door closer:
- 120 kg - maximum door width 1100 mm (red force);
- 350kg - maximum door width 1400mm (black force).
Available finishes Speedy Casma M25 Floor mounted door closer
Choose the lid finish:
- Aluminum ;
- Stainless steel .
Door closer variants on request
The door closer is sold with a standard 90° stop.
Contact us to have the door closer without latch, or with latch at 105° (see diagram).
Optional on request for Speedy M25 Casma
Contact us to add the following options:
- Strength for the disabled : on request;
- Aggressive environments : on request;
- Thermoconstance : upon request;
- Stroke lock and mechanical hardening : upon request;
- Extended pin heads : on request.
Speedy M25 installation
The dowel (combined with the lid) is inserted and snapped into place, with the door and lid assembled. Its forgetfulness does not imply the disassembly of the door.
UNI EN 1154 certified
- Speedy respects the European regulation UNI EN 1154.
- Download the certificate by clicking on the "Documents" panel.
Speedy Casma has been synonymous with door closers since 1942
- Speedy Casma door closers are completely designed and manufactured in Italy using the highest quality materials and components.
- Speedys are the most reliable floor door closers on the market, which can be used in any installation.
