Somfy Synapsia 1000 io Shutter Motor with Remote Control

Somfy Synapsia 1000 io motor - Motorization for swing shutter with remote control

Synapsia 1000 io automation for swing shutters

The Somfy Synapsia 1000 motor makes it easy to motorize the shutters :

• Easy to install : housing adjustable according to the width of the window, installation template supplied;
• Discreet : The compact size of the motor allows for discreet integration on the facade;
• Comfort : New lighter and easier to install version of the Synapsia RTS shutter motor. The shutters can be closed with a single movement without having to open the window;

One simple action is enough to open or close your blinds from your remote control.

Just define the position of your shutters according to your needs and desires with your remote control or from your smartphone via the TaHoma app.

Take a step forward with the TaHoma home automation box (sold separately) and its dedicated app to control your shutters with your smartphone, from home or remotely.

Persian motorization with radio technology and compact dimensions

Thanks to io-homecontrol radio technology , you now know if your roller shutter is open or closed in real time, and you can change it remotely via your smartphone with the TaHoma app. For added security, the Synapsia motor holds the shutters in the closed position to prevent any intrusion.

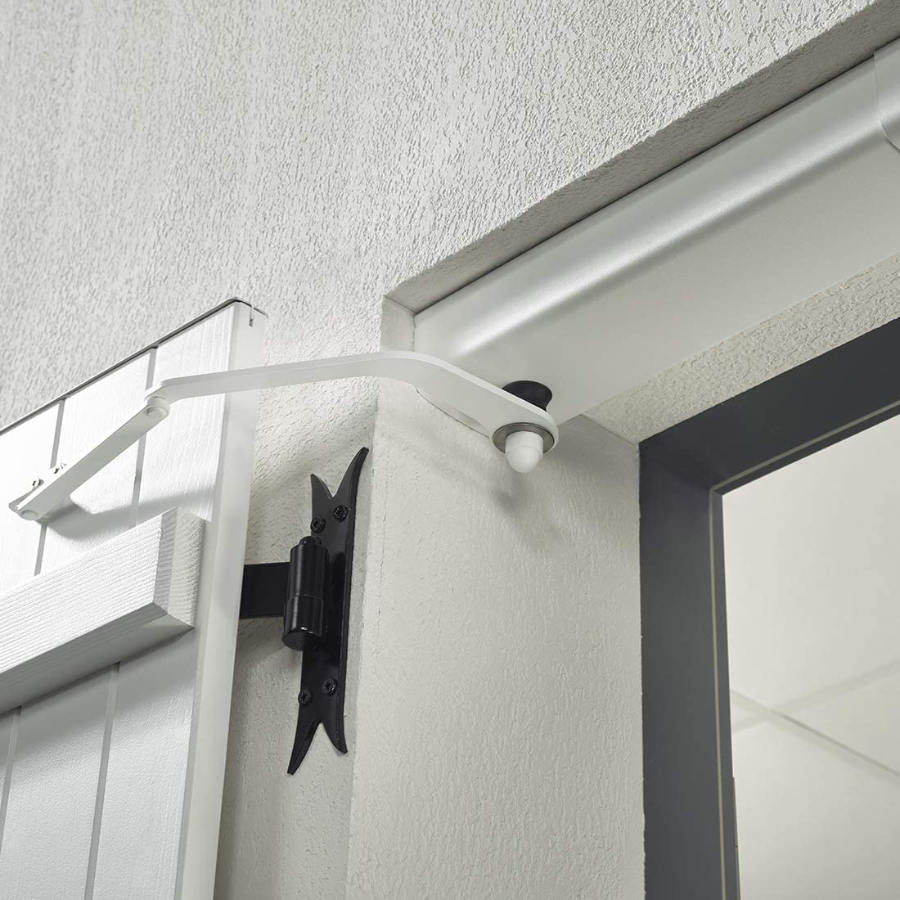

The compact dimensions of the shutter motor ensure that its installation retains the authentic charm of your home. The motor arms and housings supplied are white to integrate discreetly into your facade. The Synapsia motorization kit is compatible with single-leaf shutter shutters with a width ranging from 590 to 1000 mm, or with double-leaf shutters with a width from 880 to 1520 mm.

It is installed under the lintel (a minimum depth of 145 mm is required between the closed shutter and the window).

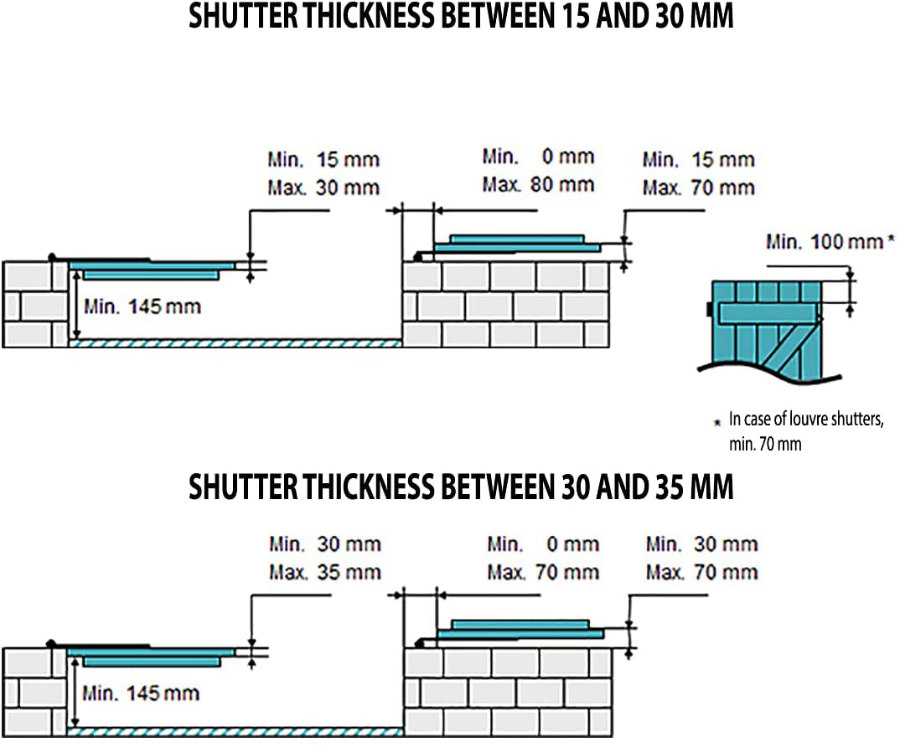

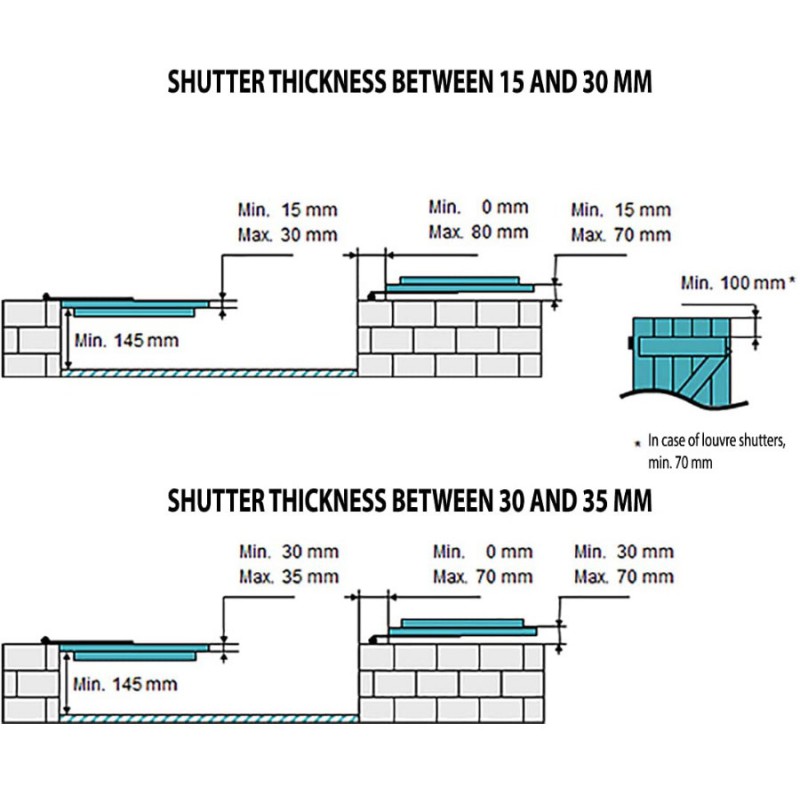

Refer to the size table to check the compatibility of your shutters with the Synapsia motor kit:

Move the shutters of the house with the Somfy remote control

Now you can use the supplied remote control to establish basic settings during installation, such as the direction of rotation of the shutters, the characteristics of the cover leaf and you can also adjust the torque of the motor. No need to open the motor casing anymore.

What are the advantages of the Somfy Synapsia 1000 io motor?

PRESERVE THE AESTHETICS OF THE FACADE:

• Discreet engine and perfect integration into the environment.
• Suitable for all types of shutters.
• Compatible with all materials (wood, resin, PVC and aluminum).
• Space saving, does not reduce the daylight of the window.

MORE COMFORT:

• No need to open the windows to open or close the shutters, everything is done with one click!
• Thanks to Tahoma, the application for the whole house, I control via my smartphone or tablet.
• Real-time feedback to know if the shutters are closed. Creation of programmed scenarios.
• A half-open position when the sun is shining is possible thanks to the compatibility of the motor with the Somfy sunlight sensor.

MORE SAFETY:

• With the shutters closed, the motor keeps them locked.
• Automate the shutters to simulate a presence in the house during prolonged absences.
• In the event of an obstacle or blockage of the shutters in the event of frost, the motor does not force it, thus protecting the entire system.
• The shutters slow down when they close, thus avoiding any risk of pinching your fingers.
• Problem-free attachment to the limit switches.
• In the event of a power failure, the optional backup battery allows my blinds to work.
• No more damage to the shutters or motor in strong winds thanks to 3 levels of protection! The intelligent motor moves the shutters to a safe position. Fuse system on the arms.

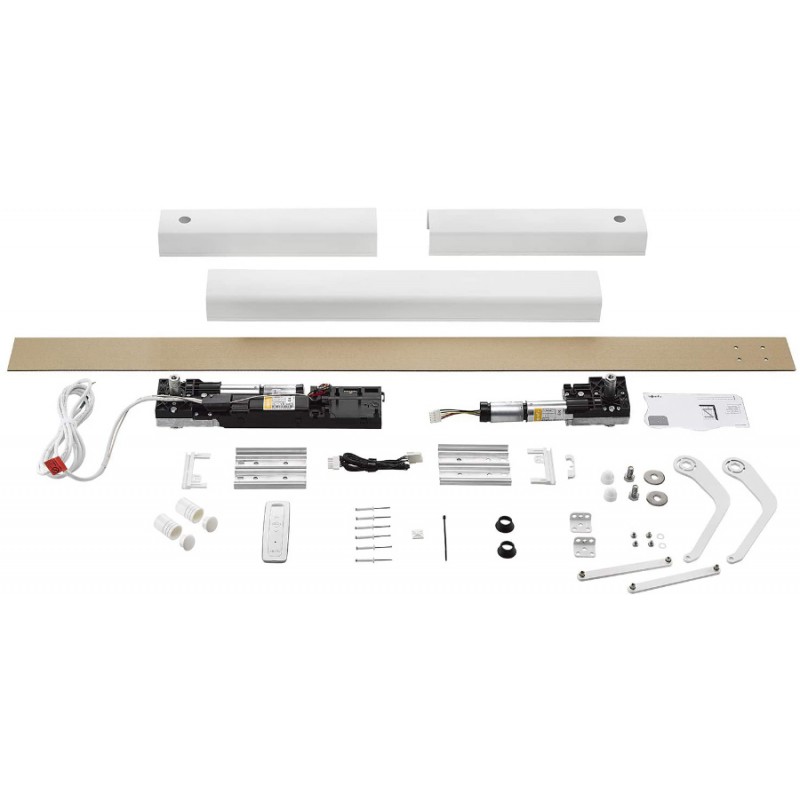

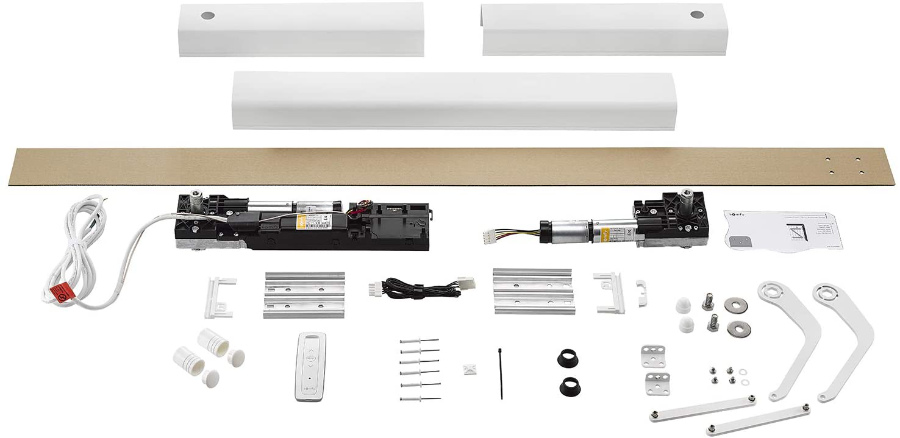

What does the Somfy Synapsia 1000 io shutter motor include?

• Carters;
• Kit of arms and screws;
• Motor module: electromechanical and mechanical;
• Motor cable;
• Frame x2;
• Screw kits and accessories;
• Cutting stops for shutters;
• Drilling pattern;
• Alignment model;
• Situo 1 io remote control.

Compatibility Automation Synapsia 1000 io

Dimensions of the shutters:

• 1 leaf: shutter from 590mm to 1000mm.
• 2 doors: door from 880mm to 1520mm.

Minimum depth between the window and closed shutters: 145mm.

Not compatible with:

• hinged windows;
• connected panels;
• pre-frames;
• curved shutters.

Somfy online shutter motors shop

• Istruzioni Synapsia 1000 Somfy (8,31 MB)
