Connected Lock and Internet Gateway - Smart and easy to install
Attention: connected Lock and Internet Gateway, product replaced by Somfy Door Keeper.
Discover the
Somfy connected lock , the ideal system to manage access rights from your smartphone.
The Somfy connected lock is the smart lock, European and easy to install even in place of a conventional lock: manage the entrances temporarily or permanently with a simple app and choose your access key from countless accessories! From the bed and breackfast to the organized family.
- Open and close the lock on the front door remotely. Choose who can enter your home when you are not there, assigning permanent or temporary access permissions ;
- Choose the system you prefer: smartphone, badge, bracelet, card, code or keys. Somfy adapts to your lifestyle ;
- The Somfy connected lock guarantees the safety of your home , thanks to a certified anti-tear, anti-burglary and anti-milling cylinder.
Somfy connected lock: now you can forget your house keys too!
Somfy connected lock for your smart home: a new way to manage your accesses.
- Opens and closes the front door with the smartphone via Bluetooth;
- Free smartphone application;
- You can create permanent or limited time access for your family, friends, neighbor or babysitter;
- Easy installation in 20 minutes;
- Secure connection with standardized AES 256 encryption.

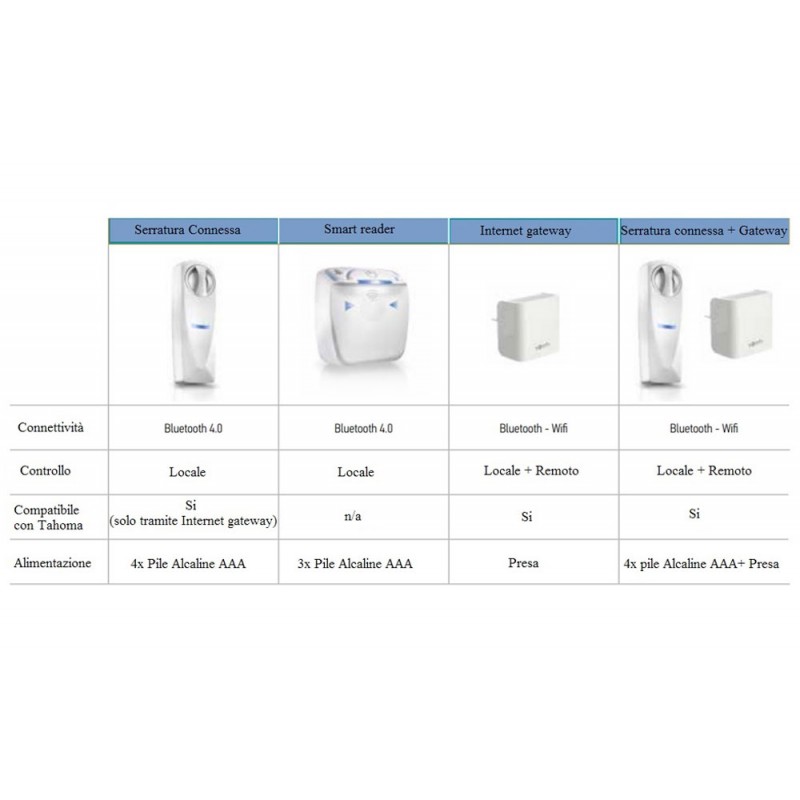

Description kit Somfy Connected Lock and Internet Gateway
- The Somfy Connected Lock and Internet Gateway kit allows you to remotely manage the connected lock, to lock or unlock it from any place via smartphone;
- Check the access history to your home and check the use of the connected lock and the Smart Reader;
- You will be sent entry / exit notifications every time someone opens or closes the door (even when using Smart Reader);
- Thanks to the Internet Gateway you can connect your lock connected to Somfy Tahoma to transform your home into a Smart Home.
What are the advantages of the Somfy connected lock?
Smart login
- Open and close your lock via smartphone thanks to Bluetooth 4.0.
- You can still use the standard keys supplied to open the lock.
Welcome tranquility
- Control who can access your home and set up temporary or permanent logins.
- Receive an alert on your smartphone every time the connected lock is used.
Simple installation
Installing the lock attached to the existing door is quick and easy (20 minutes) and no drilling or wiring is required.
Total security
- With a simple click you can deactivate the virtual key and, if necessary, you can use the protected metal keys
- Secure connection with AES 256 encryption, similar to banking systems.
- Locks with European standards EN 1303 2006: anti-burglary, anti-slip, anti-drill cylinder.

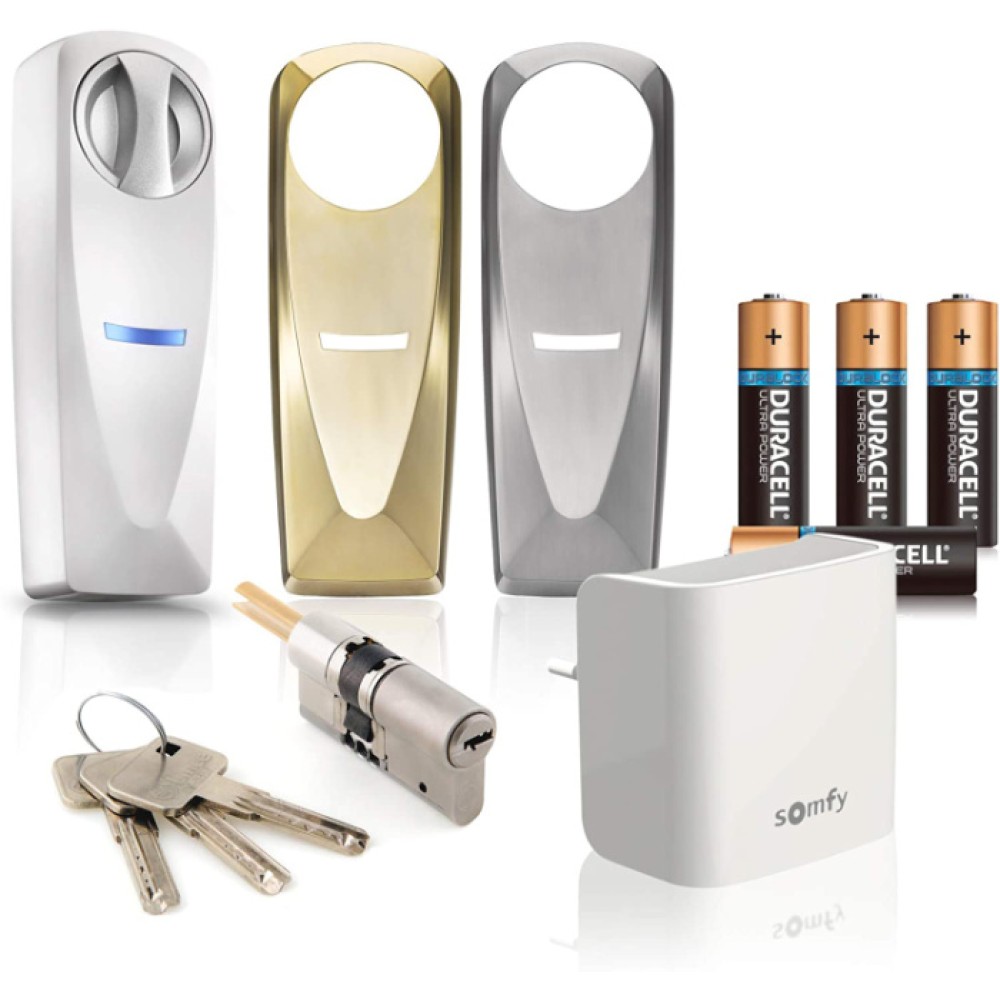

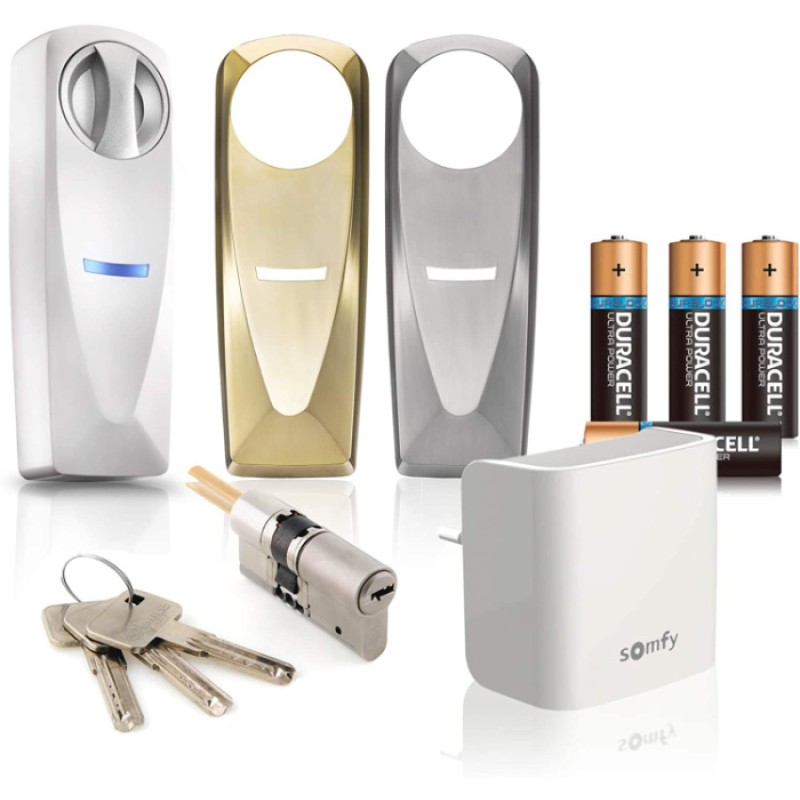

Kit contents: connected lock, cover, internet gateway and more!
- 1 connected lock;
- 3 covers: white, silver and gold;
- 1 Internet Gateway;
- 1 secure cylinder 7 cm + 3 keys;
- 4 AAA batteries;
- screws.
Somfy connected lock compatibility
Requires a Bluetooth 4.0 compatible Android or Apple smartphone.
Doors compulsorily equipped with a European type cylinder.
- door thickness max 7 or 3 centimeters depending on the type of lock;
- compatible with doors without handles on the outside;
- compatible with locks that need to lift the handle to open / close.
Somfy connected lock installation
Somfy connected lock features
Smart lock features:
- Radio frequency: 2.4 GHz;
- Technology: Bluetooth 4.0 (Low Energy);
- Range: 7m;
- Security: advanced encryption to ensure maximum protection (AES 256 bit encryption);
- Power supply: 4 x AAA LR03 batteries;
- Average battery life: 1 year;
- Operating temperature: from 0 ° C to + 60 ° C;
- Dimensions: 173mm x 60mm x 38mm;
- Weight: 1.1kg;
- Fixing: double adhesive included and / or screws;
- Cylinder characteristics: complies with the EN 1303-2005 standard which defines the requirements in terms of strength, resistance, the security level of the key, resistance to attacks, corrosion.
Functional data:
- Number of user accounts per lock: 20 max;
- Notifications: unlimited possibilities for door lock or unlock;
- Automatic re-locking when the doors are closed: yes if configured.

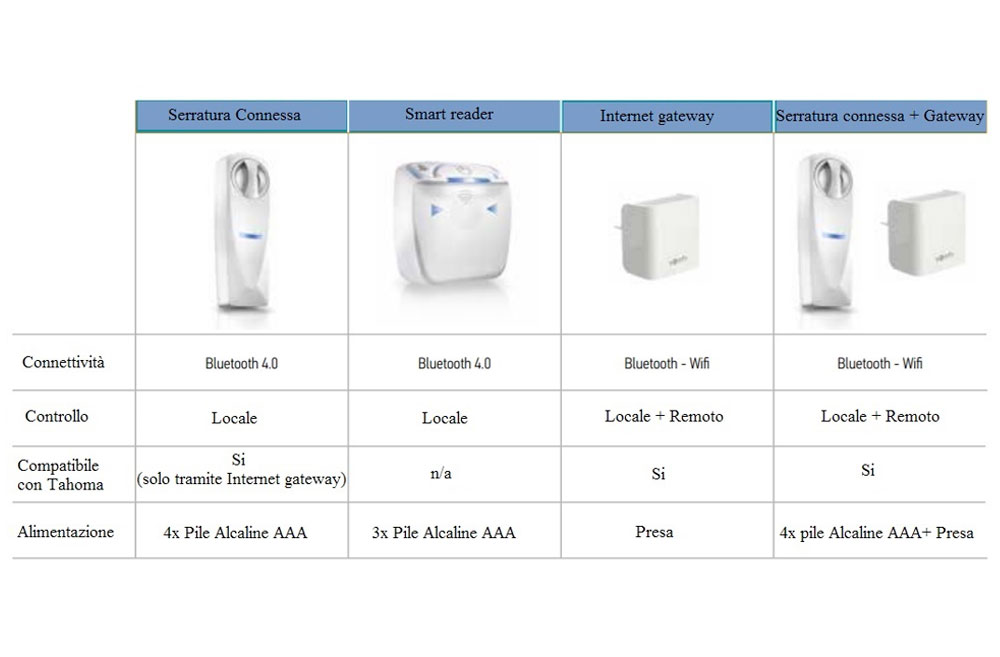

Internet Gateway features:
- Radio frequency: 2.4 GHz;
- Technology: Bluetooth 4.0 and WIFI;
- Bluetooth range ≈ 7m;
- Wifi range ≈ 30m;
- Power Input: 100-240V DC;
- Power Supply Output: 5V;
- Dimensions: 62mm x 70mm x 58mm.

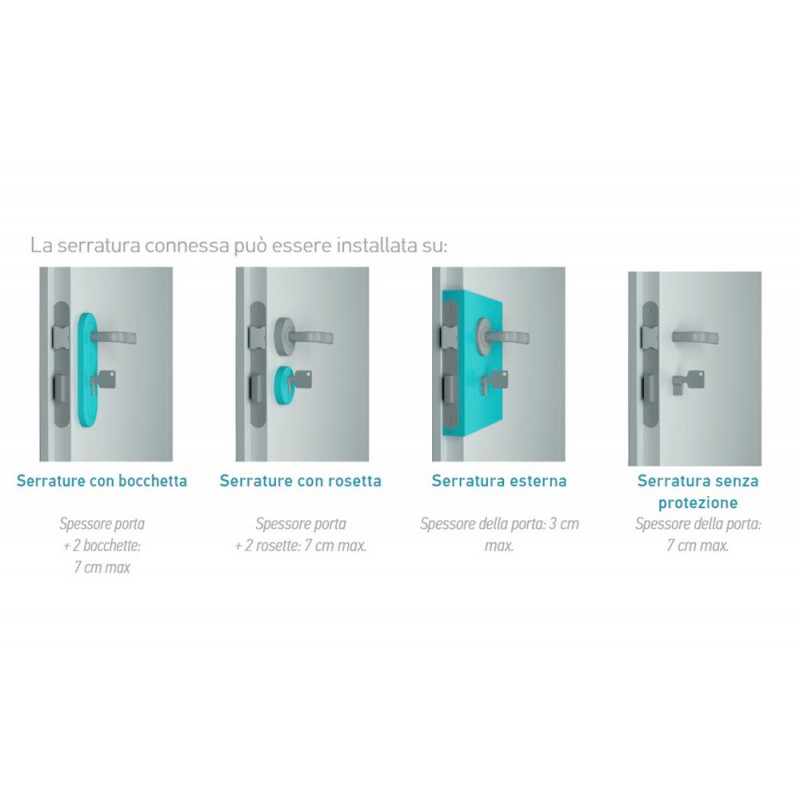

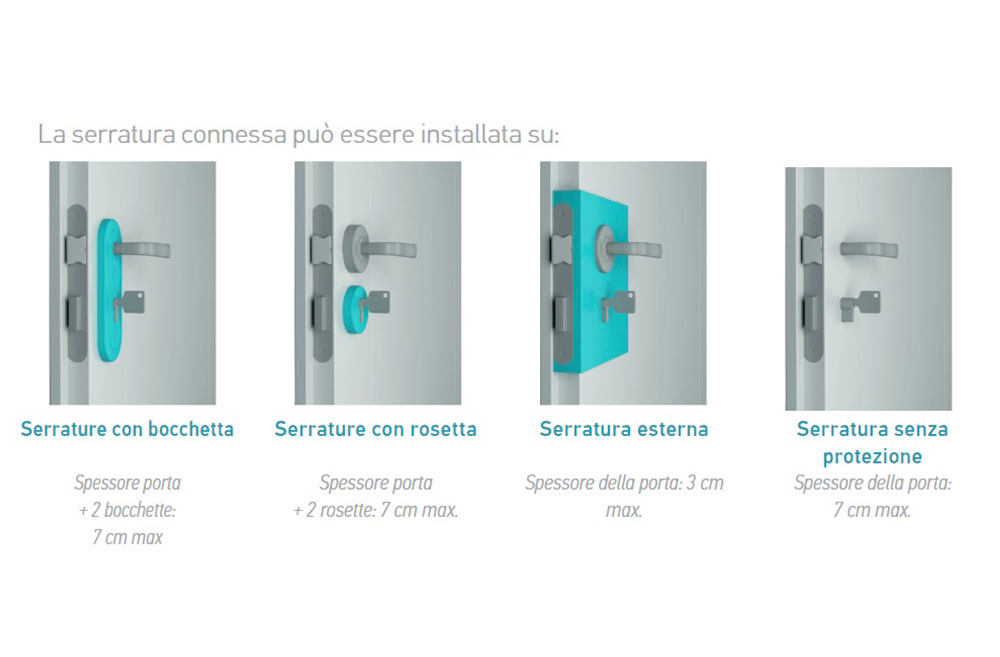

Is the Somfy lock compatible with my door?
The Somfy connected lock is
compatible with all single-point and multi-point locks .
The points to check to correctly install your lock:
- Is the door equipped with a European cylinder lock?
- Is the door in good condition? Does it open and close without forcing it?
- Is the lock working correctly? When the door is closed, you need to be able to close and open the lock easily.
- The thickness of the door must not exceed 7 cm for traditional doors, or 9 cm for thick doors!
Somfy connected video lock
Somfy connected lock installation requirements
