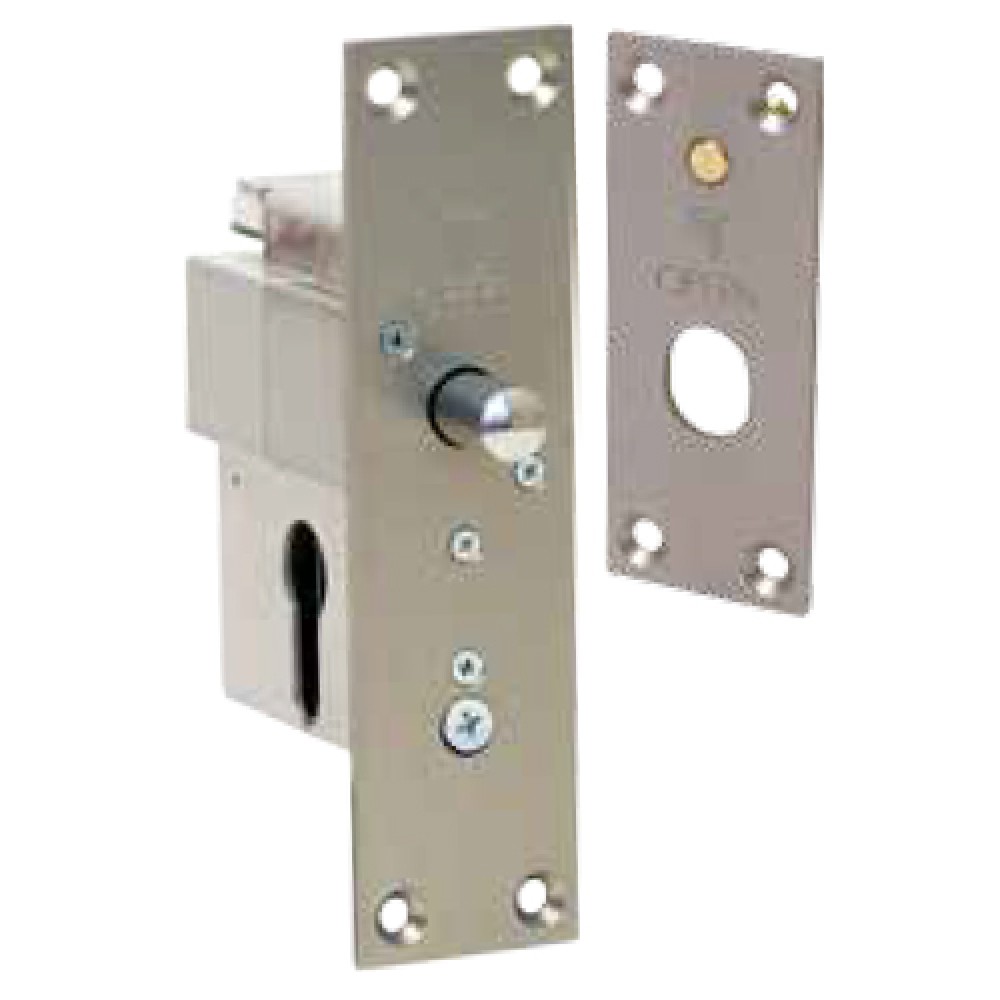

Solenoid Lock With Internal Electronic Fail Secure 21816 Quadra Series Opera
Use
Solenoid lock with internal electronic fail secure.
Characteristics
Striking plate with adjustable magnet for door status position.
Bolt dimensions: diameter 12 mm, extension 18 mm.
Operating voltage:
- 12Vdc – 800 mA peak, 450 mA for maintenance
- 24Vdc – 500 mA peak, 250 mA for maintenance
Internal microprocessor control electronic.
Rapid plug-in connector.
Bolt position free voltage contact C. / N.O. / N.C.
Ready for European profile cylinder for key opening.
Push buttons for monitoring and adjustment of reclosing times from 0-5 sec. to
approach of door and from 0-60 sec. If the door is not opened
Mode of operation: horizontal (vertical on request).
IMPORTANT
The Quadra Micro series solenoid lock, due to the high operating temperatures, are not suitable for mounting on wood or PVC doors.
Quadra Series Opera
Horizontal security solenoid locks.
Application on doors and rolling shutters.
Micro version for cabinets and windows application.
Manual activation with European cylinder.
Easy installation.
