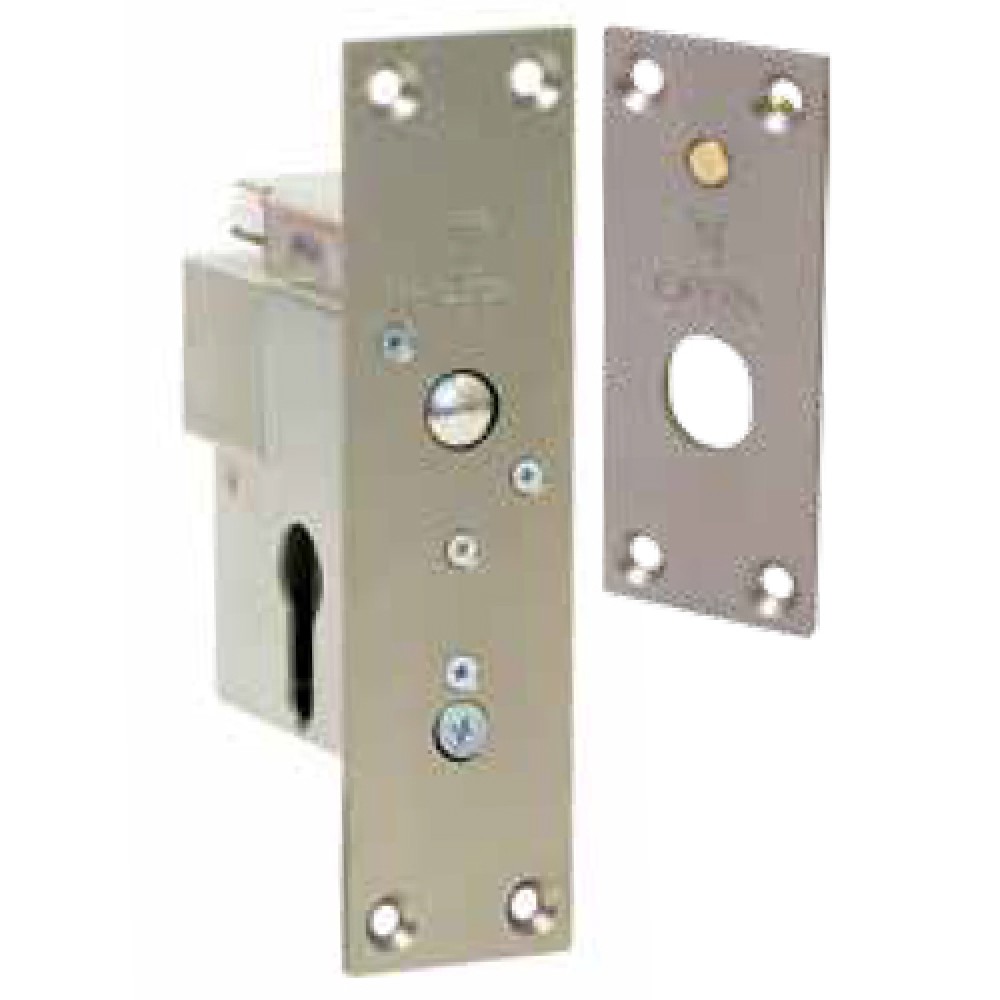

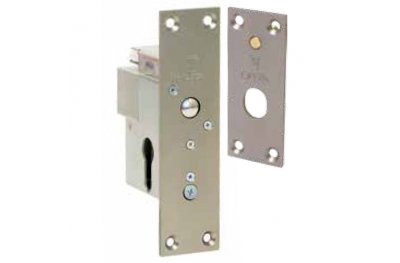

Safety Solenoid Lock with Integrated Electronics - Opera 21616 Series

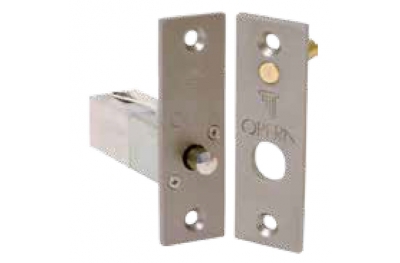

Safety solenoid lock with integrated electronics open without power, model 21616 Opera.
Features of the electro piston with integrated electronics Opera 21616
Open when power is off.

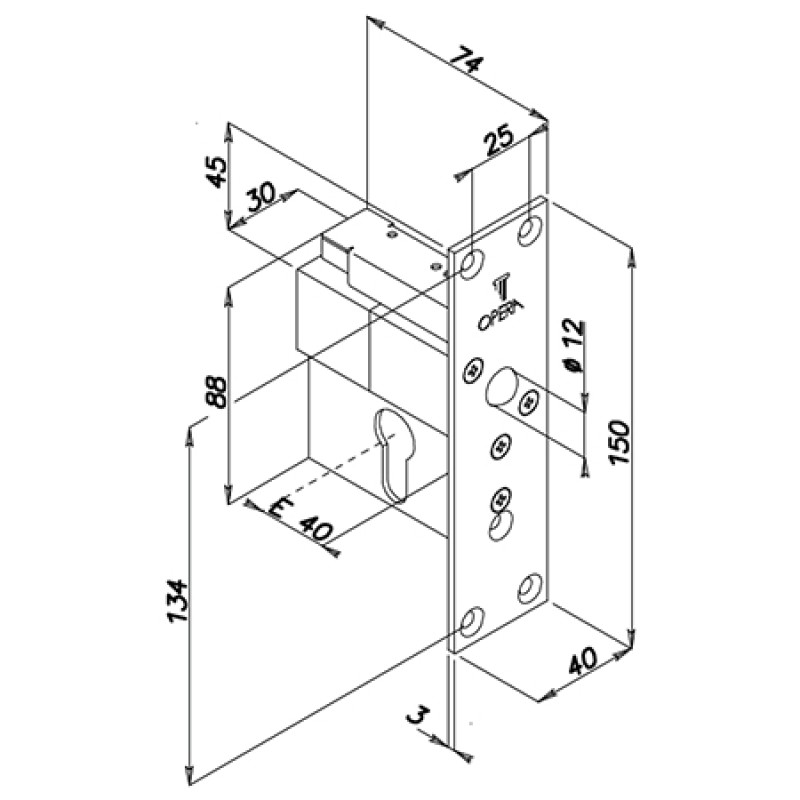

Stainless steel front mm. 150 x 40 x 3.
Stainless steel counterplate mm.100 x 40 x 3 with adjustable extension magnet.
Bolt diameter 12 mm, extension 18 mm.
Prepared for European shaped cylinder for key opening.
Entrance: mm. 40.
Diet:
- 12 Vdc - 800 mA peak, 550 mA maintenance
- 24 Vdc - 500 mA peak, 300 mA holding
Internal microprocessor control electronics.
Connection via quick-fit connector.
Input with NO opening contact.
Relay output C./NA/NC for connection to Red/Green traffic lights.
LED for timing monitoring.
Buttons for monitoring and adjusting the times of:
- Reclosing from 0 - 5 sec. when the door is approached
- Reclosing from 0 - 60 sec. if the door is not opened
IMPORTANT - The Quadra Micro series electrolocks, due to the high operating temperatures, are not suitable for mounting on wooden or PVC doors.
Quadra Opera Series
- Horizontal safety solenoids.
- Applicable on doors and shutters.
- Micro version for application on shop windows and windows.
- Manual operation with European cylinder.
- Easy to install.
