Snack Island Hood in Stainless Steel with Motor

Brands: OndaInox

Code: CISM

-20%

€ 830,16 € 1.037,70

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

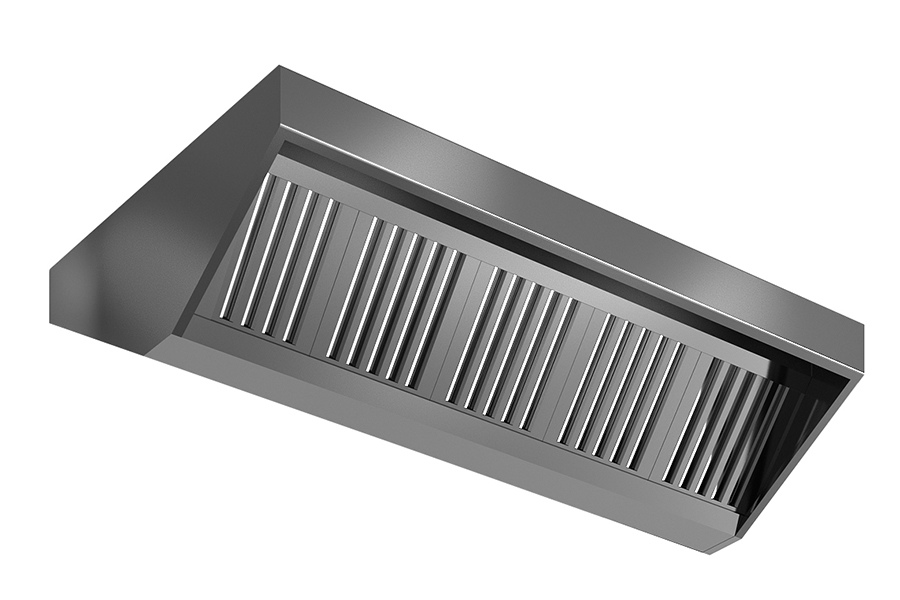

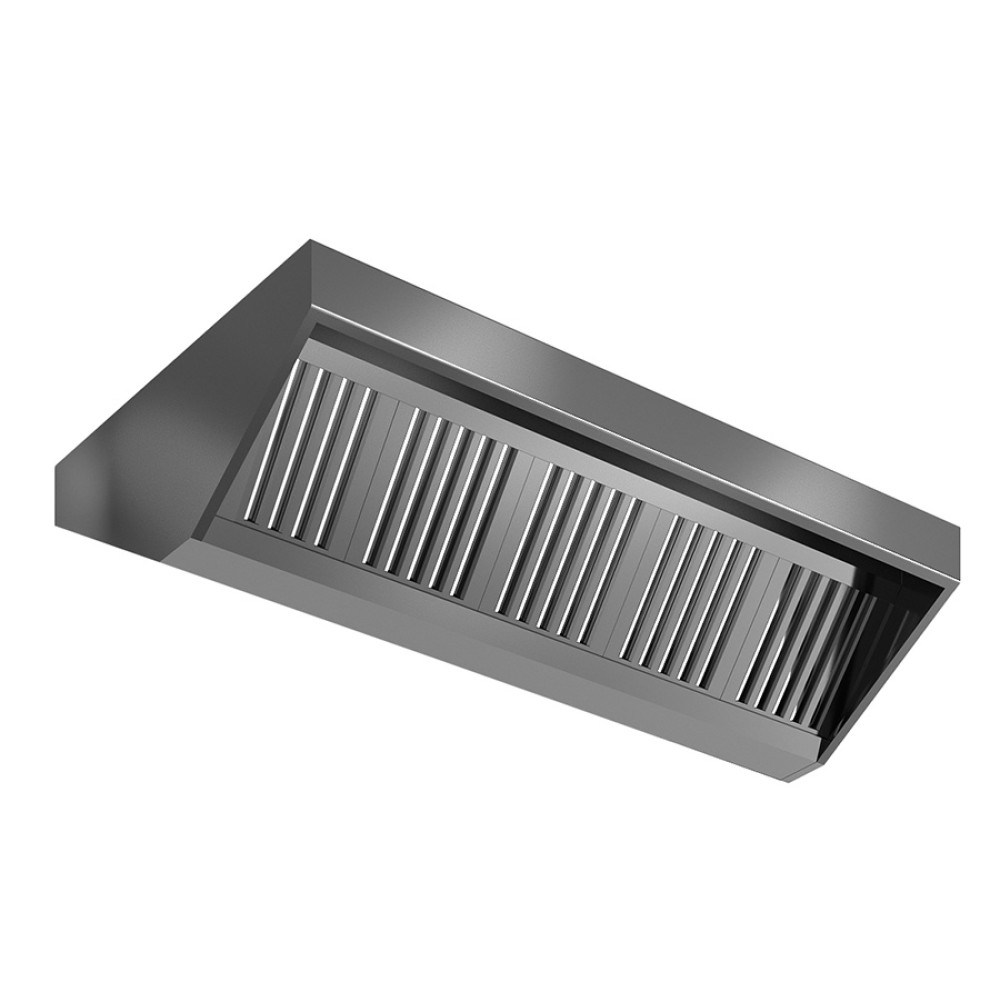

Island Hood Snack in Stainless Steel with Motor

The Snack island hood in stainless steel with electric fan motor is the ideal solution for the professional kitchen. Constructed from high-quality materials, this island hood offers a sleek design and heavy-duty construction.

The particular profile makes it ideal for cooking blocks with a depth of 70/90 cm , positioned in the center of the room, even in cases of low ceilings.

Construction in AISI 430 , Scotch-Brite satin finish. Completely rimbordata, even in the internal parts.

Built-in electric fan. Assembled by electro-welding.

Upon customer request, special executions are made (execution in AISI 304, assembly by welding), LED lighting and larger sizes (contact us for a free estimate).

Supplied with the Snack island hood:

Labyrinth grease filters in AISI 430 stainless steel;
Condensate drain 1/2”;
Centrifugal electric fan 220V single-phase 50/60 Hz.

Notes on the Snack island hood:

Hanging kit and flange not included;
The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CISM14115 = CISM1416).

Cappa a Isola Snack in Acciaio Inox con Motore

Island Hood Snack in Stainless Steel with Motor - Depth 1200 mm

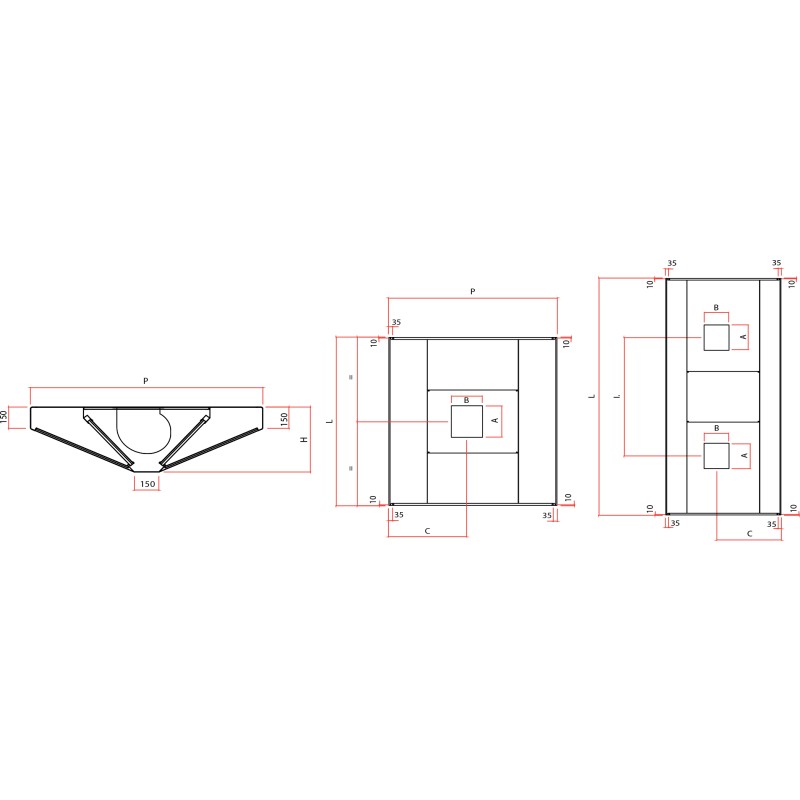

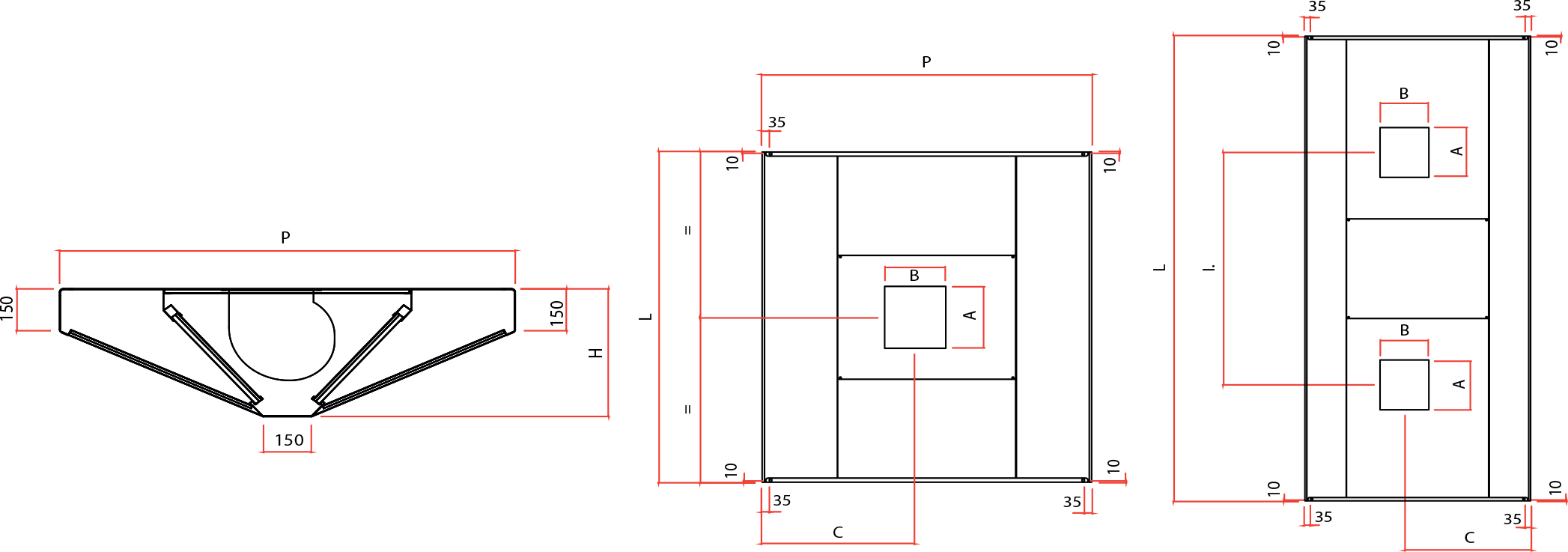

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	Fan	Watt
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	Fan	Amps
CISM 12/12	1200x1200x500	300x260	670	4b	50	9/9T	300/4.1
CISM 12/14	1200x1400x500	300x260	670	4b	55	9/9T	300/4.1
CISM 12/16	1200x1600x500	300x260	670	6a	62	9/9T	300/4.1
CISM 12/18	1200x1800x500	300x260	670	6b	65	9/9T	300/4.1
CISM 12/20	1200x2000x500	300x260	670	8a	72	8/9T	420/3.1

Island Hood Snack in Stainless Steel with Motor - Depth 1400 mm

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	Fan	Watt
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	Fan	Amps
CISM 14/12	1400x1200x500	300x260	770	4b	53	9/9T	300/4.1
CISM 14/14	1400x1400x500	300x260	770	4b	58	9/9T	300/4.1
CISM 14/16	1400x1600x500	300x260	770	6a	65	9/9T	420/3.1
CISM 14/18	1400x1800x500	300x260	770	6b	68	8/9T	420/3.1
CISM 14/20	1400x2000x500	300x260	770	8a	75	8/9T	420/3.1
