Snack Hood in Stainless Steel with Electric Fan

Brands: OndaInox

Code: CSM

-20%

€ 586,23 € 732,79

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

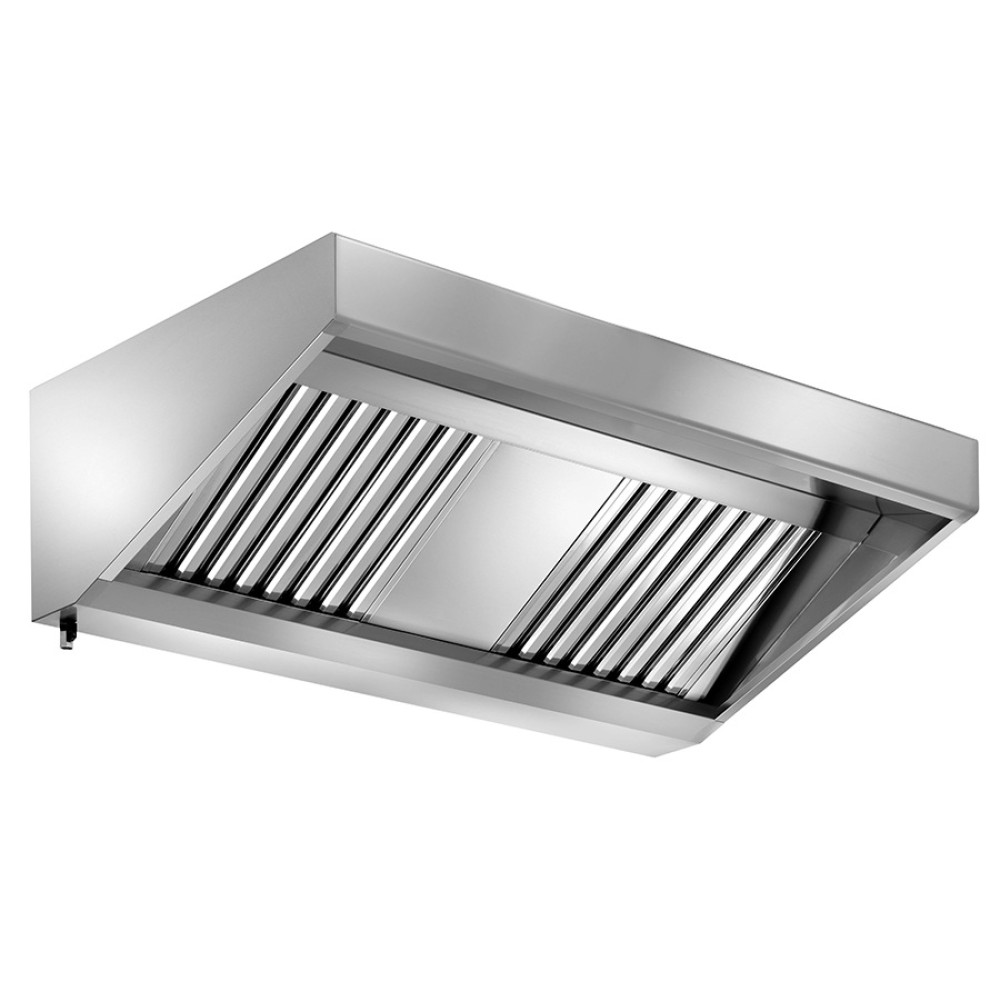

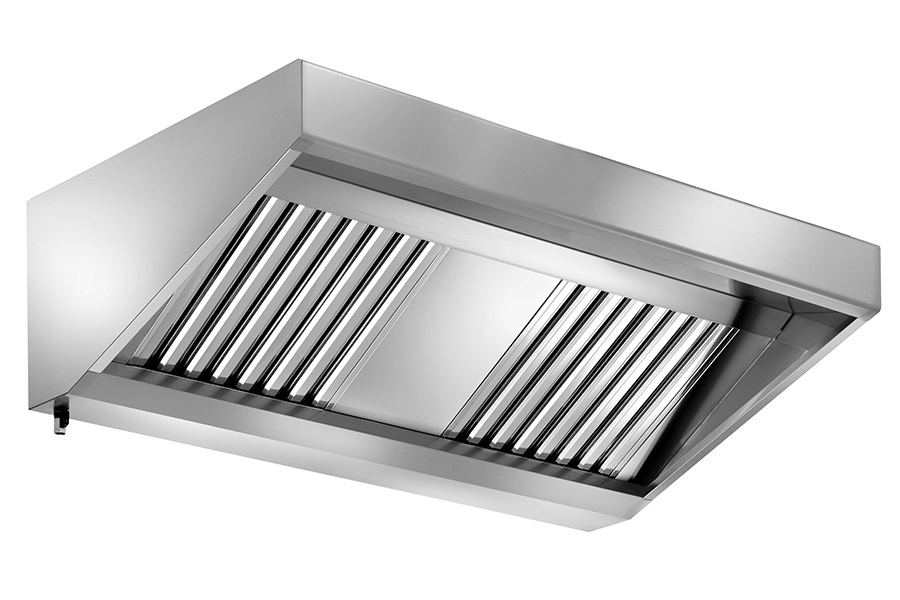

Snack hood - in stainless steel - with electric fan

The Stainless Steel Snack Hood with Electric Fan is the ideal solution for fume extraction in your kitchen.

Snack hood with motor made of high quality stainless steel, this hood offers a stylish and resistant finish.

The integrated electric fan guarantees an efficient solution for fume extraction, keeping your kitchen always fresh and clean.

With a versatile design, this stainless steel hood can be integrated easily into any type of kitchen.

Cappa Snack in Acciaio Inox con Elettroventilatore

Stainless Steel Snack Hood with Motor - Technical features

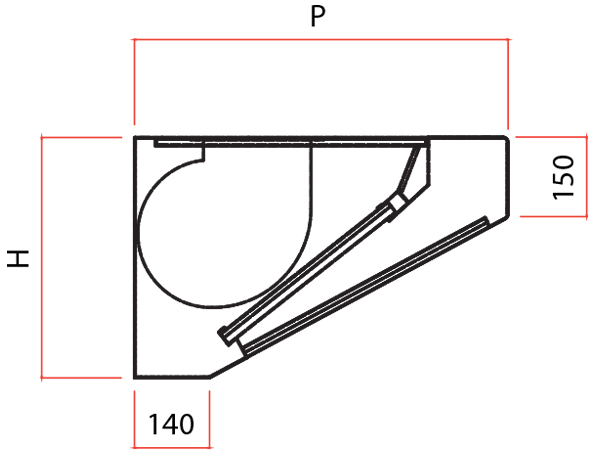

The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm , positioned against the wall, even in cases of low ceilings.

Construction in AISI 430 , Scotch-Brite satin finish. Completely edged, even in the internal parts, including electric fan.

Assembled by electro-welding. Special executions (execution in AISI 304, assembly by welding) on request.

Supplied:

Labyrinth grease filters in AISI 430 stainless steel;
1/2” condensate drain.

Note:

Packaging included in the price;
Hanging kit and flange not included;
The hoods of intermediate lengths not marked have the same price as the hoods with immediately greater lengths (e.g.: CSM711 = CSM712);
For larger sizes not indicated, contact us and you will receive a free quote;
Built in compliance with CE standards;
Made in Italy.

Self-suction stainless steel hood with electric fan

Cappa Inox Autoaspirante con Elettroventilatore

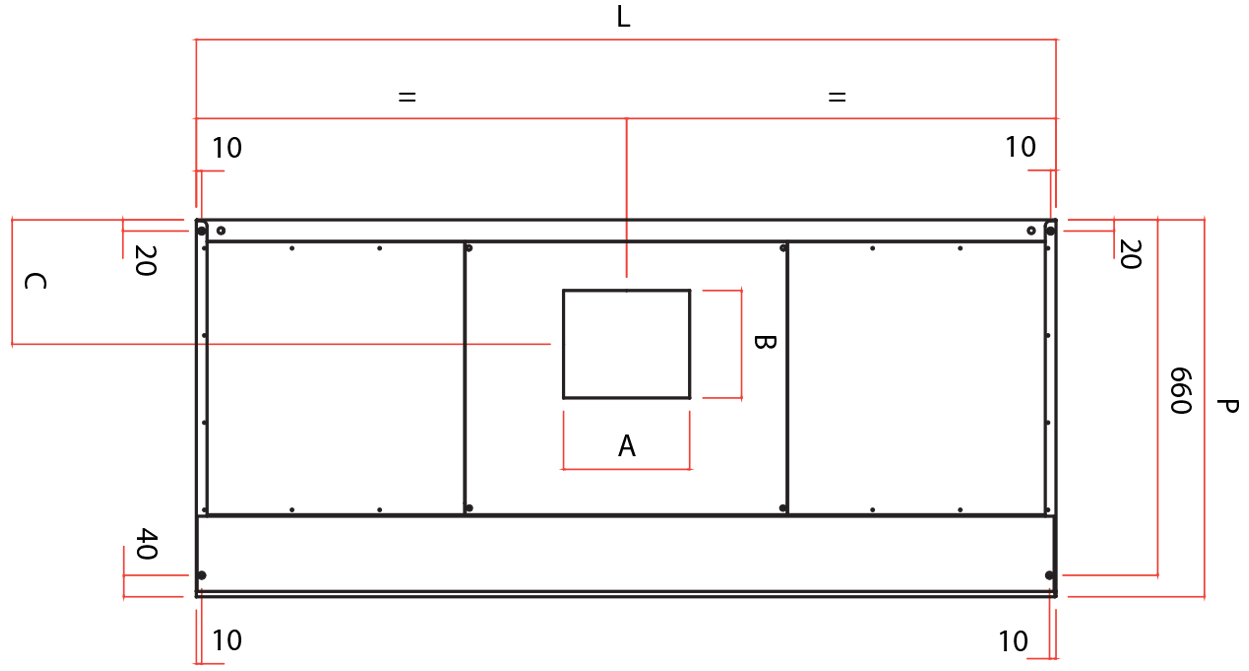

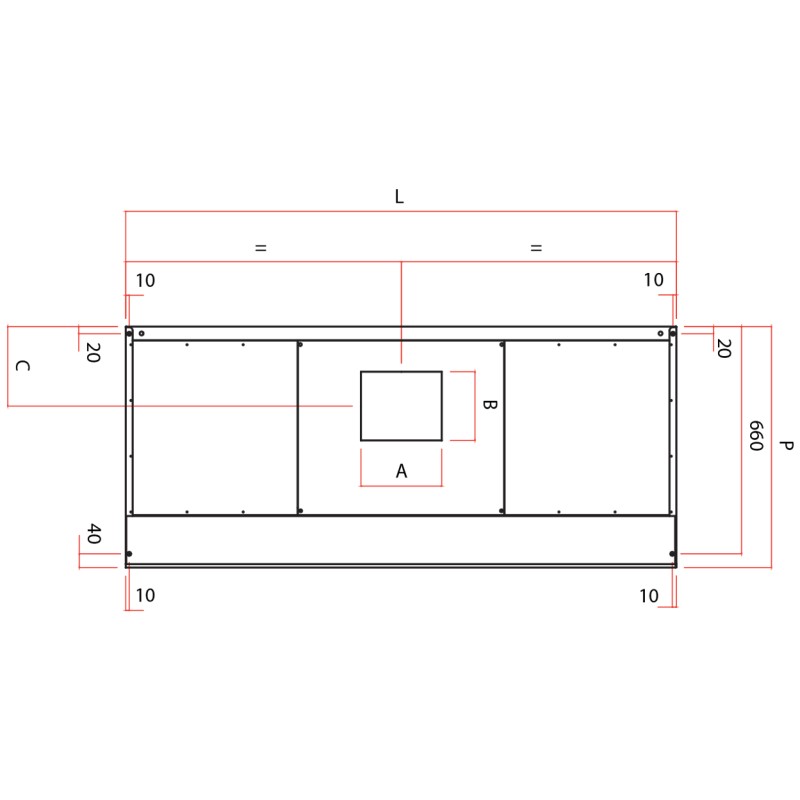

Inox Snack hood - with Electric fan - Depth 700 mm

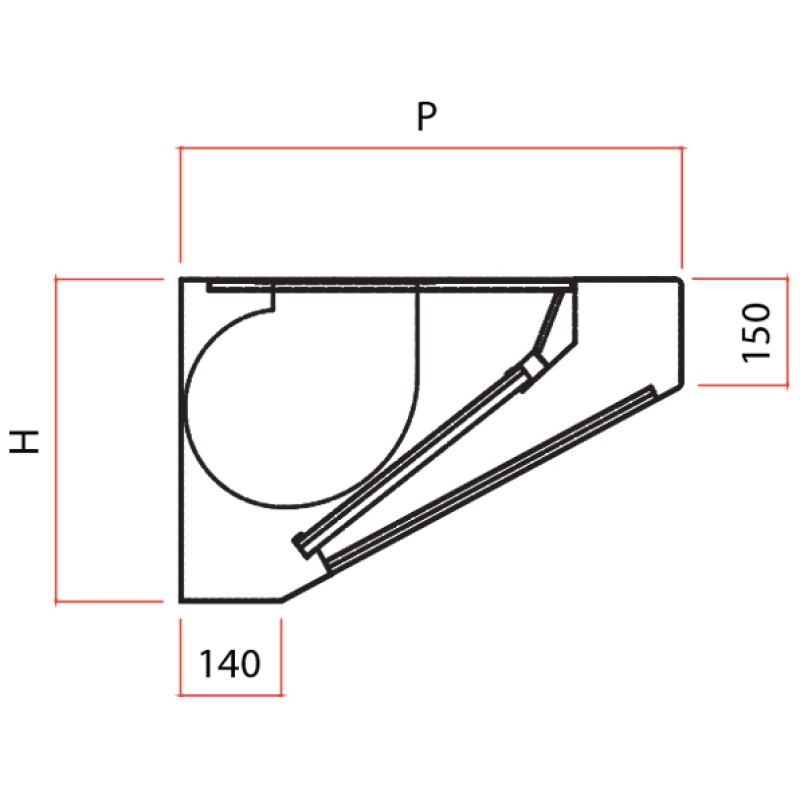

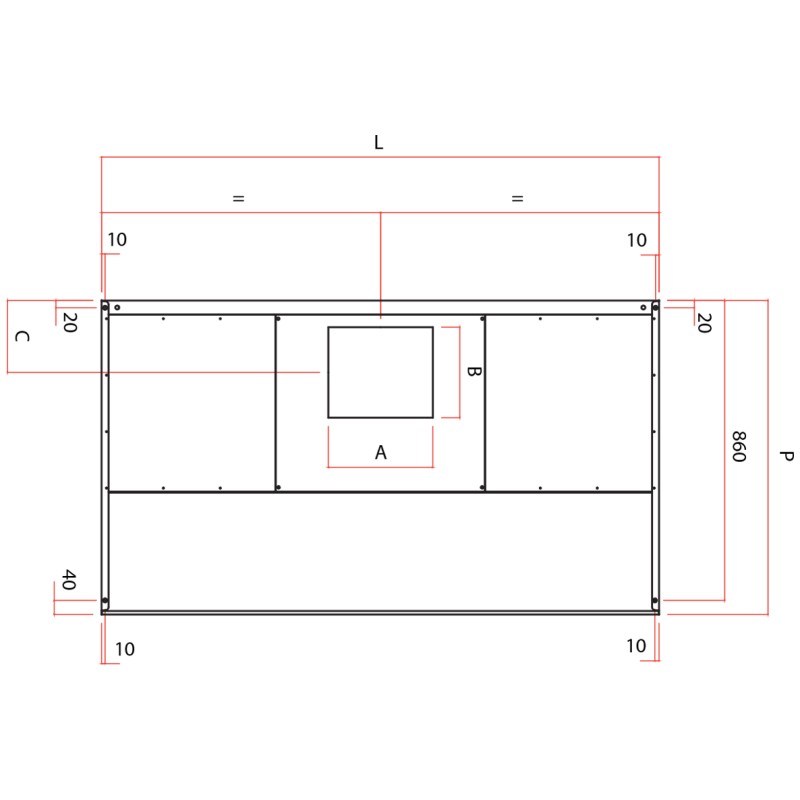

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor
CSM 7/10	700x1000x450	230x200	230	2a	36	7/7
CSM 7/12	700x1200x450	230x200	230	2b	38	7/7
CSM 7/14	700x1400x450	230x200	230	2b	41	7/7
CSM 7/16	700x1600x450	230x200	230	3a	45	7/7
CSM 7/18	700x1800x450	230x200	230	3b	50	7/7
CSM 7/20	700x2000x450	300x260	210	4a	52	8/9T
CSM 7/22	700x2200x450	300x260	210	4a	55	8/9T
CSM 7/24	700x2400x450	300x260	210	4b	59	8/9T
CSM 7/26	700x2600x450	300x260	210	4b	63	8/9T
CSM 7/28	700x2800x450	300x260	210	5b	65	8/9T
CSM 7/30	700x3000x450	300x260	210	5b	70	8/9T

Cappa Snack - in Acciaio Inox - con Elettroventilatore

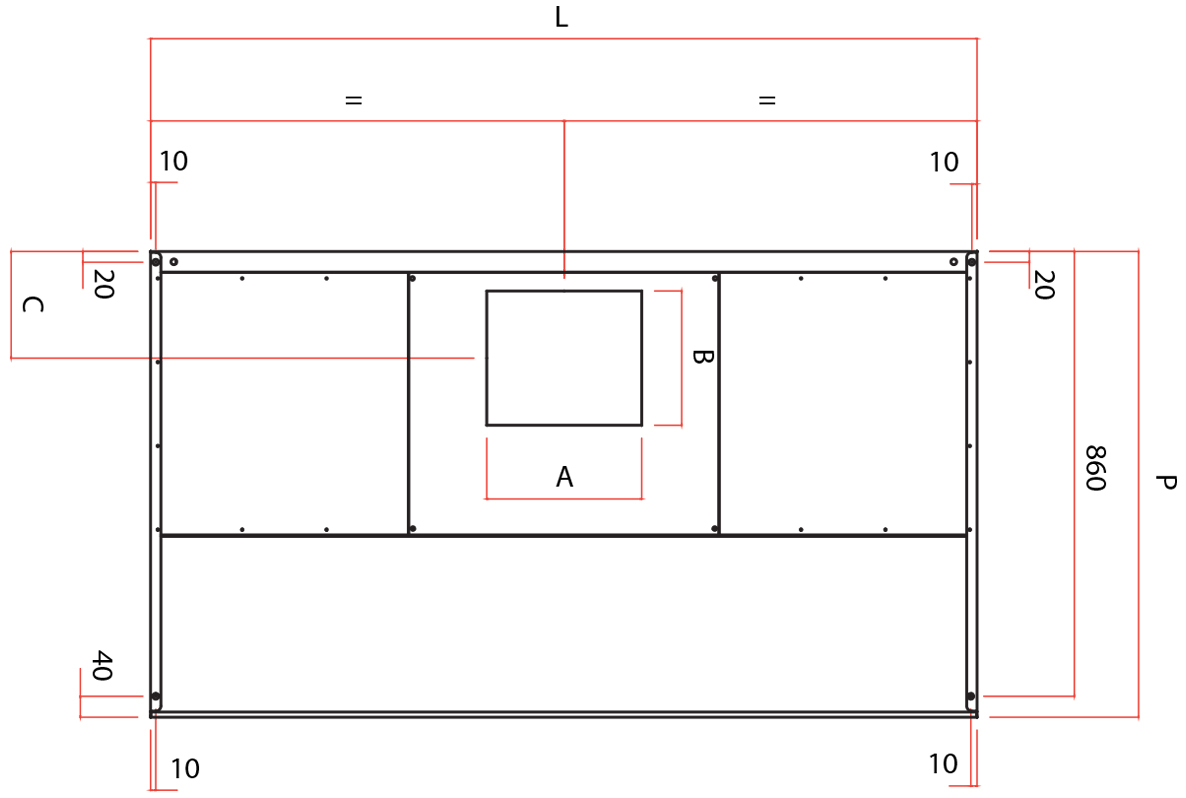

Stainless Steel Snack Hood - with Electric Fan - Depth 900 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor
CSM 9/10	900x100x450	230x200	230	2a	38	7/7
CSM 9/12	900x120x450	230x200	230	2b	41	7/7
CSM 9/14	900x140x450	230x200	230	2b	43	7/7
CSM 9/16	900x160x450	300x260	210	3a	49	8/9T
CSM 9/18	900x180x450	300x260	210	3b	52	8/9T
CSM 9/20	900x200x450	300x260	210	4a	57	8/9T
CSM 9/22	900x220x450	300x260	210	4a	59	8/9T
CSM 9/24	900x240x450	300x260	210	4b	62	8/9T
CSM 9/26	900x260x450	300x260	210	4b	65	8/9T
CSM 9/28	900x280x450	300x260	210	5b	71	8/9T
CSM 9/30	900x300x450	300x260	210	5b	75	8/9T

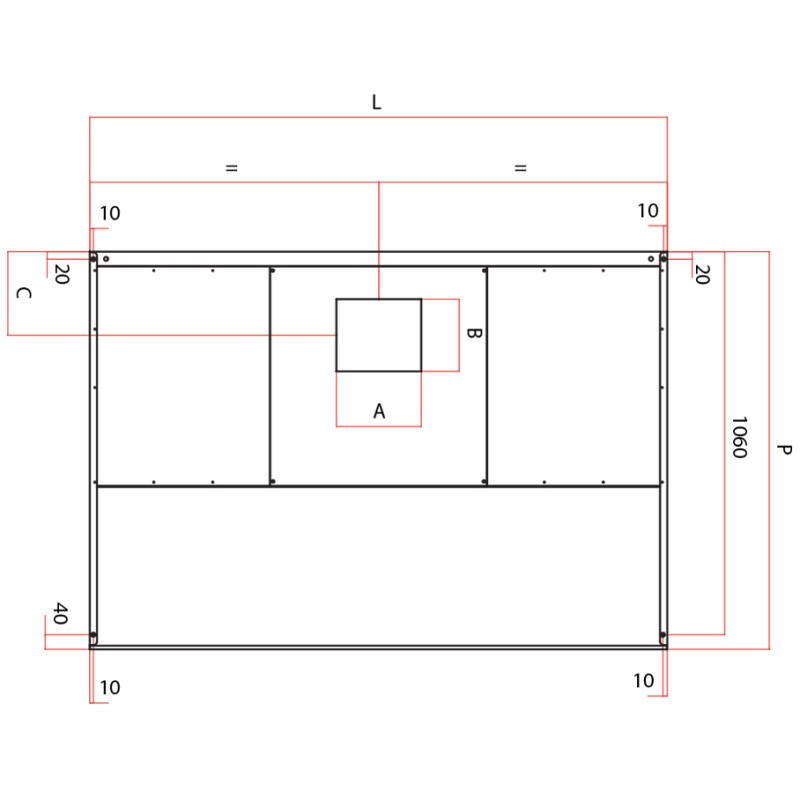

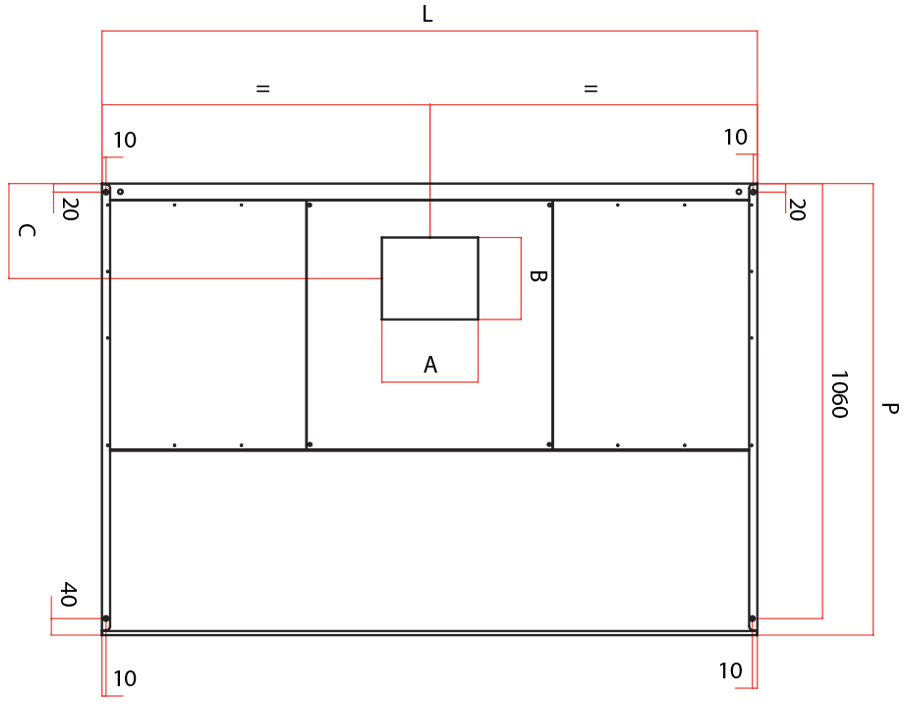

Inox Snack hood - with Electric fan - Depth 1100 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor
CSM 11/12	1100x1200x450	230x200	230	2d	45	7/7
CSM 11/14	1100x1400x450	300x260	210	2d	48	8/9T
CSM 11/16	1100x1600x450	300x260	210	3c	53	8/9T
CSM 11/18	1100x1800x450	300x260	210	3d	57	8/9T
CSM 11/20	1100x2000x450	300x260	210	4c	62	8/9T
CSM 11/22	1100x2200x450	300x260	210	4c	65	8/9T
CSM 11/24	1100x2400x450	300x260	210	4d	68	8/9T
CSM 11/26	1100x2600x450	300x260	210	4d	72	8/9T
CSM 11/28	1100x2800x450	300x260	210	5d	75	8/9T
CSM 11/30	1100x3000x450	300x260	210	5d	80	8/9T

The electric fans installed on the hood are made up of single-phase, 230 Volt, 50 Hz motors.

Filter legend:
a: 400x400mm
b: 500x400mm
c: 400x500mm
d: 500x500mm
