Smart Comunello Chain Actuator for Windows 230V

Comunello Mowin
Code: SMART 230V
€ 40,56
Prices excluding VAT

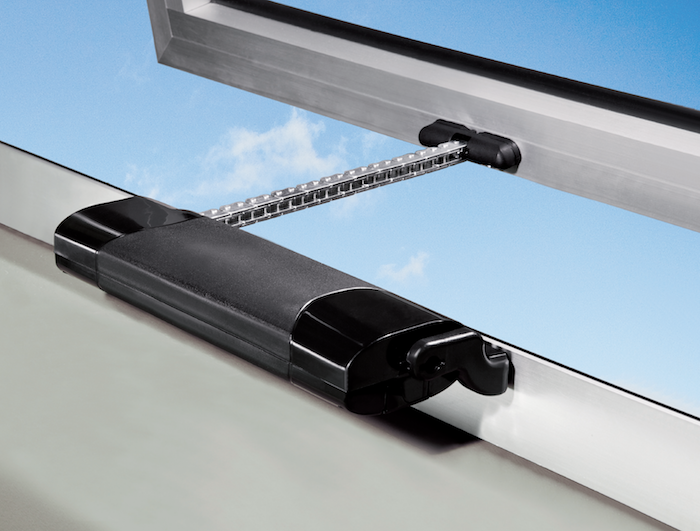

Smart Comunello 230v is an electric chain actuator capable of automatically opening bottom-hung and top-hung windows, sheds and skylights.
You have chosen:
Are you looking for an actuator from the Comunello catalog that is not on our site? Contact us and ask for a quote.

- +

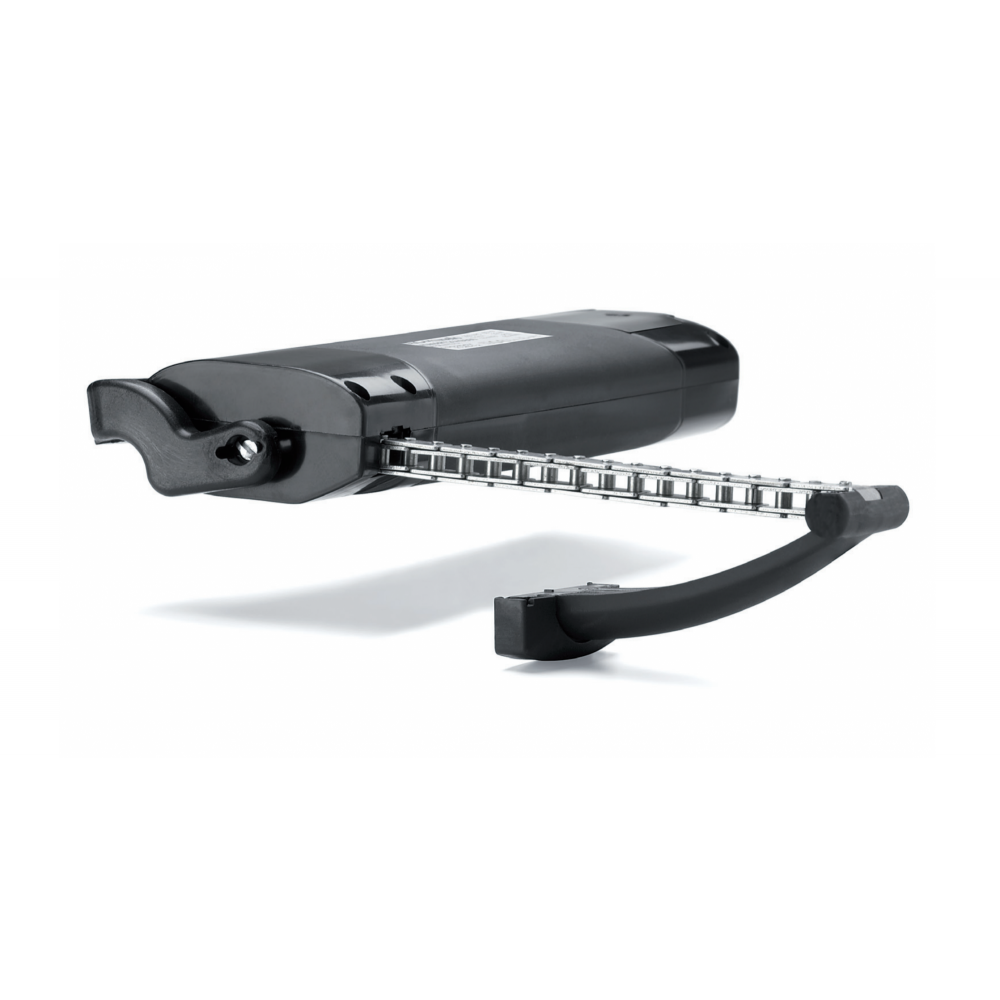

Smart Comunello 230V 50 Hz - Chain Actuator for Windows - Black Gray or White Color

Smart Comunello 230v electric chain actuator for opening bottom-hung and top-hung windows , sheds, skylights.

Pay attention to the voltage of the actuator: this is the Smart Comunello 230V chain actuator version.

On Windowo you can also find for sale:

Search online in our shop for the Smart Comunello actuator version that best suits your opening needs.


Smart Comunello chain actuator with accessories included

Inside the Smart window actuator package you will find all the elements and tools that make the assembly and connection operations with the electrical system simple.

The Smart Comunello series actuators comply with the EC Directives (EMC, LVD and R&TTE Directive) and subsequent amendments.

The package contains: chain actuator with electric cable, support brackets, attachment for top-hung and top-hung windows, adhesive template included and multilingual instruction booklet.

Smart Comunello Attuatore a Catena per Finestre 230V

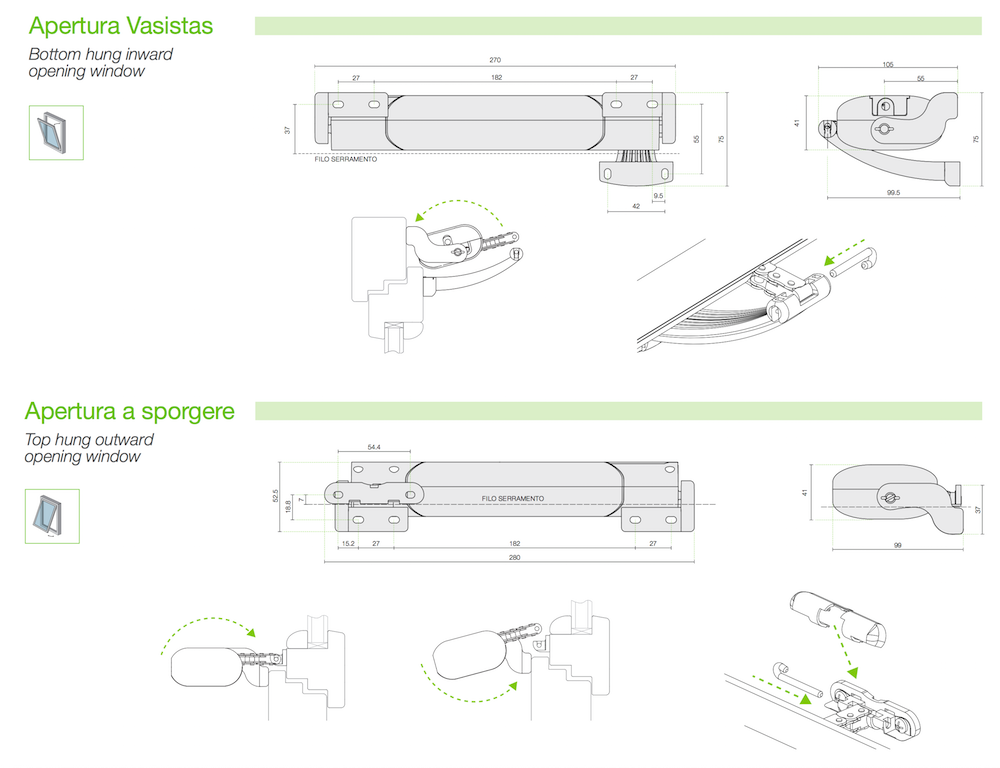

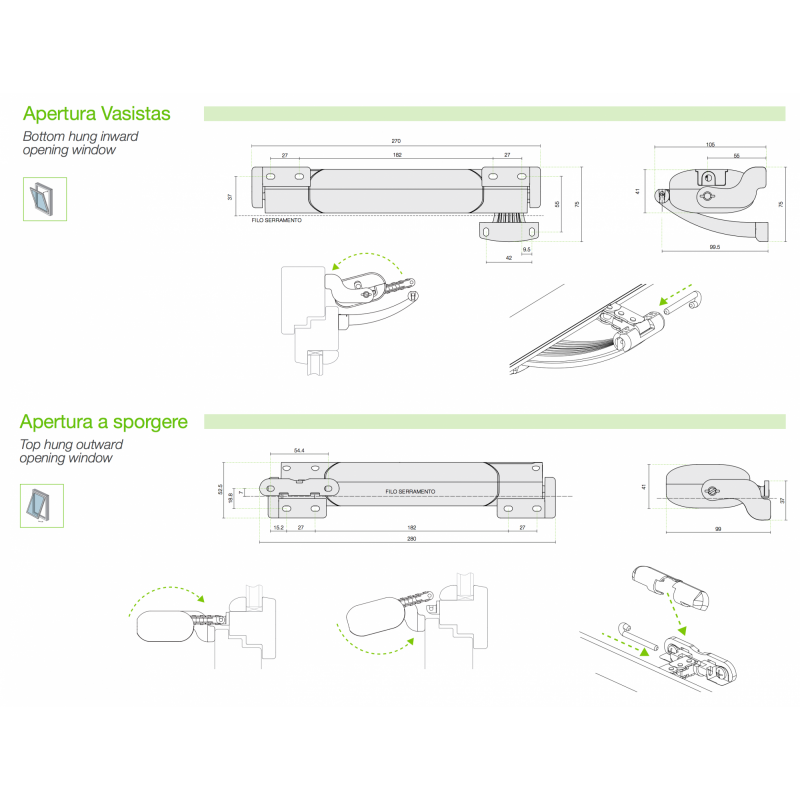

Smart Comunello actuator openings


Smart Comunello actuator technical characteristics

  • Model: Smart Comunello MSMART20H0*** actuator;
  • VAC power supply: 230VAC;
  • Frequency 50Hz;
  • Service: S2 4min;
  • Push force: 200N;
  • Pulling force: 250N;
  • No-load translation speed: 16 mm/s;
  • Degree of protection: IP20;
  • AC Double Isolation: Yes;
  • VAC Current: 0.14A;
  • Power: 22W;
  • Operating temperature: -5° / +50°;
  • Strokes: 180 - 380mm;
  • Stroke adjustment: by dip-switch;
  • Soft Start / Soft Stop: Yes / Yes;
  • Obstacle detection: Yes;
  • Supplied wiring: 0.5m;
  • Dimensions: 265x79x41mm.

Smart Comunello

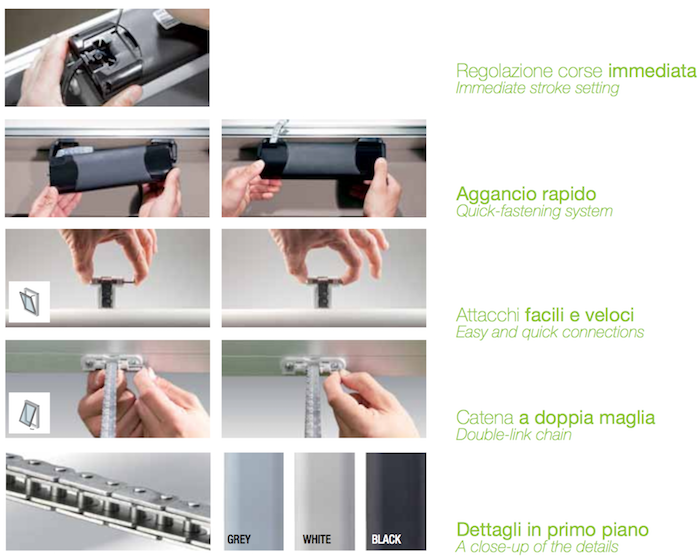

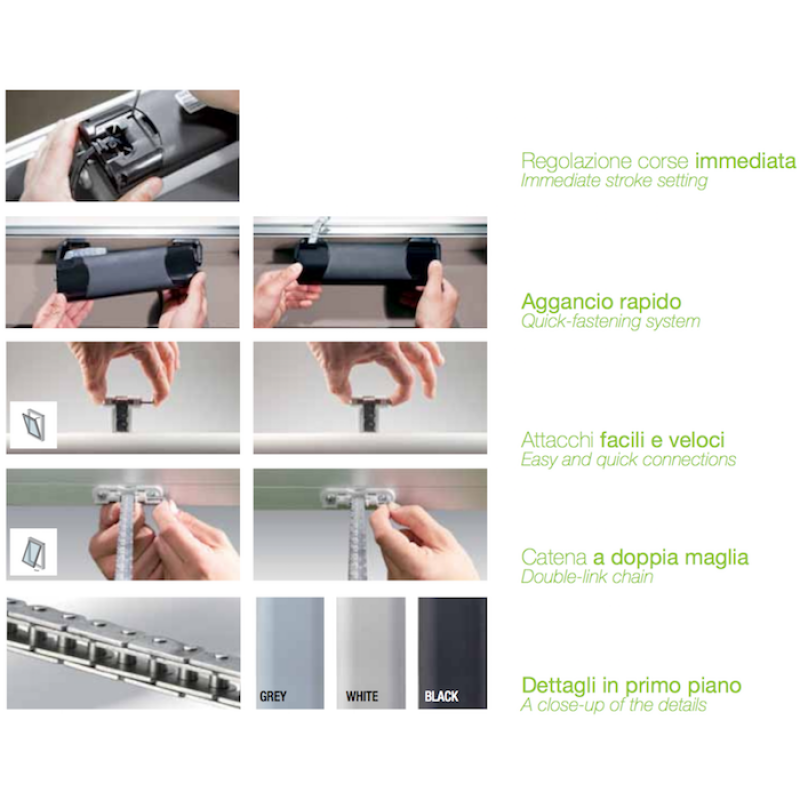

Smart Comunello window actuator: what are the advantages?

  • Immediate stroke adjustment;
  • Quick and easy attacks;
  • Double link chain;
  • Details in the foreground.

Smart applications Comunello chain actuator

Comunello Mowin


Smart Comunello online prices on Windowo

Smart Comunello online prices: discover the unmissable offers of Windowo. Buy the best window motors online quickly and easily.

Simply select the window motor color you prefer and you can immediately see the discounted Smart Comunello actuator price .
