External shutter stopper - Magic-Block Security60 Tecnometalsystem
Are you looking for an
innovative shutter stopper? Here is the perfect solution to stop external shutters.
Discover
Magic-Block Security60 Tecnometalsystem , the new
block-door in aluminum for external shutters that allows the locking of the door by simply inserting it directly onto the hinge.
Sash block for external shutters: what are the advantages?
Magic-Block Security60 Tecnometalsystem is a shutter-shutter that is simple to use and easy to install.
The additional advantages of this shutter stop system are:
- Perfect locking of the shutters;
- Elimination of complicated operations during the installation phase;
- Safe assembly , it cannot be assembled from outside the home, avoiding risks for the installer;
- External facades finally cleaned of bulky and unsightly iron or plastic door-locks;
- Safety for the user, you avoid leaning against the external wall to lock / unlock the sash, in fact Magic-Block Security60 is used from inside the house and works on the hinges of the window.

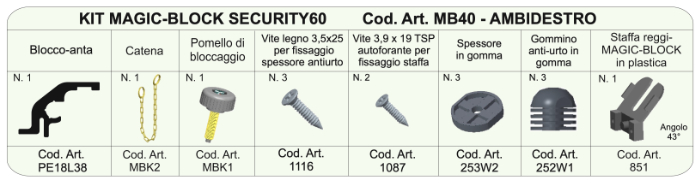

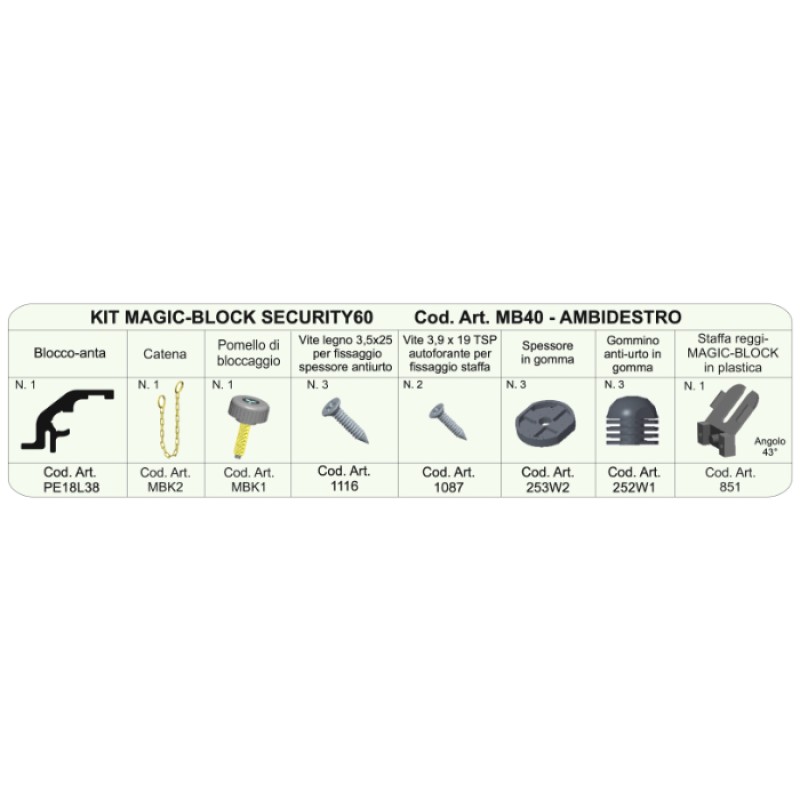

What does the Magic-Block Security60 kit include?

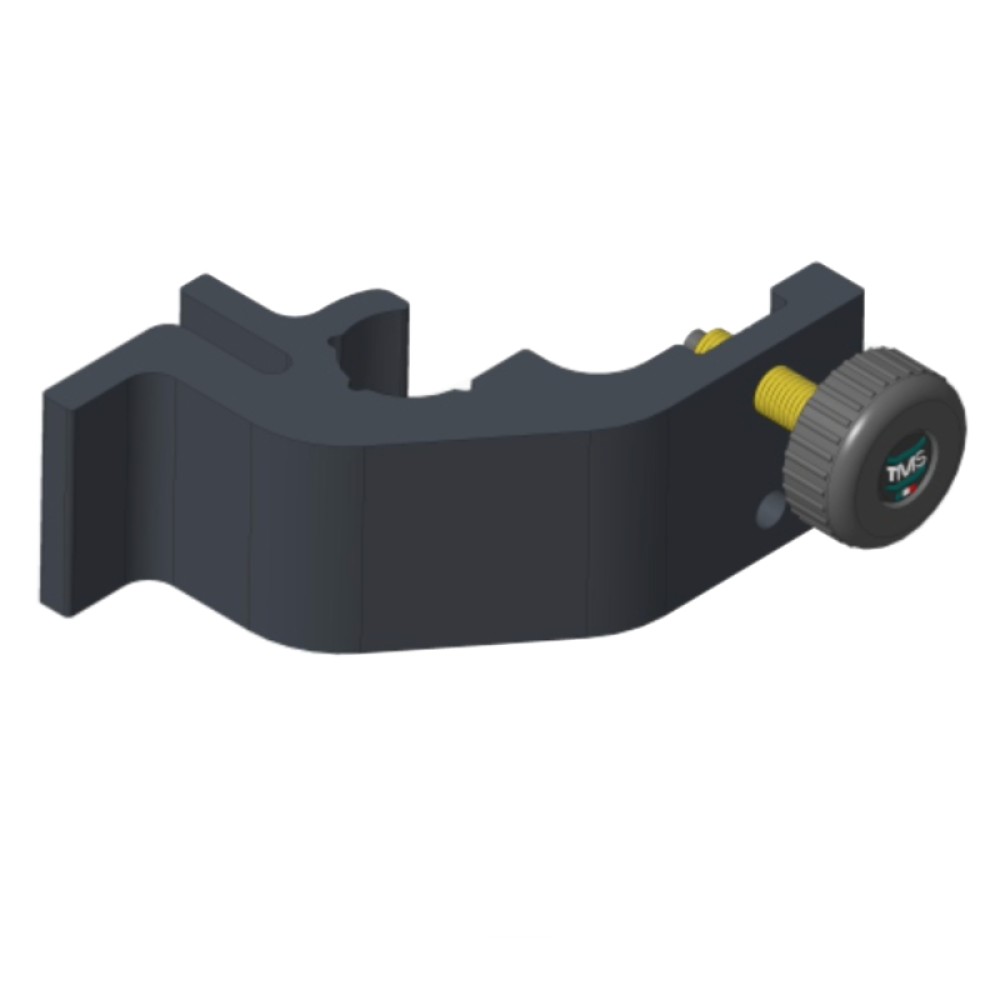

- 1 block-door article PE18L38;
- 1 chain article MBK2;
- 1 locking knob article MBK1;
- 3 wood screw 3,5x25 for fixing shockproof thickness article 1116;
- 2 screws 3.9 x 19 TSP self-drilling for fixing bracket article 1087;
- 3 rubber shim article 253W2;
- 3 rubber shockproof rubber article 252W1;
- 1 plastic Magic-Block bracket article 851.
Magic-Block Security 60 shutter lock assembly instructions
Phase 1

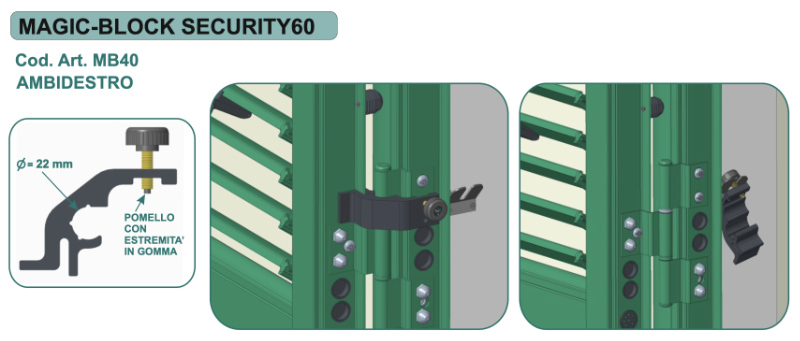

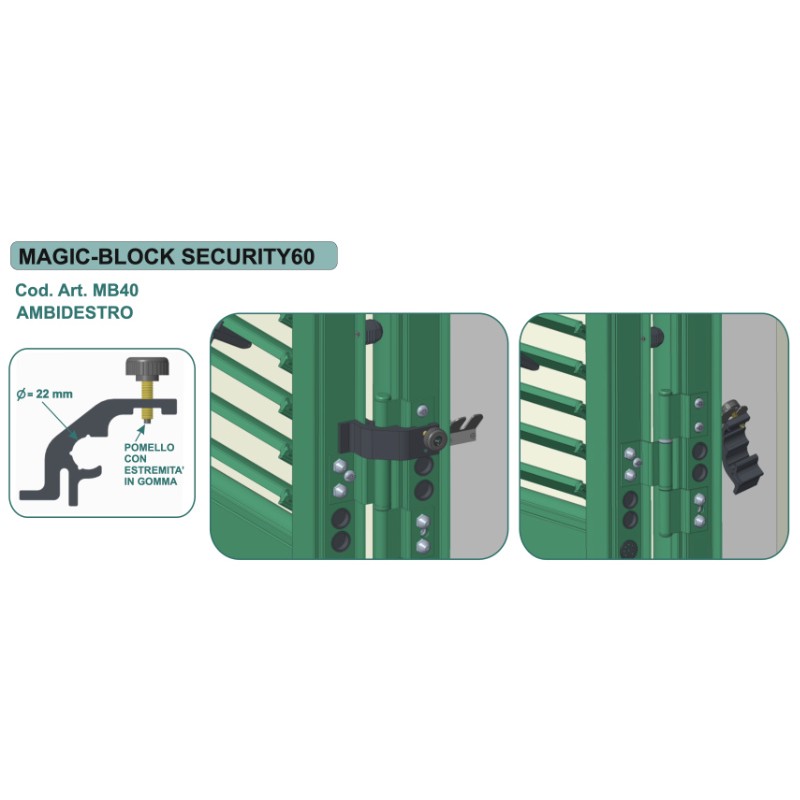

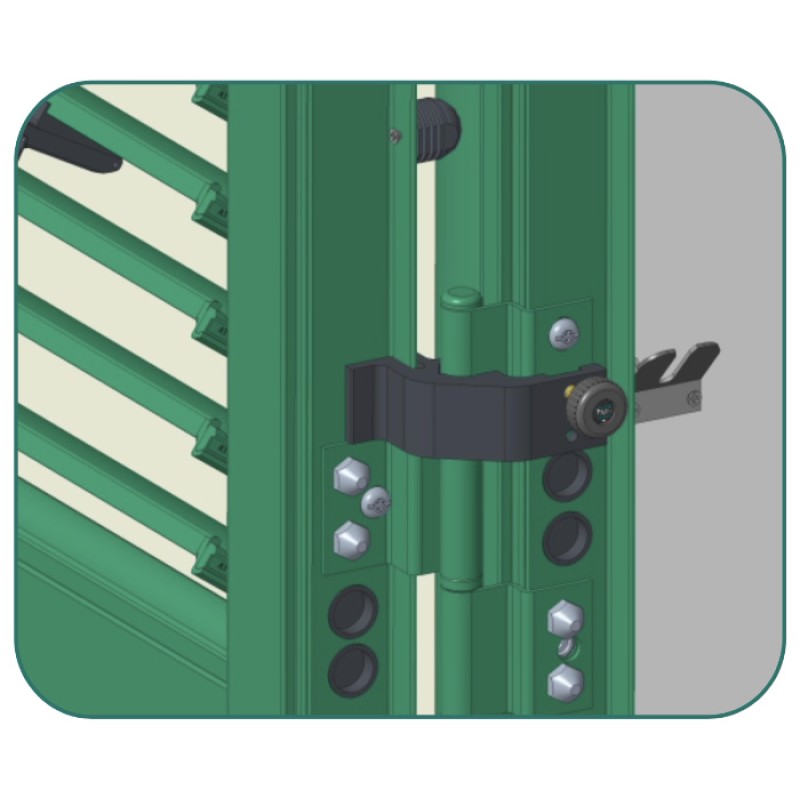

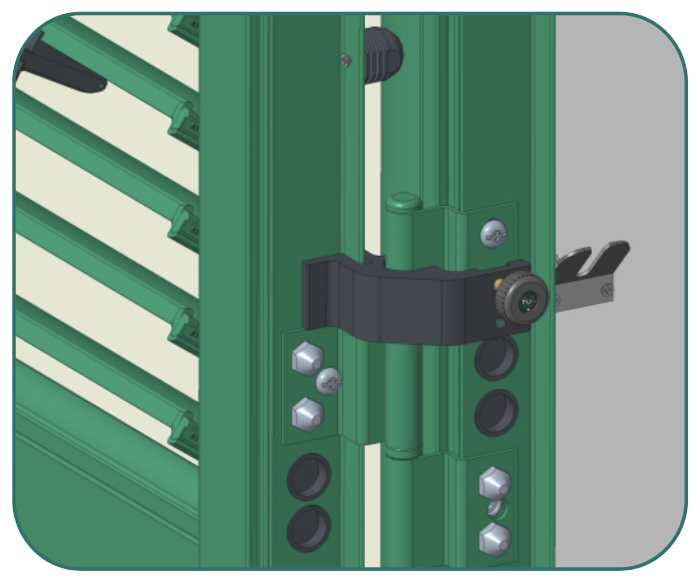

Assembly of the MAGIC-BLOCK bracket (Code Art. 851) at the height of the hinges, in the internal part of the house using the supplied screws (see figure 1) making sure, before fixing the screws, to insert the the chain of the door block is provided with a special stop (see fig. 2).
Phase 2
Fixing of the anti-shock rubber grommet (Code Art. 252W1), by means of the supplied screw, on the flap of the shutter leaf profile; it is recommended in a position of about 10 cm upwards from the position of each hinge (see figure 4).
For fastening, first make a 4 mm diameter hole at a distance of about 8 mm from the base of the profile; then screw the screw into the thickness through the hole until it rests completely on the profile (see figure 3).
These operations can be carried out directly on the construction site.
The anti-shock rubber is used to avoid the impact of the mobile door against the wall.
In the case of a shutter with rounded sash and frame profiles it is necessary to use only the anti-shock rubber grommet (Code Art. 252W1), however, in the case of a shutter with squared sash and frame profiles it is necessary to use in addition to the anti-shock grommet. - the rubber shim is also impacted (code art. 253W2).
It is advisable to fix the anti-shock rubber at about 10 cm from each hinge; therefore, fix 3 shims for the French door and n. 2 for the window.
