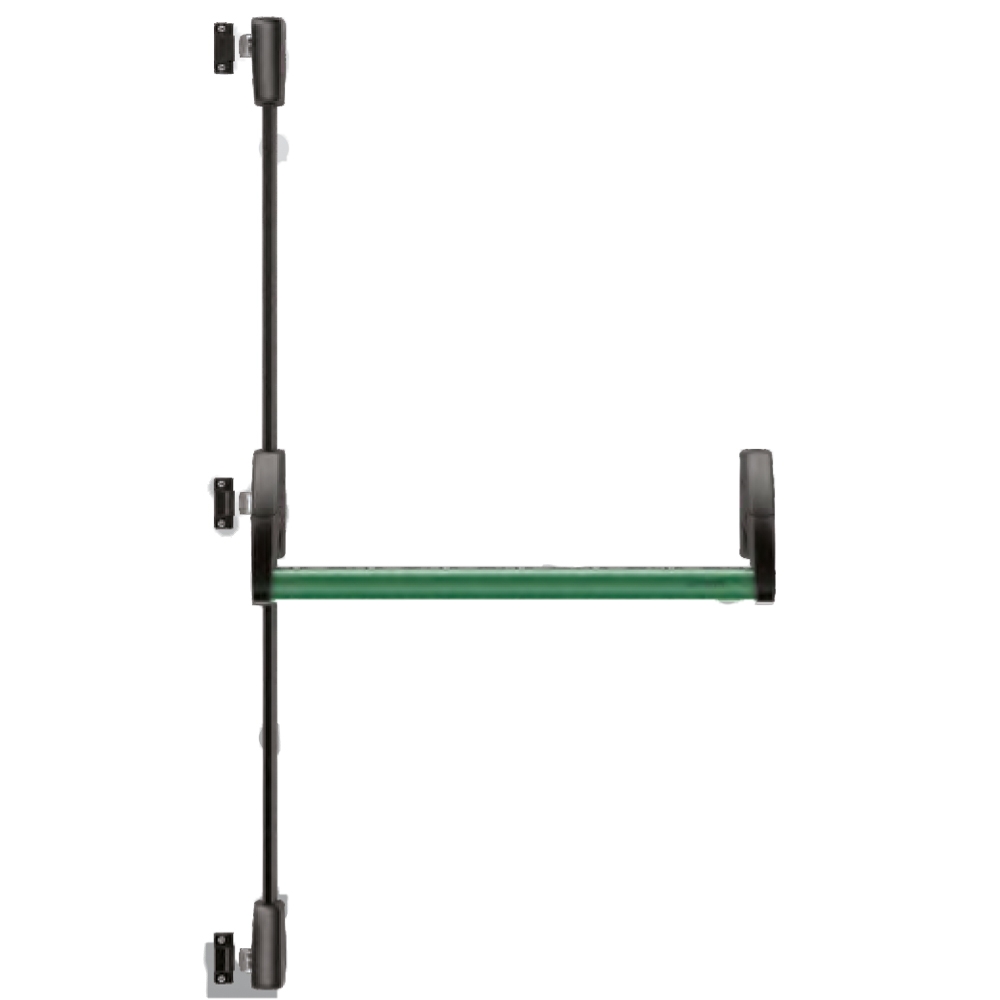

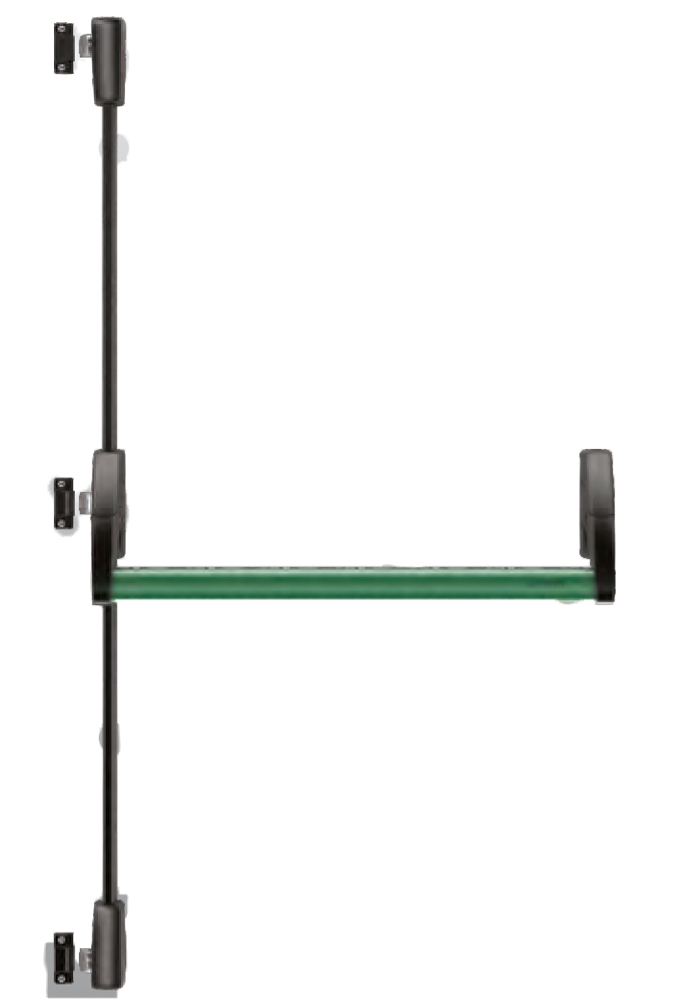

Savio Juvarra Handle - for Panic Door - with 3 Closing Points
Vertical ambidextrous
panic bar with
3 locking points , lever version, in zamak and galvanized steel.
Complete with: nickel-plated zamak latch, 3 galvanized steel fixing counterplates and 1 nylon fixing counterplate, 1200 mm bar and 6 keepers in painted zamak, 1 upper and 1 lower aluminum rod, 1 cover mm 1340 and 1 cover mm 1037 in painted aluminium, 2 adjustable bushings in black galvanized zamak, 2 countersunk head screws Ø 4.2x16, 14 countersunk head screws Ø 4.2x13, 6 cap screws Ø 4.2x13, 2 cap screws 4.8x13, 6 countersunk head screws M5x6 and 10 countersunk head screws M4x5 in galvanized steel.
Handle finish for panic door: Black.
For doors with a useful passage width from 800 to 1240mm and max height 2450mm.

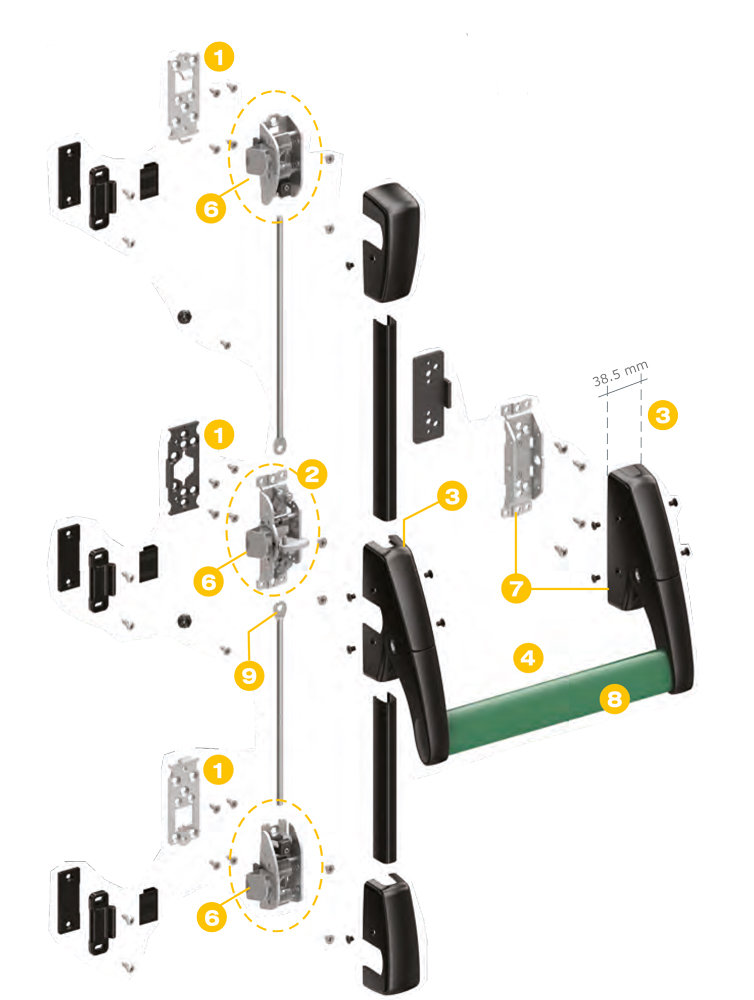

JUVARRA By Savio, THE INNOVATIVE PANIC BAR:
- 1) All supports and latches are screwed onto steel counterplates (which can also be welded) for easy, solid and rapid fastening;
- 2) Totally ambidextrous mechanism;
- 3) Reduced overall dimensions (38.5mm) for mounting also on standard profiles;
- 4) Wide profile horizontal bars for better maneuverability;
- 6) Lateral latches (top, bottom and central) flat and translating;
- 7) Secondary support arranged for the insertion of the hold-open device and on the microswitch;
- 8) Horizontal bar to be inserted with large machining tolerances, in steel with an oval section of 40mm.
- 9) Simplified forend attachment.

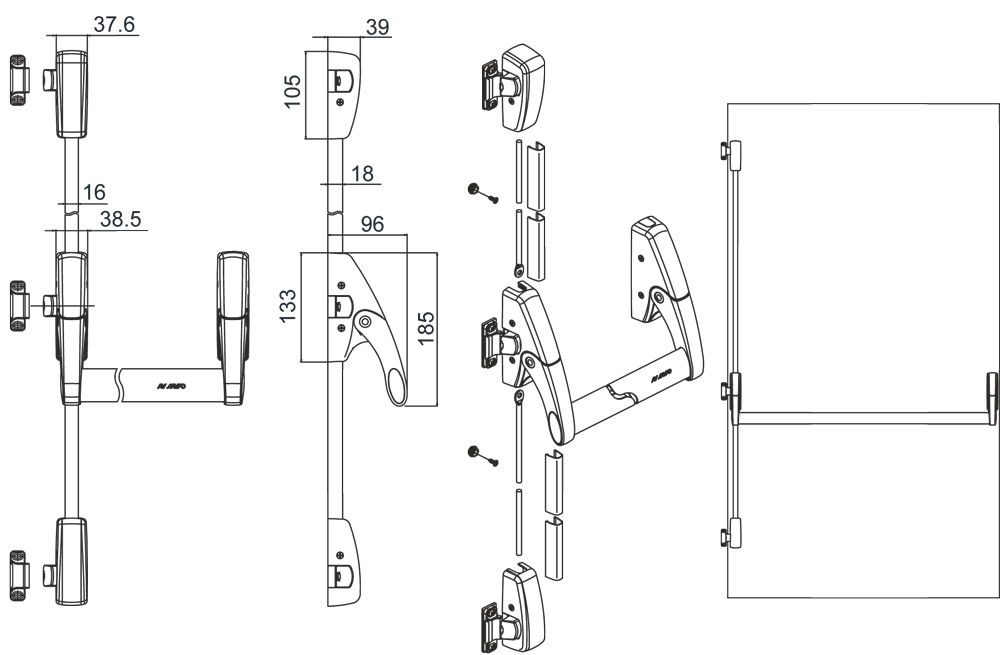

By clicking on "Documents" (above) you can download the Savio Juvarra panic bar brochure, the application drawing of this product, the certifications and the relative assembly instructions.
