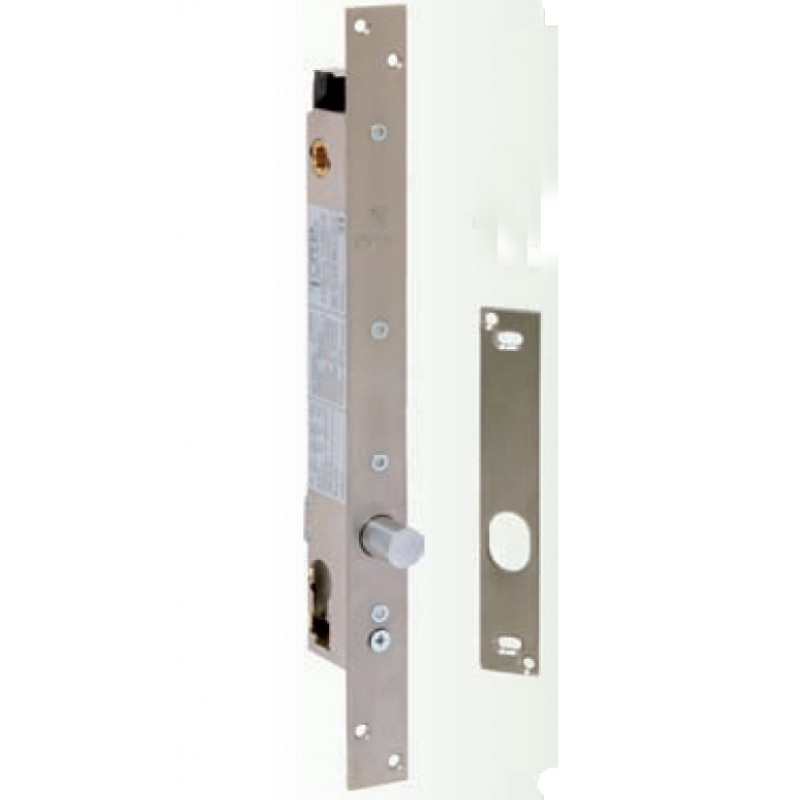

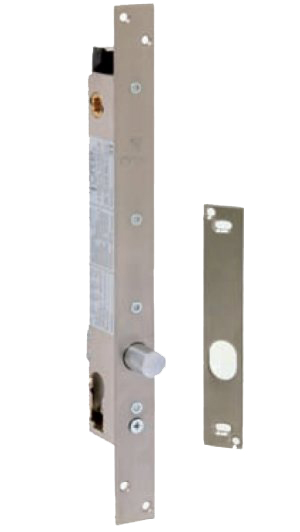

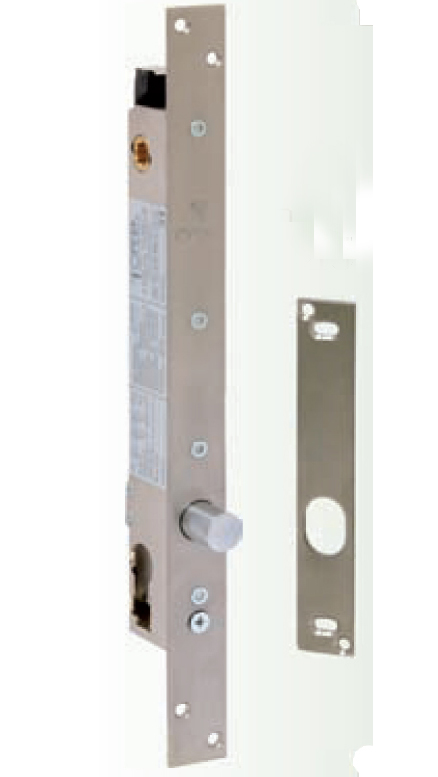

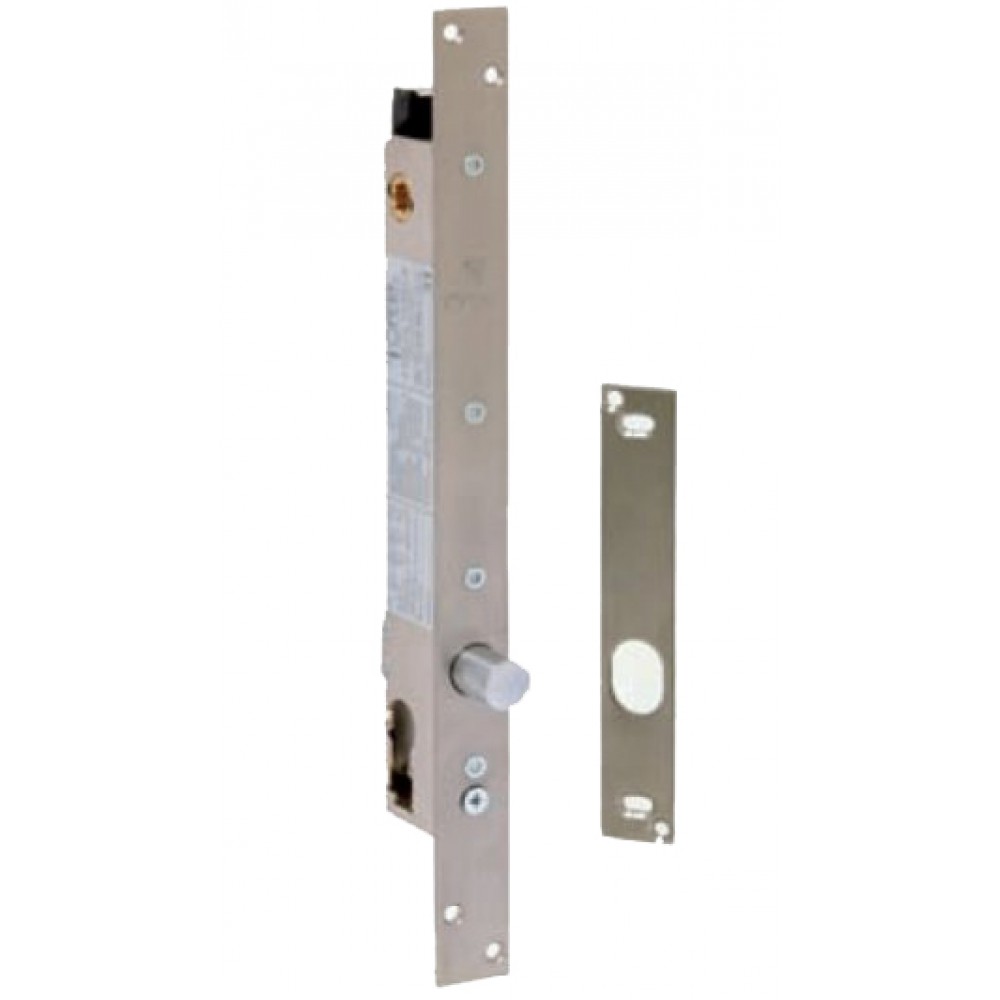

Vertical Safety Electrocution Art. 25809 Work with 9mm handle square
- Safety electrolock for single door. With 9mm handle square.
- Deadbolt Closed in the absence of power.
- The package includes: electropiston, counterplate, connector and cylinder screw.
- The package does not include the power supply.
VARIANTS (choose between):
- Standard Version : normal and without modifications;
- XL version : with +5mm increased extension deadbolt;
- SA version : with anti-bounce alignment ball mounted directly on the counterplate, with front ABS slide.
Technical characteristics - Opera 25809 safety solenoid lock
- Mechanical opening with European cylinder (cylinder with internal knob cannot be used);
- Stainless steel front 320 x 25 x 3mm;
- Stainless steel strike plate 150 x 25 x 3mm with alignment magnet;
- Rotating deadbolt in anti-cut tempered steel with mechanical lock in the closed position;
- Deadbolt dimensions: 20mm extension (25mm in the XL version), 16mm diameter;
- Power supply: 12/24 Vdc;
- Absorbed current: 2.5/3 A peak - 130/230 mA electronically controlled maintenance;
- Internal microprocessor control electronics;
- Connection via quick-fit connector;
- Predisposition for interlocking connection between 2 or more doors;
- NA Opening Command;
- C./NO/NC contact for deadbolt position;
- Opto-electronic control of the deadbolt position;
- Internal magnetic sensor for door position;
- Buttons for monitoring and adjusting the closing times from 0-5 sec. when the door approaches and from 0-60 sec. if the door is not opened;
- The timings can be deactivated for the use of the solenoid valve with external management electronics;
Operation: vertical.
Available entries: 25-30-35mm.
NOTE: Complete your solenoid valve by considering the purchase of the Switching Power Supply Art.05320 Opera, available on Windowo in the same section.
It is also possible to purchase the Retractable Cable Grommet Art.08600 separately, for the direct passage of the wires between the door and the frame.
