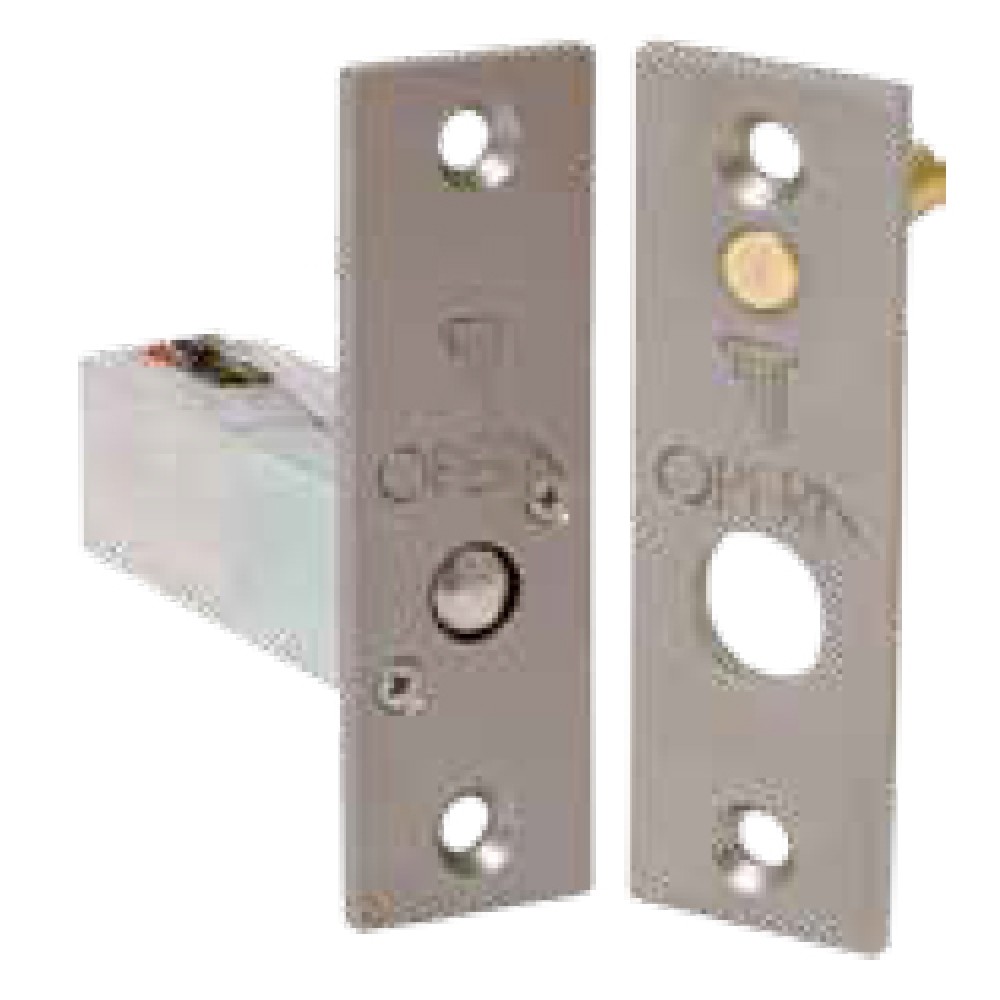

Safety Micro Electrocution - Opera 20611-12 - Quadra Series - Open Without Power
The
safety micro electrostatic lock - Opera 20611-12 - is part of the Quadra Series and is characterized by a design that guarantees opening in the absence of power.
The
front and counterplate are made of stainless steel , ensuring durability and resistance. The device is designed to
operate horizontally , with the possibility of vertical installation on request.
This micro solenoid lock is ideal for applications where safety and resistance are crucial, offering a reliable solution for access management.
Opera micro electropiston - Power supplies available
- 12 V without magnetic sensor
- 24 V without magnetic sensor
Opera micro electropiston - Technical characteristics
- Open in case of power failure.
- Stainless steel front mm. 80 x 25 x 3.
- Stainless steel strike plate mm. 80 x 25 x 3.
- Deadbolt diameter mm. 8, extension mm. 8.
- Power supply: 12 Vdc/400 mA or 24 Vdc/200 mA - ED 100%.
- Operation: horizontal (vertical on request).
- C./NO/NC microswitch for deadbolt position.
IMPORTANT
The Quadra Micro series electric locks, due to the high operating temperatures, are not suitable for mounting on wooden or PVC doors.
Quadra Opera series
Horizontal safety electrobolts.
Applicable on doors and shutters.
Micro version for application on shop windows and windows.
Manual operation with European cylinder.
Easy to install.
Opera Operating Access brand safety micro electrocution
A safety micro electrostatic lock is an electromechanical device used for access control and security in various applications
