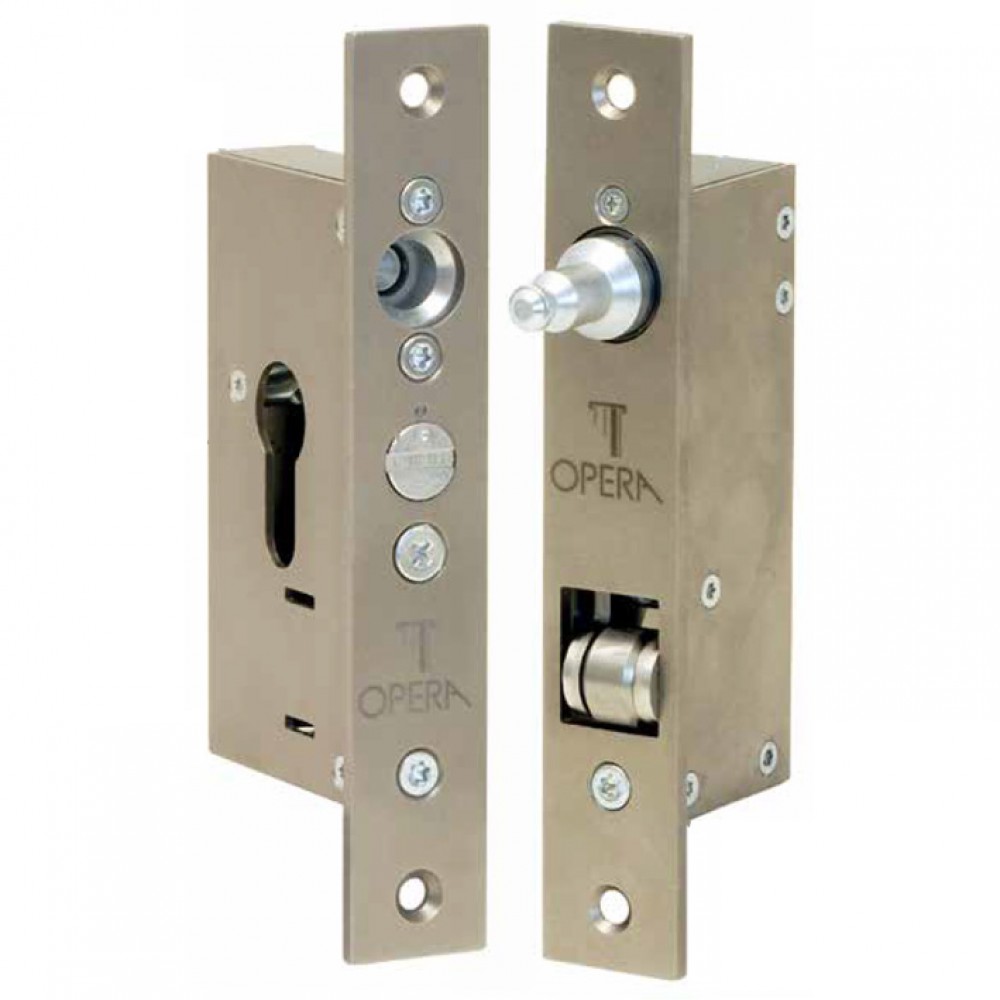

Electric Safety Lock for Sliding Doors - Code 23822 - Arca Slide Opera Series
Use of an electric safety lock for sliding doors
Electrically controllable
safety lock for controlled closing of sliding doors, even external ones exposed to the weather.
This
electric safety lock for sliding doors is designed to ensure the safe closing of sliding doors, including external ones that are exposed to the elements. Thanks to its electrical functionality, it is possible to control the closing of the doors accurately and safely, offering a high level of protection.
Available power supplies:
- 12 Vdc
- 24 Vdc
- 12 Vdc - with hold open
- 24 Vdc - with hold open function
Features Electric Safety Lock for Sliding Doors
- Body in stainless steel.
- Nickel-plated hardened steel locking pin on stainless steel counterlock.
- Break-in resistance force: Kg. 800.
- Insertion of the front locking pin.
- Mechanical opening with European cylinder.
- Stuck without power.
- Front lock and striking plate in stainless steel.
- Counterlock with pin release system with door ajar.
- Pin diameter mm. 9.5 mm extension. 25.
- Opening: limited to the duration of the impulse with current limiter.
- Backset: mm.28.
- C./NO/NC pin position microswitch inserted.
Opera electric lock dimensions
Counterlock system:
- With the door closed
- With the door open
Application on sliding door of the safety electric lock
- For single or double leaf sliding doors
- It does not require management electronics
- Mechanical closing when the doors are brought together
- For motorized sliding doors or sliding gates
- Can be combined with intercoms and access control systems
Arca Opera series
- Safety electric locks.
- Key version for security boxes and safes.
- Slide version for automatic sliding doors.
- Entirely in stainless steel.
- Manual operation with European cylinder.
