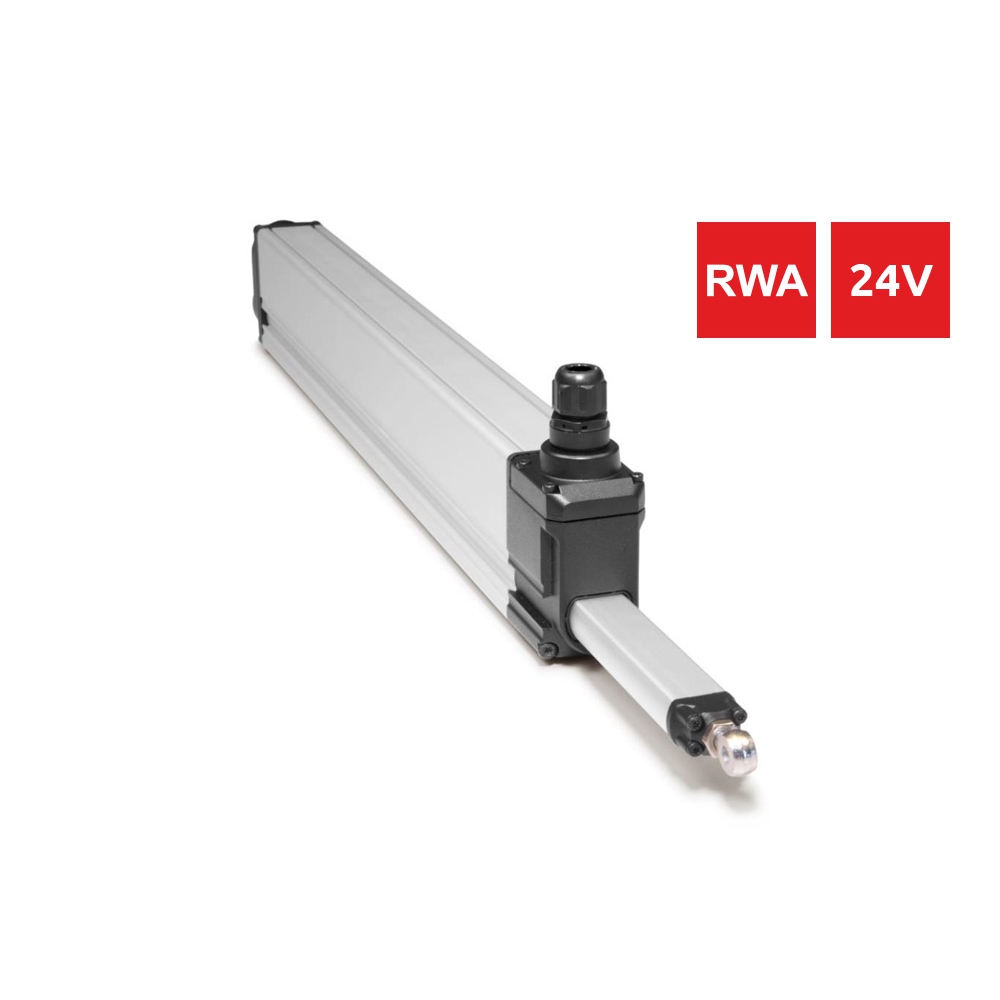

S80 Topp 800N - Electric motor to open top-hung windows 24V version
New Topp actuator for top-hung windows: 800N thrust force - Max. stroke 1000mm - For exteriors
S80 Topp is the new electric motor for top-hung windows. The movement is a self-aligning type with a rigid stem, complete with support and accessories for top-hung windows, plates or slats and sunshade blades. This actuator replaces the SL60 and T80 Topp actuators.
Main features S80 Topp 24V:
- Maximum applicable load in 800N thrust;
- 1 push point, to open windows, domes and slats;

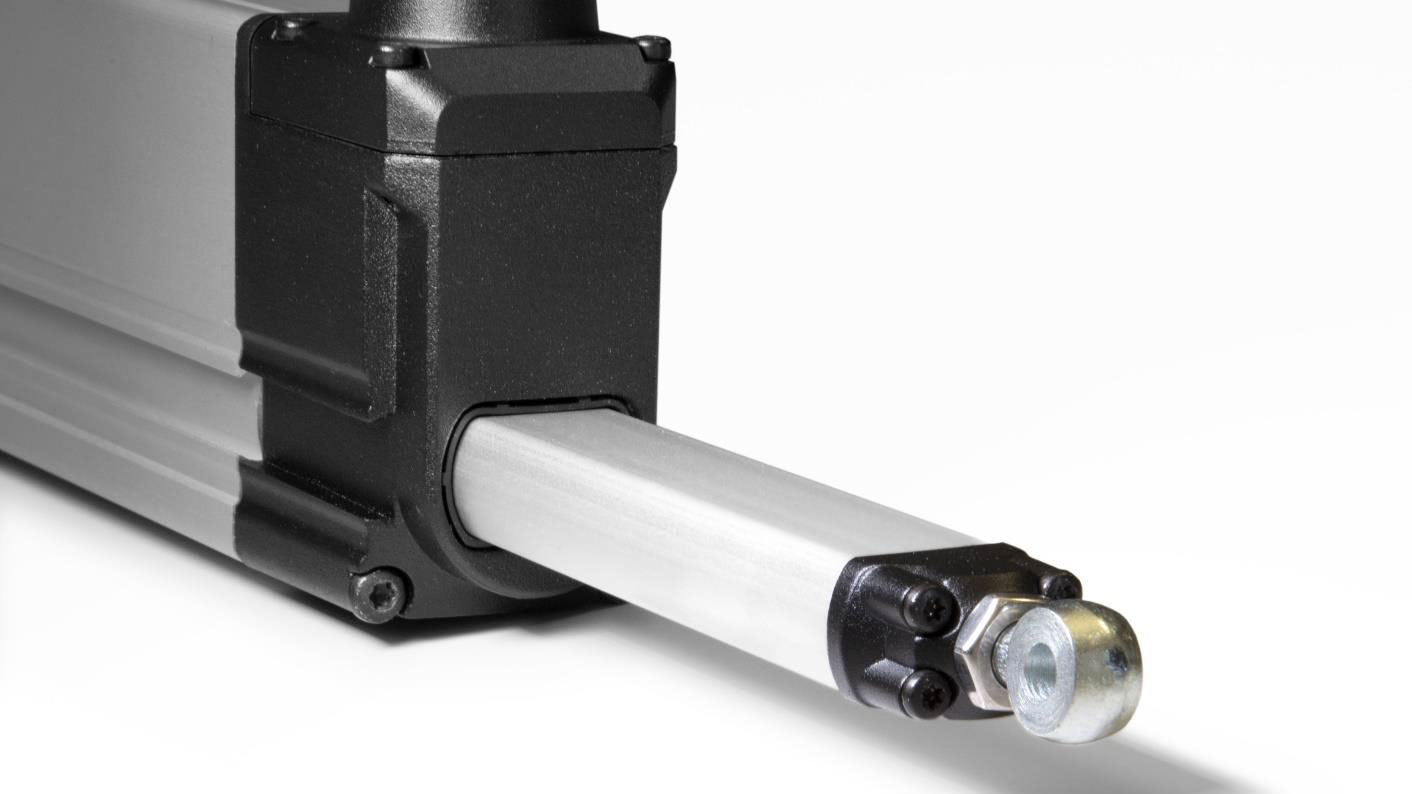

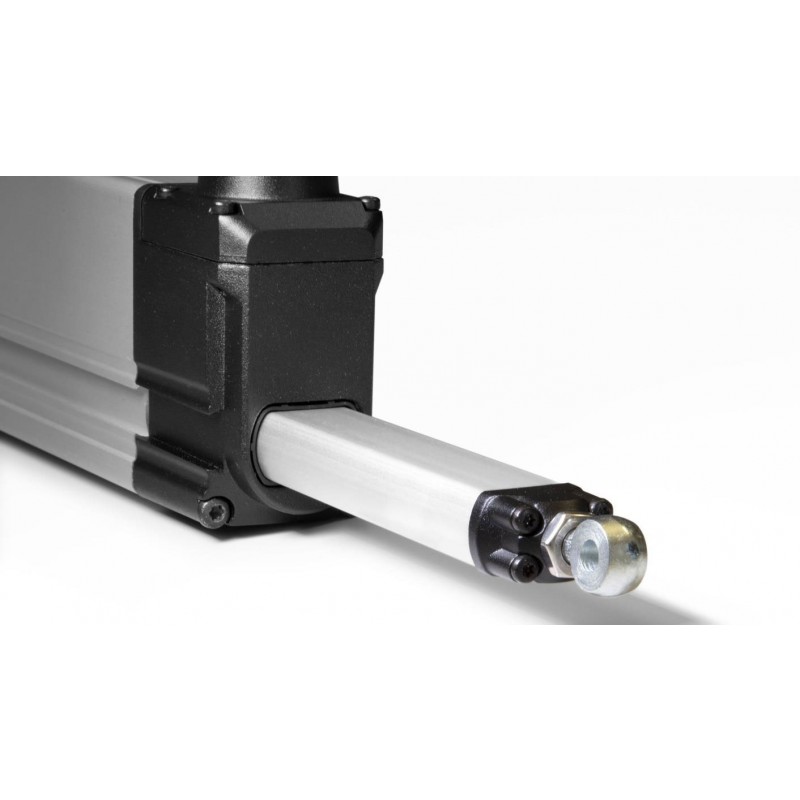

- Stainless steel endless screw;
- Grade of protection IP68 for strokes 200 and 400mm (for outdoor installations);
- Grade of protection IP65 for strokes 600, 800 and 1000mm (for outdoor installations);
- CE marked and verified for smoke and heat evacuation systems according to directive EN12101-2 (RWA).
Choose the stroke of your S80 Topp electric actuator
You can choose from the following variants:
- Stroke 200mm;
- Stroke 200mm (plates);
- Stroke 400mm;
- Stroke 400 (plates);
- Stroke 600mm;
- Stroke 800mm;
- Stroke 1000mm.

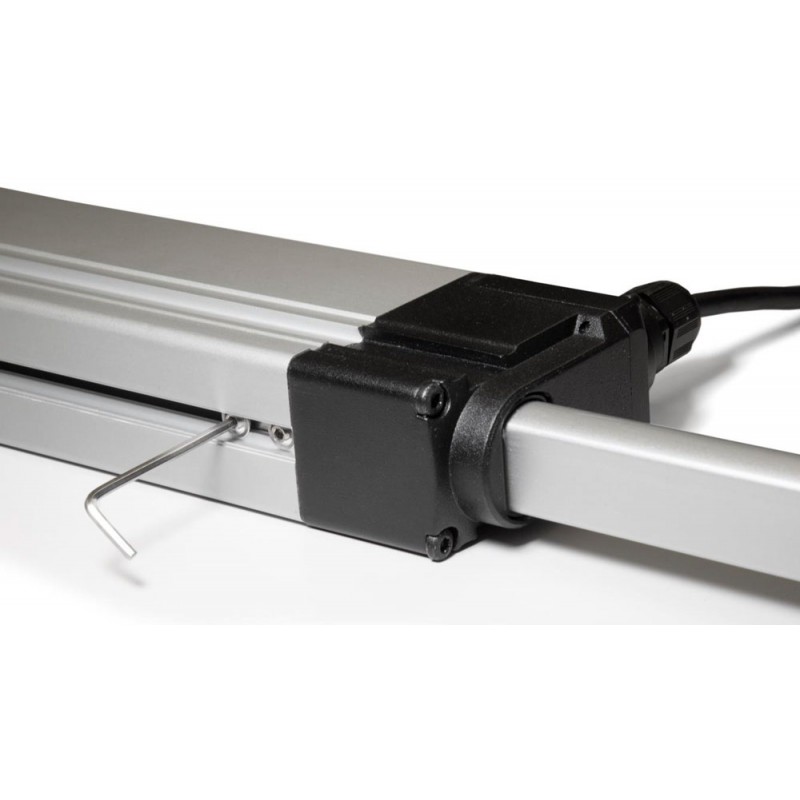

Actuator stroke S80 Topp adjustable millimetrically!
How can I use the S80 Topp window actuator?
You can use this electric motor to open:
- Top-hung windows;
- Domes;
- Plates;
- Sunshade blades;
- It is also verified for smoke and heat evacuation systems.

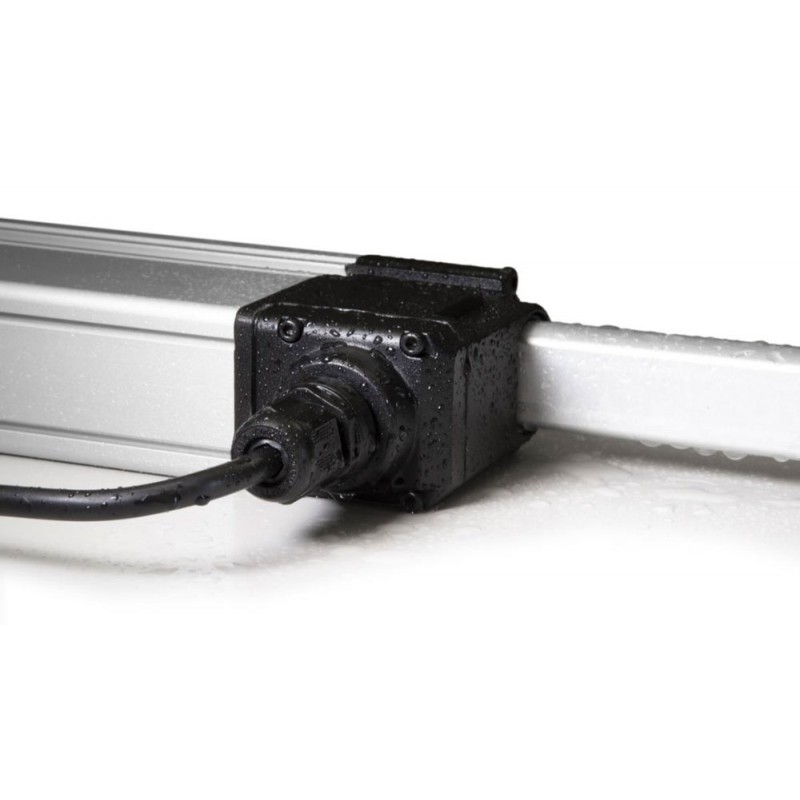

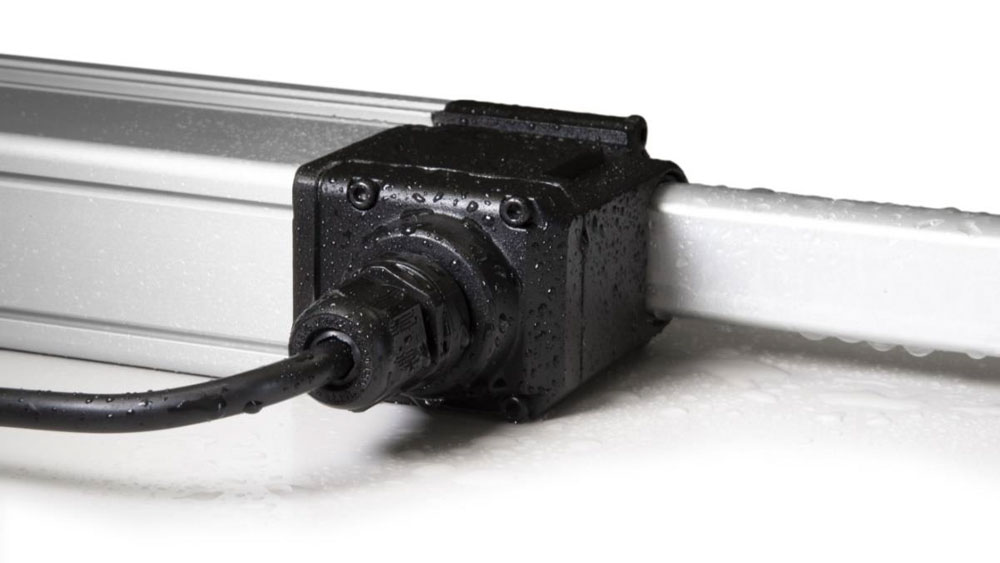

Water protection: window motor designed for outdoor use
Grade of protection: IP68 strokes 200-400; IP65 strokes 600-1000.
Technical characteristics S80 Topp 24V motor for windows:
- Dimensions: 364-1224 x 76 x 43 mm;
- Stroke of your choice: 200, 200 (plates), 400, 400 (plates), 600, 800 and 1000 mm;
- Adjustable stroke: you can adjust it millimetrically;
- Grade of protection: IP68 strokes 200-400; IP65 strokes 600-1000;
- Max. Thrust force: 800N;
- Max. Traction force: 800N;
- Absorption: 1A at 24V;
- Tilting bracket: included in the package;
- Insulation class: II;
- Synchronization 2 S80 on the same window: available;
- Brackets for plates and sun blades application: available.
S80 Topp 24V: if I want the 230V version?
You can find it on Windowo.
Go to the S80 TOPP 230V actuator.
Topp: solutions to open windows with ease
The Italian company Topp offers a wide range of door and window automation systems, designed to improve our daily well-being. Quality of materials and innovative solutions, combined with technical reliability and modern design have led Topp, in a few years, to assume a position of great international importance in the field of automation for doors and windows.
