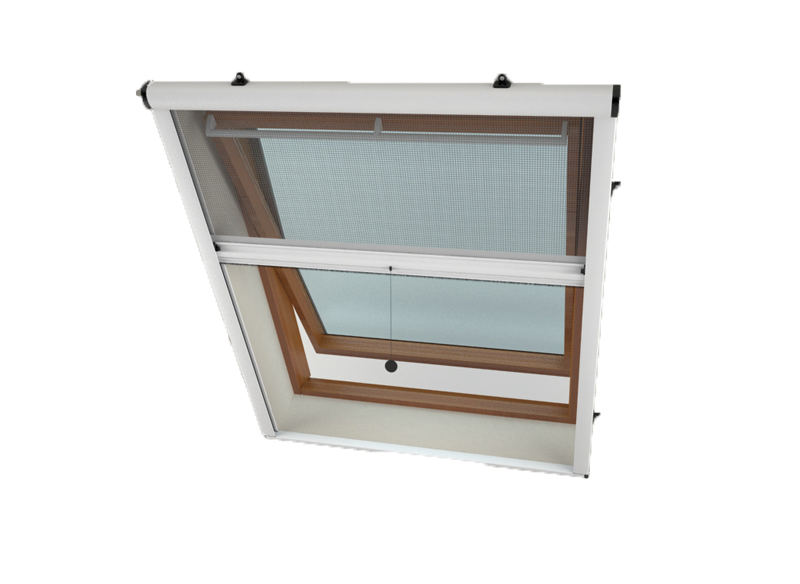

Revolux by Bettio Inside Face Click-Clak 40 Windscreen Vertical Spring

Revolux by Bettio Version Inside Face Click-Clak 40 with windproof - Vertical Spring

Revolux by Bettio - Version Inside Face (4)
Type of coupling: frontal horns
Application: roof windows

Revolux by Bettio or FFRE a footprint of only 4 cm, the driving wind as well as the special technology of coupling and uncoupling Click-Clak, and access to international patent Bettio.

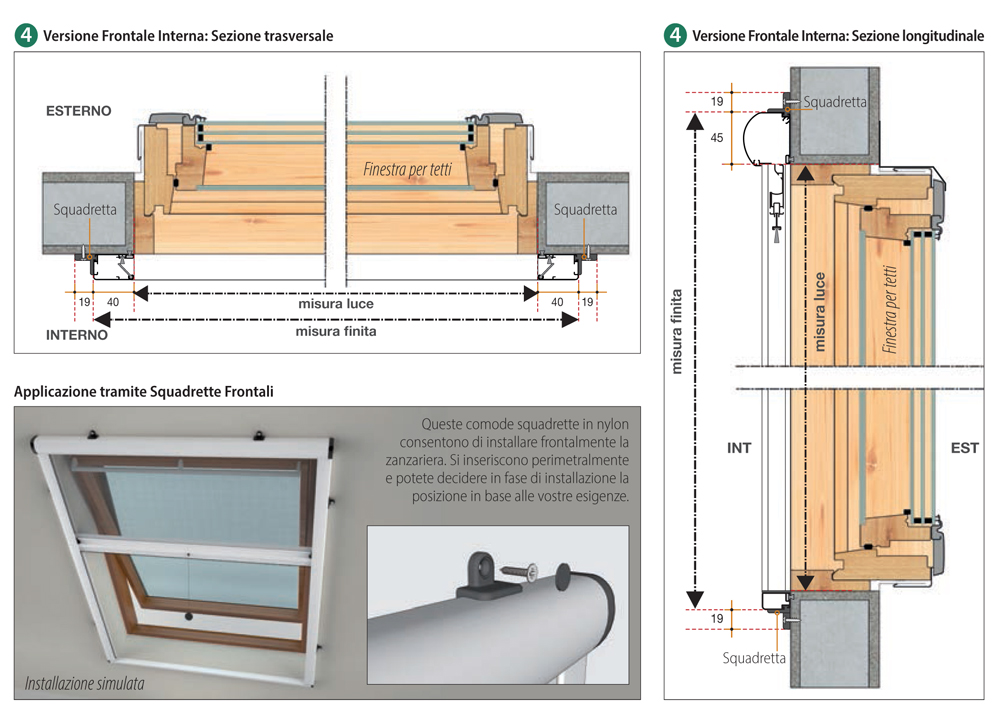

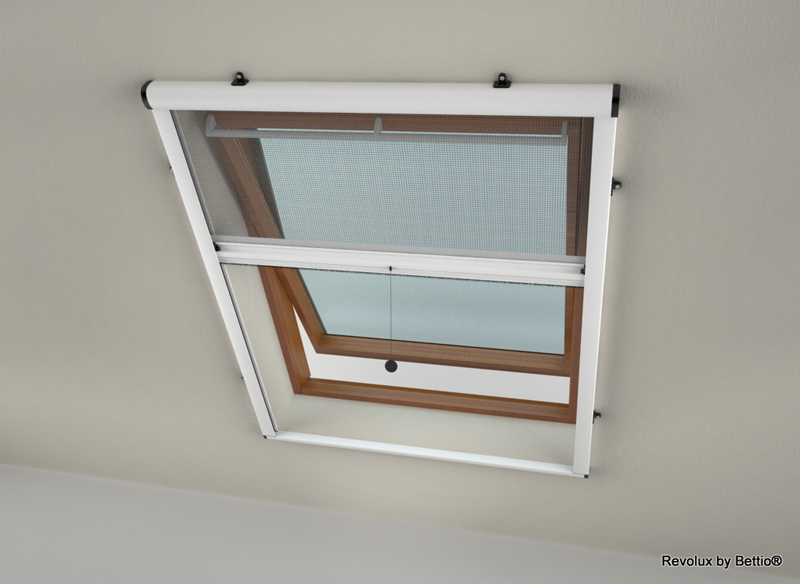

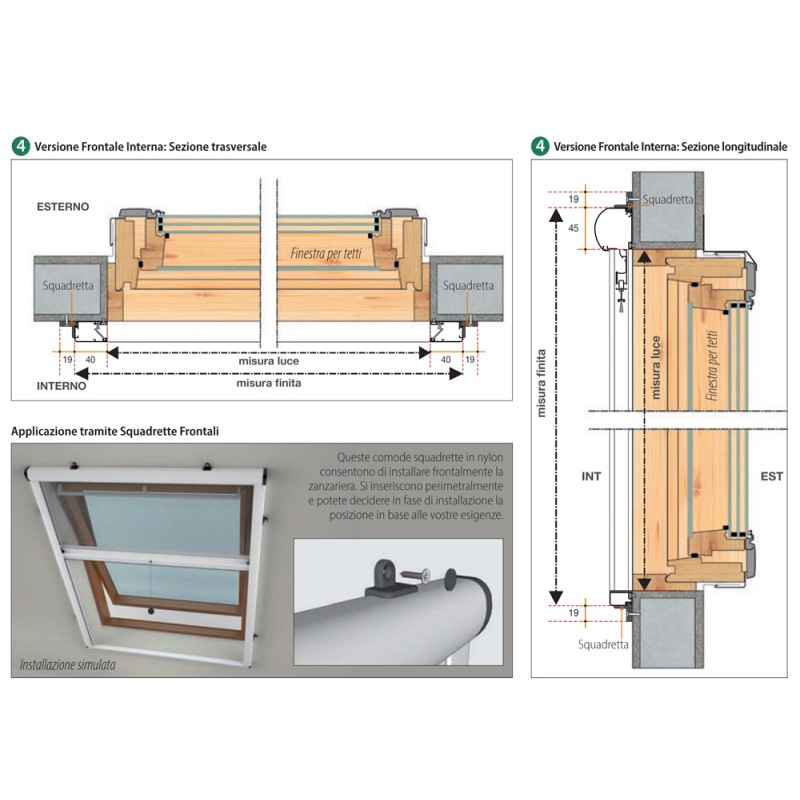

This version can be installed in the rooms such as the inclined roof windows, where it can be applied frontally with special brackets.



The peculiarity of this mosquito is the variety of applications or FFRE.
Its 5 versions allow it to be installed in virtually any room.

Discover 5 versions of Revolux by Bettio, sale of Windowo.

The system of coupling-release Clic-Clak
This patented technology, making it extremely comfortable and natural the release of the mosquito net.
It is not necessary to rotate the handle bar with both hands, as in the other vertical systems to traditional spring, simply push it down even with just one hand!



Safety clutch
The safety clutch allows the mosquito to rewind gradually avoiding dangerous impacts of the loss of control of the mesh bar.
The clutch is an option but is mandatory on mosquito nets vertical height greater than 2 meters.

Guiding and windproof (international patent Bettio)
It is a special profile, equipped with a brush longer and more rigid than normal.
In strong winds, the brush rotates in the special slot, pulling the mesh, preventing the escape from the guide.

Technical features:

• Model: Revolux by Bettio - Version Inside Face (4);
• Overall dimensions: 40mm;
• Recommended application: window;
• Finish network: no ribbon and buttons;
• Aluminum color: choose between silver (painted silver), Bronze (bronze painted), Black (opaque electro ELOX 2000), White (glossy white RAL 9010), Ivory (ivory polished Ral 1013), Green (green matt Ral 6005), brown (brown matt Ral 8017), and Cherry Wood, Walnut, Pine, Douglas, Iroko, Light Renolit and Dark Renolit. Estimates are made on request for other colors.

The importance of the mosquito net
Why install mosquito nets in the environments in which we live? To protect yourself from mosquitoes, what else? In fact, the response seems very low cost. But to linger a bit 'on the application you can also find plenty of other good reasons as to why protect the environments in which we live with mosquito nets.
For example, thanks to mosquito nets, while pesky mosquitoes if they are left out, we can keep the windows wide open to regenerate the air inside our house: a good air circulation ensures well-being, a good sleep, a high degree of concentration and yield. Do you think that the air inside your home or office can be up to 5 times more polluted than the air outdoors.
We spend 90% of our time indoors, at home, at school or at work, breathe about 22,000 times every 24 hours.
Let's not forget the importance of light: the sun is light and light is a "super nutrient." The sun acts as a natural antidepressant: what could be better for our mood that open the windows and let the light (and only you) enter into our homes?
Moreover, thanks to mosquito nets remain outside our house also flies, bugs, spiders, and certainly many other insects that, without sting, there surely rejoice.
And yet: the mosquito net can save power by limiting the use of facilities for the treatment of air, such as air conditioners.
An advantage for the environment and for human health, but consequently also an economic advantage.

Sustainability: the mosquito nets Bettio are 90% recyclable
At a time when talk of "green economy" seems to have become almost a fad, Bettio carefully evaluates the environmental impact of its products.
This vision drives the company to design, produce and offer products created with high quality materials, durable and which, for their end use, require very minimal maintenance.
Corporate ethics fall also the continuing effort to create a safe working environment and a willingness to comply with the standards. In this sense, then a material such as aluminum, 100% recyclable, fits perfectly with the philosophy of "green" of the company, as well as the recycling of the almost totality of production waste.
Finally, the entire production process is highly automated and takes place aiming to energy saving.

• Revolux Bettio - Istruzioni di Montaggio (4,08 MB)
• Dichiarazione di Prestazione Revolux (545,46 KB)
• Voce di Capitolato Modello Revolux (151,71 KB)
