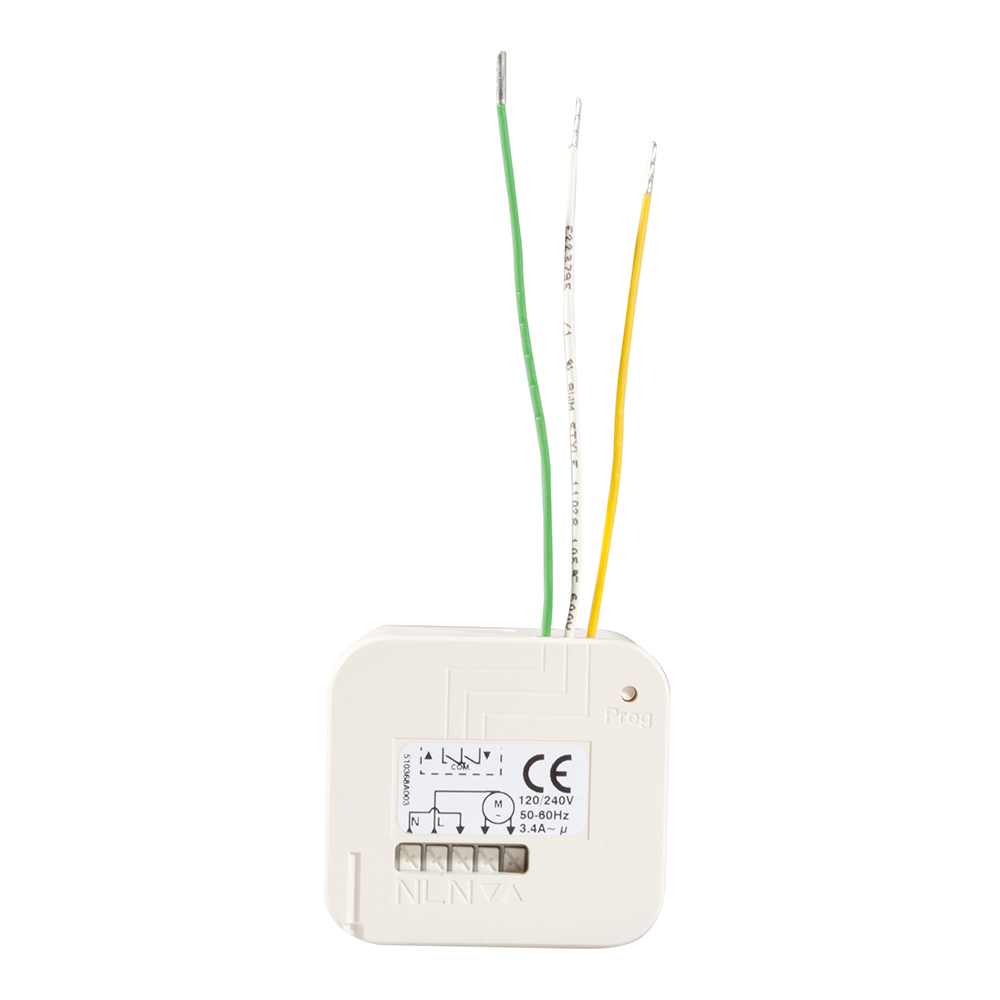

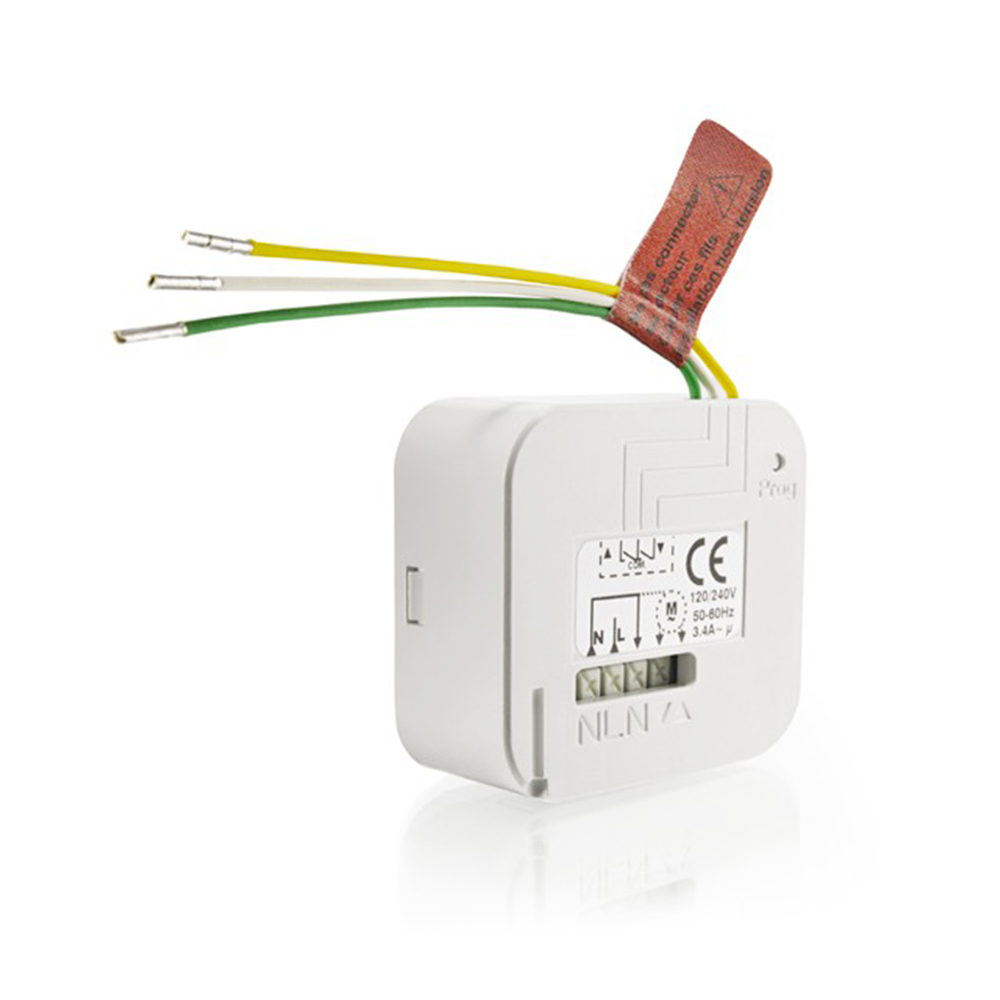

RTS Radio Micro-Receiver for Somfy Electric Shutters
Somfy receiver to manage motorized shutters via remote control or button
It allows the control of a motor by means of an existing button or remote control.
Description Somfy Radio Micro-Receiver
- The Somfy radio signal micro-receiver makes it possible to make a wired motor shutter compatible with the entire Somfy RTS radio technology system, to manage the shutters with a button or remote control;
- The radio signal micro-receiver can memorize up to 12 wireless remote controls or wall controls and more channels of each remote control and is compatible with Somfy Box Tahoma.
Do you have motorized shutters and want to know more?
Follow these simple steps:
First, check if your roller shutter motors are wired or radio, Somfy or other brands. Following, based on the case studies, here is a summary of the possible solutions:
- Wired motors : it will be sufficient to buy a micromodule to make your motorization radio (RTS technology) without any masonry work; to manage them from your smartphone, you can make your devices home automation via the Tahoma Box;
- Somfy radio motors with IO technology : to manage them without any remote control, create scenarios, etc, a connexoon or nina intelligent remote control will suffice;
- Somfy radio motors with RTS technology : a Tahoma home automation box will suffice;
- Radio motors of other brands : unfortunately it is not possible to adapt them to Somfy dedicated protocols.
Advantages Somfy receiver for motorized roller shutters
- Easy to install thanks to a quick connection terminal;
- Small size: compatible with all 50mm housings (503 box);
- Compatible with Box Tahoma: for a home that is always connected;
- Easy to use: it can memorize up to 12 wireless remote controls or wall controls and more channels of each remote control.
Compatibility with other Somfy products
- All motorized shutters / awnings controlled by a switch;
- TaHoma;
- RTS remote control.
Features Micro-RTS Radio Receiver for Somfy Electric Shutters
- Motor output: 3A max at 240V or 3.4A max at 120V;
- Operation limited to a single engine;
- Radio: 433.42 MHz;
- Dimensions (mm): 19 x 41 x 45;
- Operating temperature: from -20 ° C to +55 ° C;
- Degree of protection: IP20 subject to compliance with the installation instructions. For indoor use only (protection from solid bodies with a diameter> 12 mm, no protection from liquids);
- Maximum altitude of use: 2000 meters;
- Product sensitive to shocks and falls.
