pba Combination Knob-Handle in Stainless Steel AISI 316L
Customize your fixed pba knob with variants.
You can choose finish, shape and modality between single and pair of knobs.
Standard finish: satin
On request finish: bright (contact us if you are interested)
Variants lever handle::
Lever handle “L”
Lever handle “U”
Lever handle “T”
Variants knob:
Cylindrical
Spherical angled

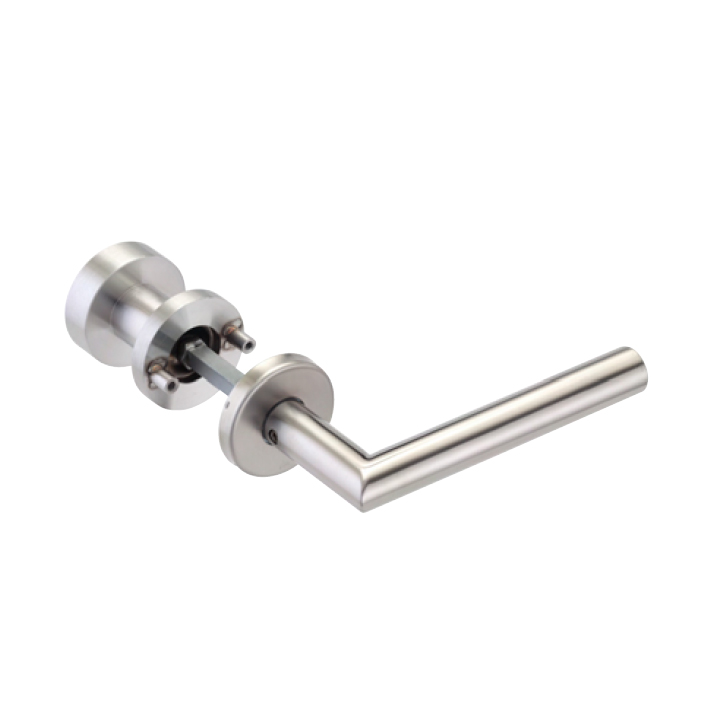

2MM.510.000F Lever handle “L” - Cylindrical
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “L”, length 130 mm.
Lever diameter 20 mm.
Round rose diameter 50 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed cylindrical lever diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

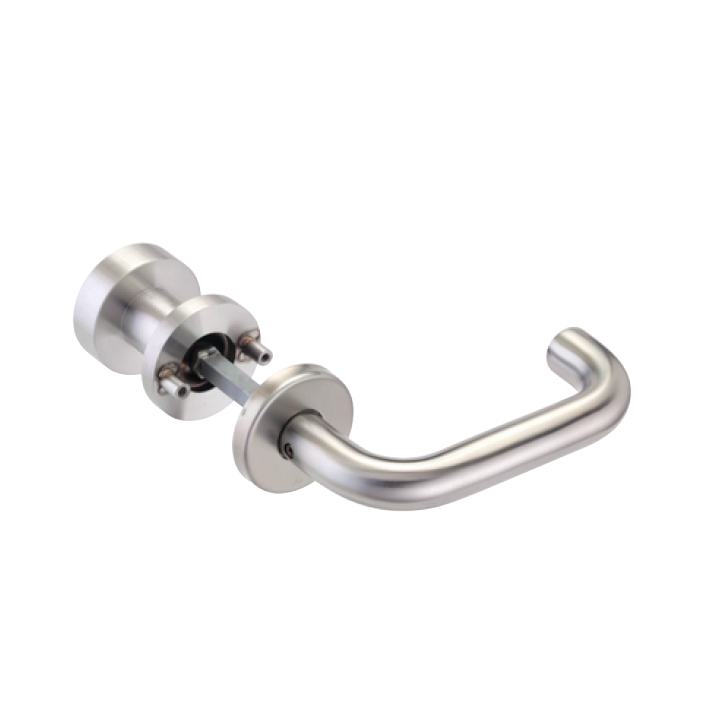

2MM.511.000F Lever handle “U” - Cylindrical
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “U”, length 136 mm.
Lever diameter 20 mm.
Round rose diameter 50 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed cylindrical lever diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

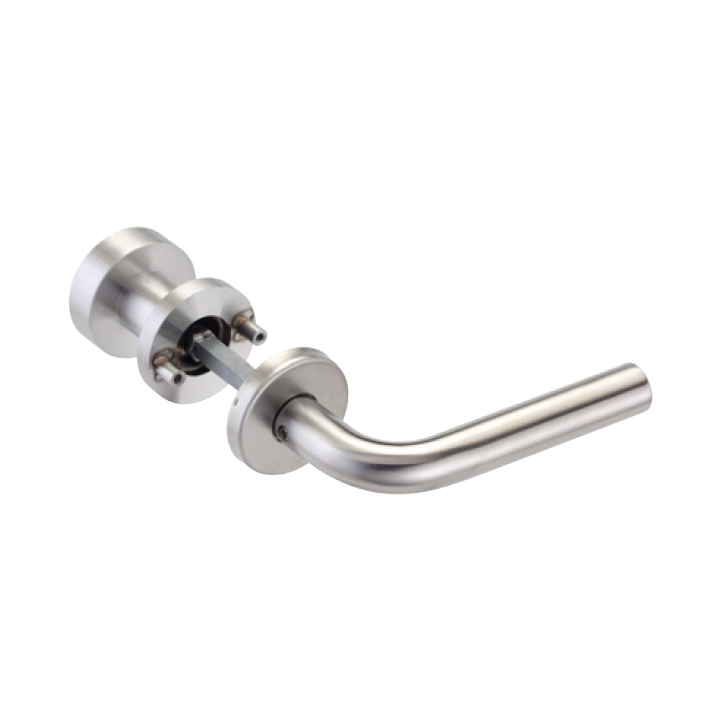

2MM.513.000F Lever handle “T” - Cylindrical
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “T”, length 135 mm.
Lever diameter 20 mm.
Round rose diameter 50 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed cylindrical lever diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

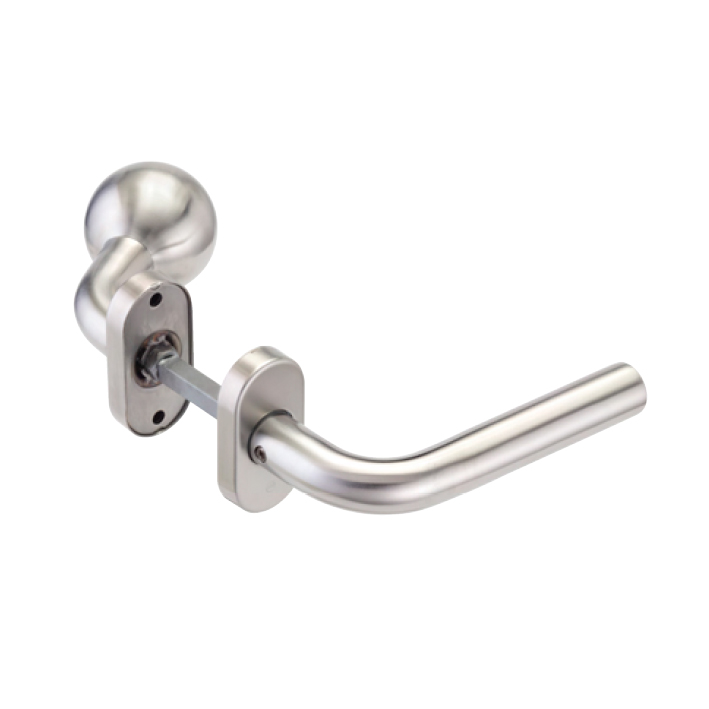

2MM.530.000F Lever handle “L” - Spherical angled
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “L”, length 130 mm.
Lever diameter 20 mm.
Oval rose diameter 32 mm x 62 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed spherical lever with angled support diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

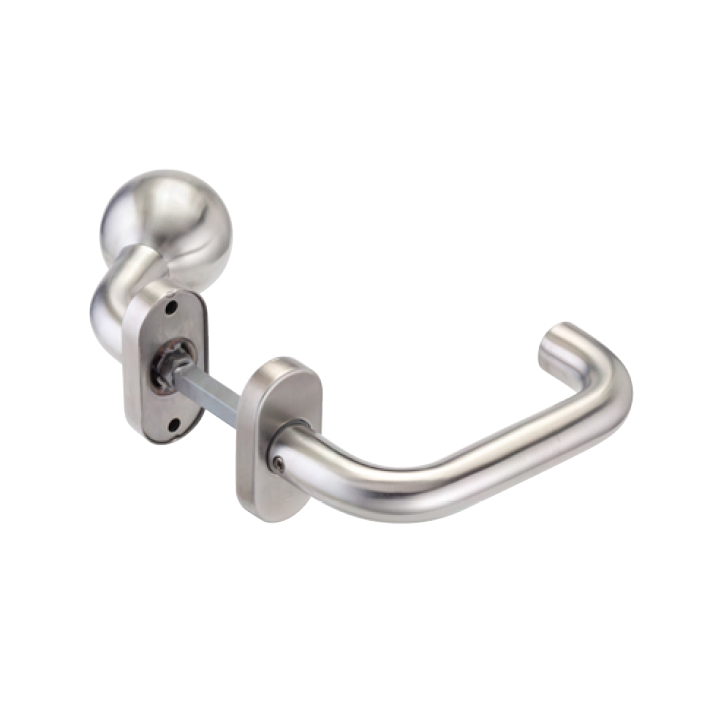

2MM.531.000F Lever handle “U” - Spherical angled
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “U”, length 136 mm.
Lever diameter 20 mm.
Oval rose diameter 32 mm x 62 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed spherical lever with angled support diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.

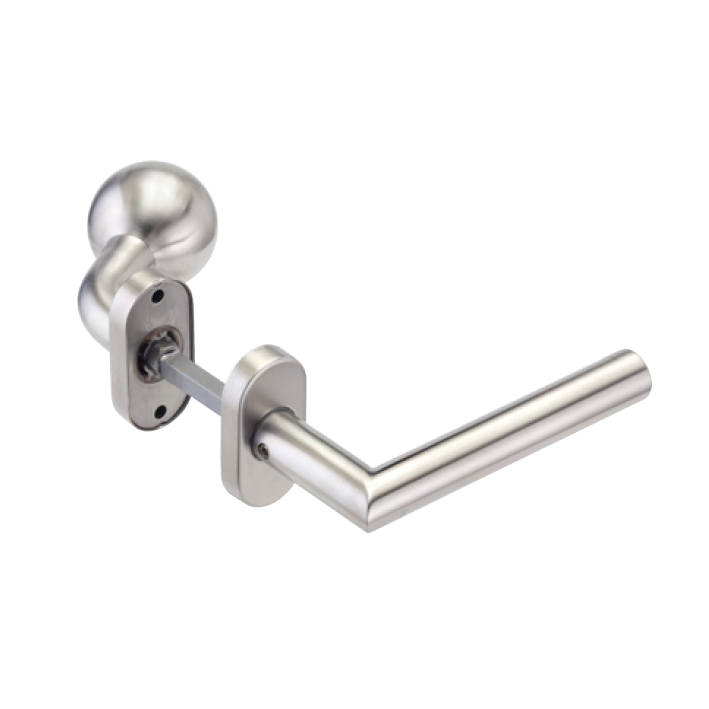

2MM.533.000F Lever handle “T” - Spherical angled
Lever-fixed knob in stainless steel AISI 316L.
Lever handle “T”, length 135 mm.
Lever diameter 20 mm.
Oval rose diameter 32 mm x 62 mm, thickness 8,5 mm .
Inner rose in metal alloy with return spring.
Fixed spherical lever with angled support diameter 50 mm.
Inner rose in metal alloy.
Galvanized steel spindle 8 mm with M12 thread for fixed knob.
Knob threaded on spindle.
Lever clamped to spindle by stainless steel AISI 316L grub screw with TORX form.
