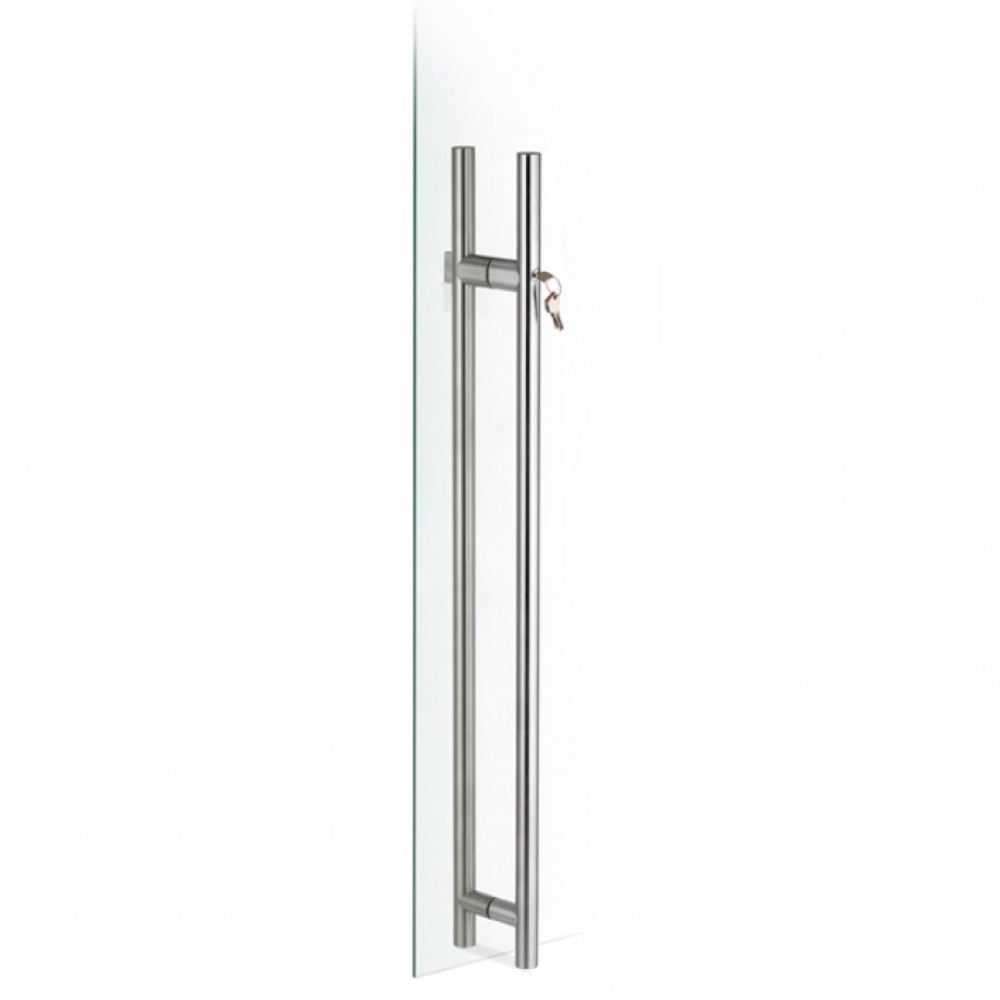

pba 200C-Y AISI 316L Stainless Steel Pull Handle with Built-in Lock
Stainless steel AISI 316L pull handle with built-in lock. Read CAREFULLY the technical descriptions of the handles and choose the model you want.
Each handle is different based on:
- presence and absence of knob
- floor and ceiling lock
- variable height
- single and double handle
Pull handle pba KLO.Y01.0000
AISI 316L Stainless Steel Handle with Built-in Lock

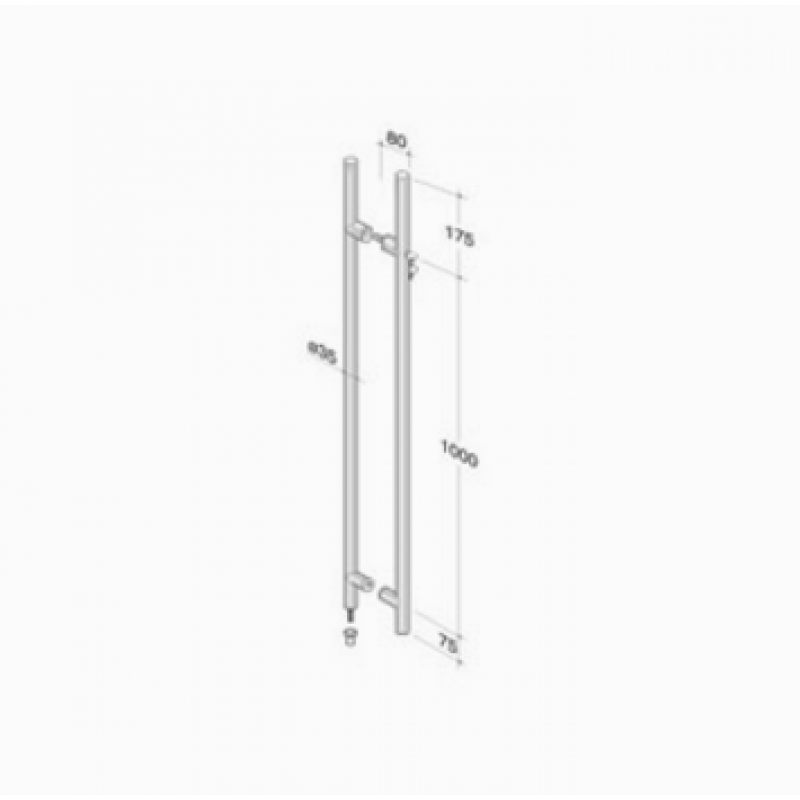

A=1000 B=1250
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35 mm.
2 supports. Distance between centre support and lower support: 1000 mm.
Length 1250 mm.
Interchangeable cylinder lock with European profile incorporated with tip that closes on the floor on the opposite side to that of key insertion.
Version without knob for closing on the opposite side to that of key insertion.
Handle pba KLO.Y02.0000
AISI 316L Stainless Steel Handle with Built-in Lock
A=1000 B=1250
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35 mm.
2 supports. Distance between centre support and lower support: 1000 mm.
Length 1250 mm.
Interchangeable cylinder lock with European profile incorporated with tip that closes on the floor on the opposite side to that of key insertion.
Version with knob for closing on the opposite side to that of key insertion.
Handle pba KLO.Y03.0000
AISI 316L Stainless Steel Handle with Built-in Lock

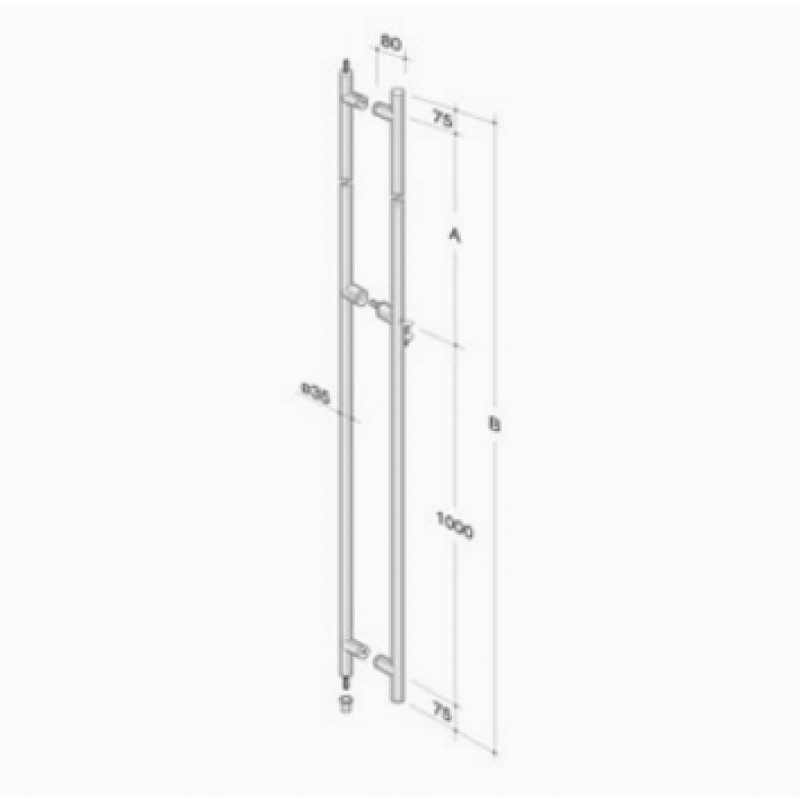

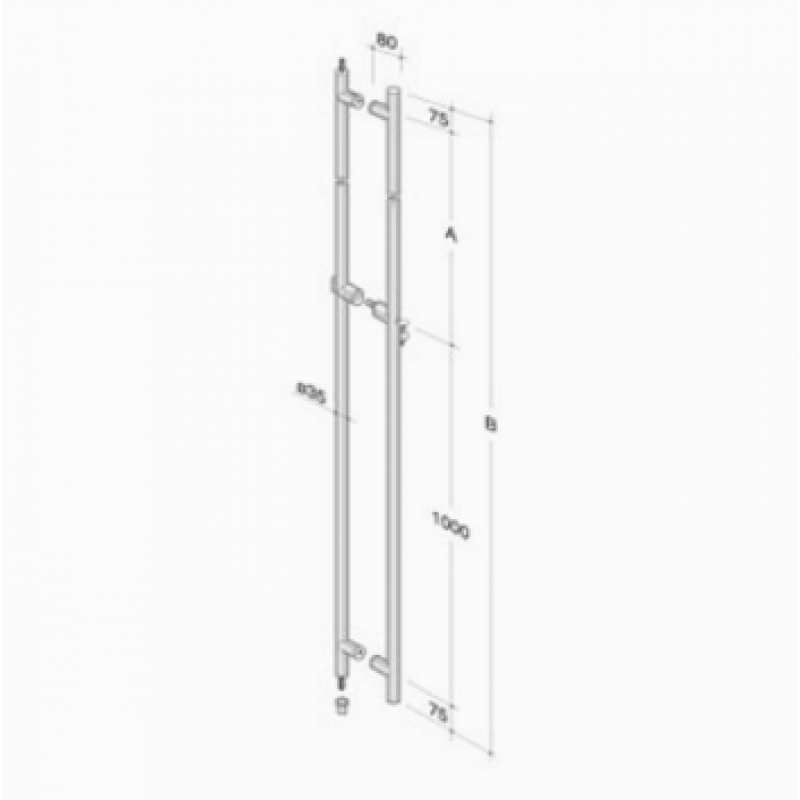

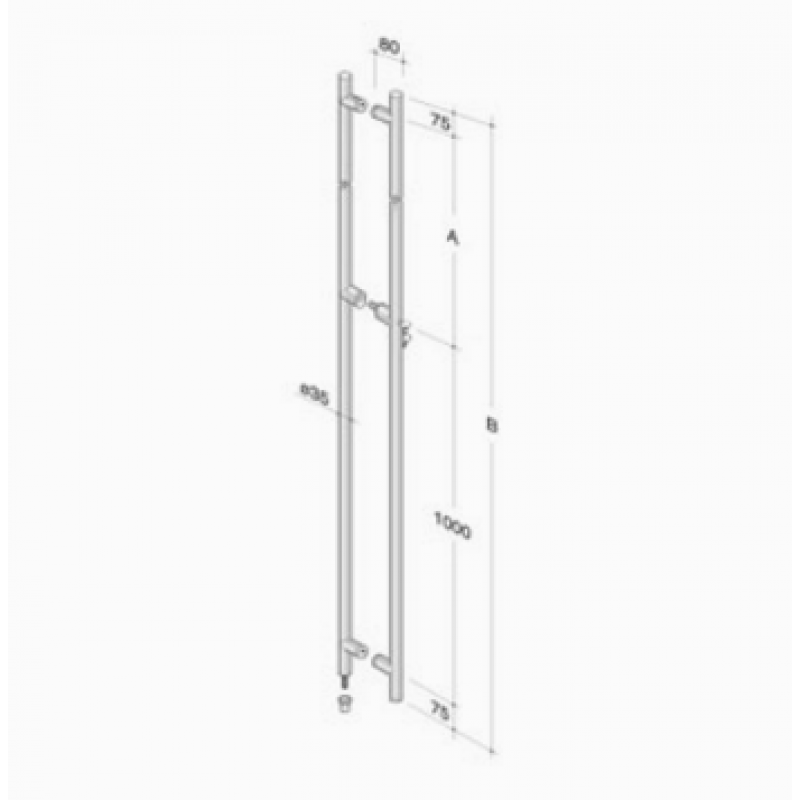

A=1050 B=2200
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35 mm.
3 supports. Distance between centre support / lower support: 1000 mm, distance between centre support / upper support: to measure.
Length to measure.
Interchangeable cylinder lock with European profile incorporated with tip that closes on the floor on the opposite side to that of key insertion.
Version without knob for closing on the opposite side to that of key insertion.
Handle pba KLO.Y04.0000
AISI 316L Stainless Steel Handle with Built-in Lock
A=1050 B=2200
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35 mm.
3 supports. Distance between centre support / lower support: 1000 mm, distance between centre support / upper support: to measure.
Length to measure.
Interchangeable cylinder lock with European profile incorporated with tip that closes on the floor on the opposite side to that of key insertion.
Version with knob for closing on the opposite side to that of key insertion.
Handle pba KLO.Y05.0000
AISI 316L Stainless Steel Handle with Built-in Lock
A=1050 B=2200
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35 mm.
3 supports. Distance between centre support / lower support: 1000 mm, distance between centre support / upper support: to measure.
Length to measure.
Interchangeable cylinder lock with European profile incorporated with tip that closes on the floor and ceiling on the opposite side to that of key insertion.
Version without knob for closing on the opposite side to that of key insertion.
Handle pba KLO.Y06.0000
AISI 316L Stainless Steel Handle with Built-in Lock
A=1050 B=2200
Pair of AISI 316L stainless steel handles with built-in lock.
Diameter 35 mm.
3 supports. Distance between centre support / lower support: 1000 mm, Distance between centre support / upper support: to measure.
Length to measure.
Interchangeable cylinder lock with European profile incorporated with tip that closes on the floor and ceiling on the opposite side to that of key insertion.
Version with knob for closing on the opposite side to that of key insertion.
Standard finish: satin
Finish on request: glossy (contact us if you are interested)
Special cylinder installations (mastering) in the KA-MK-GMK systems can be supplied on request.
Available with fixings for aluminium, glass, wood, PVC and mixed systems for window thicknesses of 10-22 mm (fixings for greater thicknesses are available on request)
Patented anti-burglary fixing device
Protective accessories for glass fixing included in the package
Floor bushing supplied
ATTENTION : The pba handle fixing kits are sold separately (complete your purchase by searching on Windowo).
pba: the AISI 316L stainless steel brand
pba is the brand of AISI 316L stainless steel, the hardest, most resistant and elastic among steels, and of polyamide 6 thermoplastic resin, the most noble. All pba products are rigorously Made in Italy.
