Pasini VISION Adjustable Roller Shutter - Blinds for Windows in Extruded Aluminum
Pasini Avvolgibili Screen - Blind for Vision Window
Elegant, design, multifunctional: VISION Pasini roller shutters are innovative extruded aluminum blinds.
The Pasini VISION adjustable roller shutters are moved like a roller shutter and with adjustment of the inclination of the slats , as for a sunscreen.
Control the passage of air and light thanks to the adjustable slats
The advantage of this solution is that of being able to graduate the passage of air and light while keeping the roller shutters lowered, thanks to the outward orientation of the movable flaps as they rest on the quay.

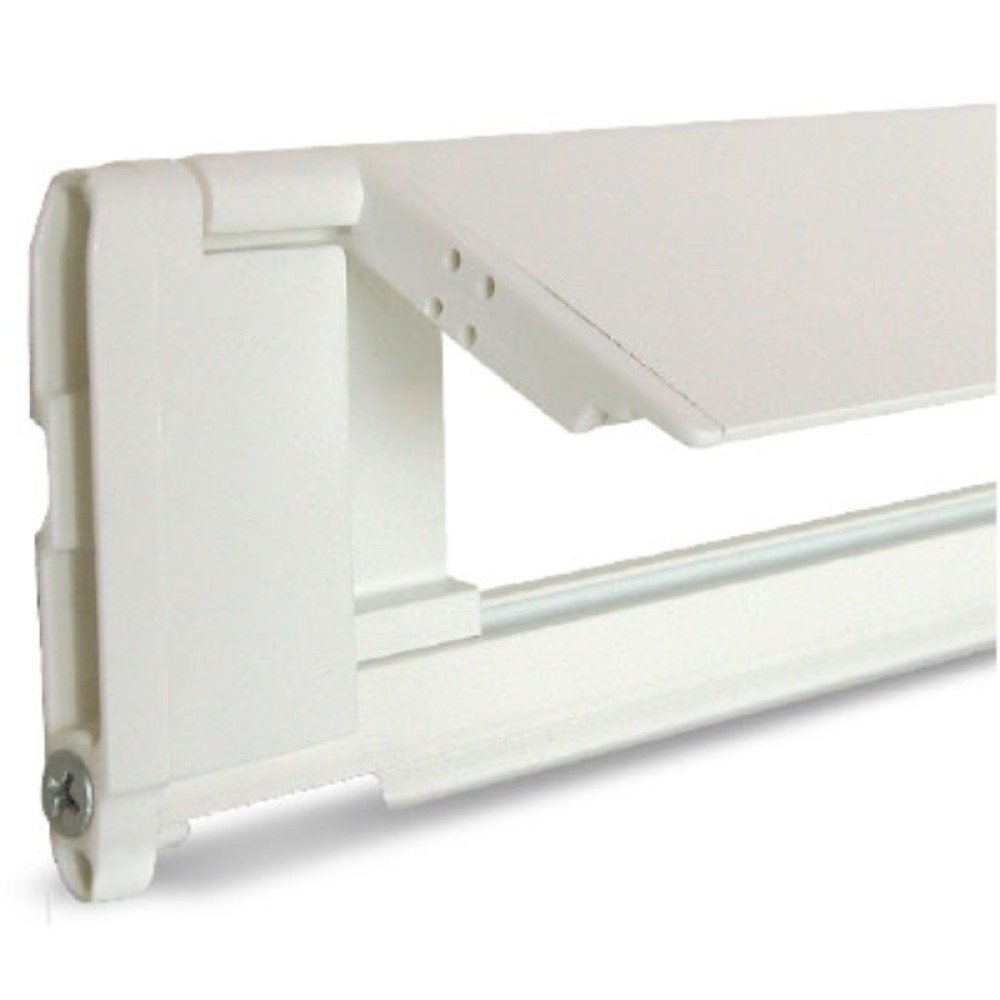

VISION window blinds are supplied with an extruded aluminum terminal with a retractable support element and are compatible with extruded aluminum guides equipped with brushes.
The range of basic colors is wide and includes both plain colors and imitation wood; it is possible to obtain customized colors according to the RAL series.
Features of roller shutter with Pasini VISION adjustable slats:

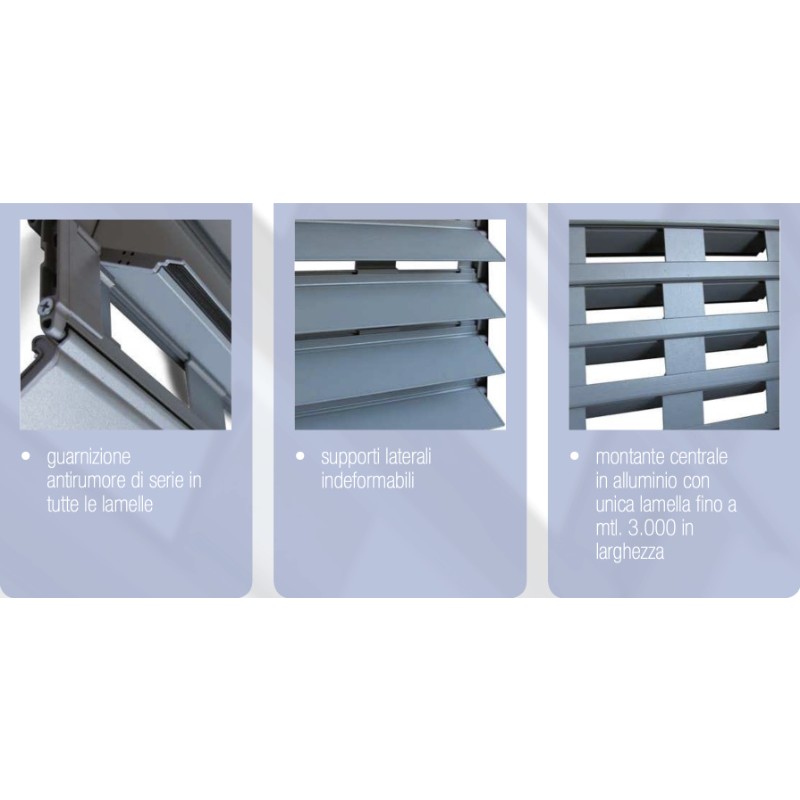

- Roller shutters in extruded aluminum equipped with adjustable slats painted with epoxy powders;
- Lamella size: closed 11.7 × 63.5 mm - oriented 55 mm;
- Weight m2: approx 9.0 kg;
- Slats per square meter: 18.00;
- Maximum use guaranteed in width: 3,000 meters, in height: 3,000 meters;
- Base and height measurements made to measure;
- Choice of colors;
- Terminal in extruded aluminum;
- Minimum m2: 1.5.
Why choose the Vision Pasini roller shutter?
Shutters or roller shutters? Both solutions have advantages and disadvantages, usually a compromise is sought between
practicality, safety and aesthetics .
From today the solution lies in a single product: VISION, the extruded aluminum roller shutter with adjustable slats that guarantees all the benefits of the classic roller shutter combined with the strengths of the shutter.
Vision Pasini is installed like a normal roller shutter, but it is much more robust and versatile. Thanks to the adjustable slats, it protects from the sun's rays in summer and guarantees all the necessary lighting in winter.
It is the best choice for those looking for
maximum strength and practicality combined with top performance in terms of energy saving.
Any light infiltrations with the roller shutter completely lowered are to be considered inherent to the construction specifications of the product and do not give rise to dispute.
Attention:
- The roller shutter for sale does not include the guides;
- The roller shutter will be shipped complete with a roller attachment system for manual handling;
- The roller shutter will be supplied with the holes and stop caps, if you do not want the holes contact us;
- The shutter will be supplied with slotted slats (except the first 5 slats), if you want all the blind slats contact us;
- Deadbolts on terminal or intermediate available on request.

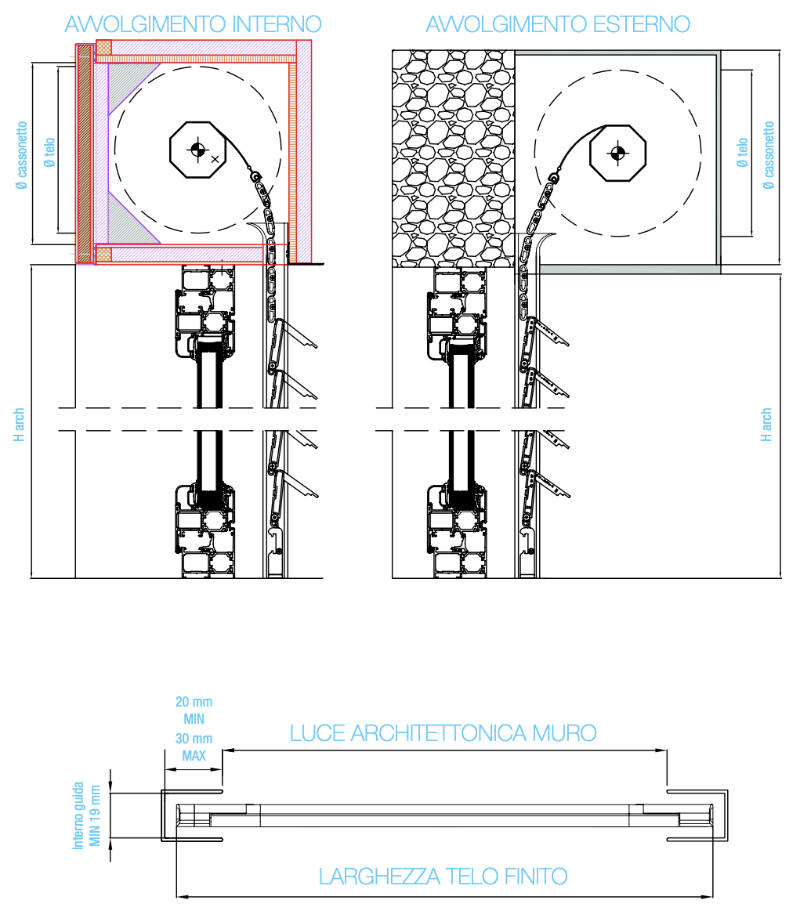

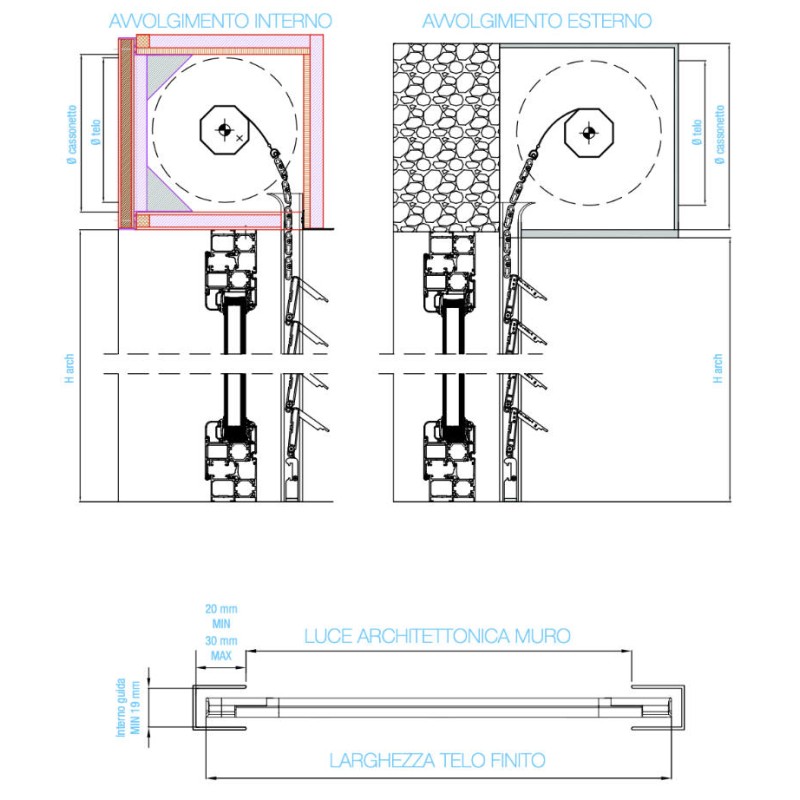

How to measure the roller shutters?
We advise you to proceed differently according to the type of intervention:
- Replacement of an existing roller shutter : it will be sufficient to select the product corresponding to the pre-existing roller shutter, to measure the size of the old roller shutter.

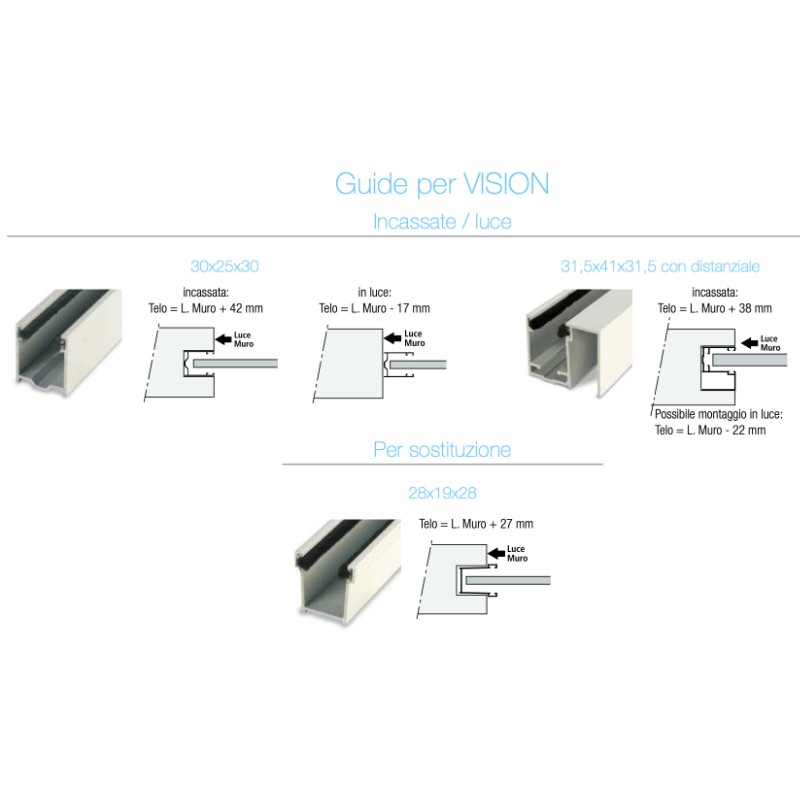

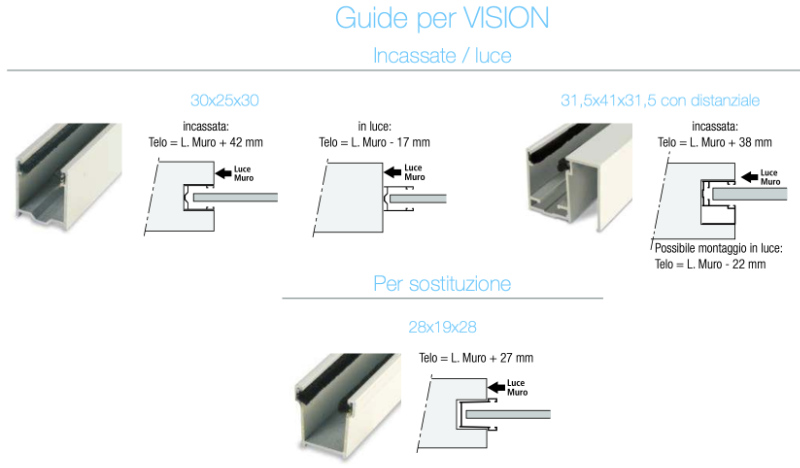

- Replacement or new installation of the roller shutter and the sliding guides : for the width of the roller shutter, with reference to the guides to be used, the necessary tolerances must be applied.
- Enter the finished measurements, in millimeters (base and height). By finished measurements, we mean the total measurements of the product, including any side caps and completion accessories.
For the choice of the shutter profile , (if a replacement is to be made), the height of the single plank is measured without considering the connecting hook between the slats.
When ordering, you will be asked to indicate the base and height measurements, specifying whether the roller shutter measurement is finished or empty.
What is the difference?
- Finished size (i.e. the exact size of the hole): the mosquito net will be supplied with the same measures ordered;
- Compartment size : the mosquito net will be supplied with 2-3 mm less base and height.
Colored roller shutters: choose the finish you prefer
Pasini aluminum roller shutters are offered online in a wide range of colors (they may vary from monitor to monitor).
The aluminum terminal is included and is supplied in the same color.
If you want to be sure of the color, we advise you to contact us (color disputes will not be accepted if we have not been contacted before during the order phase).
Pasini reels are 100% produced in Italy
Pasini aluminum roller shutters are rigorously and proudly
produced in Italy .
Born as a company specialized in the production of roller shutters, Pasini SpA over time has added more elaborate solutions to the original line, such as adjustable roller shutters and armored and burglar-proof roller shutters.
