Pasini MICROVISION Anti-lifting Roller Shutter and Mosquito Net

Pasini MICROVISION Anti-lifting roller shutter and insect shielding

Pasini Avvolgibili Screen Microvision - Anti-burglary from Lifting and Micro-perforated Slat

Are you looking for an anti-lifting solution that is versatile in use? Pasini MICROVISION roller shutters are aluminum shading systems.

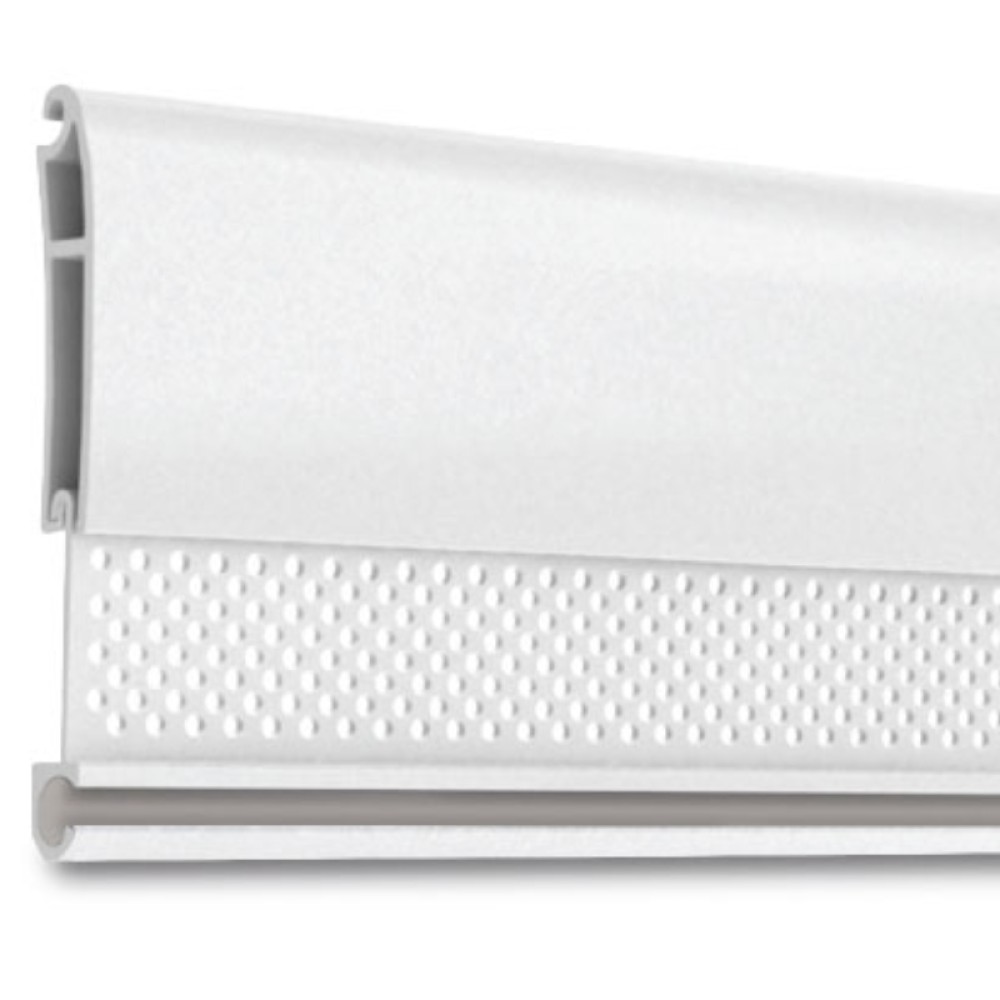

The main peculiarity of the Pasini MICROVISION roller shutters is that they are built with the use of three extruded aluminum profiles that make up each slat:

1. a fixed element to obtain total blackout;

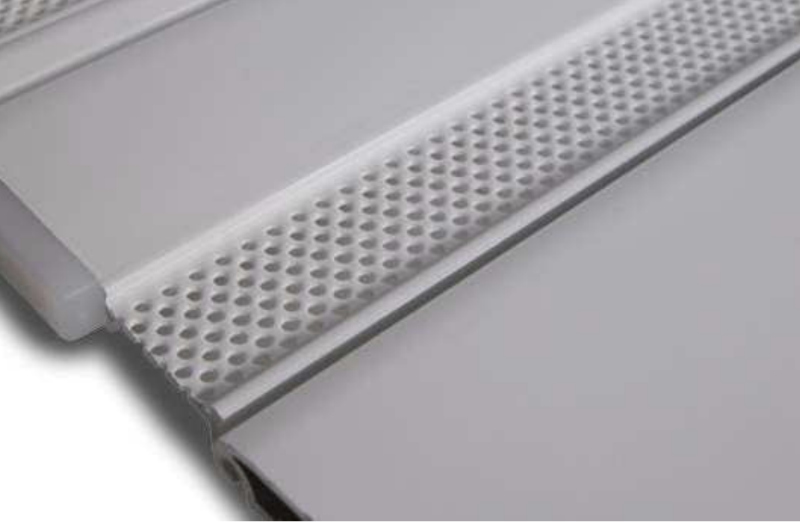

2. a micro-perforated telescopic element that allows you to dose the flow of air and light and prevents the passage of insects;
3. an “S” shaped connection element thanks to which, in the event of an attempt to lift or break in, the blinds are completely blocked, in any position they are.

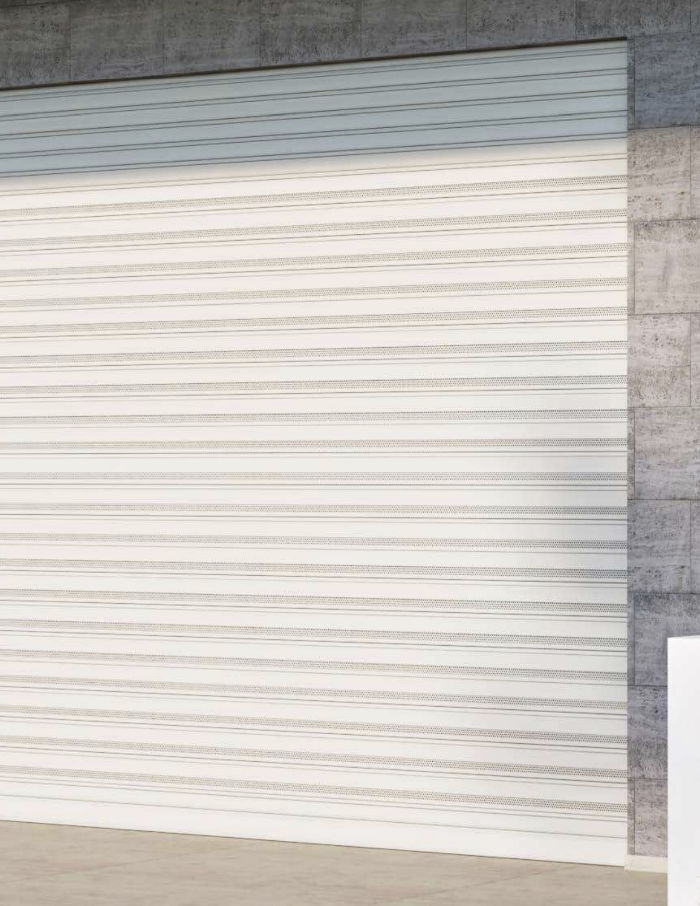

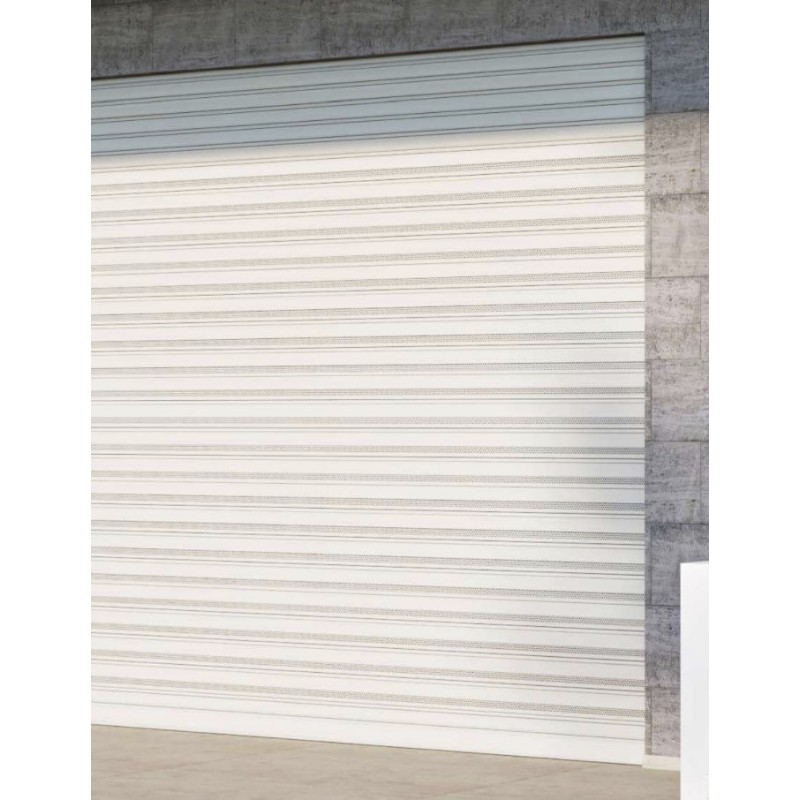

Completely lowered, Pasini SpA's MICROVISION window blinds have the discreet and elegant appearance of traditional roller shutters, but by lifting them they reveal their peculiarities, which have made them a reference in the anti-burglary roller shutter sector (these roller shutters have obtained class 2 certification ).

Pasini MICROVISION anti-lifting roller shutter features:

• Roller shutters in extruded aluminum equipped with retractable telescopic slats with micro-perforations and painted with epoxy powders;
• Lamella size: closed 9 × 48.8 mm - open 9 × 71.3 mm;
• Weight m2: approx 12.0 kg;
• Slats per sq m: 20.50;
• Maximum use guaranteed in width: 2,750 meters, in height: 3,000 meters.

Why choose the Pasini Microvision roller shutter?

The Pasini Microvision burglar-proof roller shutter combines modern aesthetics with total shielding from insects, guaranteeing effective protection with the innovative anti-lifting system.

The advantages of these Pasini MICROVISION roller shutters are:

• The roller shutter also acts as a mosquito net : no insects thanks to the micro-perforated structure;
• Greater passage of light and air : about 5 times more than the traditional roller shutter;

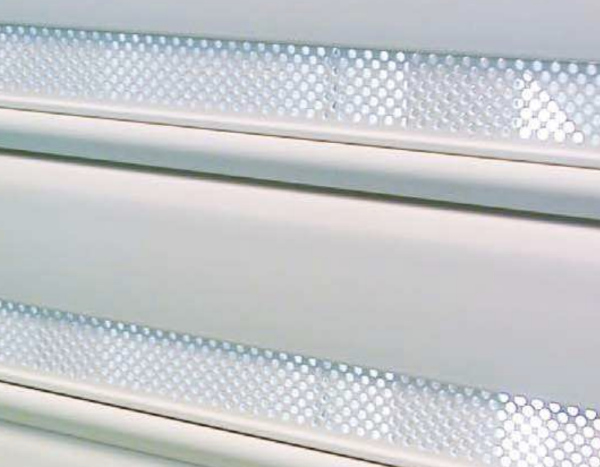

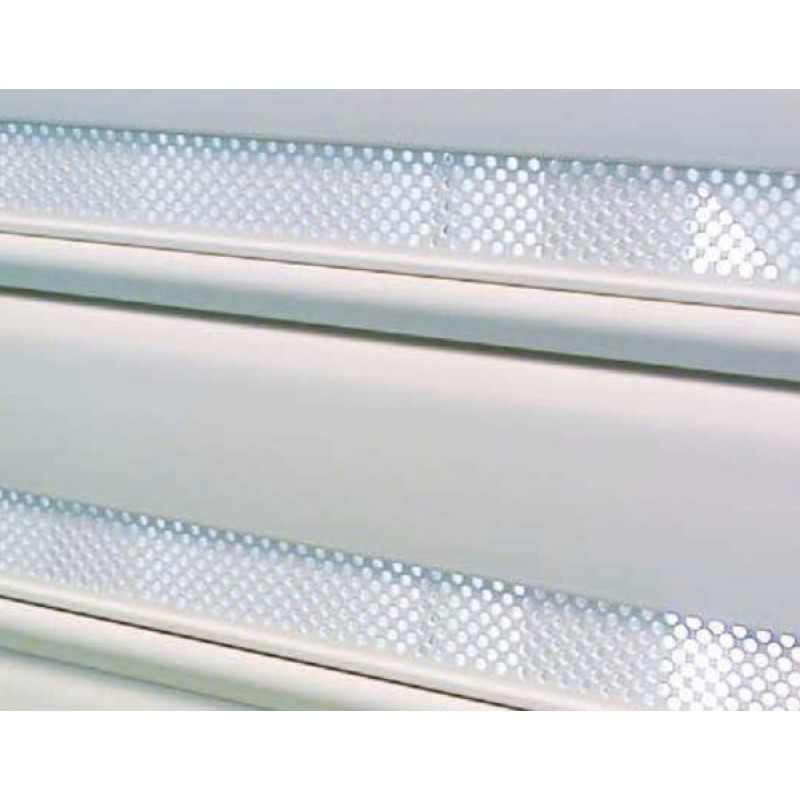

• The micro-perforated slat with 2500 holes of Ø 2 mm per linear meter, guarantees greater ventilation (up to 10.7% of the ventilation in relation to the total size of the shutter);
• Effective shielding against solar radiation;
• Excellent view from the inside and great privacy ;
• Great safety : the patented geometry of the slats does not allow the forced lifting of the roller shutter.

Burglar-proof shutter: anti-lifting system

MICROVISION roller shutters are equipped with a patented anti-lifting system.

1. Roller shutter in partially closed position;
2. In the case of forced lifting, the joint profile rotates on the guides equipped with gaskets, preventing the forced upward movement of the sheet.

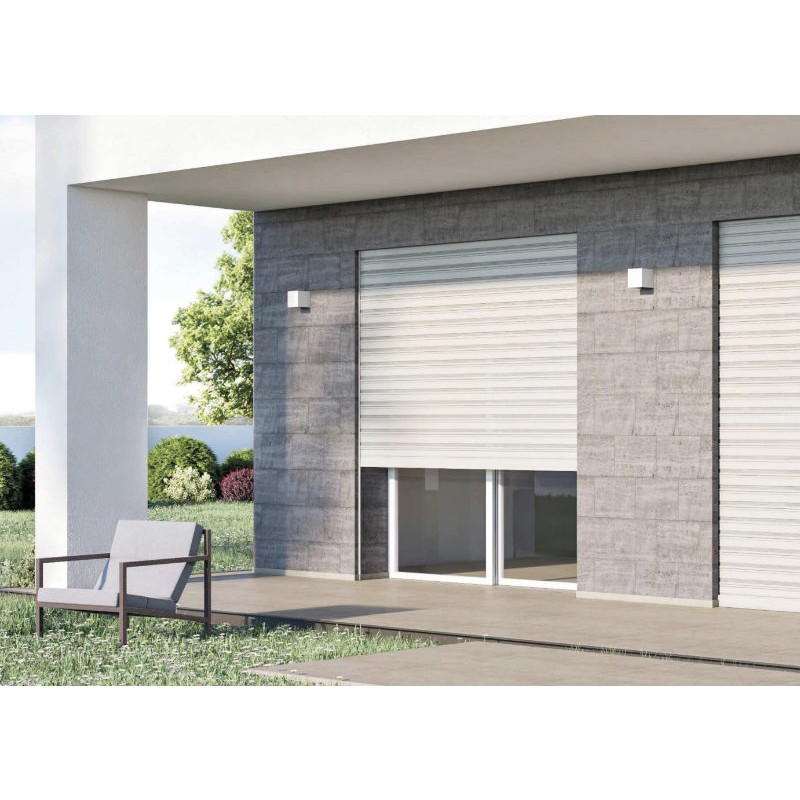

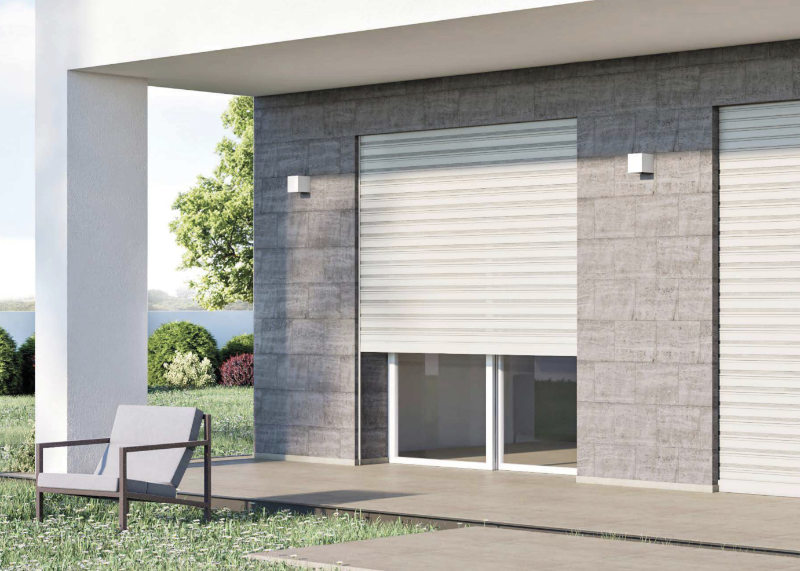

Pasini Avvolgibili Screen Microvision: brightness and privacy

During the closing phase, the micro-perforated slat enters the blind slat creating darkening.

Attention:

• The roller shutter for sale does not include the guides;
• The roller shutter will be shipped complete with a roller attachment system for manual handling;
• The roller shutter will be supplied with the holes and stop caps, if you do not want the holes contact us;
• The shutter will be supplied with slotted slats (except the first 5 slats), if you want all the blind slats contact us;
• Deadbolts on terminal or intermediate available on request.

How to measure the roller shutters?

We advise you to proceed differently according to the type of intervention:

• Replacement of an existing roller shutter : it will be sufficient to select the product corresponding to the pre-existing roller shutter, to measure the size of the old roller shutter.

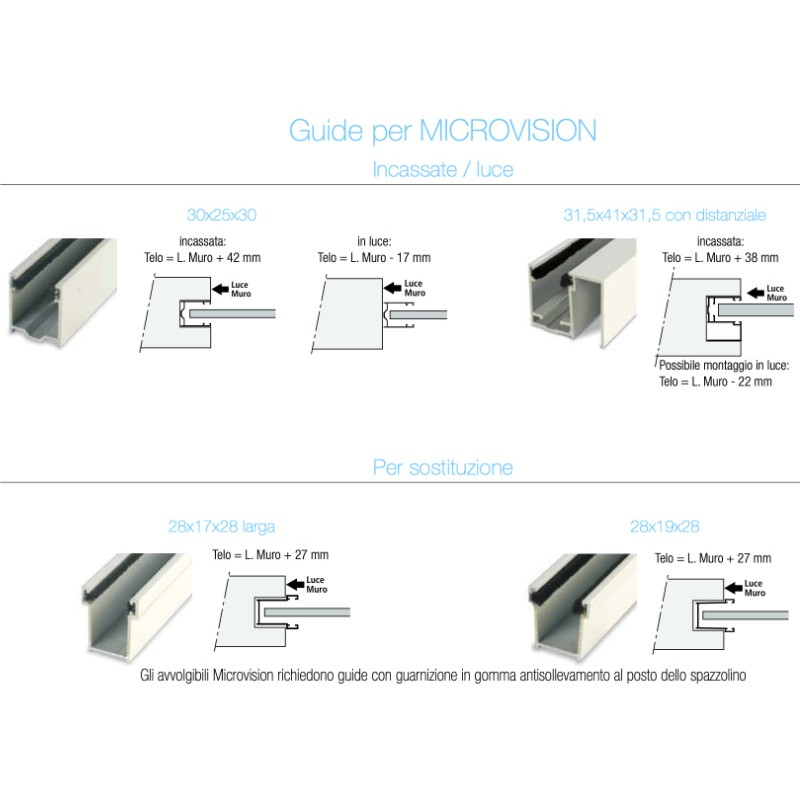

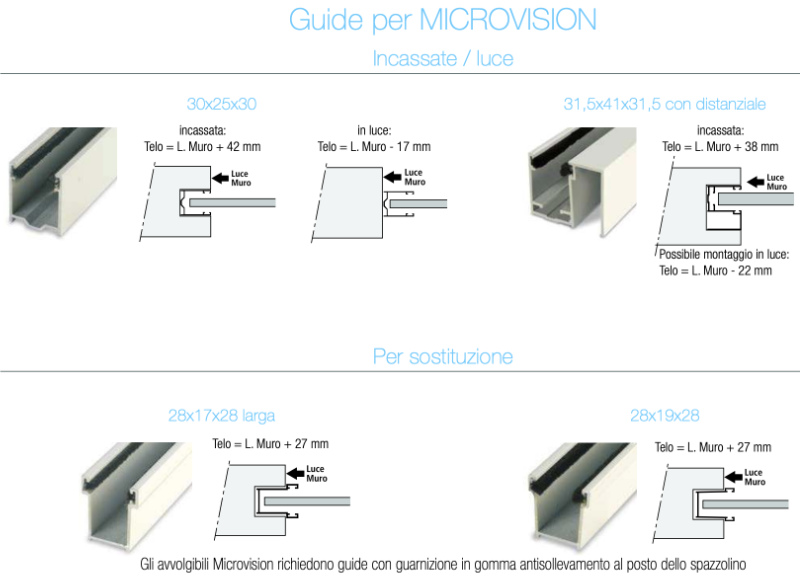

• Replacement or new installation of the roller shutter and the sliding guides : for the width of the roller shutter, with reference to the guides to be used, the necessary tolerances must be applied.
• Enter the finished measurements, in millimeters (base and height). By finished measurements, we mean the total measurements of the product, including any side caps and completion accessories.

For the choice of the shutter profile , (if a replacement is to be made), the height of the single plank is measured without considering the connecting hook between the slats.

When ordering, you will be asked to indicate the base and height measurements, specifying whether the roller shutter measurement is finished or empty.

What is the difference?

• Finished size (i.e. the exact size of the hole): the mosquito net will be supplied with the same measures ordered;
• Compartment size : the mosquito net will be supplied with 2-3 mm less base and height.

Colored roller shutters: choose the finish you prefer

Pasini aluminum roller shutters are offered online in a wide range of colors (they may vary from monitor to monitor).

If you want to be sure of the color, we advise you to contact us (color disputes will not be accepted if we have not been contacted before during the order phase).

Pasini reels are 100% produced in Italy

Pasini aluminum roller shutters are rigorously and proudly produced in Italy .

Born as a company specialized in the production of roller shutters, Pasini SpA over time has added more elaborate solutions to the original line, such as adjustable roller shutters and armored and burglar-proof roller shutters.

• Certificazione Pasini MICROVISION (3,59 MB)
