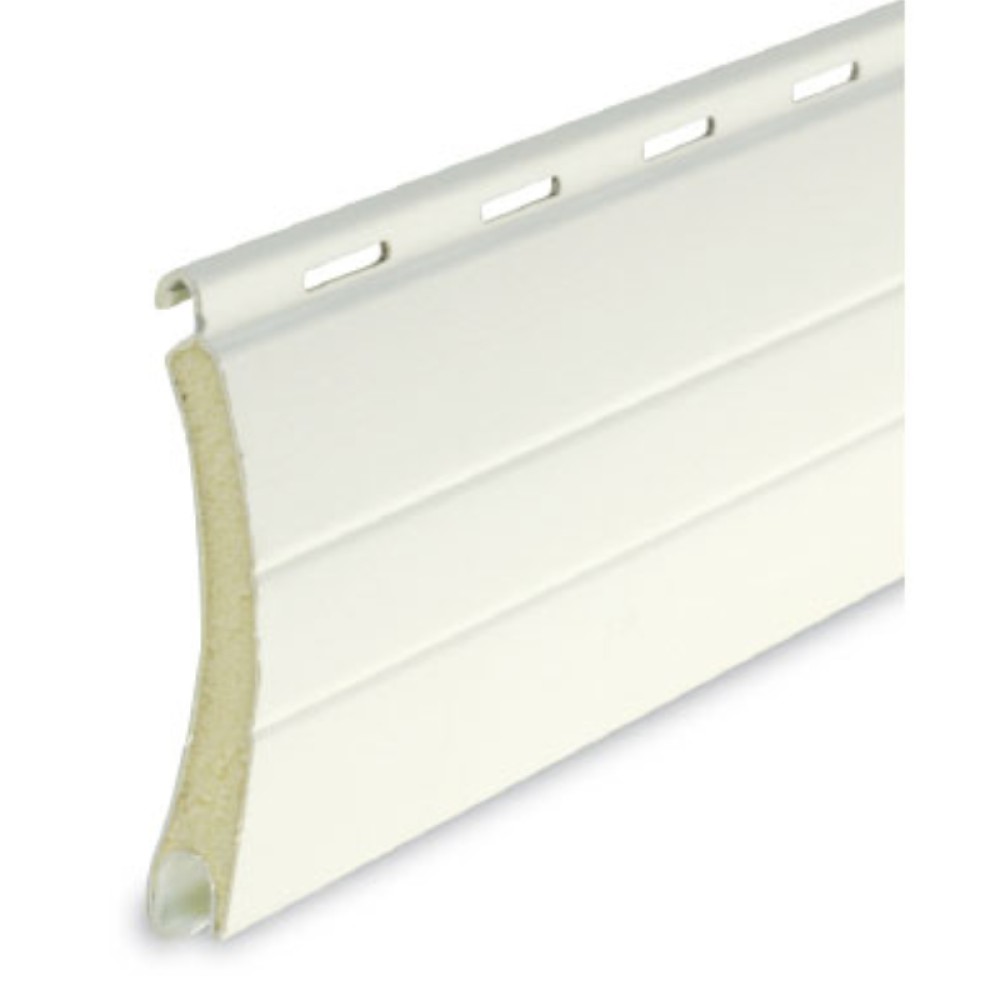

Aluminum roller shutters Pasini ROLL 39 - Measures 9x39
Roller shutter for mini bins and space-saving systems - Aluminum Terminal Included
Pasini ROLL 39 are the ideal solution for installation in small or externally mounted roller shutter boxes.
The particular geometry of these blinds allows a very limited winding inside the box and makes the curtain installable on any type of construction solution.
ROLL 39 roller shutters are supplied with an extruded aluminum terminal ; they are compatible with a wide range of extruded aluminum guides equipped with brushes.
This is the only aluminum roller shutter model that can be combined with 40 mm diameter rollers .
Features Roller Shutter Pasini ROLL 39
- Shutter composed of an aluminum sheet with ecological polyurethane foam ;
- Core in medium density polyurethane foam;
- Aluminum terminal included;
- Pre-painted aluminum roller shutter with transparent anti-scratch protection;
- Arched structure with longitudinal ribs with 0.27 mm thick sheet;
- Core in medium density polyurethane foam;
- Base and height measurements made to measure;
- Choice of colors;
- Overall dimensions 8.5 × 39 mm;
- Weight sq.m: approx 2.7 kg;
- Weight mtl: approx 108 g;
- Slats per square meter: 25.6;
- Maximum use guaranteed in width: 2.50 meters;
- Minimum m2: 1.5.
Optional on request: fast delivery
Standard delivery time around 10-15 working days.
Fast delivery in just 3-4 working days paying a surcharge of 19.9 euros (contact us if you are interested).
Pasini ROLL 39: roller shutter in aluminum polyurethane foam at medium density
The peculiarity of this shutter is the
insulation which can be medium or high density, the difference consists in the cubic meters of polyurethane foam present inside the slats.
In this case it is the
medium density version .
Attention: What is included with the Pasini bespoke roller shutter?
- The roller shutter for sale does not include the guides;
- The roller shutter will be shipped complete with a roller attachment system for manual handling;
- The roller shutter will be supplied with the holes and stop caps, if you do not want the holes contact us;
- The shutter will be supplied with slotted slats (except the first 5 slats), if you want all the blind slats contact us;
- Deadbolts on terminal or intermediate available on request.
How do you take the measures of the shutter?
We advise you to proceed differently according to the type of intervention:
- Replacement of an existing roller shutter : it will be sufficient to select the product corresponding to the pre-existing roller shutter, to measure the size of the old roller shutter.

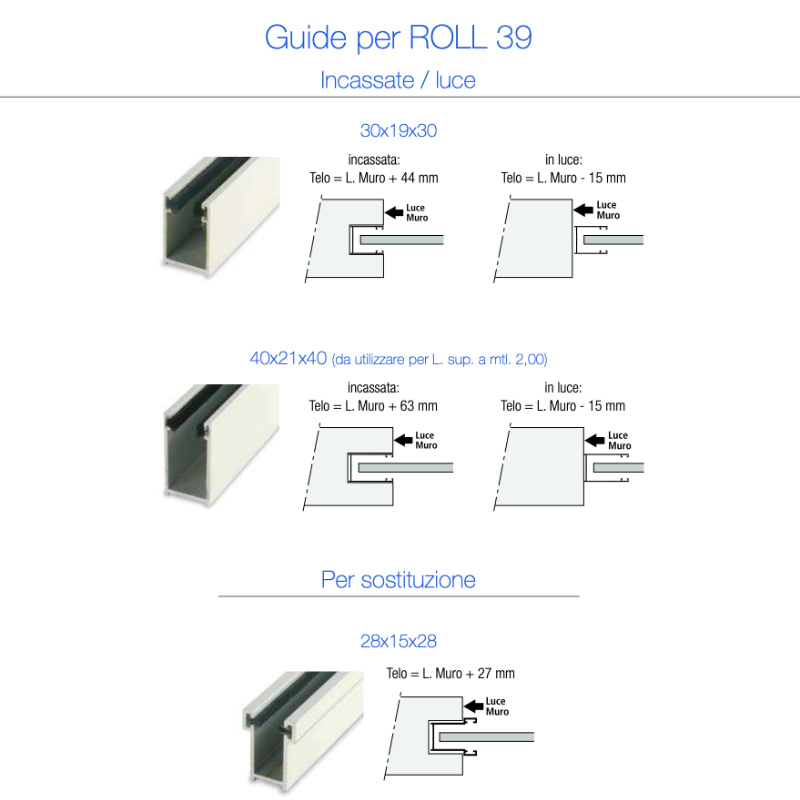

- Replacement or new installation of the roller shutter and the sliding guides : for the width of the roller shutter, with reference to the guides to be used, the necessary tolerances must be applied.
- Enter the finished measurements, in millimeters (base and height). By finished measurements, we mean the total measurements of the product, including any side caps and completion accessories.
For the choice of the shutter profile , (if a replacement is to be made), the height of the single plank is measured without considering the connecting hook between the slats.
When ordering, you will be asked to indicate the base and height measurements, specifying whether the roller shutter measurement is finished or empty.
What is the difference?
- Finished size (i.e. the exact size of the hole): the mosquito net will be supplied with the same measures ordered;
- Compartment size : the mosquito net will be supplied with 2-3 mm less base and height.
Custom-made roller shutter: colors of your choice
Pasini aluminum roller shutters are offered online in a wide range of colors (they may vary from monitor to monitor).
If you want to be sure of the color, we advise you to contact us (color disputes will not be accepted if we have not been contacted before during the order phase).
Pasini shutters produced in Italy in Rimini
Born as a company specialized in the production of roller shutters, Pasini SpA over time has added more elaborate solutions to the original line, such as adjustable roller shutters and armored and burglar-proof roller shutters.
Pasini "shutters", rigorously and proudly
produced in Italy , have become a well-known brand at European level in the window blinds sector.
