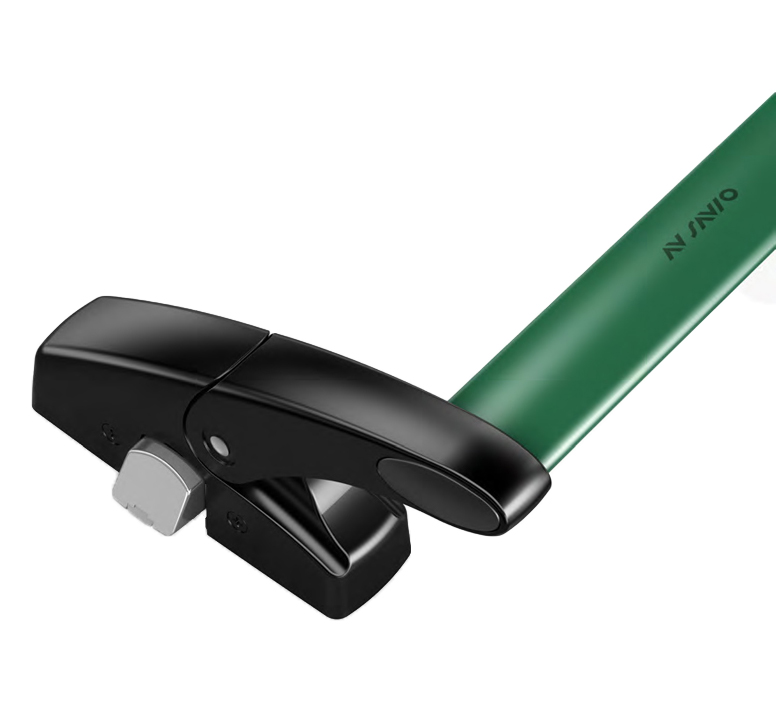

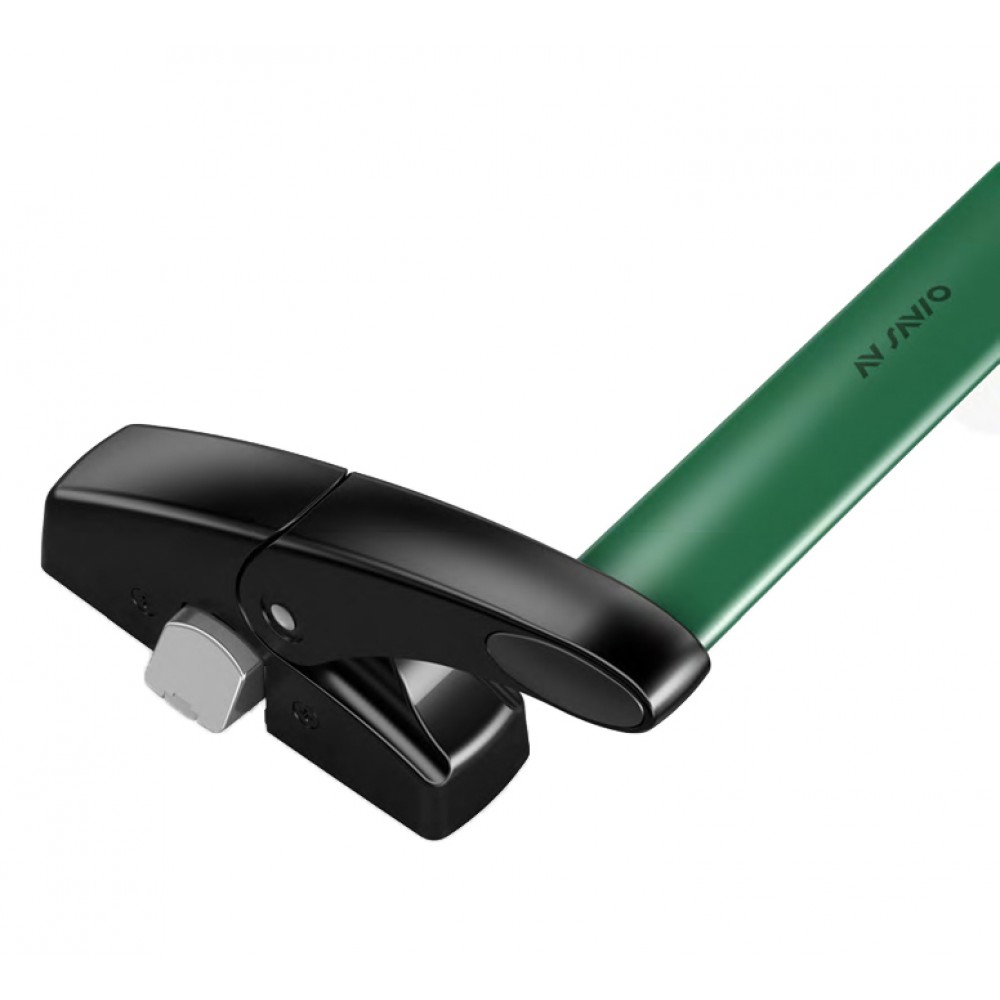

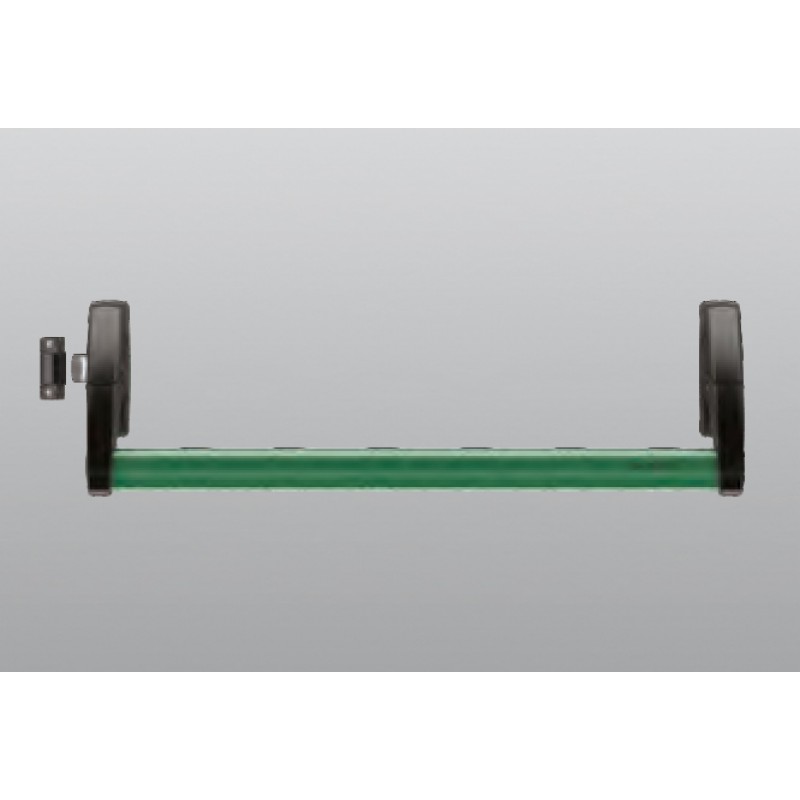

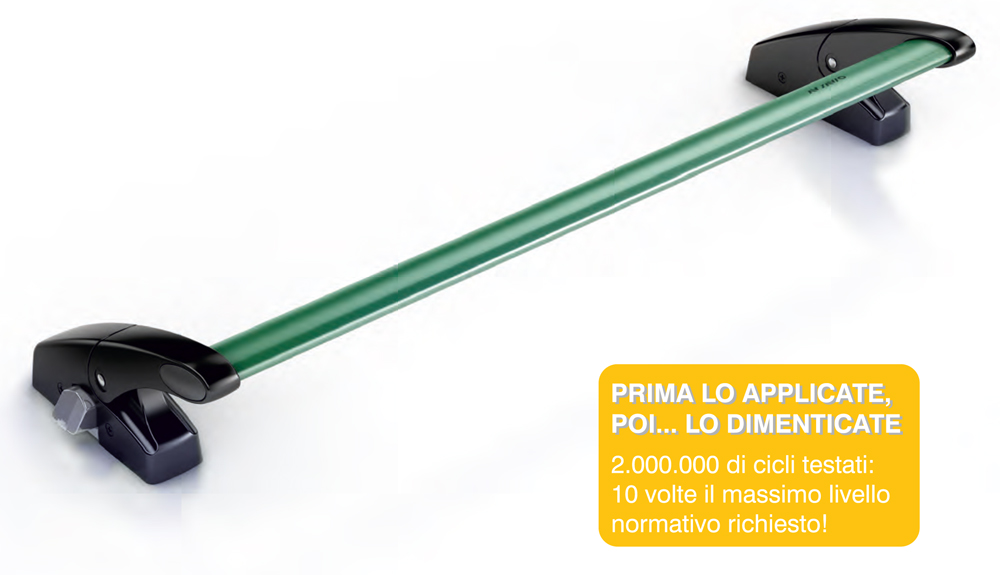

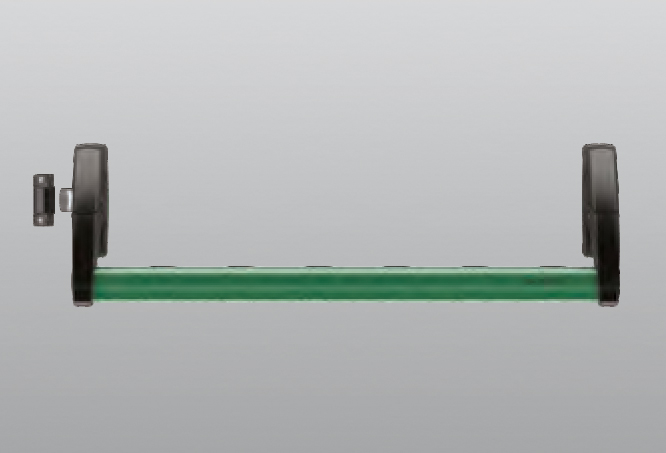

Savio Juvarra Black Panic Bar - Horizontal Ambidextrous with 1 Closing Point
Savio Juvarra ambidextrous panic or horizontal grab bar with 1 locking point, lever version, in zamak and galvanized steel.
Complete with: nickel-plated zamak latch, 1 galvanized steel fixing counterplate and 1 nylon fixing counterplate, 1200 mm bar and 2 painted zamak keepers, 4 countersunk head screws Ø 4.2x13, 2 cap screws 4.2x13, 2 cap screws TC 4.8x13, 2 countersunk head screws Ø 4.2x16, 2 countersunk head screws M5x6 and 8 countersunk head screws M4x5 in galvanized steel.
Savio Juvarra handle finish: Black.
For doors with a useful passage width from 800 to 1240mm and max height 2450mm.

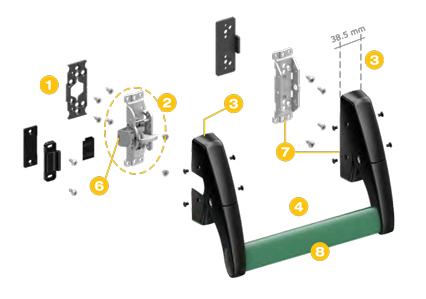

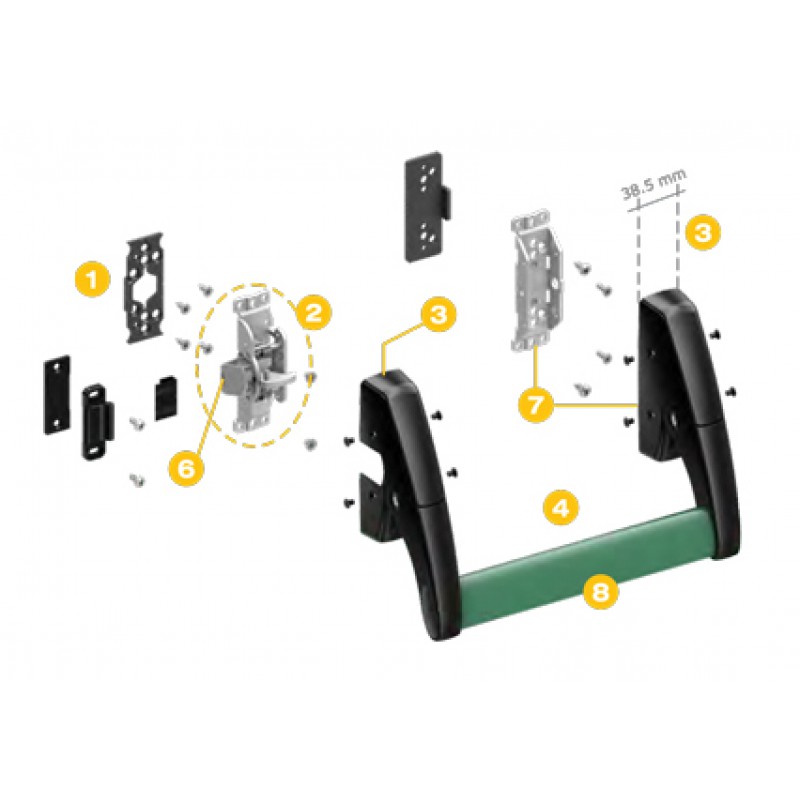

JUVARRA By Savio, THE INNOVATIVE PANIC BAR:
- 1) All supports and latches are screwed onto steel counterplates (which can also be welded) for easy, solid and rapid fastening;
- 2) Totally ambidextrous mechanism;
- 3) Reduced overall dimensions (38.5mm) for mounting also on standard profiles;
- 4) Wide profile horizontal bars for better maneuverability;
- 6) Lateral latches (top, bottom and central) flat and translating;
- 7) Secondary support arranged for the insertion of the hold-open device and on the microswitch;
- 8) Horizontal bar to be inserted with large machining tolerances, in steel with an oval section of 40mm.

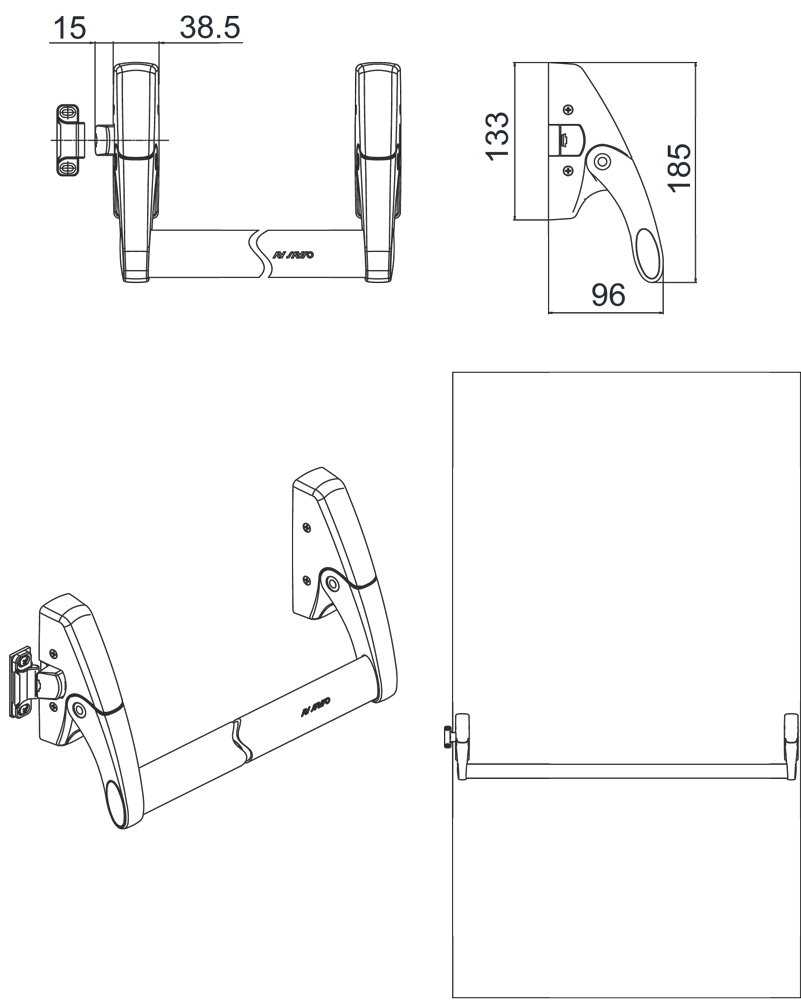

By clicking on "Documents" (above) you can download the Savio Juvarra panic bar brochure, the application drawing of this product, the certifications and the relative assembly instructions.
