Opera Electric Lock 28001 Silver with Key for Gates and Doors

Opera
Brands: Opera
Code: 28001 argento
-20%
€ 337,60 € 422,00
Prices excluding VAT
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

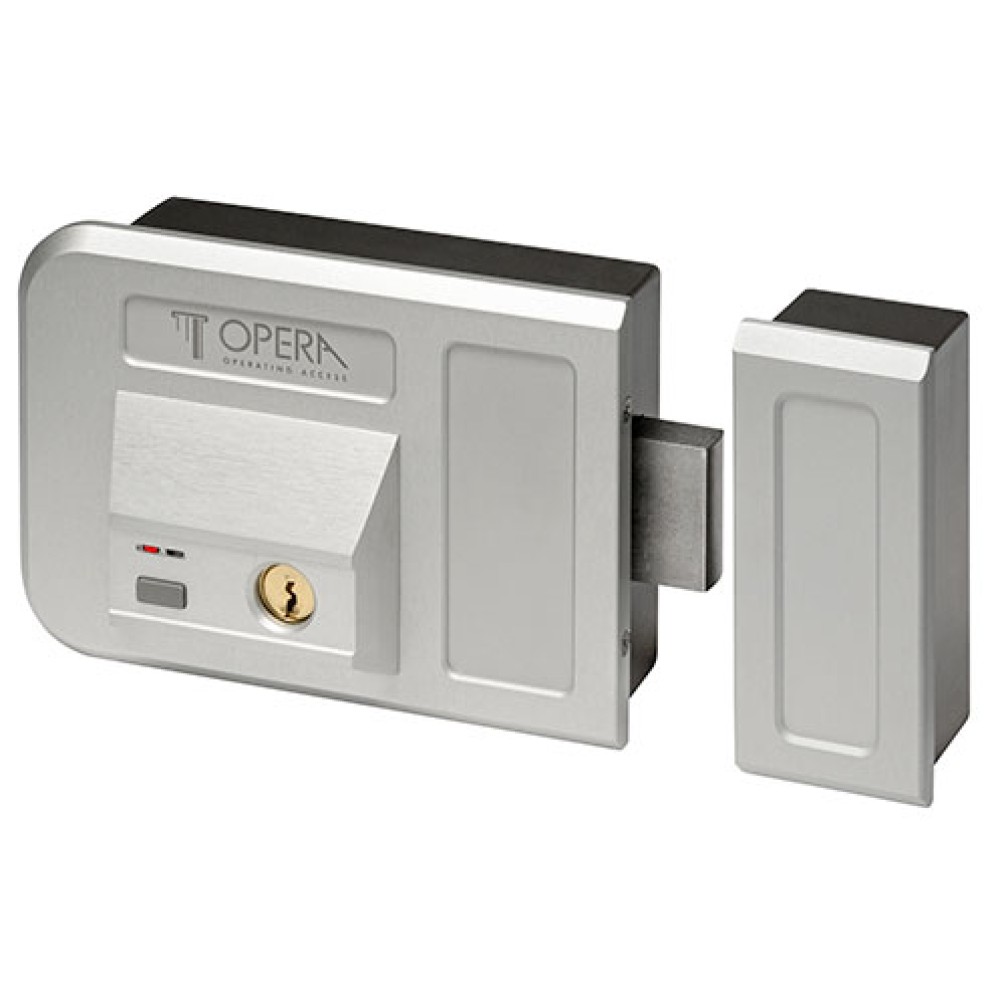

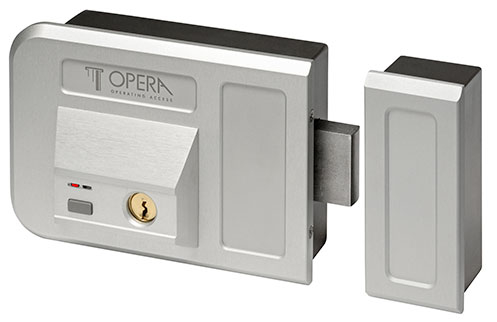

Silver Opera Electric Lock to be Applied on View for Gates and Main Doors with Internal Key

Use of safety electric lock - 28001 Opera Gate Lock Series

Safety electric lock to be applied to pedestrian gates, even those exposed to the elements, and wooden condominium doors.


Versions of safety electric lock with internal opening:

  • With key cylinder
  • With key and button


Safety electric lock variants with hand:

  • Right
  • Left


Upon request (contact us for these variants):

  • Delivery without cylinder (Art + SC)
  • Version with removable bolt status relay (Art + M)


Characteristics Opera 28001 silver electric safety lock

  • Silver finish.
  • Version: to apply.
  • Lock body and counterplate in stainless steel.
  • Lock cover carter and counterplate in anodized aluminium.
  • Bolt closed in the absence of current.
  • Mechanical opening from outside with round cylinder.
  • Adjustable backset mm. 50 - 60 - 70.
  • Stainless steel deadbolt dimensions mm.18 x 28 (stroke mm. 25).
  • Deadbolt anti-burglary device in closed position.
  • Power supply: 12/24 Vac/dc.
  • Absorbed current 1.2 A inrush, 200 mA maintenance.
  • Internal electronic circuit with microprocessor.
  • Opening command at 12 Vac/dc from interphone or via relay.
  • Hall effect sensor for the position of the leaf.
  • Reclosing after 2 sec. when approaching the door.
  • Automatic reclosing timer selectable from 5 to 60 sec. if the door is not opened.
  • C./NO/NC output relay contact for bolt status indication (M version only).
  • Suitable for weather operation, with internal heating system if the temperature drops below 5°C.


Led illumination

- Two-colour red/green LED for signaling deadbolt open/closed status.
- Blue LED in the lower position for night indication in the closed position and white in the open position to illuminate the ground.

Blue floor lighting

White floor lighting

Dimensions Silver Electric Safety Lock to be Applied on View

 Dimensioni Elettroserratura di Sicurezza Argento da Applicare a Vista

Round cylinder insertion for gates

Esempio applicativo porta singola con elettropistone​

Detached cylinder insertion for wooden doors

Inserimento cilindro staccato per portoni in legno

What are the advantages of Opera Gate Lock Series?

  • Security solenoid locks for garages and automatic gates.
  • Anti-cut rotating deadbolt with mechanical block on closure.
  • Manual operation with European cylinder.
  • Entirely in stainless steel, resistant to bad weather.
  • Can be operated from the gate remote control.
