One-way Electronic People Counter Opera 59001

Opera
Brands: Opera
Code: 59001
-20%
€ 281,40 € 351,75
Prices excluding VAT
Opera 59001 brand electronic one-way people counter, People Counter Series. Check the passage of people.
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

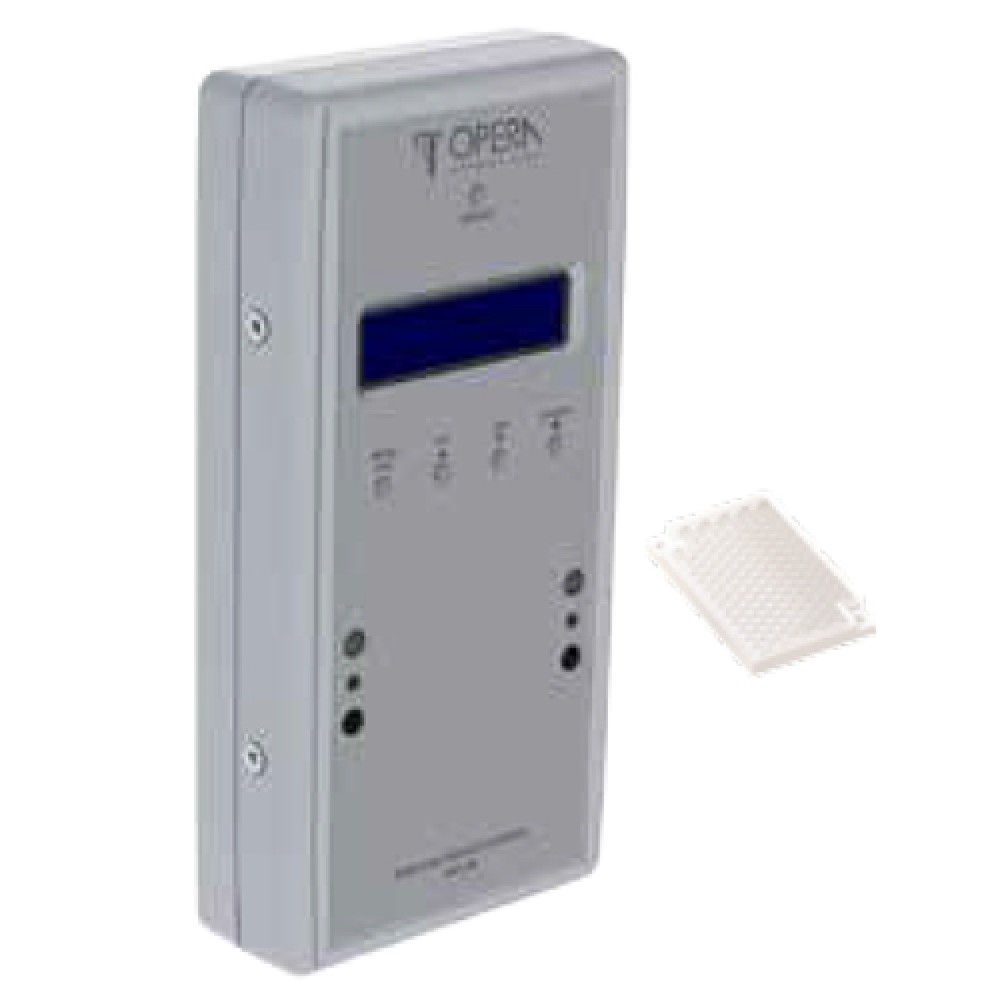

One-way Electronic People Counter Opera 59001

Use of this system to count people

Monitoring of the number of people present inside a room (public offices, exhibitions, museums, conference rooms, supermarkets, etc.).
One-way people counting system.


One-way people counter - available versions:

  • Stand alone
  • Radio frequency for coupling to the concentrator


Features One-way People Counting System:

  • Electronics in ABS boxes.
  • Dimensions: mm. 165 x 80 x 35.
  • Nominal voltage: 3.6 V Power consumption < 3mW.
  • Diet:
  • - powered by 3 x 3.6 V AA Lithium Thionyl Chloride non-rechargeable batteries, lasting more than one year. Protection circuit for incorrect battery insertion.
  • - from external power supply 12/24 Vdc - 12 Vac.
  • Front with 2 x 16 character LCD display: mm. 55 x 16.
  • Programming buttons from the Master circuit.
  • USB port for firmware updates.
  • SD card slot for data storage and transfer to PC when used in stand-alone version.
  • Addressing configurable from 1 to 10 when used with the concentrator connected to the PC.
  • Data transfer to the concentrator via 433.125 MHz radio frequency module.
  • RS-485 serial line for connection to the 59015 series display.
  • Real time clock/date.
  • Storage and maintenance in non-volatile memory of 12 months' data in 24 hours with detail for each hour.
  • Photoelectric barrier in bidirectional or monodirectional version.

Controlled gates:
- 1 for the one-way version with a maximum opening width of 2.5 m. with reflector.

Display views:
- Date and time.
- Total entries.
- Total exits.
- Daily present.
- Total presence from a pre-set date.

Programmable settings for:
- Date and time.
- Activation of "beep" function for each passage.
- Programming access password.
- Configurable gate direction.
- Activate/deactivate reset time.
- Setting maximum number of presences.
- Clearing of data in memory.
- Terminal number.
- Photocell alignment test.
- Factory reset.
- Multilingual support (Italian/English).

Application example

Application example


Control the passage thanks to the People Counter Opera Series

  • Advanced wireless system for counting the passage of people.
  • Battery powered.
  • Stand-alone operation.
  • Wi-Fi transmission to the concentrator.
  • Concentrator with Ethernet connection (Opera code 05914, to be purchased separately).
