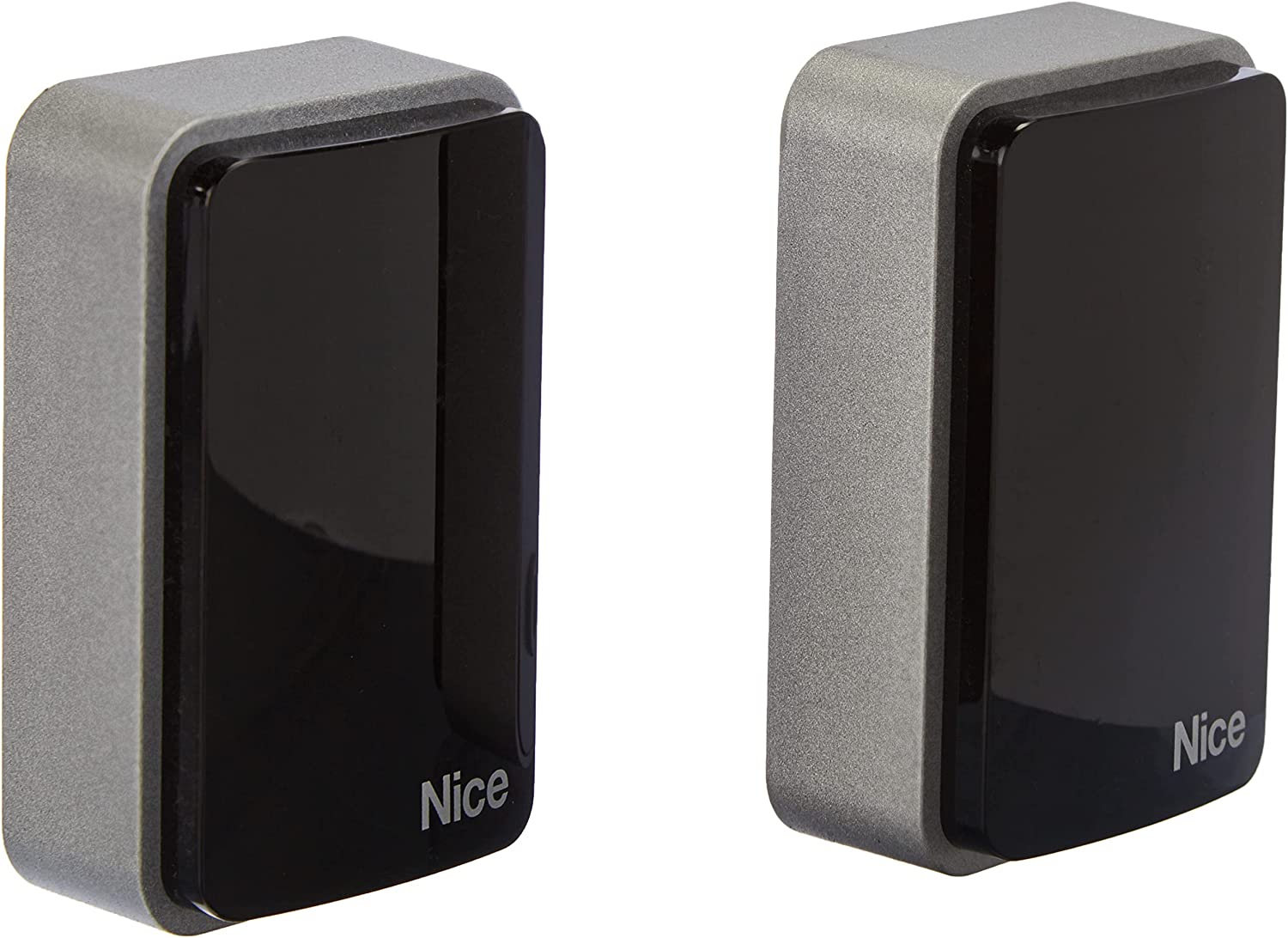

Pair of Nice Outdoor Photocells - Fixed and Synchronized

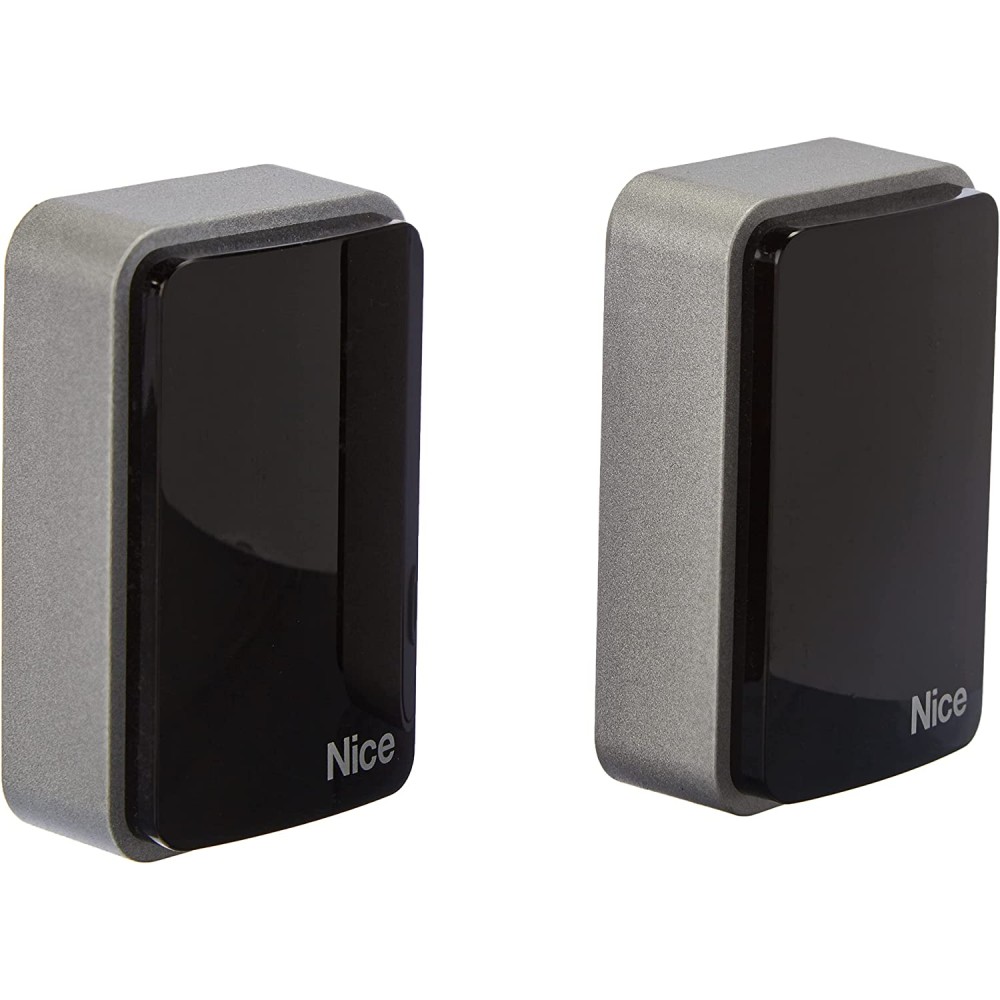

Pair of
Nice EPM Era photocells with fixed synchronized optics for
external mounting and traditional electrical connection.
These Nice photocells with relay output are part of the Era-EP series and are intended for
automation systems for doors, gates, garage doors and the like.

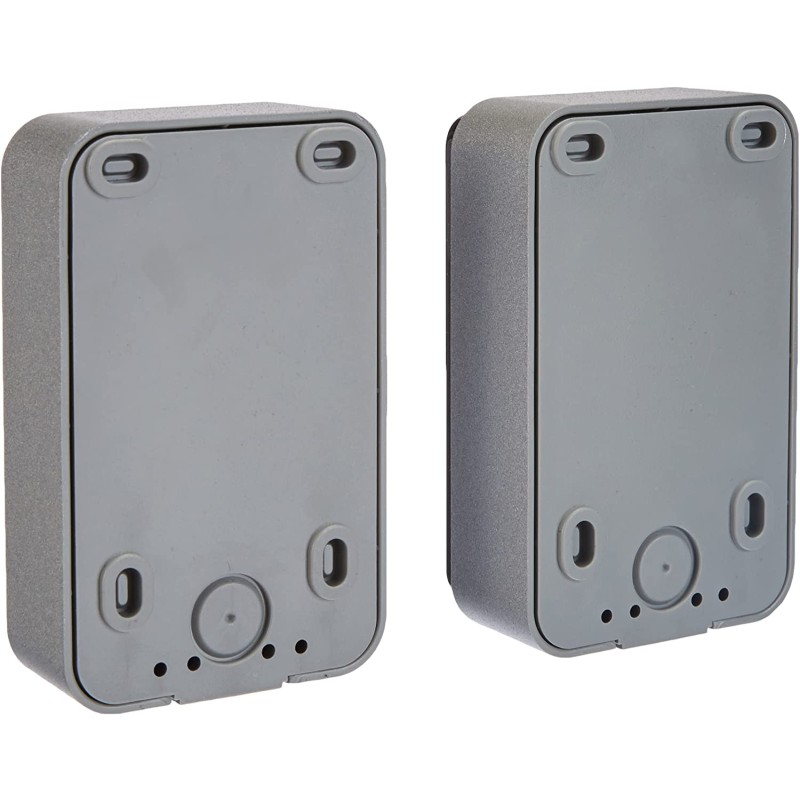

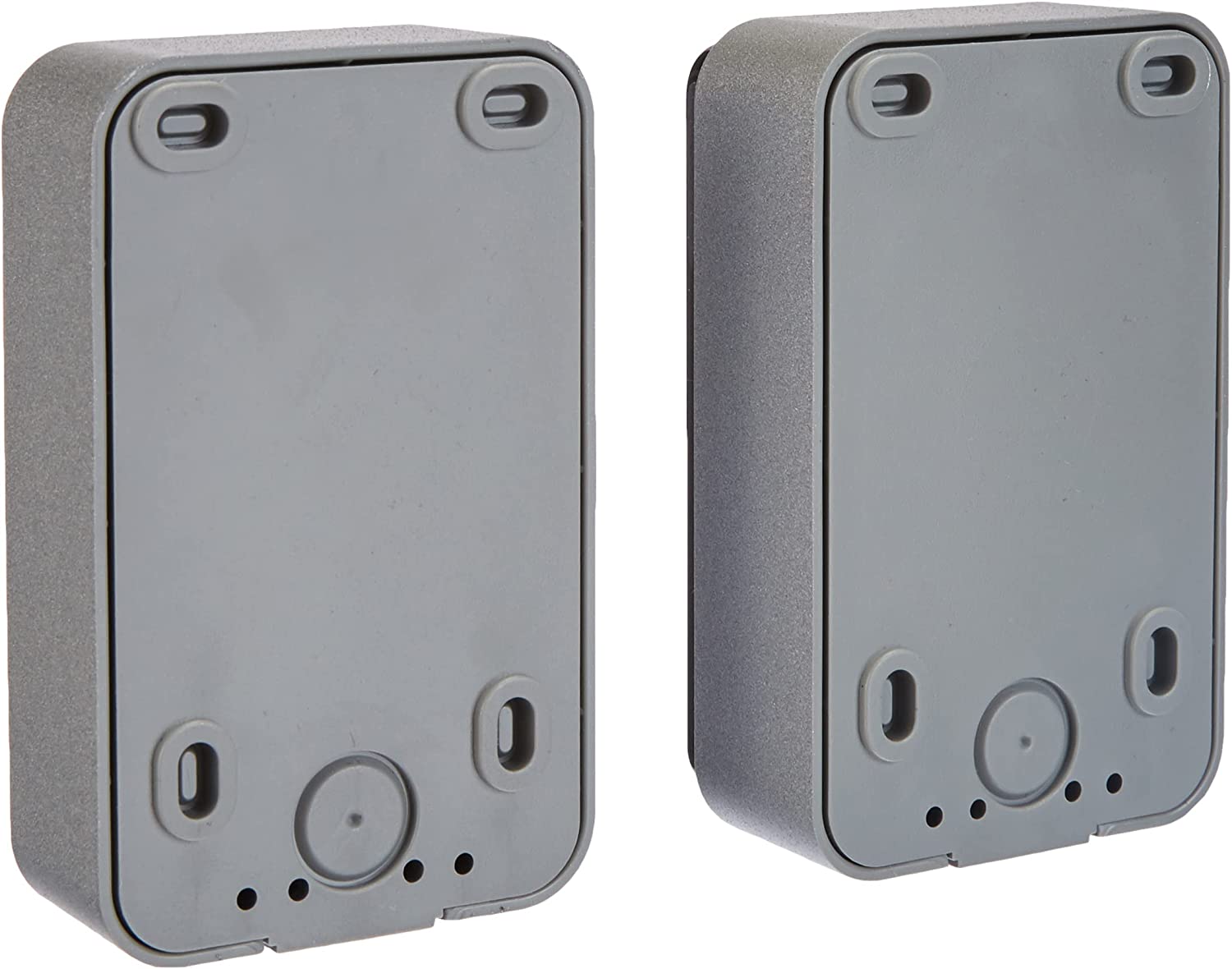

The device consists of an element that transmits and one that receives: they must be
positioned opposite each other and fixed on two vertical walls, parallel to each other.
Type D device according to the EN12453 standard which allows to detect obstacles present on the optical axis between transmitter (TX) and receiver (RX). Using the phototest function, it is possible to reach category 2 for safety against failures (standard EN 954-1).
Anti-glare circuit that eliminates possible interference from sunlight.
Reception angle 10 ° .
The Nice EPM photocells for gates are the new Nice photocells that
replace the MOFs (out of production): they are perfectly compatible with the latter. The change is only aesthetic as the internal boards are the same as the old MOF photocells. The improvement concerns the entry of the tube and the wires.
Nice gate photocells are safe
Type D device according to the EN12453 standard which allows to detect obstacles present on the optical axis between transmitter (TX) and receiver (RX). Using the phototest function, it is possible to achieve category 2 for safety against failures according to EN 954-1.
A Nice photocell with cutting-edge technology
Anti-glare circuit that eliminates possible interference from sunlight.
Nice gate photocells are practical
Reception angle 10 °. The adjustable versions allow to compensate for centering differences up to 30 °. The models EPM, EPMO, EPMA and EPMAO allow 2 levels of flow.
Resistant, even in the anti-burglary version
ABS shell resistant to atmospheric agents, also available with metal shell.
Pair of Nice photocells with Nice BlueBUS technology
All models are available with the Nice BlueBUS system, which allows easy connection to the control unit of all devices with just two wires, simply by connecting them in parallel and selecting the addressing jumpers according to the required function. The system automatically acquires the devices connected to the BlueBUS network. Automatic synchronization between multiple pairs of photocells to avoid other interference between the devices.
Nice photocell for gate with IB interface
Allows you to connect photocells with Nice BlueBUS technology to control units equipped with inputs for traditional contacts.
Nice EPM photocells technical features
- Estimated range (m): 15;
- Power supply: without jumper 24 Vac / Vdc limits: 18-35 Vdc, 15-28 Vac - with jumper 12 Vac / Vdc limits: 10-18 Vdc, 9-15 Vac;
- Absorption (mA): 25 RX 30 TX;
- Degree of protection: IP44;
- Operating temp .: -20 +55 ° C;
- Relay capacity: max 500 mA and 48 V;

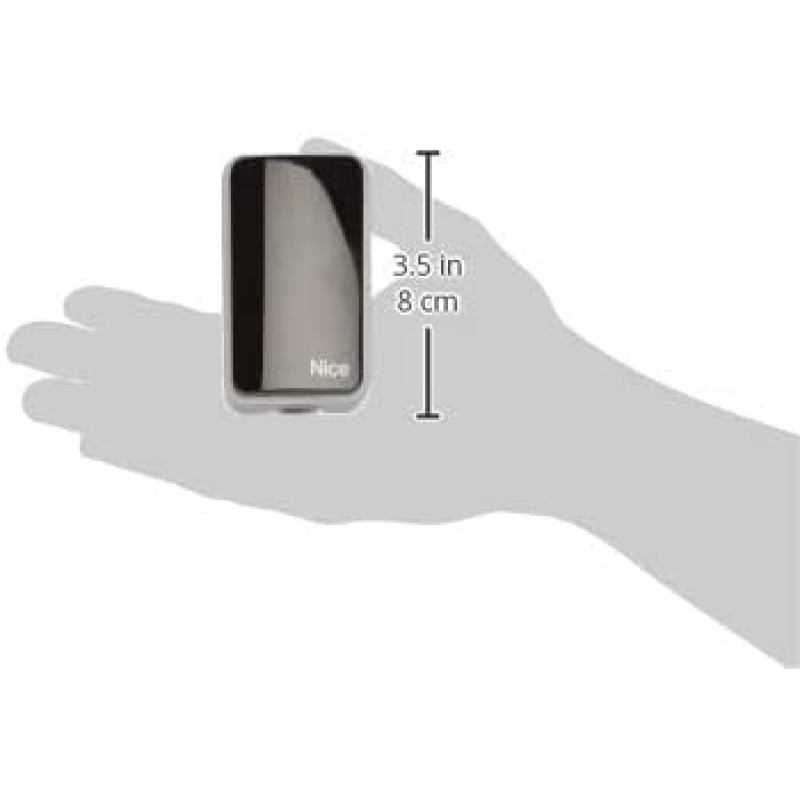

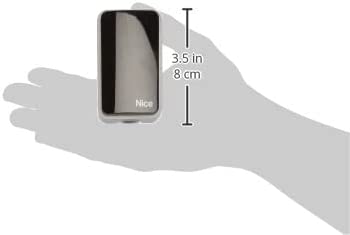

- Dimensions: 50x29x80 h;
- Weight (g): 140.
