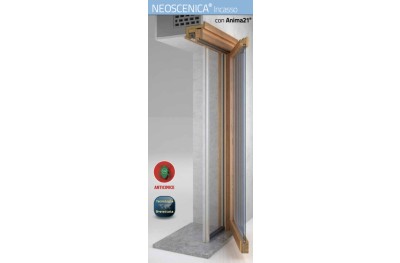

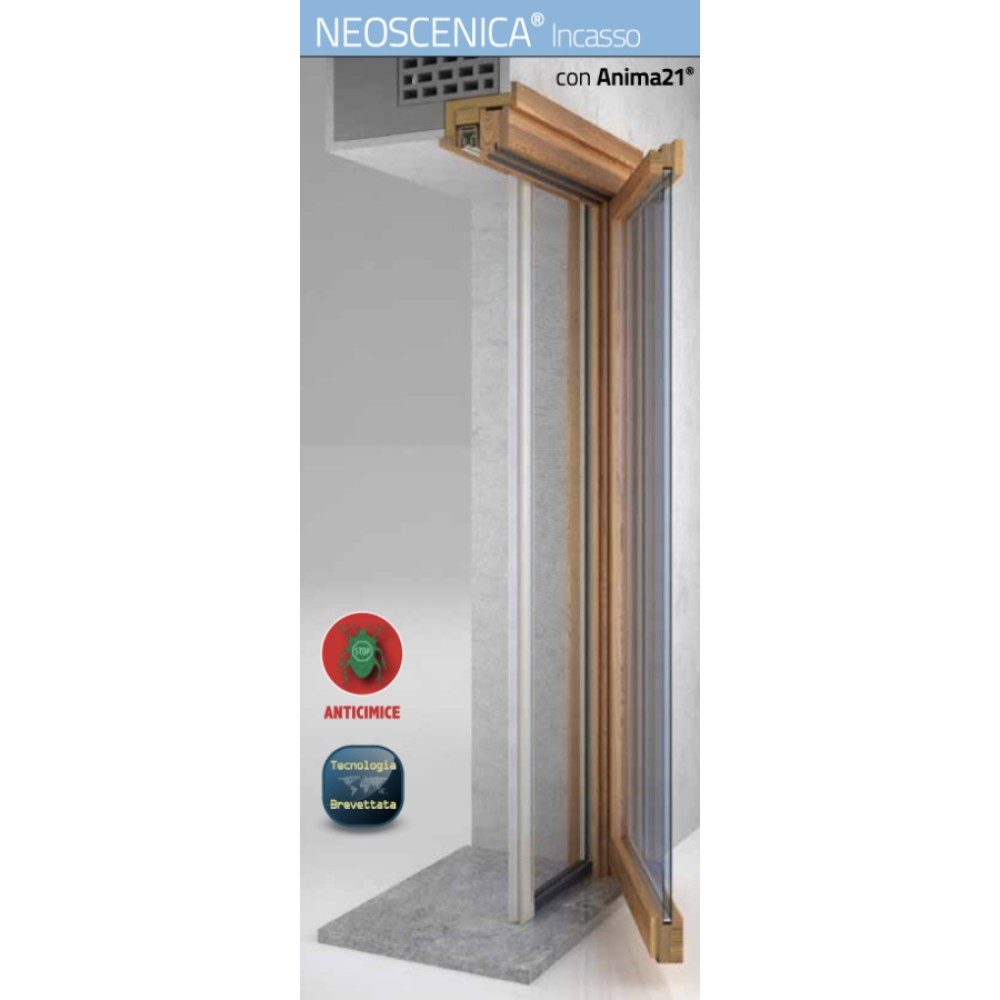

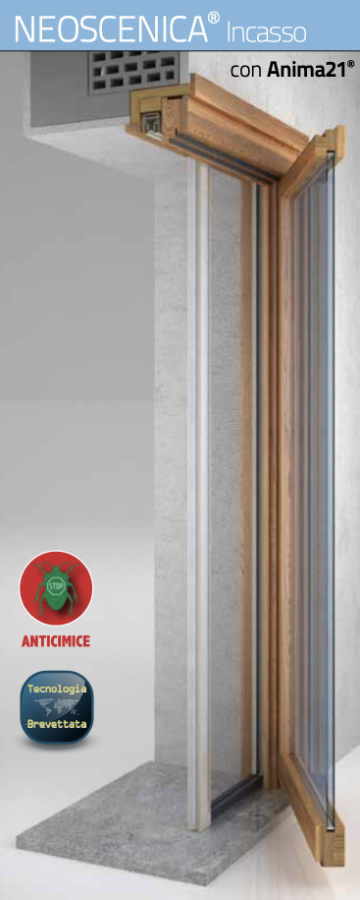

Neoscenica Built-in Bettio Lateral Mosquito Net Without Antifungal Barriers
Neoscenica Recessed Bettio recessed inherits the most important features of the Scenica recessed series and introduces many new features that make it completely new.
It represents the maximum expression of the evolution of the mosquito net for door: it is resistant, functional and aesthetically valuable.
It integrates
Anima21 , the revolutionary Bettio patented windproof system, which guarantees the tightness and operation of the mosquito net even in the event of strong wind or shocks.
Neoscenica Incasso, thanks to the
special easy-case , is simple and quick to assemble and can meet any installation need, even in the presence of a non-load-bearing ceiling or thresholds inclined up to 13 °.
It is available in both single and double doors and the central exit of the net increases the aesthetic factor.
The Neoscenica Recessed insect screen represents the new frontier of the Bettio insect screen for doors, combining aesthetics and functionality in a unique product of its kind.
If you wish on Windowo you can buy the classic version of
Neoscenica Bettio .
Technical characteristics Neoscenica built-in Bettio mosquito net
- Model: Neoscenica Recessed Bettio;
- Overall dimensions: 50 mm;
- Adjustments: Height compensation up to +13 millimeters;
- Recommended application: Door;
- Wind load resistance with standard net: class 5 with Anima21® (international Bettio patent);

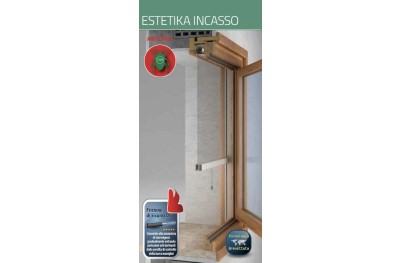

- Recommended combinations for the window: Estetika Incasso;
- Aluminum color: optionally with gray accessories.
The Bronze, 9001, 9010 and 1013 colors include some matching accessories. The color of the accessories in the special colors is at the discretion of the Bettio company.
Neoscenica Incasso Bettio is feasible if, with respect to the width of each leaf, the height is at least 7 centimeters higher.
Starting from 2001 mm of hinged base, the net will have a support in the upper part.

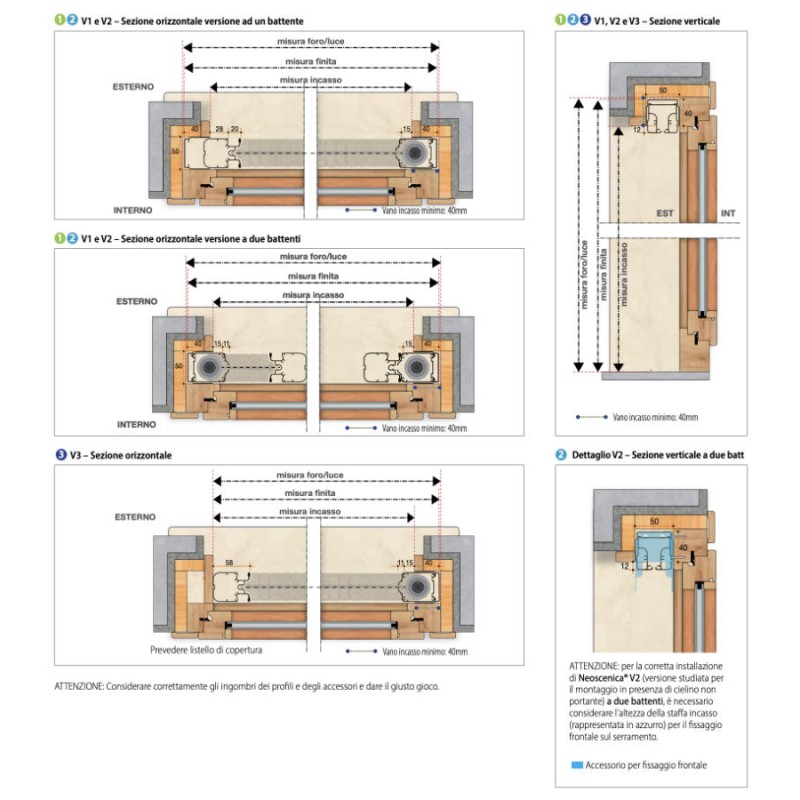

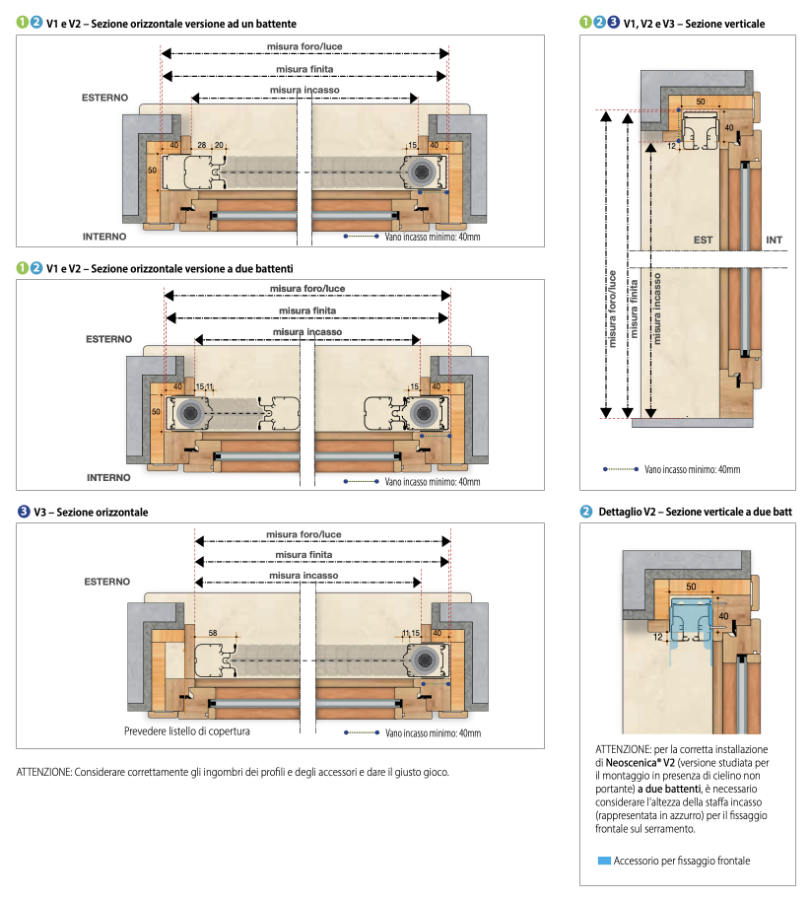

Available versions Neoscenica Recessed Bettio:
- Neoscenica Recessed V1: standard installation in the hole;
- Neoscenica Recessed V2: non load-bearing ceiling Installation in the hole;
- Neoscenica Recessed V3: front in hole;
- Neoscenica Recessed V4: front attachment.

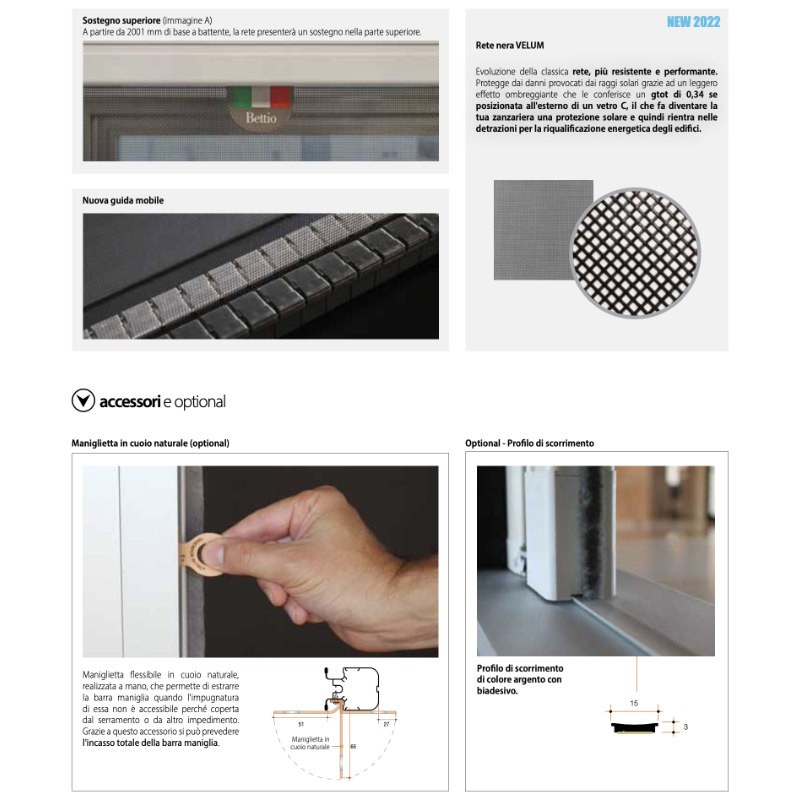

Available options Neoscenica Incasso Bettio:
- Sliding profile;
- Roller shutter guide 80 and 90 mm: see traditional Neoscenica versions 1 and 2;
- Connection bracket (cf. 30pcs);
- Window predisposition KIT for quick fixing on site (cf. for approx. 20 mosquito nets);
- Spacer for drips (see section Accessory profiles). Handle in natural leather (cf. 2 pieces);
- Velum black net ;
- Black net.
