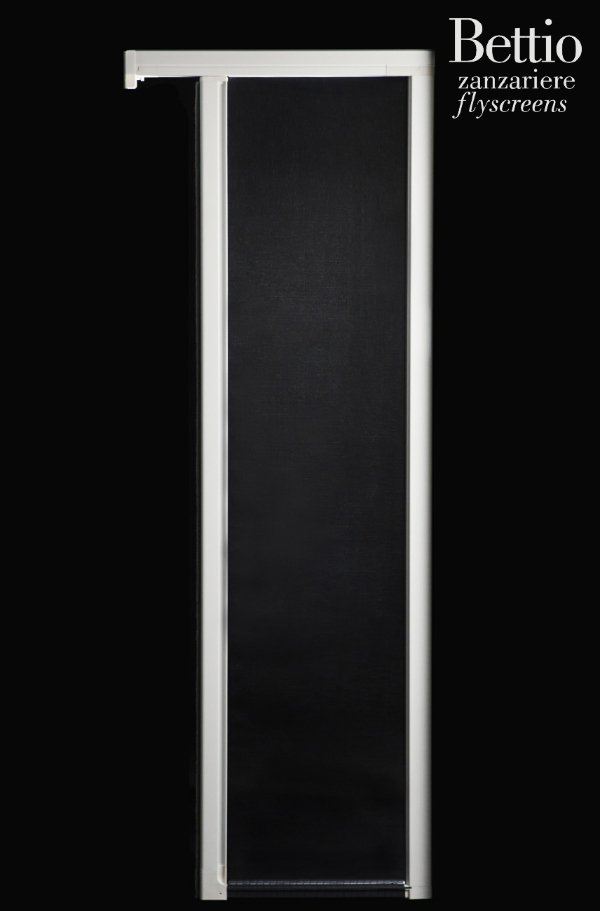

Neoscenica Bettio Mosquito Net for French Door Double-Hung

Neoscenica Bettio Mosquito Net for Doors - Anti Bedbug - Wind Resistant Net

Discover the new Neoscenica Bettio mosquito net - summer 2024.

Neoscenica Bettio is a new model of mosquito net for French windows with truly innovative features.

Read on to find out more about this new Bettio mosquito net.




What are the advantages of the Neoscenica Bettio mosquito net?

The Neoscenica Bettio mosquito net has many advantages including:


• be completely anti-bedbug;
• have a lateral sliding movement without encumbrance on the floor;
• have class 5 wind protection net ANIMA21 patent;
• it's even easier to install!
• it can also be mounted with double-sided tape (without holes).

ANIMA21 Bettio windproof system automatically retracts the net if it is windy or subjected to strong impacts. The net can come out of the guides to avoid tearing. Then the net re-enters the guides by activating the mosquito net.

The Neoscenica insect screen for French windows with ANIMA21 has a certified class 5 wind resistance net.

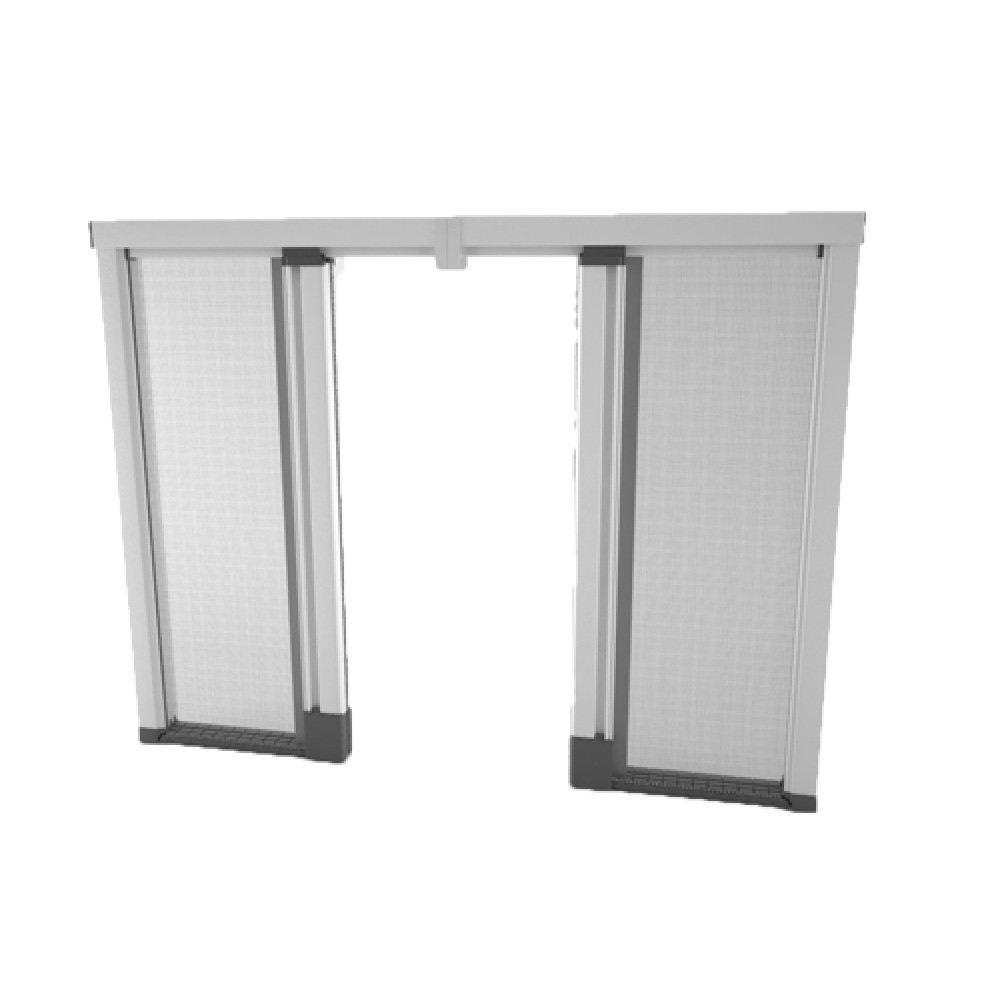

We remind you that this is the Neoscenica 2 Shutter version, if you want on Windowo you can also buy Neoscenica 1 Shutter.






Neoscenica mosquito net is with ANIMA21 Bettio windproof

Neoscenica Bettio is equipped with a revolutionary windproof system designed to make mosquito nets hyper resistant.

The ANIMA21 system combines beauty and capacity in a clever way: it is shock resistant and allows the net to re-enter automatically.

ANIMA21 is the new Bettio international patent which allows a Class 5 wind load resistance (certification institute Giordano).




Neoscenica Bettio: many news for a summer without mosquitoes

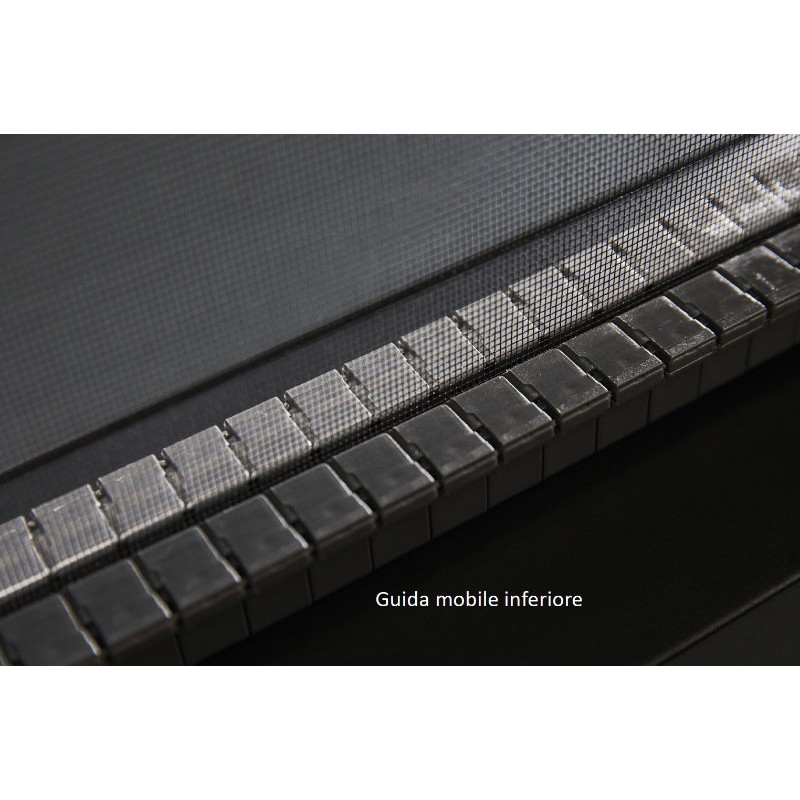

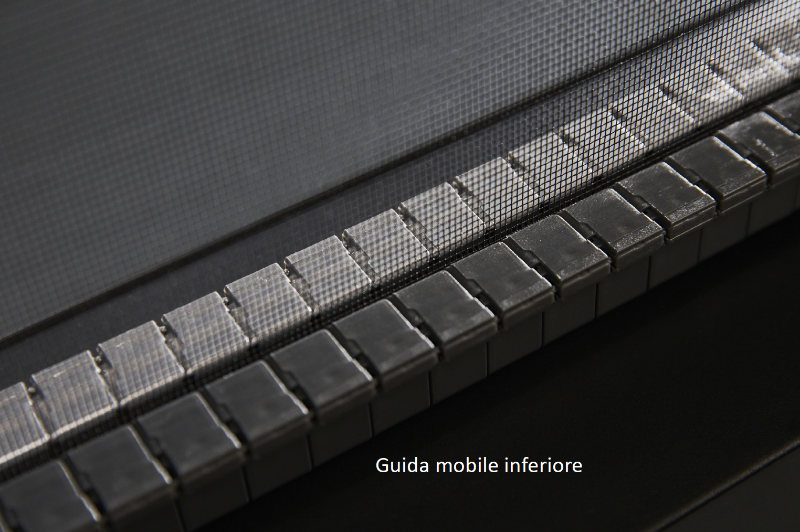

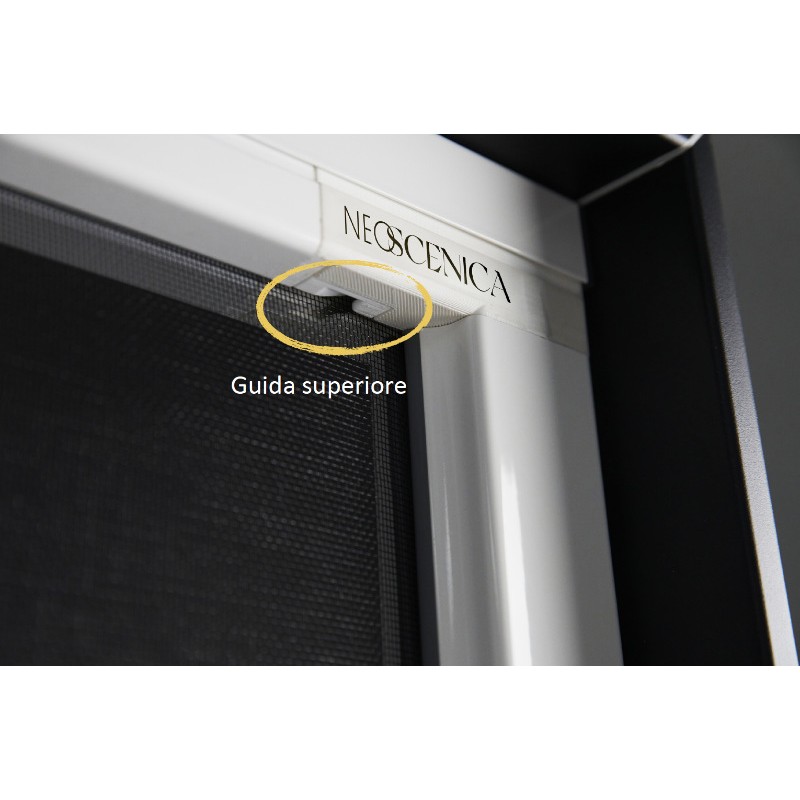

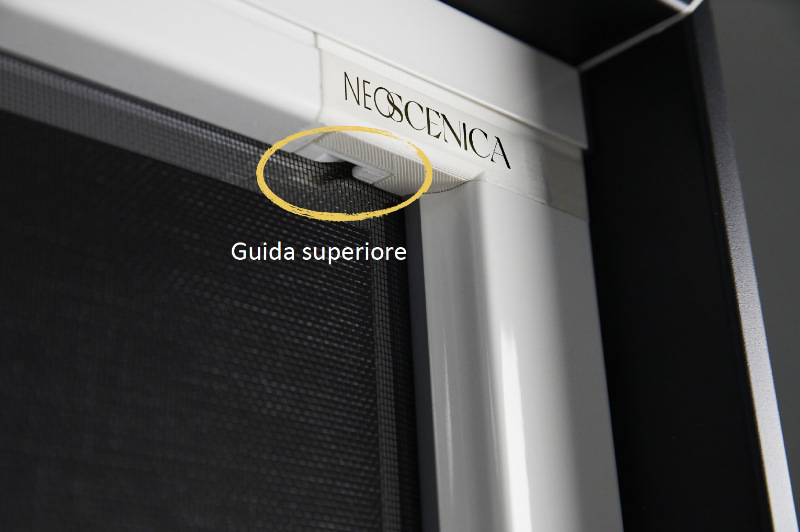

• New upper and lower guide with a clean and essential line with automatic net return;
• New handle bar : more ergonomic and comfortable grip: you can move it by putting your fingers in the slot or you can grab the reinforced outer edge;
• 46 mm box with net outlet in the center;
• Brand new steel hinge (see the photo below);
• New box support with predisposition for fixing holes, including lateral ones, for those who do not want to drill the flat surface. Equipped with double-sided tape that allows you to glue it without making any holes;
• Push spring above the box incorporated in the finishing plate of the profile above, with provision also for lateral fixing. Thus the mosquito net stands alone during installation.

Please note:


• The height must exceed the base by only 7 cm;
• From 2001mm base to 1 door, Bettio inserts a reinforcement on the mesh in the upper part.



Neoscenica Bettio is much easier to install!

You can install the Neoscenica Bettio mosquito net in a few simple steps with different application possibilities. Furthermore, the adjustments are intuitive and are done with a single screwdriver.

The adjustment systems allow a compensation of 13 mm in height and 13 mm in width. Thus the aesthetic result will be perfect even in the case of out-of-square walls. The co-density will be -2 +11 in height if installed without double-sided tape.

If the mosquito net allows you to compensate for the out of square of the compartment with the product itself, then it means that you must adjust it at the end of installation.

A single 3mm hex screwdriver and:


1. Screw the big screw to fix the guide;
2. Adjust height: unscrew the small screw to lower the guide, then remove the template under the handle bar;
3. The game is done. Simple, isn't it?



As we wrote, the only tool needed to install and adjust Neoscenica Bettio is a hexagonal screwdriver with round head.

Out of square in width? No problem!

1. Move the box on the “teeth” of the support if the compartment is wider in the lower part;
2. Screw to move the box if the compartment is wider at the top;
3. Done!



Neoscenica Bettio: many versions for many installation solutions

Each type of installation requires specific and exclusive mounting accessories. Depending on the accessories used, the footprint of Neoscenica can be 46 mm, 50 mm or 51 mm.

Version 1: Standard Installation in the hole : choose this version if you can fix the mosquito net in the upper part of the compartment.

This is the version that will be sent to you if you order without specifying which version you want.

V1 is the Neoscenica for the traditional compartment : that is, every time I have held and can fix myself in the upper part of the compartment.

If you are interested in a free quote for all other versions please contact us.


Neoscenica Bettio versions upon customer request (ask for a quote)

• Version 2: Non load-bearing ceiling Installation in the hole : choose this version if you need to fix your mosquito net laterally. Pay attention to the double sash as in addition to the lateral fixing you will need to anchor the upper profile from the front.
• Version 3: Front with hole : choose this version if you want to install your mosquito net inside a compartment, perfectly adherent to the perimeter walls but you do not want to drill laterally (perhaps due to the presence of a very deep coat). In this version the fixing is frontal. The product distances itself from the window by about 5 mm and the protection from insects is given by the perimeter walls.
• Version 4: Front attachment : choose this version if you do not have perimeter walls to fix the mosquito net. It is a pure front attack system.



Neoscenica with new VELUM NERA net (optional)

VELUM NERA is the evolution of the classic net, more resistant and performing. It protects against damage caused by the sun's rays thanks to a slight shading effect that gives it a gTot of 0.34 if positioned outside a glass C.

This makes your mosquito net a solar protection and therefore falls within the deductions for the energy requalification of buildings.

If you are interested in the VELUM NERA network option, contact us to request a free quote.


Neoscenica is a safe and reliable window door mosquito net
