Motorization for Swing Shutters Double Leaf S TEL Chiaroscuro 80-115cm

Chiaroscuro
Brands: Chiaroscuro
Code: TL.2A.80
€ 655,50
Prices excluding VAT
Motorization for double-leaf shutters 80-115cm model S TEL Chiaroscuro. Safe and practical arm automation.
Are you looking for a product of Chiaroscuro catalog not present on our site? Contact us and ask for a quote.

- +

Chiaroscuro S TEL - Double Leaf 80-115cm 230Vac - Motorization for Arm Swing Shutters

Motorization for swing shutters, arm automation. L= 80 - 115 cm; First door right or left (your choice).

Discover the ideal solution for your home with the S TEL Double Leaf motorization system for swing shutters, specifically designed to offer you comfort and safety.

This automated swing shutter system is the perfect option for those looking to add a touch of modernity and functionality to their swing shutters. Thanks to its versatility, it is compatible with shutters with lengths ranging from 80 to 115 cm , ensuring perfect adaptability to different sizes of windows or French windows.

Motorization for Swing Shutters Double Leaf S TEL Chiaroscuro


Main features motorization for shutters

  • Dimensional compatibility : suitable for double doors of swing shutters with a length of 80 to 115 cm;
  • Installation versatility : possibility to choose whether right or left, thus adapting to every specific installation need;
  • Arm automation : This system uses an arm mechanism for automation, offering smooth and safe movement of the doors;
  • Power supply : operates at 230Vac, ensuring optimal energy efficiency and easy integration with the home electrical system;
  • Design S TEL Chiaroscuro : designed to integrate harmoniously with any type of architecture, both modern and traditional, thanks to its elegant and discreet appearance.

Motorization for Swing Shutters Double Leaf S TEL Chiaroscuro

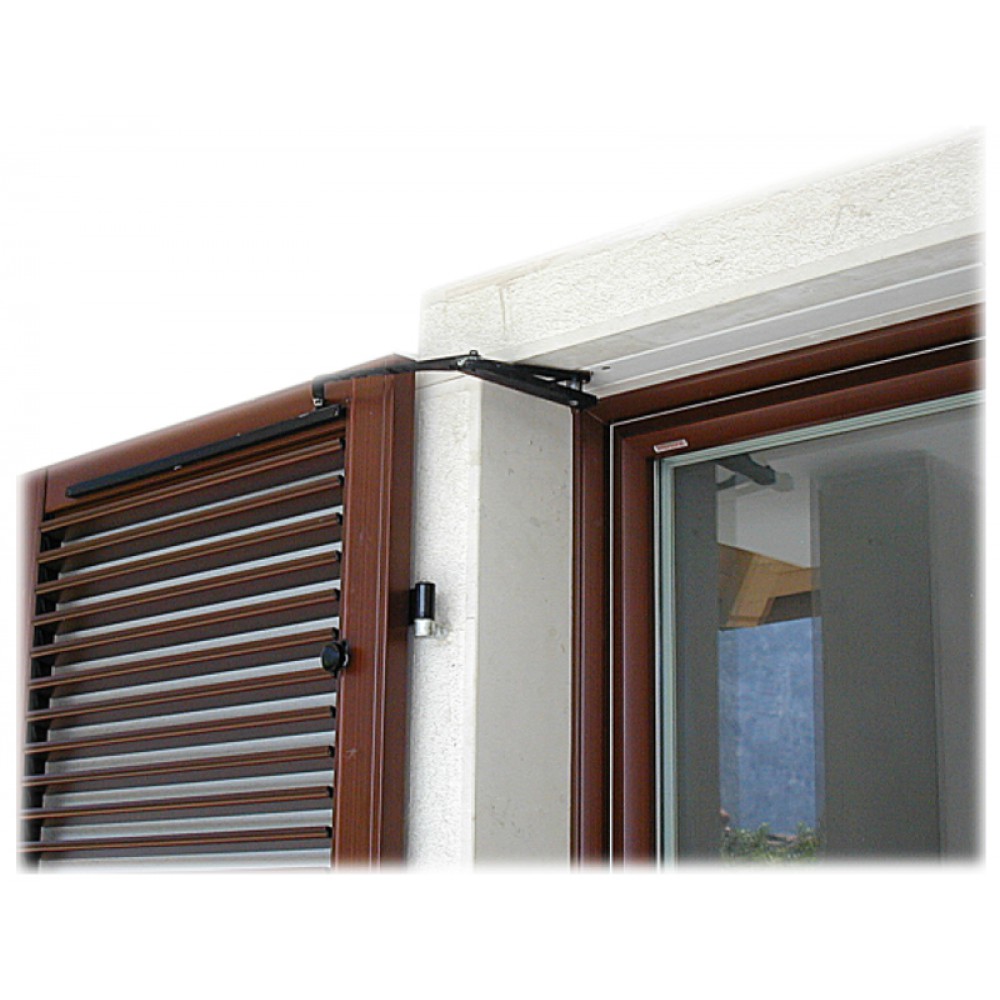

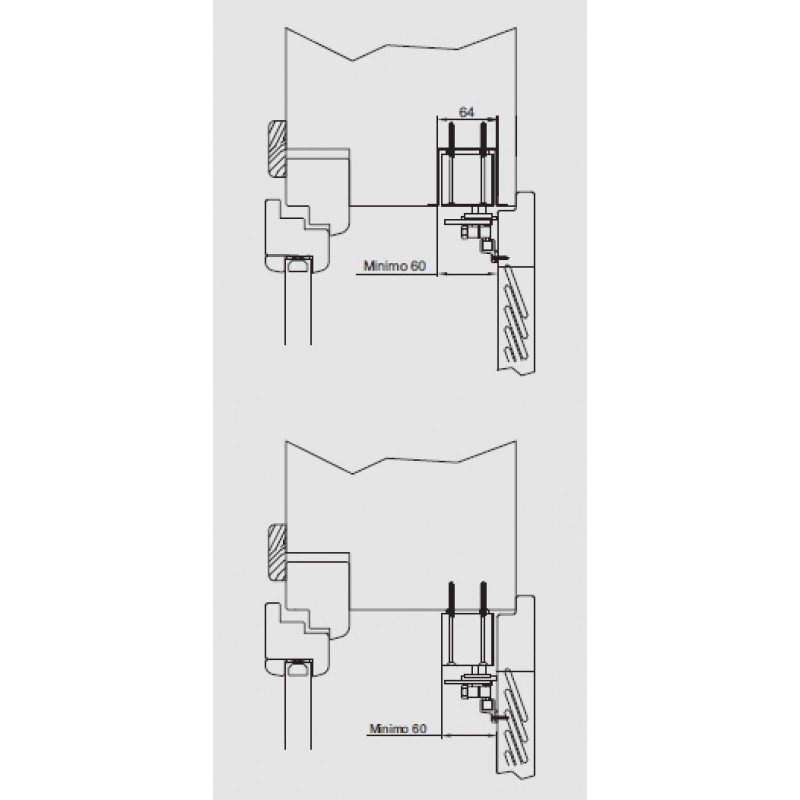

Application for shutter with straight strip and brick-in hinge

Add a touch of modernity and comfort to your home with S TEL Double Door, the ideal choice for those who want the best in terms of automation for swing shutters.

Kits are available that allow the application of S TEL on Vicenza style shutters (book door kit, code AC.LIBRO) and Paduan style shutters (Paduan shutter kit, code AC.PD). These kits can be purchased separately on Windowo.

Simple and versatile: the ideal solution for the comfort and practicality of life at home.

S TEL Chiaroscuro arm automation for swing shutters

Chiaroscuro automation for shutters


Automation for swing shutters: features and advantages

  • Convenient: no cold, rain and wind in winter or heat and mosquitoes in summer, the doors close at the push of a button inside the house without opening the windows.
  • Ultra compact: recommended for installations with limited space.
  • Safe: thanks to the irreversible motor.
  • Practical: designed to fit perfectly into systems with aluminum cover and rail.
  • Automatic control unit: automatic movement control unit that can be fully integrated with all home automation systems; it complies with safety requirements in the event of an impact and allows movement with partially closed or intermediate stop scenarios with a simple click.

Model S TEL 2 doors
80 - 115 cm
Code TL.2A.80
Motor power supply 230 Vac
Max door weight 50 kg
Max door size 80 - 115 cm
Max door surface 1.5 m²
Engine power 60W
Average absorption 0.8A
Couple 25 Nm
Working cycle 10 cycles/hour
Noise 50 db
Degree of protection IP 32
Electric lock Yes

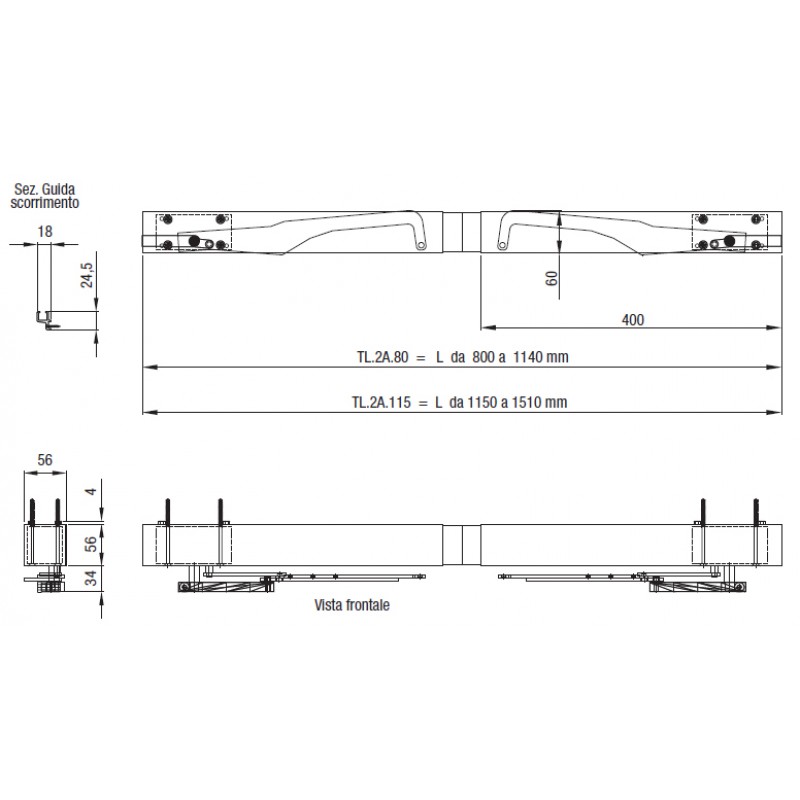

S TEL Chiaroscuro motor for shutters technical characteristics

chiaroscuro S TEL


Operators for shutters instruction manual

We recommend reading the instruction manual which you can find in PDF format by clicking on "Documents" at the top of this sheet.


Chiaroscuro automations: innovation and safety for swing shutters

Chiaroscuro Automazioni is an Italian company specialized in motors for swing shutters since 1998. The company stands out for its commitment to improving not only the convenience and accessibility of its customers' homes, but also for its significant contribution to safety and the energy efficiency of buildings.

The success of Chiaroscuro is based on a complete assistance model that covers all phases: from design to construction, from installation to after-sales assistance.

The Chiaroscuro motorization approach is characterized by particular attention to individual needs, ensuring that each system is integrated and functional within the building. With a wide range of specific variants available, the company is able to satisfy the most varied requests, making swing shutters more accessible and easier to manage.
